All about instantaneous water heaters! >
×

E-comfort instant water heater
DEX 12 Next L

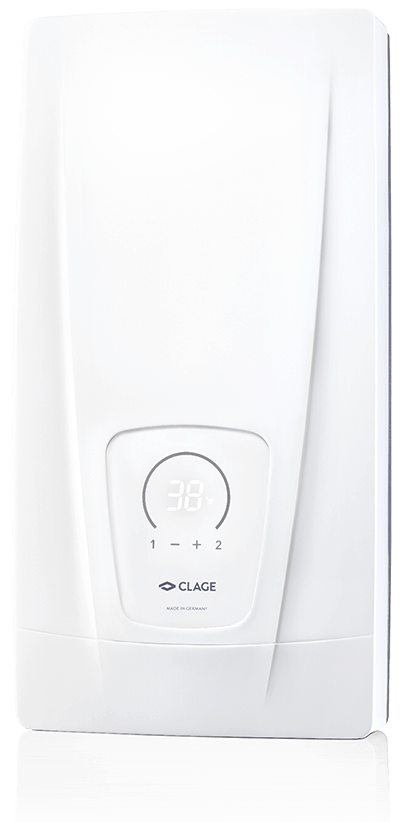

E-comfort instant water heater DEX 12 Next L

Energy efficiency class A

(Scale: A+ to F)

  • DEX 12 Next L: 8.8/11.5 kW, 220–240 V

This is where the DEX 12 Next L is used.

  1. Handwashbasin

    Handwashbasin

  2. Shower

    Shower

  3. Kitchen sink

    Kitchen sink

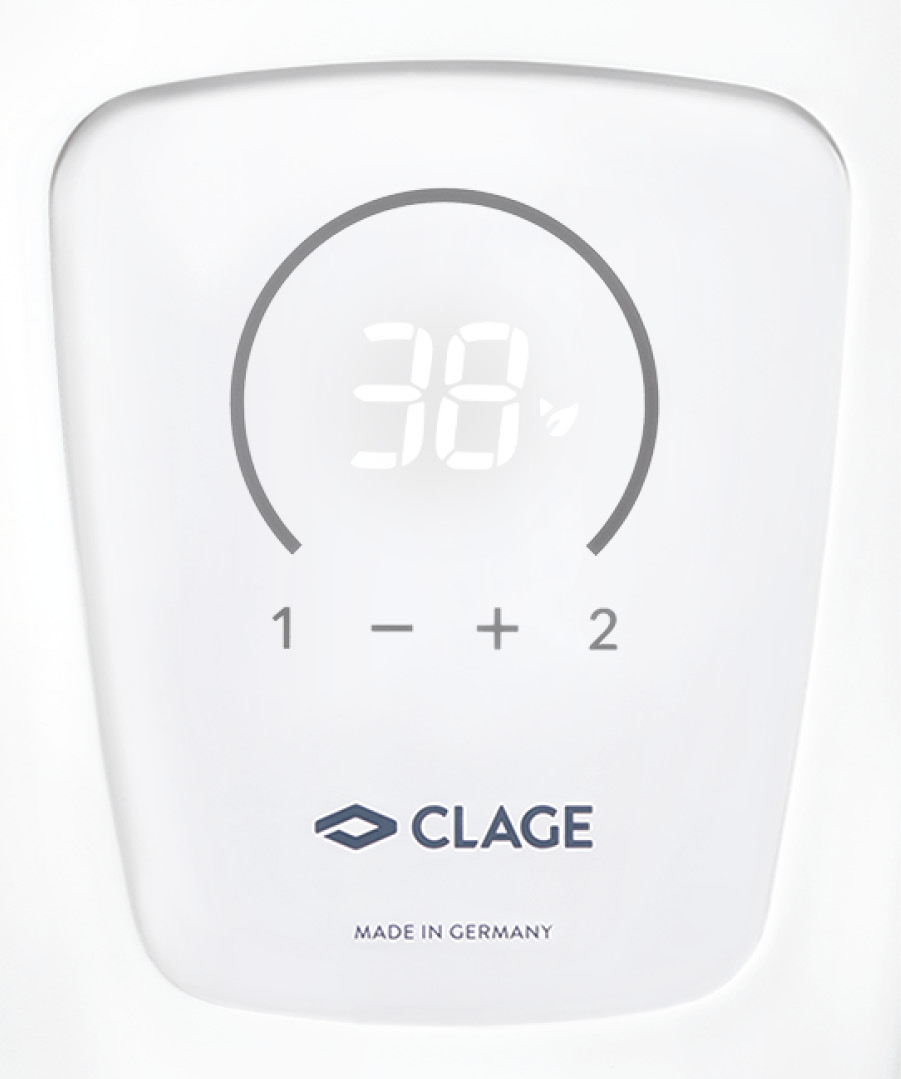

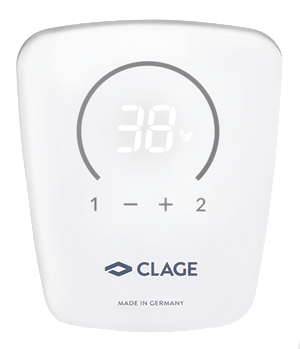

Convenient with LED display

New product
The DEX 12 Next L is conveniently controlled via an LED display with sensor keys. The two memory buttons are set to 38 °C and 42 °C respectively. Desired temperatures can be set individually. Parameters can be set and read out via the service menu.

Awards E-comfort instant water heater DEX 12 Next L
  • Electronically controlled comfort instantaneous water heater with sensor control panel and LED display
  • Precise temperatures between 20 °C and 60 °C thanks to TWIN TEMPERATURE Control TTC.
  • Particularly air-resistant heating system thanks to innovative heating channel arrangement
  • Bare-wire heating system IES ensures a longer service life, less calcification and is efficient and easy to maintain
  • Electronic safety system with air bubble detection, temperature and pressure shut-off
  • Multiple Power System MPS determines the maximum power consumption at installation: 8,8 oder 11,5 kW, 230 V
  • Easy installation thanks to free installation space and variable connection options
  • Suitable for water-saving fittings: particularly low switch-on water quantity from 1.5 l/min thanks to innovative water flow technology
  • Dimensions (height × width × depth): 46.8 × 23.9 × 9.6 cm

Technical data

>

Data. Values. Facts.
















E-comfort instant water heater DEX 12 Next L
Handwashbasin Shower Kitchen sink
DEX 12 Next L
Part number
Nominal power rating 1) (variably adjustable due to MPS) at 230 V [kW]
Maximum operating pressure [MPa (bar)]
Water connections (thread connections)
Hot water output at Δt = 28 K 2) [l/min]
Switch-on flow rate [l/min]
Maximum flow rate 3) [l/min]
Supply voltage [1~ / N / PE 220–240 V AC] permanent connection
Nominal current at 230 V [A]
Required cable diameter [mm²]
Maximum inlet temperature [°C]
Protection class
Specific water resistance at 15 °C [Ωcm] ≥
Weight filled with water [kg], approx.
3200-36452
8.8 11.5
1 (10) 1 (10)
G ½" G ½"
4.5 5.9
1.5 1.5
5.0 5.0
38.3 50.0
10 10
30 30
IP 25 IP 25
1300 1300
4.2 4.2

1) The selected power rating determines the values of nominal current and hot water output

2) Temperature increase e.g. from 12 °C to 40 °C (mixed water at flow rate >5 l/min)

3) Limited flow amount for optimal temperature increase

Downloads

>

Media type Title Date Size

Product information sheet

DEX12-Next-L-PI-en.pdf

06.06.2023

> download
Product information sheet DEX12-Next-L-PI-en.pdf 06.06.2023 404 kB
> download

Operating and installation instructions

DEX12-Next-L-Online-GMA-de-en-fr-nl-pt-es-pl-ru-cs-sk-bg-sr-03-2023.pdf

16.03.2023

> download
Operating and installation instructions DEX12-Next-L-Online-GMA-de-en-fr-nl-pt-es-pl-ru-cs-sk-bg-sr-03-2023.pdf 16.03.2023 36,0 MB
> download

Quick guide

DEX12-Next-L-KA-de-en-fr-nl-pt-es-pl-ru-cs-sk-bg-sr.pdf

26.05.2023

> download
Quick guide DEX12-Next-L-KA-de-en-fr-nl-pt-es-pl-ru-cs-sk-bg-sr.pdf 26.05.2023 6,2 MB
> download

Image-only instructions

DX3-230V-Bilderanleitung-mit-DMB.pdf

19.07.2023

> download
Image-only instructions DX3-230V-Bilderanleitung-mit-DMB.pdf 19.07.2023 1,9 MB
> download

Energy label

DEX12-Next-L-Energielabel-2023.pdf

28.03.2023

> download
Energy label DEX12-Next-L-Energielabel-2023.pdf 28.03.2023 232 kB
> download

ErP product sheet

DX3.1-DEX12-Next-L-ErP-Produktdatenblatt.pdf

27.03.2023

> download
ErP product sheet DX3.1-DEX12-Next-L-ErP-Produktdatenblatt.pdf 27.03.2023 102 kB
> download

Product photo


20.09.2023

> download

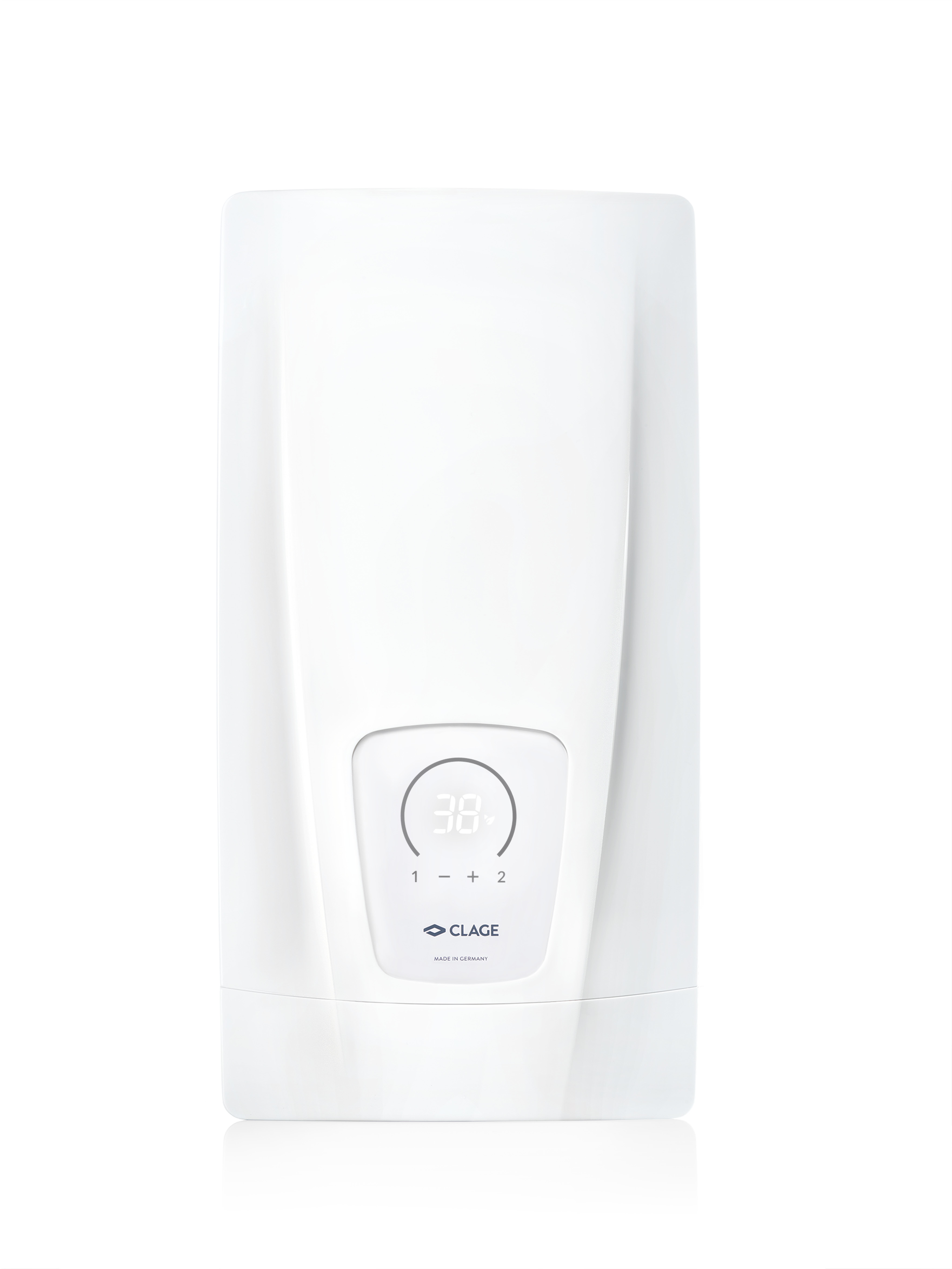

Product photo DEX-Next-L-frontal.jpg 20.09.2023 294 kB
> download

Neues Element (57)


20.09.2023

> download
Neues Element (57) DEX-Next-L-Bedienfolie.jpg 20.09.2023 62 kB
> download

Accessories

>

FX 3

FX 3 (optional)

Additional remote control for convenient temperature adjustment of the instantaneous water heater over a distance of approx. 10 metres in the building. Secure, Bluetooth® wireless transmission, stepless temperature selection via two keys, two fixed value keys and an LCD display, magnetic wall bracket and batteries (included). IP 20. Dimensions (H × W × D): 5.8 × 12.5 × 1,9 cm

FX 3: Part no. 3200-34021

FXS 3 (D, M)

FXS 3 (D, M) (optional)

FX 3 Radio remote control plus Bluetooth® radio adapter FXE in a set for installation in the instantaneous water heater. In addition to the operation at the device, the radio remote control enables the comfortable temperature adjustment of the instantaneous water heater over a distance of approx. 10 metres in the building. Secure Bluetooth wireless transmission, stepless temperature selection via two keys, two fixed value keys and an LCD display, magnetic wall bracket and batteries (included). IP 20. Dimensions (H × B × T): 5,8 × 12,5 × 1,9 cm

FXS 3 (D, M): Part no. 3200-34020

FXE 3 (D, M)

FXE 3 (D, M) (optional)

Bluetooth® radio adapter for installation in the instantaneous water heater to connect the electric instantaneous water heater to the Smartphone / Tablet or the CLAGE remote control. This extension is required if the devices are not yet equipped with a FX 3 radio remote control.

FXE 3 (D, M): Part no. 3200-34022

FXS Next (D)

FXS Next (D) (optional)

Bluetooth radio remote control for electronic instantaneous water heaters, temperature selection and settings via sensor keys in an intuitive menu navigation, with e-paper display, Bluetooth connection for secure data transmission between radio remote control and instantaneous water heater, FXE 3 radio adapter for installation in the instantaneous water heater (D series) included in the scope of delivery of FXS Next, batteries and magnetic wall bracket included in the scope of delivery.

FXS Next (D): Part no. 3200-34025

RDX 3

RDX 3 (optional)

If required, the universal mounting frame RDX 3 is available as an accessory, with which the electrical connection can be made at any point behind the device. The IP protection class of the device with RDX 3 is IP24. With electrical wiring and pipe extensions. For difficult installation conditions, e.g. replacement of a flow heater with different connections. Compensates for tile projections or wall unevenness. Installation only by a specialist.

RDX 3: Part no. 3200-36100

UDX

UDX (optional)

Pipe assembly for undersink installation with water connections, top flush-mounted G ⅜ inch (basic mounting kit RDX required).

UDX: Part no. 3200-34110

VDX

VDX (optional)

Pipe assembly for offset installation or reversed water connections when exchanging gas water heaters (basic mounting kit RDX required).

VDX: Part no. 3200-34120

Interesting features.

  1. Smart Control capable (optional)

    Smart Control capable (optional)

Similar products:

E-comfort instant water heater DEX 12 Next
DEX 12 Next: 8.8/11.5 kW, 220–240 V

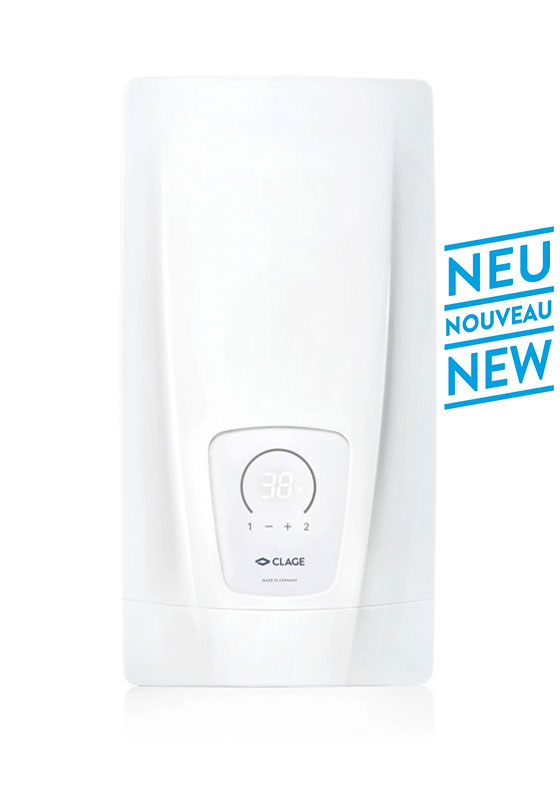

E-comfort instant water heater DEX Next L
