Vented taps for washbasins
END, EWT, SNM, SNT

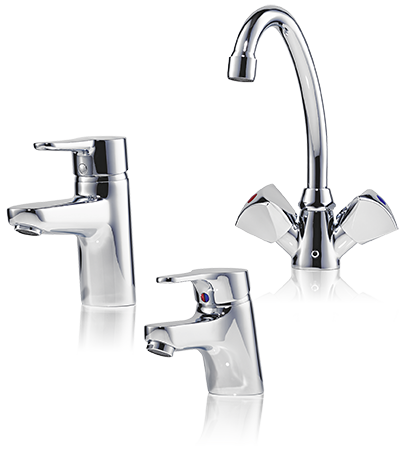

Vented taps for washbasins END, EWT, SNM, SNT
  • END
    Single-lever mixing tap
  • EWT
    Single-lever mixing tap
  • SNM
    Two-handle mixer tap
  • SNT
    Two-handle tempering mixer

Application areas:

  1. Handwashbasin

    Handwashbasin

Vented taps for open-outlet installation.

High-quality single-hole mixer taps with chrome surfaces for under-sink installation with individually replaceable, flexible connection hoses. These taps are suitable for installation on hand-washing basins.

  • END: single-lever mixing tap with with EASY FIX mounting system and pull-up drain stopper, spout 10.5 cm, height × width: 11.1 × 15.2 cm. Also available as a set with small instantaneous water heater: M / END.
  • EWT: single-lever mixing tap for open-outlet installation, made of nickel- and lead-free materials, with EASY FIX mounting system and pull-up drain stopper, spout 11.2 cm, height × width: 15.1 × 17.5 cm. Also available as a set with small instantaneous water heater: MCX Blue.
  • SNM: two-handle mixer tap with swivel spout 16 cm, height × width: 22.5 × 16 cm. Also available as a set with small instantaneous water heater: M / SNM.
  • SNT: two-handle tempering mixer for open-outlet installation, with swivel spout 15 cm, height × width: 23.5 × 15.5 cm

Technical data

>

Data. Values. Facts.












Vented taps for washbasins END Vented taps for washbasins EWT Vented taps for washbasins SNM Vented taps for washbasins SNT
Handwashbasin Handwashbasin Handwashbasin Handwashbasin
END EWT SNM SNT
Part number
Type: vented
Water connections (thread connections)
Pull-up drain stopper included
Swivel spout
For E-mini instant water heaters
For E-compact instant water heaters
For hot water storage heaters
Spout [cm]
Dimensions (height) [cm]
1100-04410 1100-04420 1100-04200 4100-02100
G ⅜" G ⅜" G ⅜" G ⅜"





10.6 11.2 16.0 15.5
11.1 15.1 22.5 23.5

Downloads

>

Media Title Date Size

Product information sheet

Taps-for-pressureless-water-heaters-pi-en.pdf

09.07.2020

> download
Product information sheet Taps-for-pressureless-water-heaters-pi-en.pdf 09.07.2020 1,3 MB
> download

Operating and installation instructions

SNM-SKM-GMA-de-en-fr-nl-pl-cs.pdf

21.03.2018

> download
Operating and installation instructions SNM-SKM-GMA-de-en-fr-nl-pl-cs.pdf 21.03.2018 600 kB
> download
  Older versions>
 Operating and installation instructionsSNM-SKM-GMA-de-en-fr-nl-pl-cs-09-2015.pdf> download> download
  Further versions on request

Operating and installation instructions

END-GMA-de-en.pdf

25.06.2015

> download
Operating and installation instructions END-GMA-de-en.pdf 25.06.2015 859 kB
> download

Operating and installation instructions

EWT-GMA-de-en.pdf

08.09.2016

> download
Operating and installation instructions EWT-GMA-de-en.pdf 08.09.2016 994 kB
> download
  Older versions>
 Operating and installation instructionsEWT-GMA-de-en-06-2015.pdf> download> download
  Further versions on request

Catalogue

CLAGE-Instantaneous-water-heater-Catalogue-en.pdf

13.05.2020

> download
Catalogue CLAGE-Instantaneous-water-heater-Catalogue-en.pdf 13.05.2020 17,7 MB
> download

Price list

Product-Price-List-PPL-en.pdf

23.03.2020

> download
Price list Product-Price-List-PPL-en.pdf 23.03.2020 3,3 MB
> download

BIM

EWT-002-BIM.rfa

16.04.2018

> download
BIM EWT-002-BIM.rfa 16.04.2018 552 kB
> download

BIM

EWT-001-BIM.ifc

16.04.2018

> download
BIM EWT-001-BIM.ifc 16.04.2018 3,4 MB
> download

Datanorm

Datanorm.zip

24.06.2020

> download
Datanorm Datanorm.zip 24.06.2020 39,7 MB
> download

GAEB

GAEB.zip

24.06.2020

> download
GAEB GAEB.zip 24.06.2020 377 kB
> download
