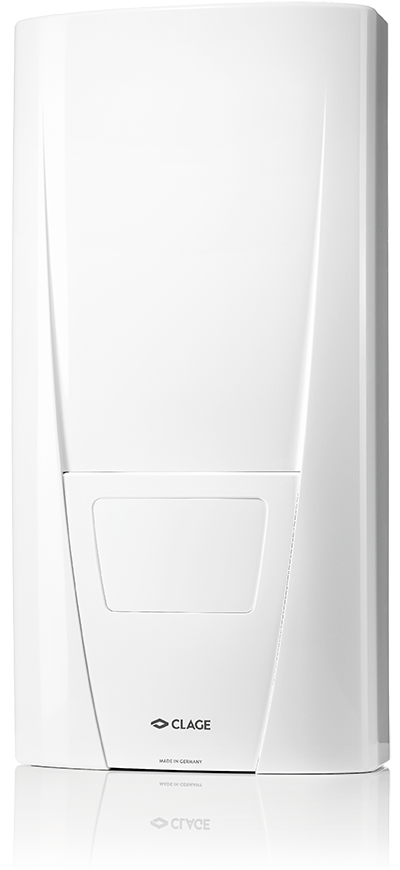

E-comfort instant water heater
DBX (Alt/EoL)

E-comfort instant water heater DBX (Alt/EoL)

Energy efficiency class A

(scale: A+ to F)

  • DBX 18
    no longer available
  • DBX 21
    no longer available
  • DBX 24
    no longer available
  • DBX 27
    no longer available

This is where the DBX is used.

  1. Handwashbasin

    Handwashbasin

  2. Shower

    Shower

  3. Bath tub

    Bath tub

  4. Kitchen sink

    Kitchen sink

Archive product

This product is no longer available!

If you have any questions, please contact our after-sales service or visit our online spare parts shop. When doing so, please have the details of the unit type, the serial number and, if available, your CLAGE customer number ready.

After-sales service
Tel. +49-4131-8901-400
service@clage.de

Visit our online spare parts shop here.

  • Electronically controlled basic instant water heater without user controls
  • Automatic heating adjustment based on flow rate and inlet temperature, outlet temperature is factory-set to 50 °C (adjustable internally)
  • Electronic safety system with temperature and pressure shut-off
  • Dimensions (height × width × depth): 46.6 × 23.0 × 9.7 cm

Technical data

>

Data. Values. Facts.
















E-comfort instant water heater DBX 18 E-comfort instant water heater DBX 21 E-comfort instant water heater DBX 24 E-comfort instant water heater DBX 27
Handwashbasin Shower Bath tub Kitchen sink Handwashbasin Shower Bath tub Kitchen sink Handwashbasin Shower Bath tub Kitchen sink Handwashbasin Shower Bath tub Kitchen sink
DBX 18 DBX 21 DBX 24 DBX 27
Part number
Nominal power rating [kW]
Maximum operating pressure [MPa (bar)]
Water connections (thread connections)
Hot water output at Δt = 28 K 1) [l/min]
Switch-on flow rate [l/min]
Maximum flow rate 2) [l/min]
Supply voltage [3~ / PE 400 V AC] Permanent connection
Nominal current [A]
Required cable diameter [mm²]
Maximum inlet temperature [°C]
Protection class
Specific water resistance at 15 °C [Ωcm] ≥
Weight filled with water [kg], approx.
3200-34118 3200-34121 3200-34124 3200-34127
18 21 24 27
1 (10) 1 (10) 1 (10) 1 (10)
G ½" G ½" G ½" G ½"
9.2 10.7 12.3 13.8
2.5 2.5 2.5 2.5
7.0 8.0 8.0 9.0
26 30 35 39
4.0 4.0 6.0 6.0
30 30 30 30
IP 25 IP 25 IP 25 IP 25
1300 1300 1300 1300
3.7 3.7 3.7 3.7

1) Temperature increase e.g. from 12 °C to 40 °C, mixed water

2) Limited flow amount for optimal temperature increase
