E-comfort instant water heater
DSX Touch

E-comfort instant water heater DSX Touch

Energy efficiency class A

(Scale: A+ to F)

  • DSX Touch: 18/21/24/27 kW, 400 V

This is where the DSX Touch is used.

  1. Handwashbasin

    Handwashbasin

  2. Shower

    Shower

  3. Bath tub

    Bath tub

  4. Kitchen sink

    Kitchen sink

For your new wellness oasis.

The top appliance among the E-comfort instantaneous water heaters turns the bathroom into a wellness oasis with an energy-efficient and cost-transparent hot water supply. The new DSX Touch for shower and bath evolutionizes the CLAGE design language. State-of-the-art technology, durable materials and compact design ensure high quality and conserve resources. The device is operated intuitively via the new touch display made of real glass. The display has a high color depth, can display gradients and shows animations. With the user-friendly icons, operation is simply fun.

By the integrated Bluetooth and WLAN function the equipment can be steered also with remote control or by smartphone or tablet. Using the "Smart Control" app simplifies the commissioning and maintenance of the device. The individual consumption values of several users can also be displayed quickly and easily. This is contemporary ease of use!

Awards E-comfort instant water heater DSX Touch
  • Fully electronically controlled high-tech instantaneous water heater with real glass touch display and Bluetooth remote control for convenient and economical hot water supply to one or more tap(s)
  • Temperature always accurate to the degree between 20 °C and 60 °C thanks to TWIN TEMPERATURE Control TTC® and SERVOTRONIC® dynamic flow rate control
  • In the comfort zone between 35 °C and 43 °C, the temperature can be set in 0.5 degree increments
  • Bare wire heating system IES® ensures a longer service life, less calcification and is efficient and easy to maintain.
  • Function for thermal treatment with 70 °C for more hygiene
  • Particularly air-resistant heating system thanks to innovative heating duct arrangement
  • Multiple Power System MPS® determines the maximum power consumption during installation: 18, 21, 24 or 27 kW
  • Suitable for water-saving taps due to particularly low switch-on water quantity from 1.5 l/min thanks to innovative water flow technology
  • Integrated WLAN and Bluetooth function for connecting to smartphones and tablets, for example.
  • Electronic safety system with air bubble detection, temperature and pressure switch-off and water stop function
  • With automatic bathtub filling function according to adjustable quantity (in litres) and with separate timer function
  • Dimensions (height × width × depth): 46.8 × 23.9 × 9.6 cm

Technical data

>

Data. Values. Facts.

















E-comfort instant water heater DSX Touch
Handwashbasin Shower Bath tub Kitchen sink
DSX Touch
Part number
Nominal power rating 1) (variably adjustable due to MPS) at 400 V [kW]
Permissible operating pressure [MPa (bar)] 2)
Water connections (thread connections)
Hot water output at Δt = 28 K 3) [l/min]
Switch-on flow rate [l/min]
Maximum flow rate: automatic [l/min] 4)
Supply voltage [3~ / PE 400 V AC] Permanent connection 5)
Nominal current at 400 V [A]
Required cable diameter [mm²]
Maximum inlet temperature [°C]
Solar-ready 6)
Protection class
Specific water resistance at 15 °C [Ωcm] ≥
Weight filled with water [kg], approx.
3200-36600
18 21 24 27
1 (10) 1 (10) 1 (10) 1 (10)
G ½" G ½" G ½" G ½"
9.2 10.7 12.3 13.8
1.5 1.5 1.5 1.5
26 30 35 39
4.0 4.0 6.0 6.0
70 70 70 70
IP 25 IP 25 IP 25 IP 25
1100 1100 1100 1100
4.5 4.5 4.5 4.5

1) The selected power rating determines the values of nominal current, cable diameter and hot water output

2) Also approved for pressureless operation

3) Temperature increase e.g. from 12 °C to 40 °C, mixed water

4) Depending on line pressure, selected temperature and inlet temperature

5) Alternatively connectable to 380 V

6) Suitable for reheating

Downloads

>

Media type Title Date Size

Product information sheet

DSX-Touch-PI-en.pdf

20.07.2023

> download
Product information sheet DSX-Touch-PI-en.pdf 20.07.2023 701 kB
> download

Operating and installation instructions

DSX-Touch-Online-GMA-de-en-fr-nl-pt-es-pl-ru-cs-sk-bg-sr.pdf

11.01.2024

> download
Operating and installation instructions DSX-Touch-Online-GMA-de-en-fr-nl-pt-es-pl-ru-cs-sk-bg-sr.pdf 11.01.2024 33,7 MB
> download
  Older versions>
 Operating and installation instructionsDSX-Touch-Online-GMA-de-en-fr-nl-pt-es-pl-ru-cs-sk-bg-sr-05-2023.pdf> download> download
  Further versions on request

Quick guide

DSX-Touch-KA-de-en-fr-nl-pt-es-pl-ru-cs-sk-bg-sr.pdf

03.04.2023

> download
Quick guide DSX-Touch-KA-de-en-fr-nl-pt-es-pl-ru-cs-sk-bg-sr.pdf 03.04.2023 7,2 MB
> download

Image-only instructions

DX3-400V-BiA.pdf

16.05.2022

> download
Image-only instructions DX3-400V-BiA.pdf 16.05.2022 2,0 MB
> download
  Older versions>
 Image-only instructionsDSX-Touch-DFX-Next-BiA.pdf> download> download
 Image-only instructionsDSX-Touch-BiA-01-2019.pdf> download> download
  Further versions on request

Installation accessories

DX3-Montageschablone-de-en-fr-nl-pl-cs-sk-pt-es-sv.pdf

13.11.2018

> download
Installation accessories DX3-Montageschablone-de-en-fr-nl-pl-cs-sk-pt-es-sv.pdf 13.11.2018 370 kB
> download

Safety instructions

Sicherheitshinweise-Durchlauferhitzer-de-en-fr-nl-pt-es-pl-sv-cs-sk-bg-no-fi-ru-sr-el-it-tr-ro.pdf

03.11.2023

> download
Safety instructions Sicherheitshinweise-Durchlauferhitzer-de-en-fr-nl-pt-es-pl-sv-cs-sk-bg-no-fi-ru-sr-el-it-tr-ro.pdf 03.11.2023 371 kB
> download

Energy label

DSX-Touch-Energielabel.pdf

28.03.2023

> download
Energy label DSX-Touch-Energielabel.pdf 28.03.2023 231 kB
> download

ErP product sheet

DSX-Touch-ErP-Produktdatenblatt.pdf

27.03.2023

> download
ErP product sheet DSX-Touch-ErP-Produktdatenblatt.pdf 27.03.2023 102 kB
> download

CE Conformity

CE-Konformitaetserklaerung-nach-RED+RoHS3-DX3-2023-04.pdf

21.04.2023

> download
CE Conformity CE-Konformitaetserklaerung-nach-RED+RoHS3-DX3-2023-04.pdf 21.04.2023 1,3 MB
> download

Product photo


22.12.2020

> download
Product photo DSX-Touch-Produktfoto.jpg 22.12.2020 692 kB
> download

Product photo


16.05.2022

> download
Product photo DSX-Touch-FX3-highres.jpg 16.05.2022 302 kB
> download

Product photo


16.05.2022

> download
Product photo DSX-Touch--FX.jpg 16.05.2022 121 kB
> download

Detailed view


19.09.2019

> download
Detailed view DSX-Touch-Display-Zapfmodus.jpg 19.09.2019 281 kB
> download

Detailed view


19.09.2019

> download
Detailed view DSX-Touch-Display-Bedienmodus.jpg 19.09.2019 265 kB
> download

Detailed view


19.09.2019

> download
Detailed view DSX-Touch-Display-Statistiken.jpg 19.09.2019 271 kB
> download

Detailed view


19.09.2019

> download
Detailed view DSX-Touch-Display-Hauptmenue.jpg 19.09.2019 259 kB
> download

Image photo


19.09.2019

> download
Image photo DSX-Touch-Bad-2-Revisionsklappe.jpg 19.09.2019 1,3 MB
> download

Image photo


19.09.2019

> download
Image photo DSX-Touch-Bad-3-Badmoebel.jpg 19.09.2019 1,1 MB
> download

Image photo


19.09.2019

> download
Image photo DSX-Touch-Bad-4-offen.jpg 19.09.2019 1,3 MB
> download

Neues Element (58)


19.09.2019

> download
Neues Element (58) DSX-Touch-Bad-1-Wandnische.jpg 19.09.2019 1,9 MB
> download

Info graphic

Smart-Control.pdf

18.05.2022

> download
Info graphic Smart-Control.pdf 18.05.2022 2,1 MB
> download

27.11.2024

> download
27.11.2024 0 kB
> download

Catalogue

CLAGE-Complete-catalogue-en.pdf

16.10.2024

> download
Catalogue CLAGE-Complete-catalogue-en.pdf 16.10.2024 11,0 MB
> download

Catalogue

CLAGE-Brochure-en.pdf

31.01.2023

> download
Catalogue CLAGE-Brochure-en.pdf 31.01.2023 5,7 MB
> download

Brochure

CLAGE-Product-carbon-footprint-2024-en.pdf

31.05.2024

> download
Brochure CLAGE-Product-carbon-footprint-2024-en.pdf 31.05.2024 11,9 MB
> download

Hotnews

CLAGE_Hotnews_2023-EN-online.pdf

10.03.2023

> download
Hotnews CLAGE_Hotnews_2023-EN-online.pdf 10.03.2023 13,9 MB
> download

General

CLAGE-DX3-FlyerA4-en.pdf

01.10.2020

> download
General CLAGE-DX3-FlyerA4-en.pdf 01.10.2020 1,2 MB
> download

General

DX3-Falzflyer-en.pdf

23.07.2021

> download
General DX3-Falzflyer-en.pdf 23.07.2021 2,4 MB
> download

General

CLAGE-Hot-Water-Guide-for-House-Construction-en.pdf

04.06.2024

> download
General CLAGE-Hot-Water-Guide-for-House-Construction-en.pdf 04.06.2024 5,6 MB
> download

Price list

CLAGE-Product-Price-List-PPL-en.pdf

10.05.2023

> download
Price list CLAGE-Product-Price-List-PPL-en.pdf 10.05.2023 6,6 MB
> download

BIM

DX3-DSX-Touch-001-BIM.ifc

22.06.2022

> download
BIM DX3-DSX-Touch-001-BIM.ifc 22.06.2022 7,3 MB
> download

BIM

DX3-DSX-Touch-001-BIM.rfa

22.06.2022

> download
BIM DX3-DSX-Touch-001-BIM.rfa 22.06.2022 2,6 MB
> download

BIM

DSX-Touch.ifc

27.06.2022

> download
BIM DSX-Touch.ifc 27.06.2022 8,3 MB
> download

BIM

DSX-Touch.rfa

27.06.2022

> download
BIM DSX-Touch.rfa 27.06.2022 1,2 MB
> download

Datanorm

Datanorm.zip

03.06.2024

> download
Datanorm Datanorm.zip 03.06.2024 40 kB
> download

GAEB

GAEB.zip

03.06.2024

> download
GAEB GAEB.zip 03.06.2024 725 kB
> download

Accessories

>

FXS 3 (D, M)

FXS 3 (D, M) (included)

FX 3 Radio remote control plus Bluetooth® radio adapter FXE in a set for installation in the instantaneous water heater. In addition to the operation at the device, the radio remote control enables the comfortable temperature adjustment of the instantaneous water heater over a distance of approx. 10 metres in the building. Secure Bluetooth wireless transmission, stepless temperature selection via two keys, two fixed value keys and an LCD display, magnetic wall bracket and batteries (included). IP 20. Dimensions (H × B × T): 5,8 × 12,5 × 1,9 cm

FXS 3 (D, M): Part no. 3200-34020

FX 3

FX 3 (optional)

Additional remote control for convenient temperature adjustment of the instantaneous water heater over a distance of approx. 10 metres in the building. Secure, Bluetooth® wireless transmission, stepless temperature selection via two keys, two fixed value keys and an LCD display, magnetic wall bracket and batteries (included). IP 20. Dimensions (H × W × D): 5.8 × 12.5 × 1.9 cm

FX 3: Part no. 3200-34021

RDX 3

RDX 3 (optional)

If required, the universal mounting frame RDX 3 is available as an accessory, with which the electrical connection can be made at any point behind the device. The IP protection class of the device with RDX 3 is IP24. With electrical wiring and pipe extensions. For difficult installation conditions, e.g. replacement of a flow heater with different connections. Compensates for tile projections or wall unevenness. Installation only by a specialist.

RDX 3: Part no. 3200-36100

UDX

UDX (optional)

Pipe assembly for undersink installation with water connections, top flush-mounted G ⅜ inch (basic mounting kit RDX required).

UDX: Part no. 3200-34110

VDX

VDX (optional)

Pipe assembly for offset installation or reversed water connections when exchanging gas water heaters (basic mounting kit RDX required).

VDX: Part no. 3200-34120

Interesting features.

  1. Smart Control-ready

    Smart Control-ready

  2. Bluetooth remote control included

    Bluetooth remote control included

  3. Integrated Wi-Fi function

    Integrated Wi-Fi function

  4. Solar-compatible, suitable for reheating

    Solar-compatible, suitable for reheating

Product video

Installation video

Similar products:

E-comfort instant water heater DEX Next S
DEX Next S: 18/21/24/27 kW, 400 V
E-comfort instant water heater DEX Next
DEX Next: 18/21/24/27 kW, 400 V
E-module instantaneous water heater ISX
ISX: 18/21/24/27 kW, 400 V

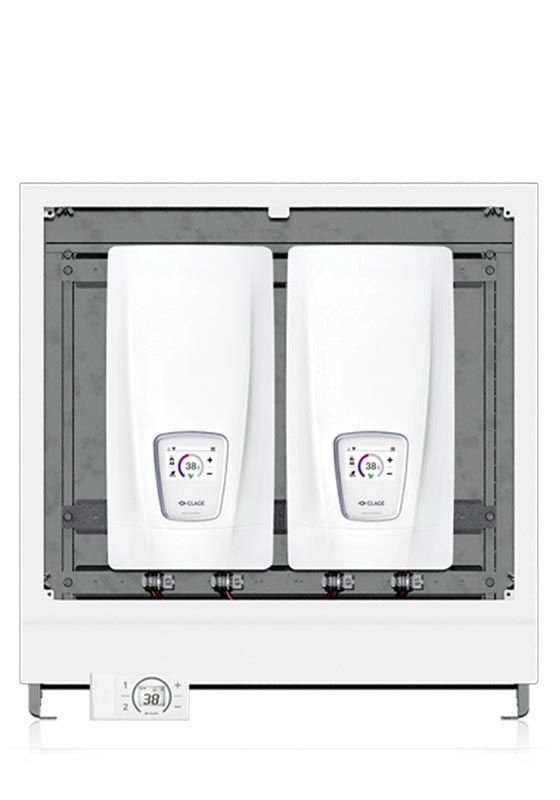

E-module instantaneous water heater ISX Twin
