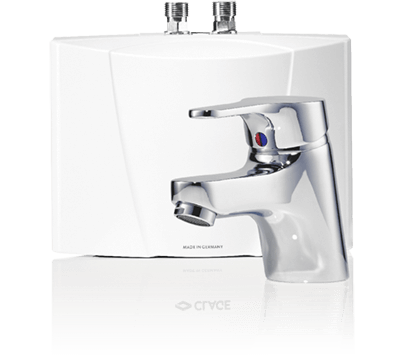

E-mini instant water heater with tap
M / END
Energy efficiency class A
(scale: A+ to F)
- M 3 / END: 3.5 kW, 230 V
with plug
This is where the M / END is used.
-
Wash hand basin
(e.g. guest toilet) -
Sanitary facilities in commercial buildings
Kits for below and above .
The pressureless small instantaneous water heater is supplied as a complete set with a suitable single-lever mixer tap. Cost-effective and quickly installed, the device saves precious standby power at every hand-wash basin.
- Hydraulically controlled small instantaneous water heater with pressureless single-lever washbasin mixer tap for under-sink installation
- The heating capacity is switched on automatically as soon as water flows through the unit
- New flow technology for optimum water jet with economical water consumption
- Effective and maintenance-friendly bare-wire heating system IES® with replaceable heating cartridge
- Simple installation with flexible steel hoses G ⅜" × 50 cm and power cord with plug
- Single lever basin mixer tap with EASY FIX fixing system and pop-up waste (eccentric)
- Dimensions (height × width × depth): 13.5 × 18.6 × 8.7 cm
Technical data
>
Data. Values. Facts.
|
|||||||||||||||||||||||||||||
|
|
1) Temperature increase e.g. from 15 °C to 40 °C
2) Limited flow amount for optimal temperature increase by water flow adjustment
Downloads
>
Media type | Title | Date | Size | |
---|---|---|---|---|
Product information sheet MEND-PI-en.pdf 18.10.2018 > download |
Product information sheet | MEND-PI-en.pdf | 18.10.2018 |
415 kB > download |
Operating and installation instructions M-GMA-de-en-fr-nl-pl-cs-sk-no-sv-bg-fi-pt-es.pdf 21.09.2022 > download |
Operating and installation instructions | M-GMA-de-en-fr-nl-pl-cs-sk-no-sv-bg-fi-pt-es.pdf | 21.09.2022 |
6,8 MB > download |
Older versions> | ||||
Operating and installation instructions | M-GMA-de-en-fr-nl-pl-cs-sk-no-sv-bg-fi-pt-es-10-2018.pdf> download | > download | ||
Operating and installation instructions | M-MBH-Beiblatt-de-en-fr-nl-pt-es-cs-sk-bg-fi-no-sv-04-2018.pdf> download | > download | ||
Further versions on request | ||||
Operating and installation instructions END-GMA-de-en-fr.pdf 04.06.2021 > download |
Operating and installation instructions | END-GMA-de-en-fr.pdf | 04.06.2021 |
952 kB > download |
Older versions> | ||||
Operating and installation instructions | END-GMA-de-en-06-2015.pdf> download | > download | ||
Further versions on request | ||||
Safety instructions Sicherheitshinweise-Durchlauferhitzer-de-en-fr-nl-pt-es-pl-sv-cs-sk-bg-no-fi-ru-sr-el-it-tr-ro.pdf 03.11.2023 > download |
Safety instructions | Sicherheitshinweise-Durchlauferhitzer-de-en-fr-nl-pt-es-pl-sv-cs-sk-bg-no-fi-ru-sr-el-it-tr-ro.pdf | 03.11.2023 |
371 kB > download |
Energy label M3-Energielabel.pdf 06.09.2017 > download |
Energy label | M3-Energielabel.pdf | 06.09.2017 |
220 kB > download |
ErP product sheet M3-M7-ErP-ErP-Produktdatenblatt.pdf 13.02.2017 > download |
ErP product sheet | M3-M7-ErP-ErP-Produktdatenblatt.pdf | 13.02.2017 |
96 kB > download |
CE Conformity CE-Konformitaetserklaerung-nach-RoHS3-M-2024-08.pdf 15.08.2024 > download |
CE Conformity | CE-Konformitaetserklaerung-nach-RoHS3-M-2024-08.pdf | 15.08.2024 |
2,4 MB > download |

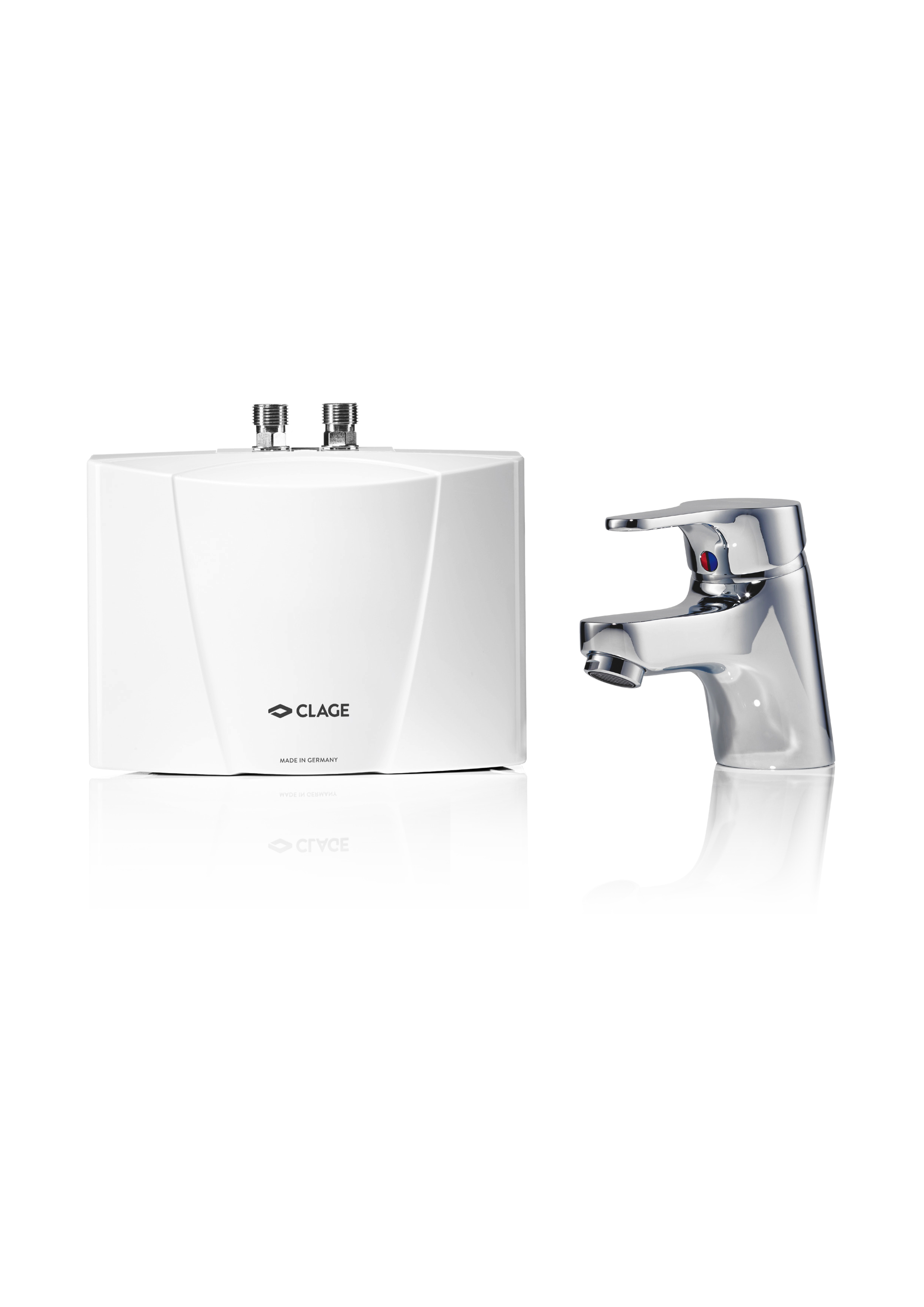

Product photo M_END_frontal-HighRes.jpg 11.05.2017 > download |
Product photo | M_END_frontal-HighRes.jpg | 11.05.2017 |
561 kB > download |

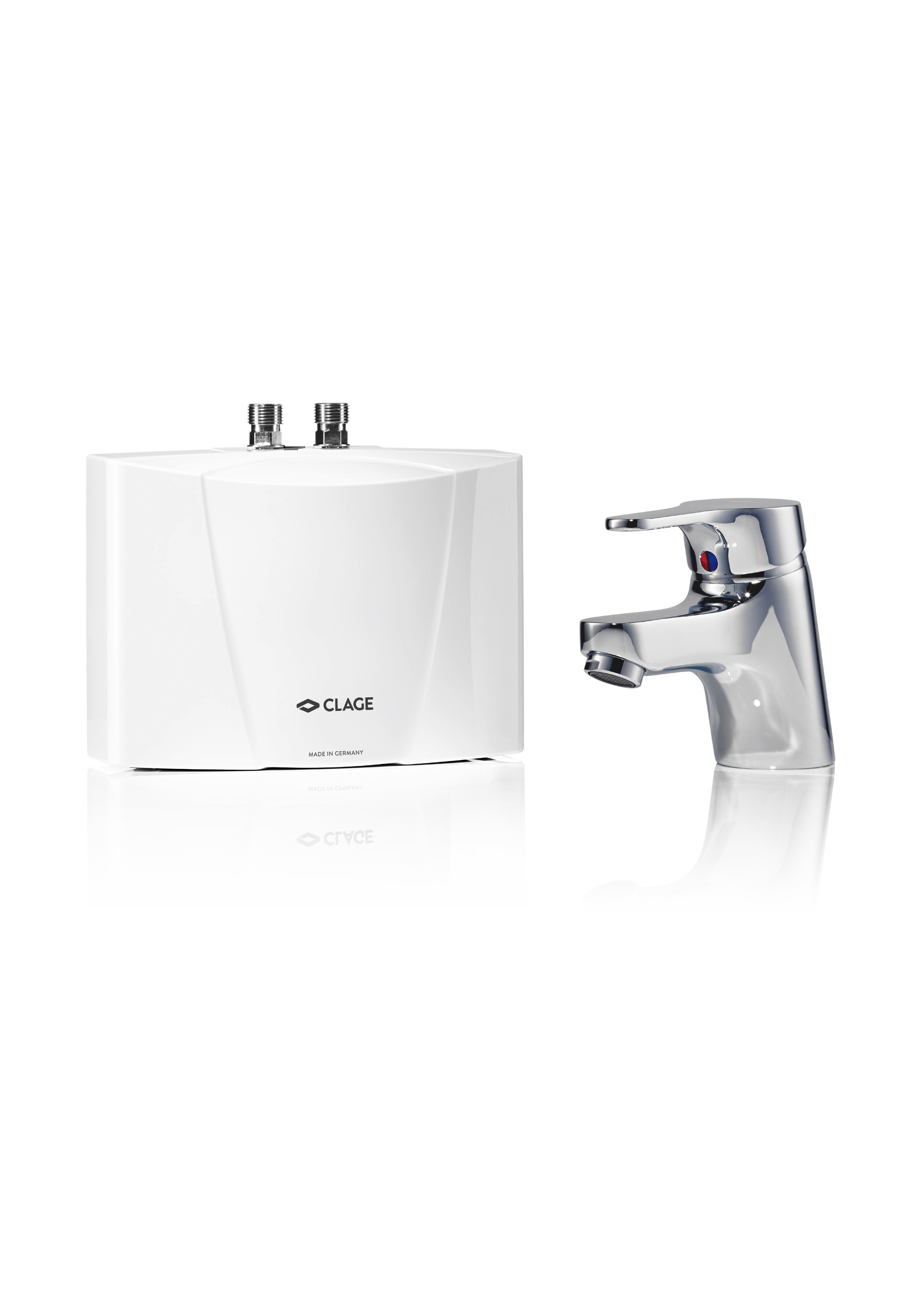

Product photo M_END_links-HighRes.jpg 11.05.2017 > download |
Product photo | M_END_links-HighRes.jpg | 11.05.2017 |
562 kB > download |

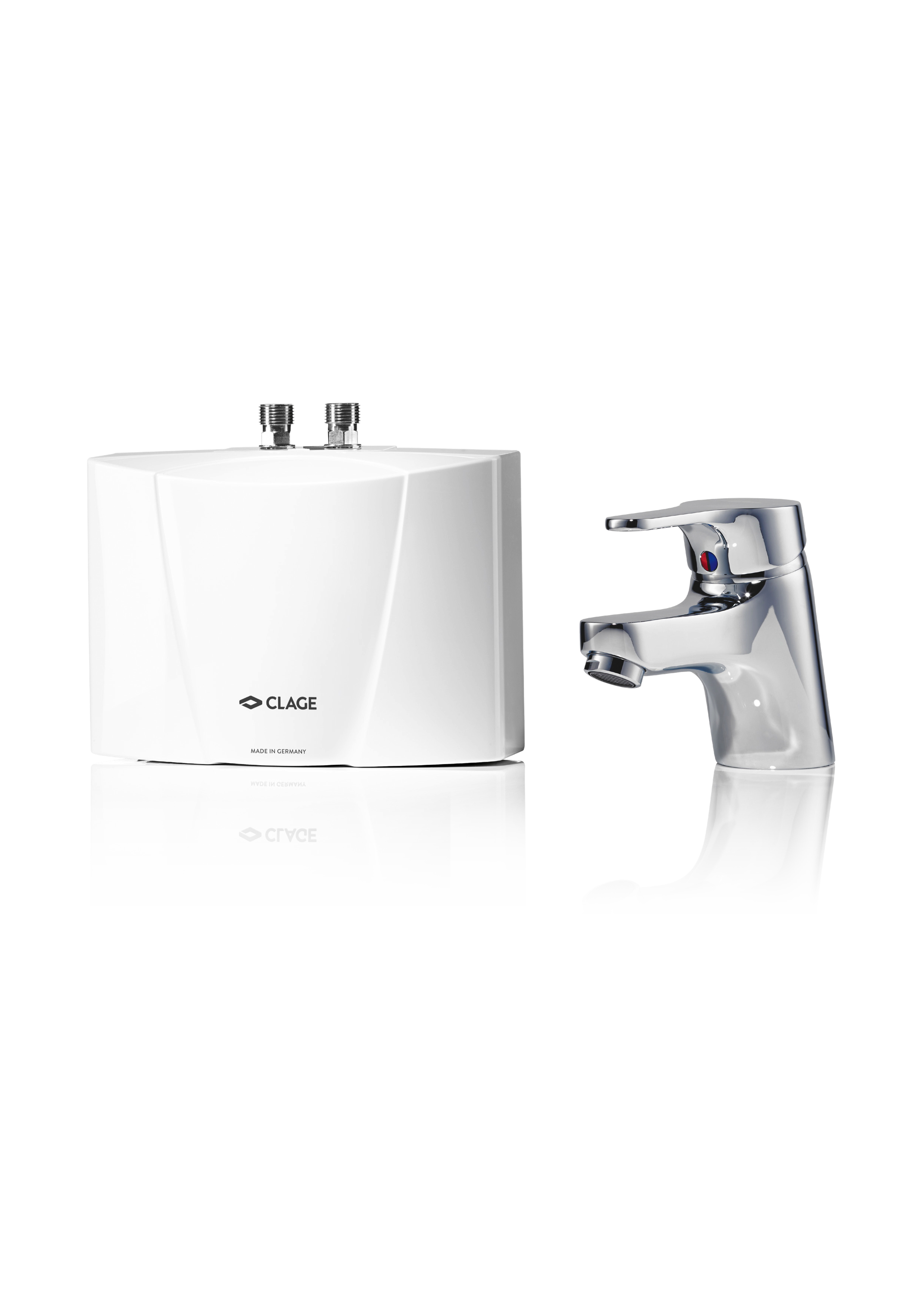

Product photo M_END_rechts-HighRes.jpg 11.05.2017 > download |
Product photo | M_END_rechts-HighRes.jpg | 11.05.2017 |
564 kB > download |
Catalogue CLAGE-Instantaneous-water-heater-Catalogue-en.pdf 20.06.2023 > download |
Catalogue | CLAGE-Instantaneous-water-heater-Catalogue-en.pdf | 20.06.2023 |
21,7 MB > download |
Catalogue CLAGE-Brochure-en.pdf 31.01.2023 > download |
Catalogue | CLAGE-Brochure-en.pdf | 31.01.2023 |
5,7 MB > download |
Price list CLAGE-Product-Price-List-PPL-en.pdf 10.05.2023 > download |
Price list | CLAGE-Product-Price-List-PPL-en.pdf | 10.05.2023 |
6,6 MB > download |
Datanorm Datanorm.zip 03.06.2024 > download |
Datanorm | Datanorm.zip | 03.06.2024 |
40 kB > download |
GAEB GAEB.zip 03.06.2024 > download |
GAEB | GAEB.zip | 03.06.2024 |
725 kB > download |
Accessories
>
CSP 3 (included)
Aerator insert for tap adapter M 22/24 at the tap. The aerator at the tap supports the energy- and water-saving operation of the compact instant water heater. The new special CSP aerators mix air into the water and thus create a uniform water stream that does not splatter but softly cascades down. CSP 3 (< 2 l/min).
CSP 3: Part no. 0010-00421
- Product information sheetAerators-PI-en.pdf (293 kB)
Your advantages:
-
Cost-saving
-
Space-saving
-
Instantly at the right temperature
-
No dripping taps
-
More hygiene
-
Environmentally friendly
