E-module instantaneous water heater
ISX 12

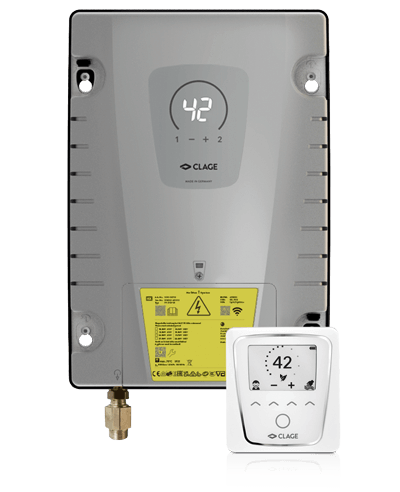

E-module instantaneous water heater ISX 12

Energy efficiency class A

(Scale: A+ to F)

  • ISX 12: 8.8/11.5 kW, 240 V

This is where the ISX 12 is used.

  1. Handwashbasin

    Handwashbasin

  2. Shower

    Shower

  3. Bath tub

    Bath tub

  4. Kitchen sink

    Kitchen sink

ISX 12: Hidden in the wall!
Integrated, robust and smartly networked

Product innovation
The new ISX 12 e-module instantaneous water heater has been specially developed for flush-mounted / pre-wall installation. Its concept is ideal for flexible integration into the building infrastructure: it enables simple installation without wall brackets and without removing the hood.

Awards E-module instantaneous water heater ISX 12
  • Fully electronically controlled modular instantaneous water heater with sensor keypad and LED display for convenient and economical hot water supply to one or more draw-off points
  • Temperature setting, definition of individual temperature profiles and viewing of consumption values via the supplied e-paper remote control FX Next or optionally via smartphone
  • Always temperature accurate to the degree between 20 °C and 60 °C thanks to TWIN TEMPERATURE Control TTC® and dynamic flow rate control SERVOTRONIC®
  • Bare wire heating system IES® ensures a longer service life, less scaling and is efficient and easy to maintain
  • Electronic safety system with air bubble detection, temperature and pressure shut-off, and water stop function
  • Multiple Power System MPS® determines the maximum power consumption at installation: 8.8 or 11.5 kW
  • Exceptionally low switch-on water flow from 1,5 l/min thanks to innovative water flow technology
  • IntegratedWLAN and Bluetooth® function for connection with smartphone and tablet (the free "Smart Control" app is required for this)
  • Modbus interface for integration into building services
  • Suitable for reheating preheated water (supply temperature up to 70 °C permissible)
  • Directinstallation option as part of a pre-wall installation (if required in the optionally available CLAGE flush-mounted cabinet with inspection flap), in drywall or above a suspended ceiling (without separate wall bracket)
  • Assembly and electrical connection possible without removing the hood
  • Free access water connection from below with ½ inch external thread and shut-off valve
  • Dimensions (height × width × depth): 40.2 × 27.8 × 9.9 cm

Technical data

>

Data. Values. Facts.

















E-module instantaneous water heater ISX 12
Handwashbasin Shower Bath tub Kitchen sink
ISX 12
Part number
Nominal power rating at 230 V [kW]
Permissible operating pressure [MPa (bar)] 1)
Water connections (thread connections)
Hot water output at Δt = 28 K 2) [l/min]
Switch-on flow rate [l/min]
Maximum flow rate: automatic [l/min] 3)
Supply voltage [1~ / N / PE 220–240 V AC] permanent connection
Nominal current at 230 V [A]
Required cable diameter [mm²]
Maximum inlet temperature [°C]
Solar-ready 4)
Protection class
Specific water resistance at 15 °C [Ωcm] ≥
Weight filled with water [kg], approx.
3200-36712
8.8 11.5
1 (10) 1 (10)
G ½" G ½"
4.5 5.9
1.5 1.5
38.3 50.0
10 10
70 70
IP 21 IP 21
1300 1300
4.5 4.5

1) Also approved for pressureless operation

2) Temperature increase e.g. from 12 °C to 40 °C, mixed water

3) Depending on line pressure, selected temperature and inlet temperature

4) Suitable for reheating
