E-comfort instant water heater
DCX 12 Next L

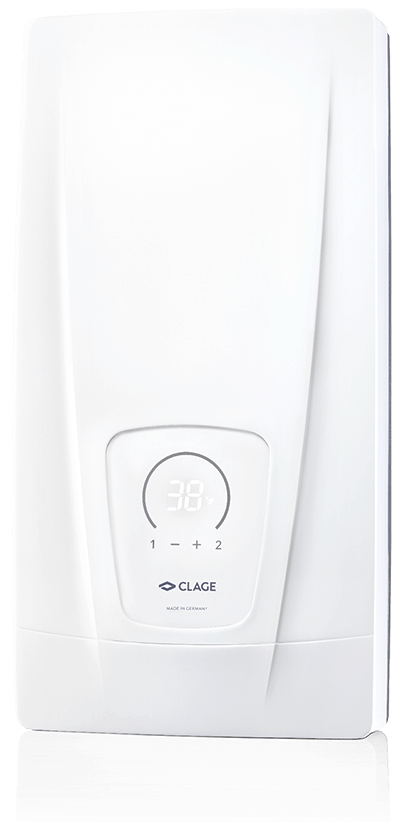

E-comfort instant water heater DCX 12 Next L

Energy efficiency class A

(Scale: A+ to F)

  • DCX 12 Next L: 8.8/11.5 kW, 220–240 V

This is where the DCX 12 Next L is used.

  1. Handwashbasin

    Handwashbasin

  2. Shower

    Shower

  3. Kitchen sink

    Kitchen sink

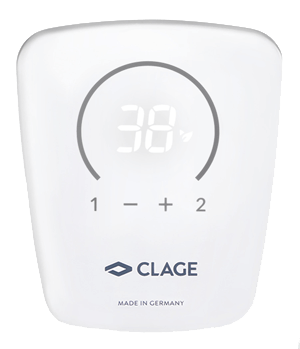

Convenient with LED display

New product
The DCX 12 Next L is conveniently controlled via an LED display with sensor keys. The two memory buttons are set to 38 °C and 42 °C respectively. Desired temperatures can be set individually. Parameters can be set and read out via the service menu.

Awards E-comfort instant water heater DCX 12 Next L
  • Electronically controlled comfort instantaneous water heater with sensor control panel and LED display
  • Precise temperatures between 20 °C and 60 °C thanks to TWIN TEMPERATURE Control TTC.
  • Particularly air-resistant heating system thanks to innovative heating channel arrangement
  • Bare-wire heating system IES ensures a longer service life, less calcification and is efficient and easy to maintain
  • Electronic safety system with air bubble detection, temperature and pressure shut-off
  • Multiple Power System MPS determines the maximum power consumption at installation: 8,8 oder 11,5 kW, 230 V
  • Easy installation thanks to free installation space and variable connection options
  • Suitable for water-saving fittings: particularly low switch-on water quantity from 1.5 l/min thanks to innovative water flow technology
  • Dimensions (height × width × depth): 46.8 × 23.9 × 9.6 cm

Technical data

>

Data. Values. Facts.
















E-comfort instant water heater DCX 12 Next L
Handwashbasin Shower Kitchen sink
DCX 12 Next L
Part number
Nominal power rating 1) (variably adjustable due to MPS) at 230 V [kW]
Maximum operating pressure [MPa (bar)]
Water connections (thread connections)
Hot water output at Δt = 28 K 2) [l/min]
Switch-on flow rate [l/min]
Maximum flow rate 3) [l/min]
Supply voltage [1~ / N / PE 220–240 V AC] permanent connection
Nominal current at 230 V [A]
Required cable diameter [mm²]
Maximum inlet temperature [°C]
Protection class
Specific water resistance at 15 °C [Ωcm] ≥
Weight filled with water [kg], approx.
3200-36452
8.8 11.5
1 (10) 1 (10)
G ½" G ½"
4.5 5.9
1.5 1.5
5.0 5.0
38.3 50.0
10 10
30 30
IP 25 IP 25
1300 1300
4.2 4.2

1) The selected power rating determines the values of nominal current and hot water output

2) Temperature increase e.g. from 12 °C to 40 °C (mixed water at flow rate >5 l/min)

3) Limited flow amount for optimal temperature increase

Downloads

>

Media type Title Date Size

Product information sheet

DCX12-Next-L-PI-en.pdf

17.11.2023

> download
Product information sheet DCX12-Next-L-PI-en.pdf 17.11.2023 574 kB
> download

Operating and installation instructions

DCX12-Next-L-Online-GMA-de-en-fr-nl-pt-es-pl-ru-cs-sk-bg-sr.pdf

02.11.2023

> download
Operating and installation instructions DCX12-Next-L-Online-GMA-de-en-fr-nl-pt-es-pl-ru-cs-sk-bg-sr.pdf 02.11.2023 11 kB
> download

Quick guide

DCX12-Next-L-KA-de-en-fr-nl-pt-es-pl-ru-cs-sk-bg-sr.pdf

01.11.2023

> download
Quick guide DCX12-Next-L-KA-de-en-fr-nl-pt-es-pl-ru-cs-sk-bg-sr.pdf 01.11.2023 6,2 MB
> download

Image-only instructions

DX3-230V-Bilderanleitung-mit-DMB.pdf

19.07.2023

> download
Image-only instructions DX3-230V-Bilderanleitung-mit-DMB.pdf 19.07.2023 1,9 MB
> download

Safety instructions

Sicherheitshinweise-Durchlauferhitzer-de-en-fr-nl-pt-es-pl-sv-cs-sk-bg-no-fi-ru-sr-el-it-tr-ro.pdf

03.11.2023

> download
Safety instructions Sicherheitshinweise-Durchlauferhitzer-de-en-fr-nl-pt-es-pl-sv-cs-sk-bg-no-fi-ru-sr-el-it-tr-ro.pdf 03.11.2023 483 kB
> download

Energy label

DCX12-Next-L-Energielabel-2023.pdf

24.10.2023

> download
Energy label DCX12-Next-L-Energielabel-2023.pdf 24.10.2023 232 kB
> download

Product photo


20.09.2023

> download
Product photo DCX-Next-L-frontal.jpg 20.09.2023 294 kB
> download

Accessories

>

RDX 3

RDX 3 (optional)

If required, the universal mounting frame RDX 3 is available as an accessory, with which the electrical connection can be made at any point behind the device. The IP protection class of the device with RDX 3 is IP24. With electrical wiring and pipe extensions. For difficult installation conditions, e.g. replacement of a flow heater with different connections. Compensates for tile projections or wall unevenness. Installation only by a specialist.

RDX 3: Part no. 3200-36100

UDX

UDX (optional)

Pipe assembly for undersink installation with water connections, top flush-mounted G ⅜ inch (basic mounting kit RDX required).

UDX: Part no. 3200-34110

VDX

VDX (optional)

Pipe assembly for offset installation or reversed water connections when exchanging gas water heaters (basic mounting kit RDX required).

VDX: Part no. 3200-34120

Interesting features.

  1. Cost-saving

    Cost-saving

  2. Instantly at the right temperature

    Instantly at the right temperature

  3. More hygiene

    More hygiene

  4. Environmentally friendly

    Environmentally friendly

  5. Short water paths

    Short water paths

Similar products:

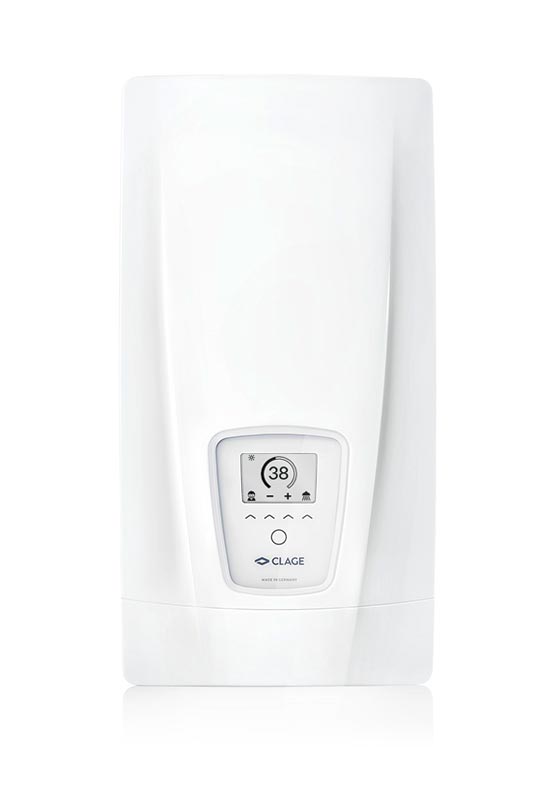

E-comfort instant water heater DEX 12 Next
