Water system

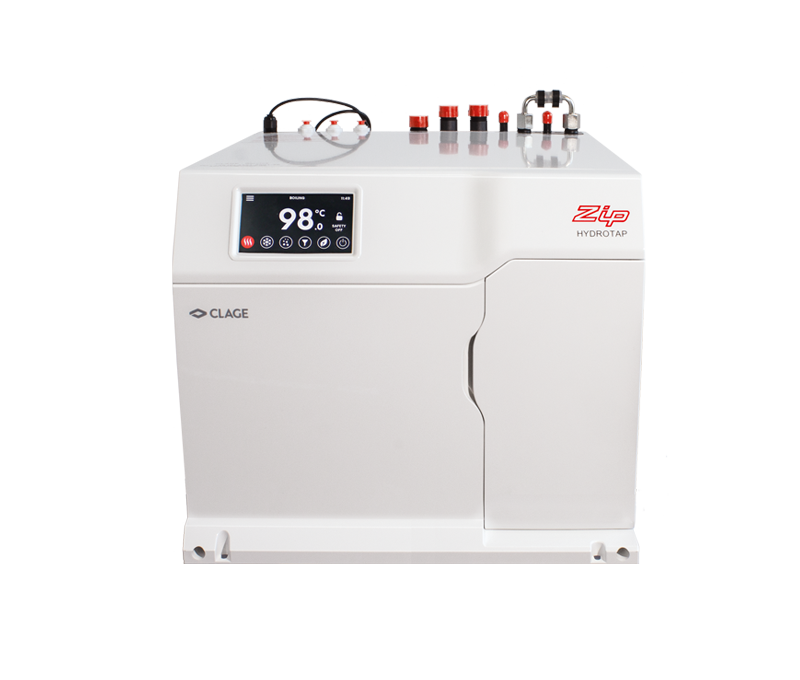

Zip HydroTap G5 BCS

Water system Zip HydroTap G5 BCS
  • G5 BCS 60: 2.15 kW, 230 V
  • G5 BCS 20: 1.96 kW, 230 V

The Zip HydroTap G5 BCS delivers

  1. Boiling water

    Boiling water

  2. Chilled still water

    Chilled still water

  3. Chilled sparkling water

    Chilled sparkling water

The finest - maximum water comfort!

The top appliance among the water systems convinces with maximum comfort. It delivers filtered boiling, chilled and carbonated water in seconds from a single tap. The built-in filter improves the water quality, and the energy-saving function can be conveniently configured via the touch display.

The "Zip HydroTap BCS" under-sink water system can be combined with the following taps: Touch-Free BCS, Classic BCS, Classic Plus BCS, Arc BCS and Celsius Arc AIO "All-in-one".

  • Electronic water system for under-sink installation for immediate provision of filtered boiling and chilled water, optionally carbonated
  • Touch display for menu navigation, for activating the energy-saving modus and scalding protection as well as the temperature setting of the water
  • With R290 coolant to meet the latest environmental and climate protection requirements
  • Electronic temperature control of the hot water
  • Easy-to-replace sub-micron particle filter cartridge with activated carbon filter, filters hazardous substances > 0.2 micron and improves the taste of water
  • Leakage protection system
  • Various electronic taps with safety function and button operation selectable
  • Incl. plastic mounting set KXB, facilitates installation of the ventilation in base cabinets (BCS 60 only).
  • Dimensions G5 BCS 20 (height × width × depth): 33.3 × 33.9 × 48.3 cm
  • Dimensions G5 BCS 60 (height × width × depth): 33.3 × 39.5 × 46.4 cm, (overall dimensions when using mounting set KXB: (H × W × D): 37.3 × 49.5 × 50 cm).
    Please order tap, carbon dioxide gas cylinder, pressure reducer, CLARIS filter and filter head separately!

Technical data

>

Data. Values. Facts.



















Water system G5 BCS 60 Water system G5 BCS 20
Boiling water Chilled still water Chilled sparkling water Boiling water Chilled still water Chilled sparkling water
G5 BCS 60 G5 BCS 20
Part number
Nominal power rating [kW]
Maximum number of users
Water connection (thread connection) 1)
Water connection (thread connection) 2)
Boiling water temperature, adjustable [°C]
Chilled water temperature [°C]
Boiling water capacity [cups/h] 3)
Chilled water capacity [glasses/h] 4)
Boiling water content [litres]
Boiling water content [cups]
Reheating time [cups/min]
Standby power consumption 5) [kWh / 24h]
Supply voltage [1~ / N / PE 230 V AC] with plug: Schuko Typ-F (CEE 7/7)
Compact undersink unit [white]
Protection class
Weight filled with water [kg], approx.
4100-44591 4100-44590
2.15 1.96
60 20
G ⅜" G ⅜"
G ½" G ½"
68 – 100 68 – 100
5 – 10 5 – 10
160 100
175 75
3 2.3
18 13
2.6 1.6
0.77 0.76
IP 20 IP 20
41 34

1) With supplied adapter G ⅜"

2) Connection hose G ½” to G ½” is required (not included in scope of delivery)

3) Standard cup with 167 ml

4) Standard glass with 200 ml

5) At 12 hours in standby mode

Downloads

>

Media type Title Date Size

Product information sheet

Zip-HydroTap-G5-BCS-PI-en.pdf

26.04.2022

> download
Product information sheet Zip-HydroTap-G5-BCS-PI-en.pdf 26.04.2022 1,2 MB
> download

Operating instructions

Zip-HydroTap-G5-BCS20+BCS60-User-Guide-de-en-fr.pdf

29.03.2022

> download
Operating instructions Zip-HydroTap-G5-BCS20+BCS60-User-Guide-de-en-fr.pdf 29.03.2022 2,9 MB
> download

Operating and installation instructions

Zip-HydroTap-G5-BCS20-GMA-de-en-fr.pdf

06.04.2023

> download
Operating and installation instructions Zip-HydroTap-G5-BCS20-GMA-de-en-fr.pdf 06.04.2023 4,6 MB
> download
  Older versions>
 Operating and installation instructionsZip-HydroTap-G5-BCS20-GMA-de-en-fr-04-2022.pdf> download> download
  Further versions on request

Operating and installation instructions

Zip-HydroTap-G5-BCS60-GMA-de-en-fr.pdf.pdf

06.04.2023

> download
Operating and installation instructions Zip-HydroTap-G5-BCS60-GMA-de-en-fr.pdf.pdf 06.04.2023 4,7 MB
> download
  Older versions>
 Operating and installation instructionsZip-HydroTap-G5-BCS60-GMA-de-en-fr-03-2022.pdf.pdf> download> download
  Further versions on request

CE Conformity

CE Konformitätserklärung nach RoHS3 Zip G5 2022 06 v2.pdf

01.07.2022

> download
CE Conformity CE Konformitätserklärung nach RoHS3 Zip G5 2022 06 v2.pdf 01.07.2022 2,6 MB
> download

Hotnews

CLAGE_Hotnews_2023-EN-online.pdf

10.03.2023

> download
Hotnews CLAGE_Hotnews_2023-EN-online.pdf 10.03.2023 13,9 MB
> download

Price list

CLAGE-Product-Price-List-PPL-en.pdf

10.05.2023

> download
Price list CLAGE-Product-Price-List-PPL-en.pdf 10.05.2023 6,6 MB
> download

BIM

Zip HydroTap G5 BCS 60.ifc

24.11.2022

> download
BIM Zip HydroTap G5 BCS 60.ifc 24.11.2022 129 kB
> download

Datanorm

Datanorm.zip

03.06.2024

> download
Datanorm Datanorm.zip 03.06.2024 40 kB
> download

GAEB

GAEB.zip

03.06.2024

> download
GAEB GAEB.zip 03.06.2024 725 kB
> download

Accessories

>

KXF  2.1

KXF  2.1 (included)

Sub-micron particle filter cartridge filters contaminants > 0.2 microns and additionally improves the taste of the water. For Zip HydroTap® G4 models since 02.2017 and G5 models since 2022.

KXF  2.1: Part no. 893702

Touch-Free BCS, polished chrome

Touch-Free BCS, polished chrome (optional)

Electronic tap unit for Zip HydroTap BCS with IR sensors and function display for hygienic, touch-free operation, holding function for convenient jug filling, fixed spout 12 cm, height 21 cm, Ø 35 mm hole required.

Touch-Free BCS, polished chrome: Part no. 4100-44540

Classic Plus BCS, polished chrome

Classic Plus BCS, polished chrome (optional)

Electronic tap for Zip HydroTap BCS with top-mounted control buttons (rubberised), function display, dedicated button for convenient jug filling, fixed spout 12 cm, height 21.4 cm, Ø 35 mm hole required.

Classic Plus BCS, polished chrome: Part no. 4100-44800

Classic Plus BCS, brushed chrome

Classic Plus BCS, brushed chrome (optional)

Electronic tap for Zip HydroTap BCS with top-mounted control buttons (rubberised), function display, dedicated button for convenient jug filling, fixed spout 12 cm, height 21.4 cm, Ø 35 mm hole required.

Classic Plus BCS, brushed chrome: Part no. 4100-44801

Classic Plus BCS, matte black

Classic Plus BCS, matte black (optional)

Electronic tap for Zip HydroTap BCS with top-mounted control buttons (rubberised), function display, dedicated button for convenient jug filling, fixed spout 12 cm, height 21.4 cm, Ø 35 mm hole required.

Classic Plus BCS, matte black: Part no. 4100-44802

Classic BCS, polished chrome

Classic BCS, polished chrome (optional)

Electronic tap for Zip HydroTap BCS with operating buttons at the top, function display, holding function for convenient jug filling, fixed spout 12 cm, height 21 cm, Ø 35 mm hole required.

Classic BCS, polished chrome: Part no. 4100-44500

Classic BCS, brushed chrome

Classic BCS, brushed chrome (optional)

Electronic tap for Zip HydroTap BCS with operating buttons at the top, function display, holding function for convenient pot filling, fixed spout 12 cm, height 21 cm, Ø 35 mm hole required.

Classic BCS, brushed chrome: Part no. 4100-44501

Classic BCS, matte black

Classic BCS, matte black (optional)

Electronic tap for Zip HydroTap BCS with operating buttons at the top, function display, holding function for convenient pot filling, fixed spout 12 cm, height 21 cm, Ø 35 mm hole required.

Classic BCS, matte black: Part no. 4100-44502

Arc BCS, polished chrome

Arc BCS, polished chrome (optional)

Electronic tap for Zip HydroTap BCS with lateral control button, fixed pipe outlet 16 cm, height 35 cm, Ø 35 mm hole drilling required.

Arc BCS, polished chrome: Part no. 4100-44503

Arc BCS, brushed chrome

Arc BCS, brushed chrome (optional)

Electronic tap for Zip HydroTap BCS with lateral control button, fixed pipe outlet 16 cm, height 35 cm, Ø 35 mm hole drilling required.

Arc BCS, brushed chrome: Part no. 4100-44504

Arc BCS, matte black

Arc BCS, matte black (optional)

Electronic tap for Zip HydroTap BCS with lateral control button, fixed pipe outlet 16 cm, height 35 cm, Ø 35 mm hole drilling required.

Arc BCS, matte black: Part no. 4100-44505

Celsius Arc AIO

Celsius Arc AIO "All-in-one", polished chrome (optional)

All-round tap for boiling, chilled and carbonated water from the Zip HydroTap under-table unit as well as additional normal tap water from the central or decentralised supply (adjustable via the lateral control lever). Rotatable pipe outlet 22 cm, height 44 cm, Ø 50 mm hole drilling required.

Celsius Arc AIO "All-in-one", polished chrome: Part no. 4100-44524

Celsius Arc AIO

Celsius Arc AIO "All-in-one", brushed chrome (optional)

All-round tap for boiling, chilled and carbonated water from the Zip HydroTap under-table unit as well as additional normal tap water from the central or decentralised supply (adjustable via the lateral control lever). Rotatable pipe outlet 22 cm, height 44 cm, Ø 50 mm hole drilling required.

Celsius Arc AIO "All-in-one", brushed chrome: Part no. 4100-44525

Celsius Arc AIO

Celsius Arc AIO "All-in-one", matte black (optional)

All-round fitting for boiling, chilled and carbonated water from the Zip HydroTap under-table unit as well as additional normal tap water from the central or decentralised supply (adjustable via the lateral control lever). Rotatable pipe outlet 22 cm, height 44 cm, Ø 50 mm hole drilling required.

Celsius Arc AIO "All-in-one", matte black: Part no. 4100-44526

COF

COF (optional)

CO2 gas cylinder for Soda Club connecting thread. (Only available for dispatch within Germany.)

COF: Part no. 9910-90005

DMBCS

DMBCS (optional)

Pressure reducer with standard CO2 connecting thread (1/14 inch), gas cylinders can be obtained via specialist gas suppliers

DMBCS: Part no. 4100-44120

DMSP

DMSP (optional)

Pressure reducer with Soda Club connecting thread

DMSP: Part no. 4100-44125

DTK

DTK (optional)

The digital temperature controller for Zip devices is used to keep the temperature in the cupboard under 35 °C when normal ventilation is not sufficient. The digital controller operates independently of the undersink unit and will require a separate 230 V socket.

DTK: Part no. 893159

Filter head FK

Filter head FK (optional)

For installation of CLAGE filters KKF and KSF on all Zip units. The connection accessories must be ordered separately.

Filter head FK: Part no. 845071

KKF lime filter cartridge

KKF lime filter cartridge (optional)

Two-stage ion exchange cartridge for softening, pH stabilization and filtration of water for equipment for the production of hot beverages, coffee specialties and tea. Reduces minerals such as calcium and magnesium, as well as chlorine, odors and flavors. Uses pH ion exchange resins, pH stabilization prevents excessive acidity. Stabilization made of coconut membrane with particularly high capacity. Reduces water hardness, which can lead to scale formation in boiling water machines. Hygienic and easy replacement of filter cartridges. Internal filter parts are not exposed to contact or contamination.

KKF lime filter cartridge: Part no. 845064

AS-KKF

AS-KKF (optional)

For connecting a CLAGE filter cartridge KKF to Zip units. Connection set for installing the lime filter to the hot water bypass of the water system.

AS-KKF: Part no. 845073

KXF  2.1

KXF  2.1 (optional)

Sub-micron particle filter cartridge filters contaminants > 0.2 microns and additionally improves the taste of the water. For Zip HydroTap® G4 models since 02.2017 and G5 models since 2022.

KXF  2.1: Part no. 893702

KXT

KXT (optional)

For tap “Arc”: The optional stainless steel draining tray with waste water connection allows for flexible installation of the electronic dispensing tap at any location away from the sink. Finish: polished chrome.

KXT: Part no. 4100-44560

KXT

KXT (optional)

For tap “Arc”: The optional stainless steel draining tray with waste water connection allows for flexible installation of the electronic dispensing tap at any location away from the sink. Finish: brushed chrome.

KXT: Part no. 4100-44561

KXT

KXT (optional)

For tap “Arc”: The optional stainless steel draining tray with waste water connection allows for flexible installation of the electronic dispensing tap at any location away from the sink. Finish: matte black.

KXT: Part no. 4100-44562

KXTV

KXTV (optional)

For tap "Classic", "Classic Plus", "Touch-Free": The optional stainless steel draining tray with waste water connection and chrome extension allows for flexible installation of the electronic dispensing tap at any location away from the sink. Extension by 13.5 cm. Finish: polished chrome.

KXTV: Part no. 4100-44565

KXTV

KXTV (optional)

For tap "Classic", "Classic Plus", "Touch-Free": The optional stainless steel draining tray with waste water connection and chrome extension allows for flexible installation of the electronic dispensing tap at any location away from the sink. Extension by 13.5 cm. Finish: brushed chrome.

KXTV: Part no. 4100-44566

KXTV

KXTV (optional)

For tap "Classic", "Classic Plus", "Touch-Free": The optional stainless steel draining tray with waste water connection and extension allows for flexible installation of the electronic dispensing tap at any location away from the sink. Extension by 13.5 cm. Finish: matte black.

KXTV: Part no. 4100-44567

KXTV Pro

KXTV Pro (optional)

For tap "Classic", "Classic Plus", "Touch-Free": The optional stainless steel draining tray with waste water connection and chrome extension allows for flexible installation of the electronic dispensing tap at any location away from the sink. Ø 86 mm hole drilling required. Finish: polished chrome.

KXTV Pro: Part no. 4100-44570

KXTV Pro

KXTV Pro (optional)

For tap "Classic", "Classic Plus", "Touch-Free": The optional stainless steel draining tray with waste water connection and chrome extension allows for flexible installation of the electronic dispensing tap at any location away from the sink. Ø 86 mm hole drilling required. Finish: brushed chrome.

KXTV Pro: Part no. 4100-44571

KXTV Pro

KXTV Pro (optional)

For tap "Classic", "Classic Plus", "Touch-Free": The optional stainless steel draining tray with waste water connection and chrome extension allows for flexible installation of the electronic dispensing tap at any location away from the sink. Ø 86 mm hole drilling required. Finish: matte black.

KXTV Pro: Part no. 4100-44572

KXV

KXV (optional)

For tap "Classic", "Classic Plus", "Touch-Free": The optional chrome extension allows for raising the electronic dispensing tap by 13.5 cm. Finish: polished chrome.

KXV: Part no. 4100-44165

KXV

KXV (optional)

For tap "Classic", "Classic Plus", "Touch-Free": The optional chrome extension allows for raising the electronic dispensing tap by 13.5 cm. Finish: brushed chrome.

KXV: Part no. 4100-44166

KXV

KXV (optional)

For tap "Classic", "Classic Plus", "Touch-Free": The optional extension allows for raising the electronic dispensing tap by 13.5 cm. Finish: matte black.

KXV: Part no. 4100-44167

Similar products:

Water system Zip HydroTap G5 BC
G5 BC 20: 1.9 kW, 230 V

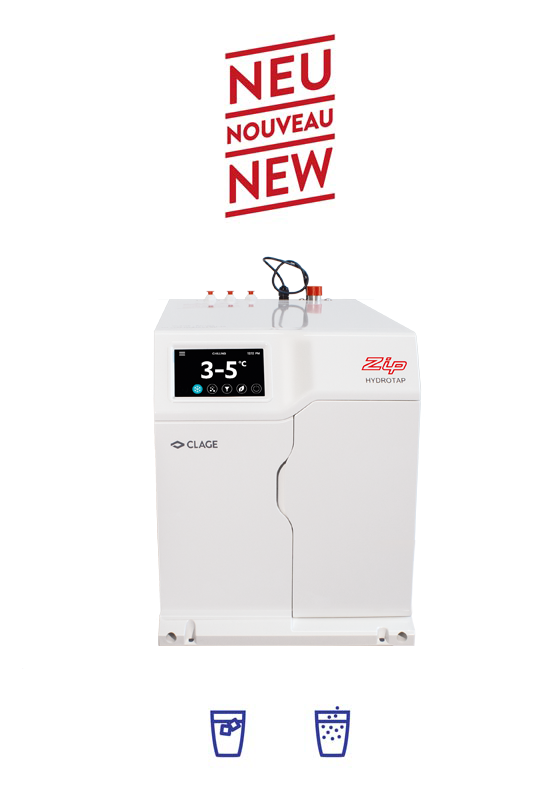

Water system Zip HydroTap G5 CS
