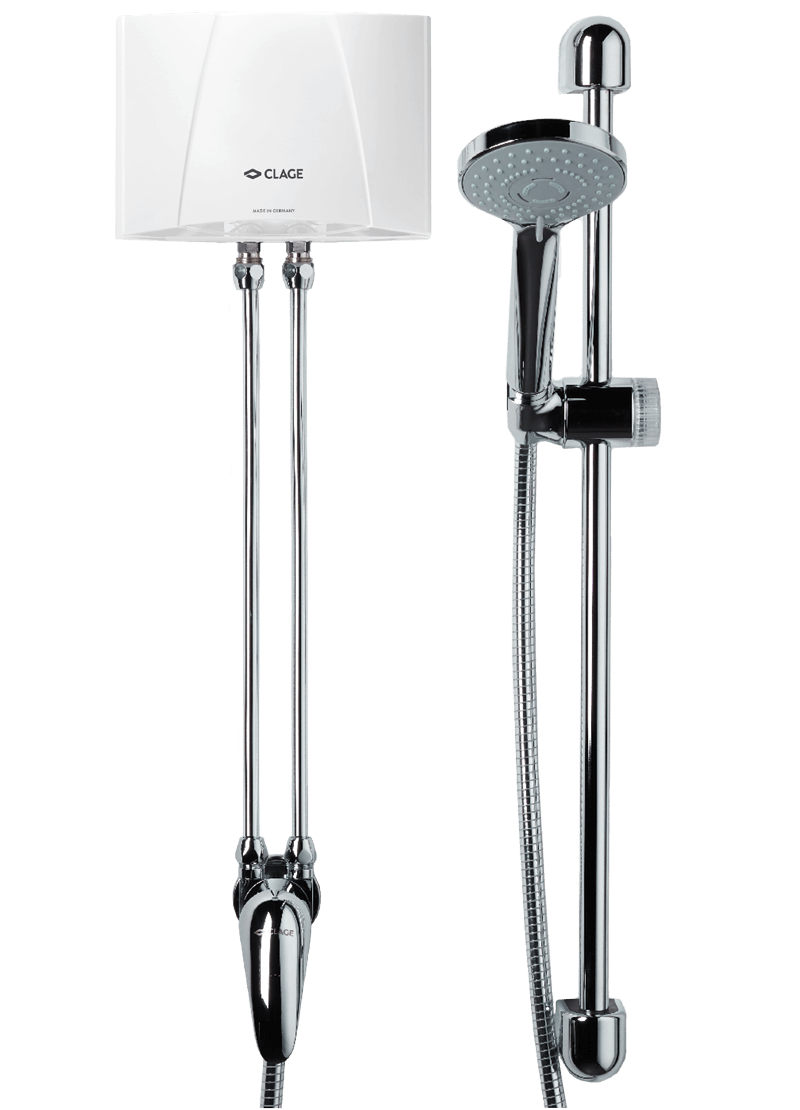

E-mini instant water heater with tap
MBX Shower
Energy efficiency class A
(scale: A+ to F)
- MBX 4 Shower: 4.4 kW, 230 V
- MBX 6 Shower: 5.7 kW, 230 V
- MBX 7 Shower: 6.5 kW, 400 V
This is where the MBX Shower is used.
-
Attic or basement conversion
-
Single shower (e.g. guest bathroom)
-
Garden shelter, at the swimming-pool
Clever solution for warm showers
The small instantaneous electric water heater with shower mixer and shower set is a smart solution for hot showers if only a single-phase power connection (MBX 7 Shower: two-phase power connection) is available. With economical comfort requirements, e.g. in garden houses, attic or basement conversions or at the swimming pool, this instantaneous water heater complete with wall rail and shower fitting is a practical solution.
- Electronically controlled instantaneous water heater (oversink unit) in mini format as shower system with wall bar and tap
- The heating output is automatically regulated by the electronics. This ensures perfect hot water temperature, mixing with cold water is no longer necessary.
- The outlet temperature is factory-set to 45 °C and can be adjusted between 30 °C and 45 °C in the unit
- Efficient flow technology for optimum water jet with economical water consumption
- IES® bare-wire heating system with replaceable heating cartridge ensures longer service life, less calcification and is efficient and easy to maintain mains cable, length: ≤ 65 cm
- Can also be used with a tablet or smartphone (from iOS 9 * / Android-OS 4.4) (requires FXE radio adapter, CLAGE Home Server and Smart Control app)
- Dimensions (height × width × depth): 13.5 × 18.6 × 8.7 cm
Technical data
>
Data. Values. Facts.
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
1) Also approved for pressureless operation
2) Temperature increase e.g. from 15 °C to 40 °C
3) Without tap
4) The inlet temperature must be reduced on site to a temperature suitable for showering.
5) Suitable for reheating
Downloads
>
Media type | Title | Date | Size | |
---|---|---|---|---|
Product information sheet MBX-Shower-PI-en.pdf 02.09.2024 > download |
Product information sheet | MBX-Shower-PI-en.pdf | 02.09.2024 |
705 kB > download |
Operating and installation instructions MBX-Shower-GMA-de-en-fr-nl-pl-cs-sk-sv-pt.pdf 12.03.2019 > download |
Operating and installation instructions | MBX-Shower-GMA-de-en-fr-nl-pl-cs-sk-sv-pt.pdf | 12.03.2019 |
5,6 MB > download |
Safety instructions Sicherheitshinweise-Durchlauferhitzer-de-en-fr-nl-pt-es-pl-sv-cs-sk-bg-no-fi-ru-sr-el-it-tr-ro.pdf 03.11.2023 > download |
Safety instructions | Sicherheitshinweise-Durchlauferhitzer-de-en-fr-nl-pt-es-pl-sv-cs-sk-bg-no-fi-ru-sr-el-it-tr-ro.pdf | 03.11.2023 |
371 kB > download |
Energy label MBX4-Shower-Energielabel.pdf 04.03.2019 > download |
Energy label | MBX4-Shower-Energielabel.pdf | 04.03.2019 |
219 kB > download |
Energy label MBX6-Shower-Energielabel.pdf 04.03.2019 > download |
Energy label | MBX6-Shower-Energielabel.pdf | 04.03.2019 |
219 kB > download |
Energy label MBX7-Shower-Energielabel.pdf 04.03.2019 > download |
Energy label | MBX7-Shower-Energielabel.pdf | 04.03.2019 |
219 kB > download |
CE Conformity CE-Konformitaetserklaerung-nach-RED+RoHS3-MX-2024-08.pdf 15.08.2024 > download |
CE Conformity | CE-Konformitaetserklaerung-nach-RED+RoHS3-MX-2024-08.pdf | 15.08.2024 |
3,0 MB > download |

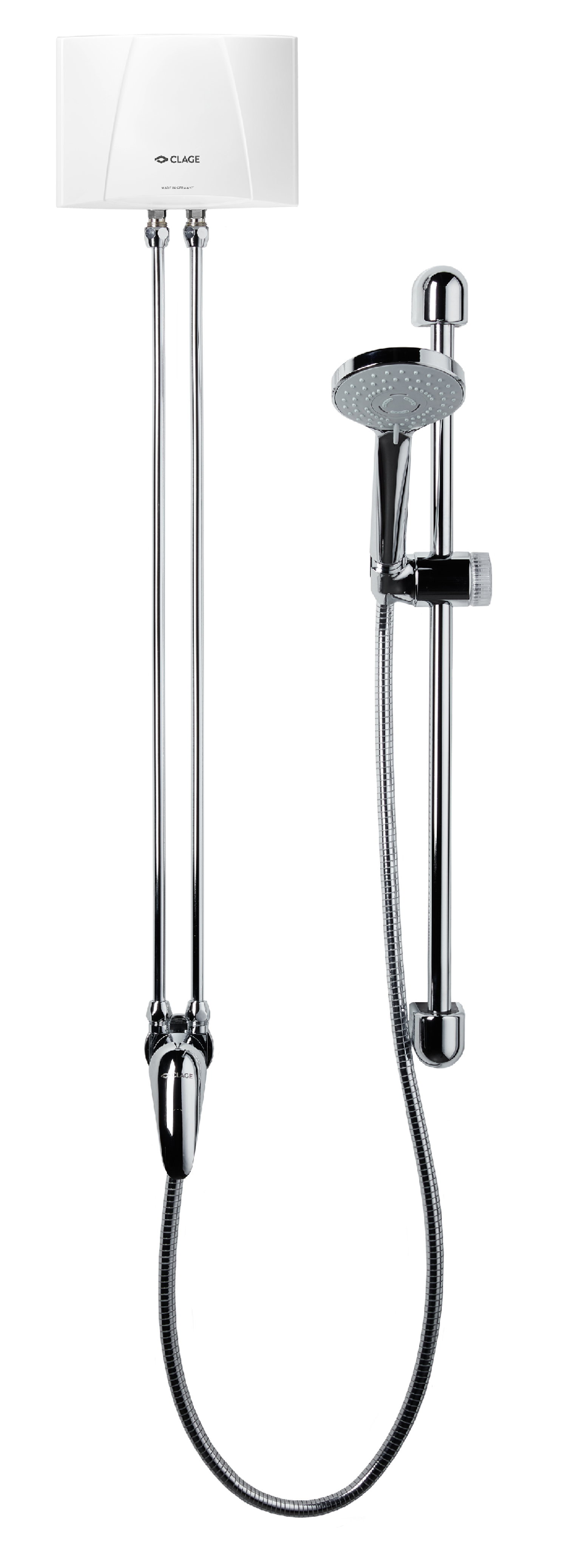

Product photo MBX-Shower.png 02.01.2020 > download |
Product photo | MBX-Shower.png | 02.01.2020 |
1,3 MB > download |

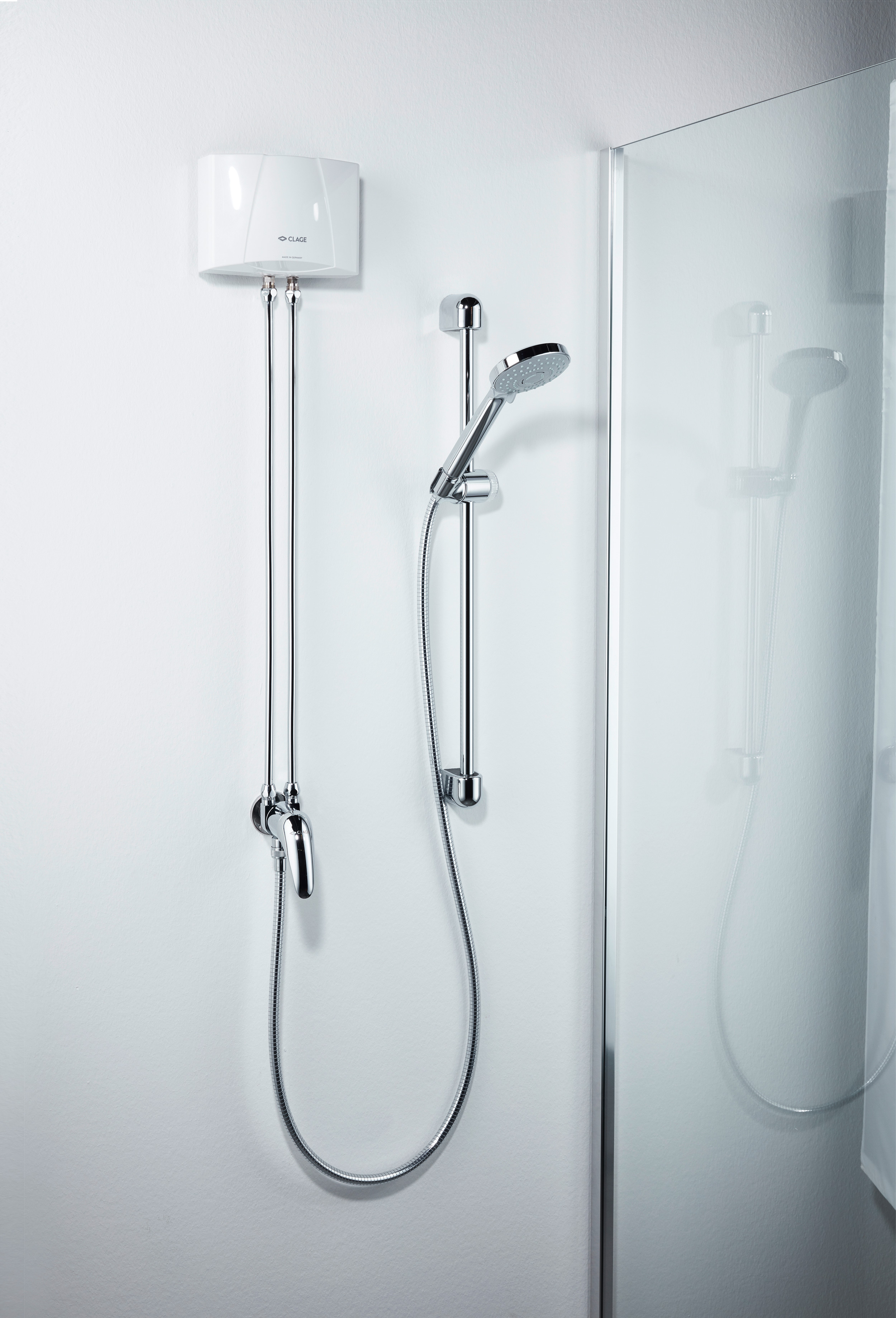

Image photo MBX-Shower-Milieu.jpg 02.01.2020 > download |
Image photo | MBX-Shower-Milieu.jpg | 02.01.2020 |
1,3 MB > download |
Catalogue CLAGE-Instantaneous-water-heater-Catalogue-en.pdf 20.06.2023 > download |
Catalogue | CLAGE-Instantaneous-water-heater-Catalogue-en.pdf | 20.06.2023 |
21,7 MB > download |
Catalogue CLAGE-Brochure-en.pdf 31.01.2023 > download |
Catalogue | CLAGE-Brochure-en.pdf | 31.01.2023 |
5,7 MB > download |
Price list CLAGE-Product-Price-List-PPL-en.pdf 10.05.2023 > download |
Price list | CLAGE-Product-Price-List-PPL-en.pdf | 10.05.2023 |
6,6 MB > download |
Datanorm Datanorm.zip 03.06.2024 > download |
Datanorm | Datanorm.zip | 03.06.2024 |
40 kB > download |
GAEB GAEB.zip 03.06.2024 > download |
GAEB | GAEB.zip | 03.06.2024 |
725 kB > download |
Accessories
>
CXH (optional)
Adjustable hand shower for instant water heaters, three modes adjustable, anti-scale insert, chrome. Dimensions: 22.5 cm length, shower head Ø 97 mm
CXH: Part no. 0300-0086
- Product information sheetCXH-PI-en.pdf (1,63 MB)
- Operating and installation instructionsCXH-GMA-de-en-fr-nl-pl-cs-sk-sv-pt-ar.pdf (1,82 MB)
Interesting features.
-
Remote control (optional)
-
Solar-compatible, suitable for reheating
-
Cost-saving
-
Instantly at the right temperature
-
No dripping taps
-
Environmentally friendly
