Water system
Zip HydroTap G5 CS

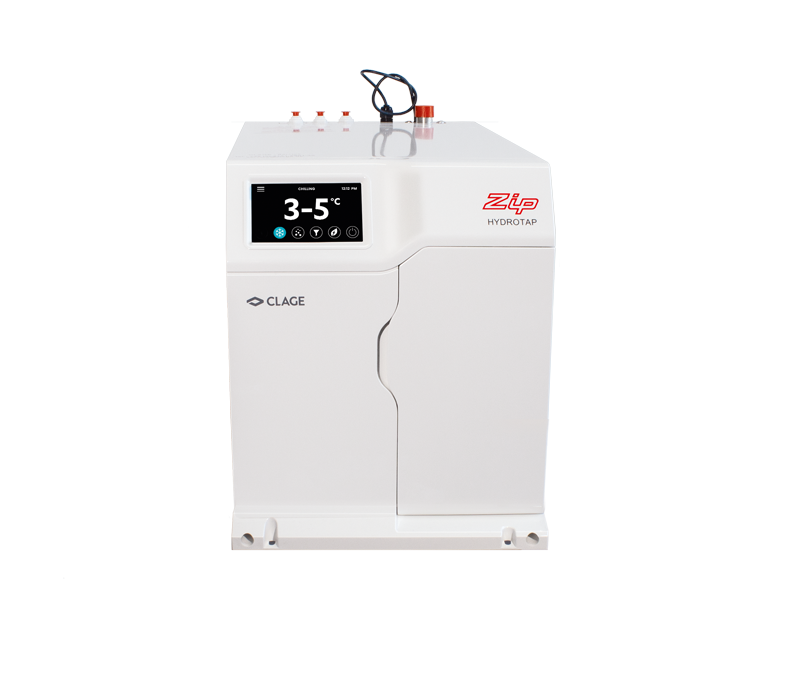

Water system Zip HydroTap G5 CS
  • G5 CS 100: 0.37 kW, 230 V

The Zip HydroTap G5 CS delivers

  1. Chilled still water

    Chilled still water

  2. Chilled sparkling water

    Chilled sparkling water

That's cool - chilled sparkling water!

The coolest of the water systems delivers filtered, chilled and carbonated water in seconds from a single tap. This device is perfectly suited for the increased demand e.g. in reception areas of large offices and hotels. The built-in filter improves the water quality, and the unit can be conveniently configured via the touch display.

The under-sink water system "Zip HydroTap CS" can be combined with the following taps: Touch-Free CS, Classic CS, Classic Plus CS and Arc CS.

  • Electronic water system for under-sink installation to provide filtered, cooled water, optionally carbonated
  • Touch display for menu navigation and for activating the energy saving modus as well as temperature setting of the water
  • With R290 coolant to meet the latest environmental and climate protection requirements
  • Easy-to-replace sub-micron particle filter cartridge with activated carbon filter, filters hazardous substances > 0.2 micron and improves the taste of water
  • Leakage protection system
  • Various electronic taps with safety function and button operation selectable
  • Incl. plastic mounting set KXB, facilitates installation of ventilation in base cabinets
  • Dimensions (height × width × depth): 33.3 × 28 × 48 cm (overall dimensions when using mounting set KXB: (H × W × D): 37.3 × 49.5 × 50 cm)

    Please order tap, carbon dioxide gas cylinder and pressure reducer separately!

Technical data

>

Data. Values. Facts.














Water system G5 CS 100
Chilled still water Chilled sparkling water
G5 CS 100
Part number
Nominal power rating [kW]
Maximum number of users
Water connection (thread connection) 1)
Water connection (thread connection) 2)
Chilled water temperature [°C]
Chilled water capacity [glasses/h] 3)
Standby power consumption [kWh / 24h]
Supply voltage [1~ / N / PE 230 V AC] with plug: Schuko Typ-F (CEE 7/7)
Compact undersink unit [white]
Protection class
Weight filled with water [kg], approx.
4100-44599
0.37
100
G ⅜"
G ½"
5 – 10
175
0.21
IP 20
36.5

1) With supplied adapter G ⅜"

2) Connection hose G ½” to G ½” is required (not included in scope of delivery)

3) Standard glass with 200 ml

Downloads

>

Media type Title Date Size

Product information sheet

Zip-HydroTap-G5-CS-PI-en.pdf

26.04.2022

> download
Product information sheet Zip-HydroTap-G5-CS-PI-en.pdf 26.04.2022 948 kB
> download

Operating instructions

Zip-HydroTap-G5-CS100-User-Guide-de-en-fr.pdf

29.03.2022

> download
Operating instructions Zip-HydroTap-G5-CS100-User-Guide-de-en-fr.pdf 29.03.2022 2,2 MB
> download

Operating and installation instructions

Zip-HydroTap-G5-CS100-GMA-de-en-fr.pdf

06.04.2023

> download
Operating and installation instructions Zip-HydroTap-G5-CS100-GMA-de-en-fr.pdf 06.04.2023 3,8 MB
> download
  Older versions>
 Operating and installation instructionsZip-HydroTap-G5-CS100-GMA-de-en-fr-04-2022.pdf> download> download
  Further versions on request

CE Conformity

CE Konformitätserklärung nach RoHS3 Zip G5 2022 06 v2.pdf

01.07.2022

> download
CE Conformity CE Konformitätserklärung nach RoHS3 Zip G5 2022 06 v2.pdf 01.07.2022 2,6 MB
> download

Hotnews

CLAGE_Hotnews_2023-EN-online.pdf

10.03.2023

> download
Hotnews CLAGE_Hotnews_2023-EN-online.pdf 10.03.2023 13,9 MB
> download

Price list

CLAGE-Product-Price-List-PPL-en.pdf

10.05.2023

> download
Price list CLAGE-Product-Price-List-PPL-en.pdf 10.05.2023 6,6 MB
> download

Datanorm

Datanorm.zip

03.06.2024

> download
Datanorm Datanorm.zip 03.06.2024 40 kB
> download

GAEB

GAEB.zip

03.06.2024

> download
GAEB GAEB.zip 03.06.2024 725 kB
> download

Accessories

>

KXF  2.1

KXF  2.1 (included)

Sub-micron particle filter cartridge filters contaminants > 0.2 microns and additionally improves the taste of the water. For Zip HydroTap® G4 models since 02.2017 and G5 models since 2022.

KXF  2.1: Part no. 893702

Touch-Free CS, polished chrome

Touch-Free CS, polished chrome (optional)

Electronic tap unit for Zip HydroTap CS with IR sensors and function display for hygienic, touch-free operation, holding function for convenient jug filling, fixed spout 12 cm, height 21 cm, Ø 35 mm hole required.

Touch-Free CS, polished chrome: Part no. 4100-44544

Classic Plus CS, polished chrome

Classic Plus CS, polished chrome (optional)

Electronic tap for Zip HydroTap CS with top-mounted control buttons (rubberised), function display, dedicated button for convenient jug filling, fixed spout 12 cm, height 21.4 cm, Ø 35 mm hole required.

Classic Plus CS, polished chrome: Part no. 4100-44818

Classic Plus CS, brushed chrome

Classic Plus CS, brushed chrome (optional)

Electronic tap for Zip HydroTap CS with top-mounted control buttons (rubberised), function display, dedicated button for convenient jug filling, fixed spout 12 cm, height 21.4 cm, Ø 35 mm hole required.

Classic Plus CS, brushed chrome: Part no. 4100-44819

Classic Plus CS, matte black

Classic Plus CS, matte black (optional)

Electronic tap for Zip HydroTap CS with top-mounted control buttons (rubberised), function display, dedicated button for convenient jug filling, fixed spout 12 cm, height 21.4 cm, Ø 35 mm hole required.

Classic Plus CS, matte black: Part no. 4100-44820

Classic CS, polished chrome

Classic CS, polished chrome (optional)

Electronic tap for Zip HydroTap CS with operating buttons at the top, function display, holding function for convenient pot filling, fixed spout 12 cm, height 21 cm, Ø 35 mm hole required.

Classic CS, polished chrome: Part no. 4100-44518

Classic CS, brushed chrome

Classic CS, brushed chrome (optional)

Electronic tap for Zip HydroTap CS with operating buttons at the top, function display, holding function for convenient pot filling, fixed spout 12 cm, height 21 cm, Ø 35 mm hole required.

Classic CS, brushed chrome: Part no. 4100-44519

Classic CS, matte black

Classic CS, matte black (optional)

Electronic tap for Zip HydroTap CS with operating buttons at the top, function display, holding function for convenient pot filling, fixed spout 12 cm, height 21 cm, Ø 35 mm hole required.

Classic CS, matte black: Part no. 4100-44520

Arc CS, polished chrome

Arc CS, polished chrome (optional)

Electronic tap for Zip HydroTap CS with lateral control button, fixed pipe outlet 16 cm, height 35 cm, Ø 35 mm Hole drilling required.

Arc CS, polished chrome: Part no. 4100-44521

Arc CS, brushed chrome

Arc CS, brushed chrome (optional)

Electronic tap for Zip HydroTap CS with lateral control button, fixed pipe outlet 16 cm, height 35 cm, Ø 35 mm Hole drilling required.

Arc CS, brushed chrome: Part no. 4100-44522

Arc CS, matte black

Arc CS, matte black (optional)

Electronic tap for Zip HydroTap CS with lateral control button, fixed pipe outlet 16 cm, height 35 cm, Ø 35 mm hole drilling required.

Arc CS, matte black: Part no. 4100-44523

COF

COF (optional)

CO2 gas cylinder for Soda Club connecting thread. (Only available for dispatch within Germany.)

COF: Part no. 9910-90005

DMBCS

DMBCS (optional)

Pressure reducer with standard CO2 connecting thread (1/14 inch), gas cylinders can be obtained via specialist gas suppliers

DMBCS: Part no. 4100-44120

DMSP

DMSP (optional)

Pressure reducer with Soda Club connecting thread

DMSP: Part no. 4100-44125

DTK

DTK (optional)

The digital temperature controller for Zip devices is used to keep the temperature in the cupboard under 35 °C when normal ventilation is not sufficient. The digital controller operates independently of the undersink unit and will require a separate 230 V socket.

DTK: Part no. 893159

Filter head FK

Filter head FK (optional)

For installation of CLAGE filters KKF and KSF on all Zip units. The connection accessories must be ordered separately.

Filter head FK: Part no. 845071

KKF lime filter cartridge

KKF lime filter cartridge (optional)

Two-stage ion exchange cartridge for softening, pH stabilization and filtration of water for equipment for the production of hot beverages, coffee specialties and tea. Reduces minerals such as calcium and magnesium, as well as chlorine, odors and flavors. Uses pH ion exchange resins, pH stabilization prevents excessive acidity. Stabilization made of coconut membrane with particularly high capacity. Reduces water hardness, which can lead to scale formation in boiling water machines. Hygienic and easy replacement of filter cartridges. Internal filter parts are not exposed to contact or contamination.

KKF lime filter cartridge: Part no. 845064

KXB-C

KXB-C (optional)

Plastic installation kit for G4 CS 175, allows for easier installation of ventilation in the base cabinet. Dimensions (H × W × D): 4.0 × 49.5 × 50.0 cm.

KXB-C: Part no. 893541

KXF 2

KXF 2 (optional)

Sub-micron particle filter cartridge filters contaminants > 0.2 microns and additionally improves the taste of the water. For Zip HydroTap® G4 models before 02.2017.

KXF 2: Part no. 891290

KXF  2.1

KXF  2.1 (optional)

Sub-micron particle filter cartridge filters contaminants > 0.2 microns and additionally improves the taste of the water. For Zip HydroTap® G4 models since 02.2017 and G5 models since 2022.

KXF  2.1: Part no. 893702

KXT

KXT (optional)

For tap “Arc”: The optional stainless steel draining tray with waste water connection allows for flexible installation of the electronic dispensing tap at any location away from the sink. Finish: polished chrome.

KXT: Part no. 4100-44560

KXT

KXT (optional)

For tap “Arc”: The optional stainless steel draining tray with waste water connection allows for flexible installation of the electronic dispensing tap at any location away from the sink. Finish: brushed chrome.

KXT: Part no. 4100-44561

KXT

KXT (optional)

For tap “Arc”: The optional stainless steel draining tray with waste water connection allows for flexible installation of the electronic dispensing tap at any location away from the sink. Finish: matte black.

KXT: Part no. 4100-44562

KXTV

KXTV (optional)

For tap "Classic", "Classic Plus", "Touch-Free": The optional stainless steel draining tray with waste water connection and chrome extension allows for flexible installation of the electronic dispensing tap at any location away from the sink. Extension by 13.5 cm. Finish: polished chrome.

KXTV: Part no. 4100-44565

KXTV

KXTV (optional)

For tap "Classic", "Classic Plus", "Touch-Free": The optional stainless steel draining tray with waste water connection and chrome extension allows for flexible installation of the electronic dispensing tap at any location away from the sink. Extension by 13.5 cm. Finish: brushed chrome.

KXTV: Part no. 4100-44566

KXTV

KXTV (optional)

For tap "Classic", "Classic Plus", "Touch-Free": The optional stainless steel draining tray with waste water connection and extension allows for flexible installation of the electronic dispensing tap at any location away from the sink. Extension by 13.5 cm. Finish: matte black.

KXTV: Part no. 4100-44567

KXV

KXV (optional)

For tap "Classic", "Classic Plus", "Touch-Free": The optional chrome extension allows for raising the electronic dispensing tap by 13.5 cm. Finish: polished chrome.

KXV: Part no. 4100-44165

KXV

KXV (optional)

For tap "Classic", "Classic Plus", "Touch-Free": The optional chrome extension allows for raising the electronic dispensing tap by 13.5 cm. Finish: brushed chrome.

KXV: Part no. 4100-44166

KXV

KXV (optional)

For tap "Classic", "Classic Plus", "Touch-Free": The optional extension allows for raising the electronic dispensing tap by 13.5 cm. Finish: matte black.

KXV: Part no. 4100-44167

Similar products:

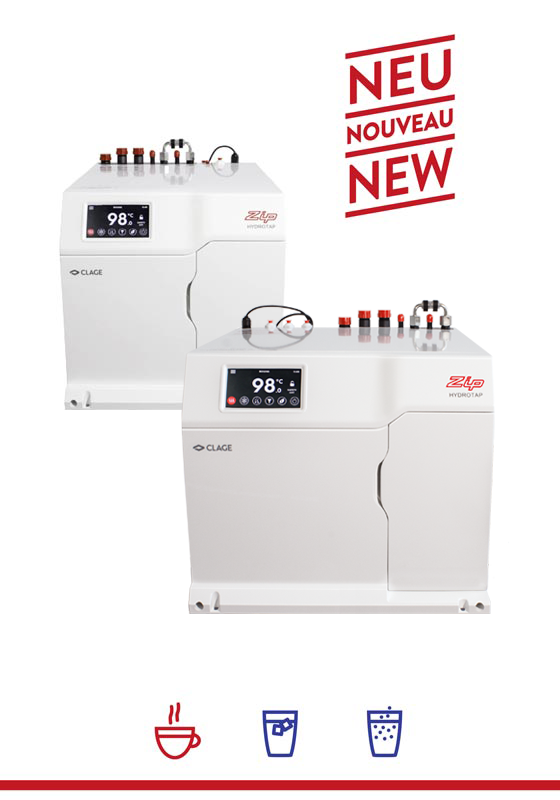

Water system Zip HydroTap G5 BCS
