E-mini instant water heater with tap
MBX Lumino

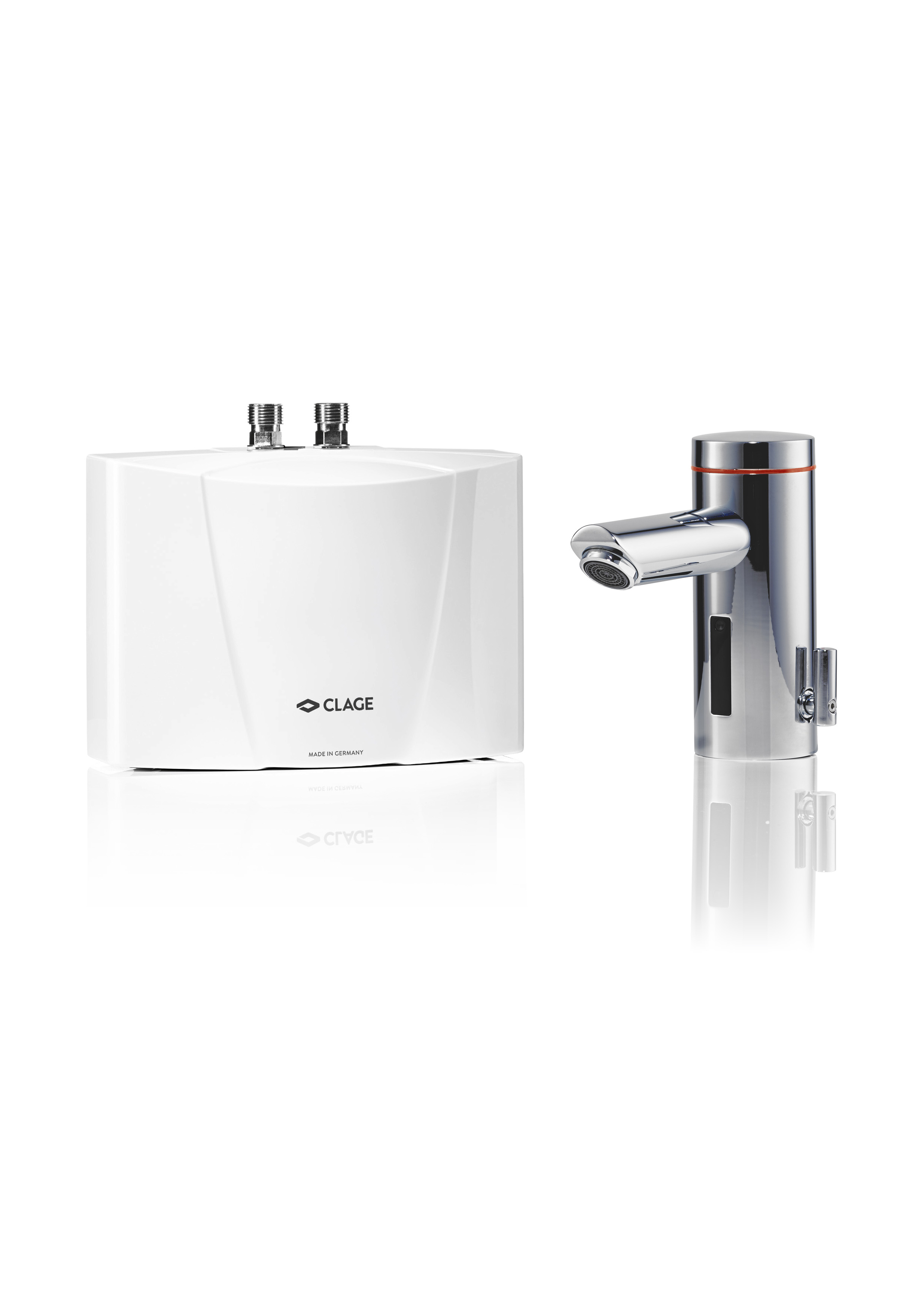

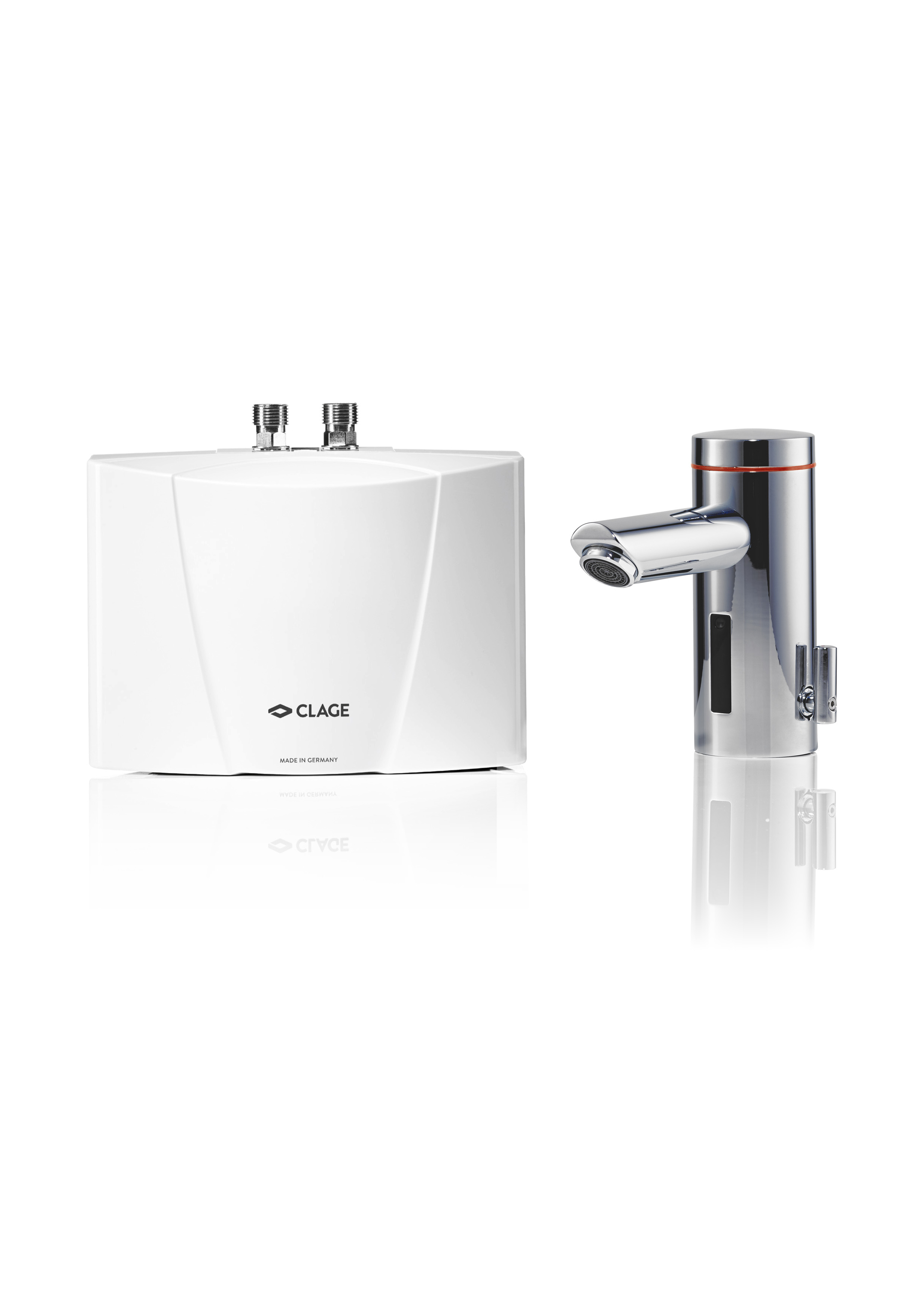

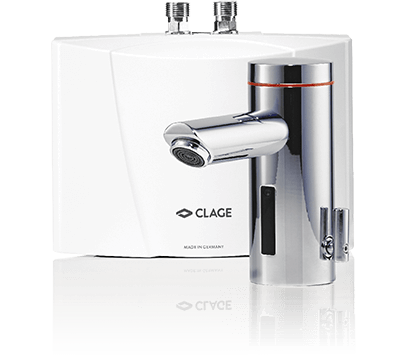

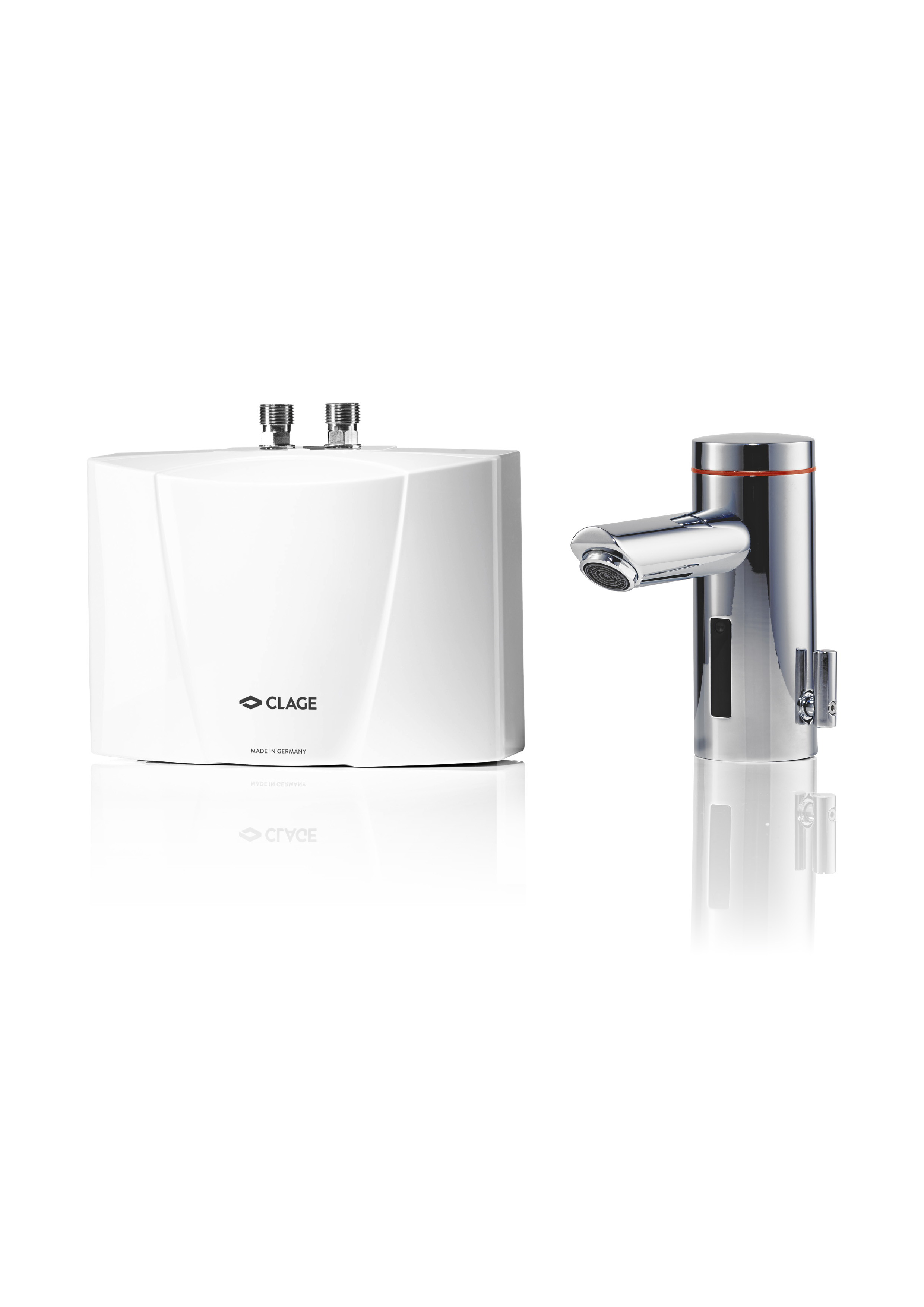

E-mini instant water heater with tap MBX Lumino

Energy efficiency class A

(scale: A+ to F)

  • MBX 3 Lumino: 3.5 kW, 230 V
    with plug
  • MBX 3 Lumino: 3.5 kW, 230 V

This is where the MBX Lumino is used.

  1. Wash hand basin <nobr>(e.g. guest toilet)</nobr>

    Wash hand basin (e.g. guest toilet)

  2. High-end washroom facilities

    High-end washroom facilities

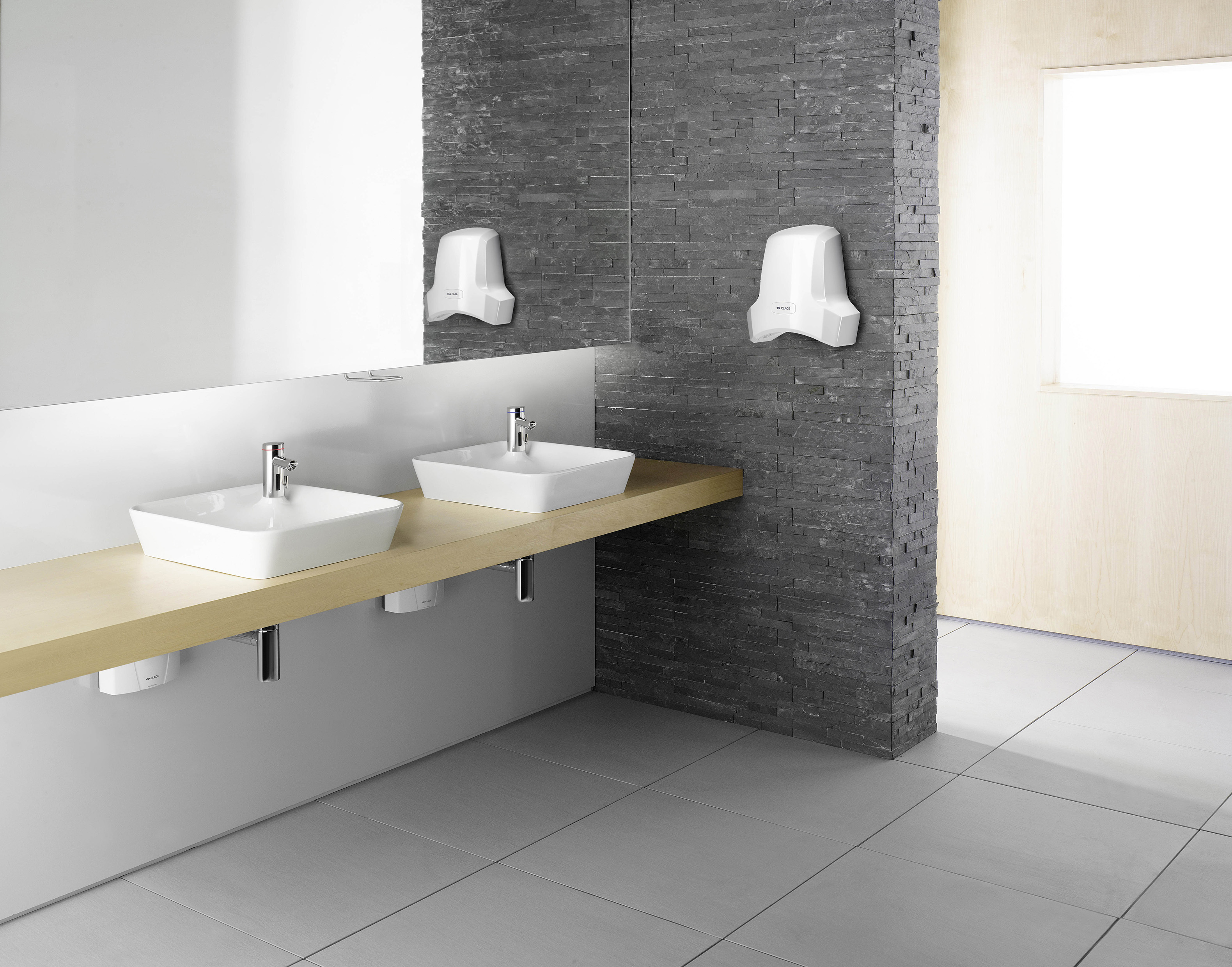

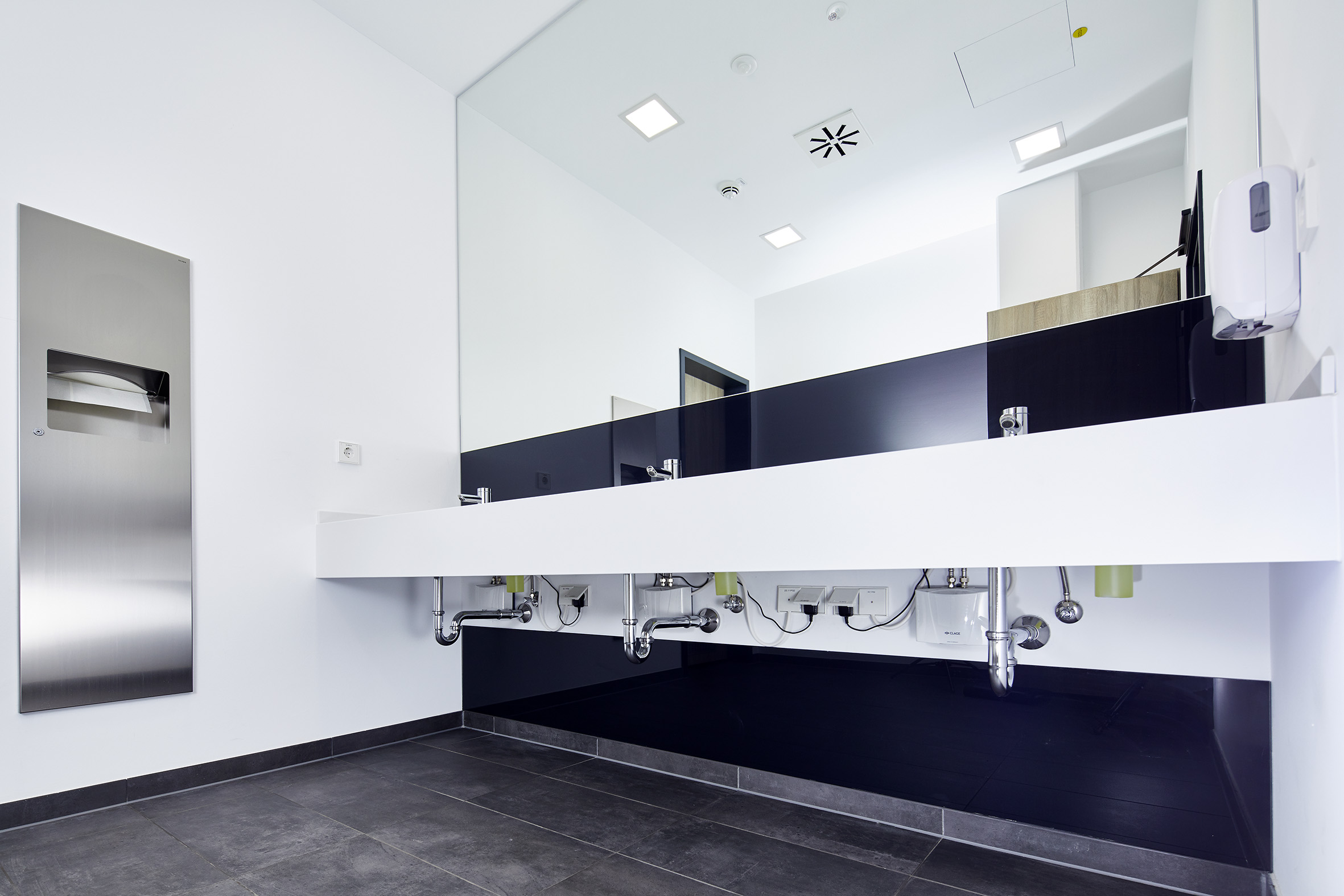

  3. Public washroom facilities

    Public washroom facilities

Efficient hygiene with sensor tap.

The optimal solution to supply wash-room facilities in public commercial buildings with hygienic and energy-efficient warm water.

Awards E-mini instant water heater with tap MBX Lumino

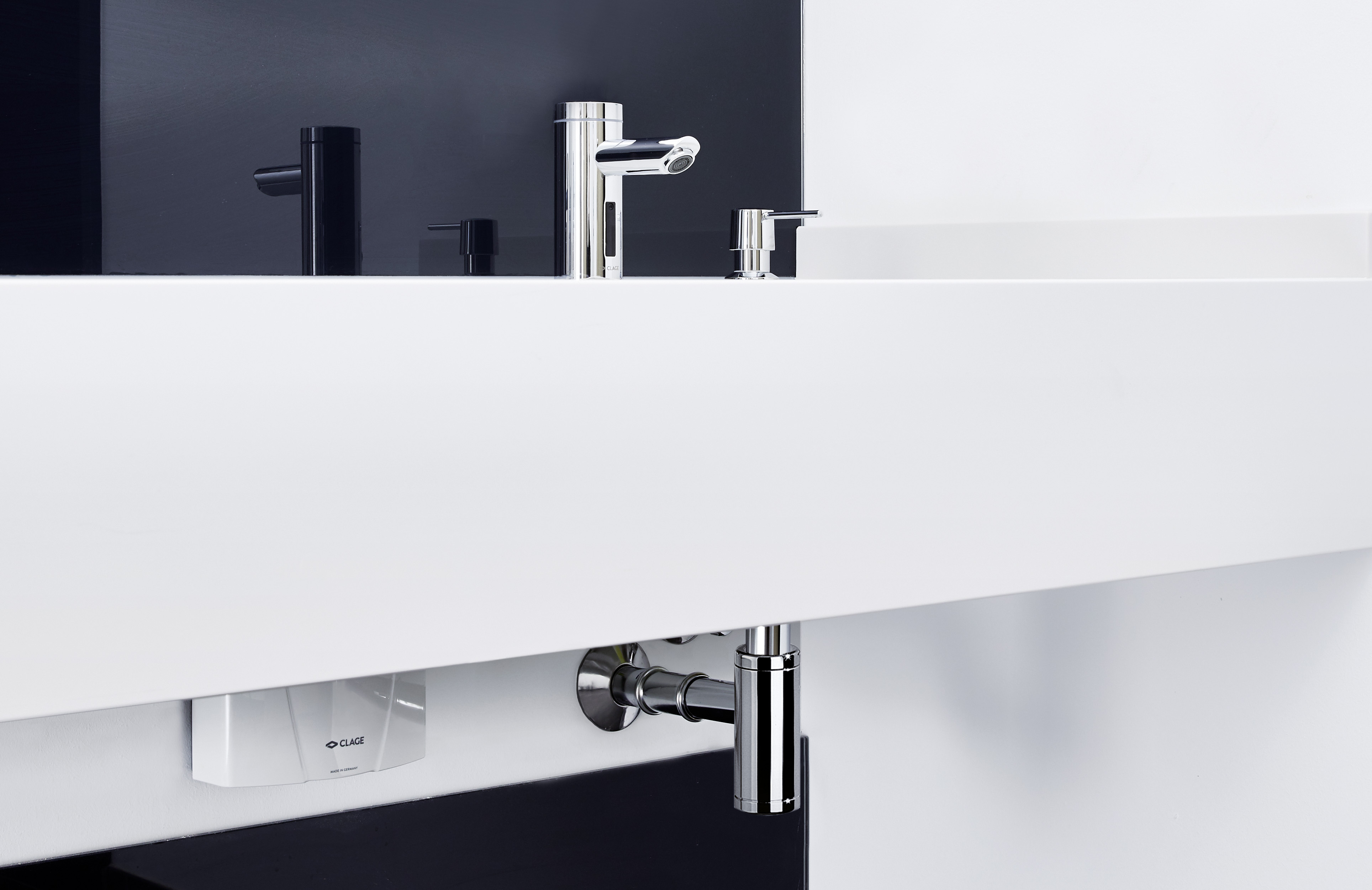

  • Electronically controlled instant water heater with sensor tap for hygienic and efficient hand-washing

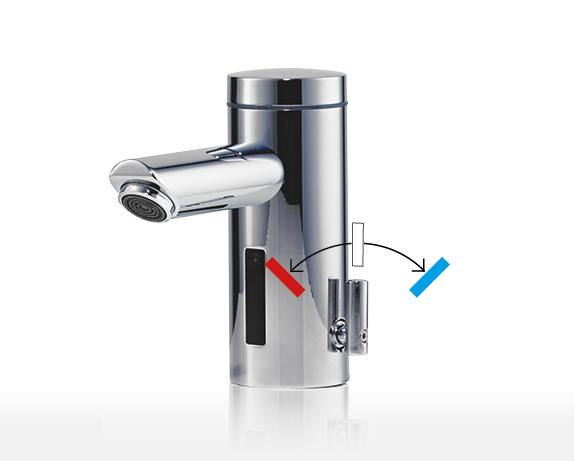

  • An infrared touch-free sensor at the tap turns the water on and off. The water temperature can be continuously adjusted with a lever at the tap.
  • The temperature is controlled electronically by the instant water heater without having to add cold water
  • A colour LED ring visualises the chosen temperature from red (= warm) to blue (= cold)
  • One-pipe system: The tap has only a single water supply line. This ensures complete flushing of all waterways - including the instantaneous water heater - regardless of the selected outlet temperature.
  • Optional hygiene flush (automatic flush every 12 or 24 hours)
  • The integrated electronic controls of the instant water heater ensure ideal temperatures and economical energy use
  • Dimensions (height × width × depth): 13.5 × 18.6 × 8.7 cm

Technical data

>

Data. Values. Facts.


















E-mini instant water heater with tap MBX 3 Lumino E-mini instant water heater with tap MBX 3 Lumino
Wash hand basin <nobr>(e.g. guest toilet)</nobr> High-end washroom facilities Public washroom facilities Wash hand basin <nobr>(e.g. guest toilet)</nobr> High-end washroom facilities Public washroom facilities
MBX 3 Lumino MBX 3 Lumino
Specification
Part number
Nominal power rating at 230 V [kW]
Maximum operating pressure [MPa (bar)]
Water connections (thread connections)
Hot water output at Δt = 25 K 1) [l/min]
Switch-on flow rate [l/min]
Maximum flow rate 2) [l/min]
Supply voltage [1~ / N / PE 220–240 V AC] with plug: Schuko Typ-F (CEE 7/7)
Supply voltage [1~ / N / PE 220–240 V AC] permanent connection 3)
Nominal current at 230 V [A]
Required cable diameter [mm²]
Maximum inlet temperature [°C]
Protection class
Specific water resistance at 15 °C [Ωcm] ≥
Weight filled with water [kg], approx.
Pour la France
1500-15113 1500-151132
3.5 3.5
1 (10) 1 (10)
G ⅜" G ⅜"
2.0 2.0
1.2 1.2
1.9 1.9


15 15
1.5 1.5
70 70
IP 25 IP 25
1100 1100
1.5 1.5

1) Temperature increase e.g. from 15 °C to 40 °C

2) Limited flow amount for optimal temperature increase by water flow adjustment

3) Mandatory in France. Also available with plug (Schuko Typ-F (CEE 7/7)).
