E-module instantaneous water heater
ISX Twin

E-module instantaneous water heater ISX Twin
  • ISX Twin UP: 2×18/21/24/27 kW, 2×400 V

This is where the ISX Twin is used.

  1. Shower in spa area

    Shower in spa area

  2. Wellness shower

    Wellness shower

  3. Bath tub

    Bath tub

  4. Appartements

    Appartements

For maximum shower convenience.

Product innovation
This solution combines two e-module instantaneous water heaters to supply one or more tapping points with a high hot water requirement (minimum flow rate per individual tapping point: 4 l/min), e.g. a wellness shower. The devices are switched synchronously via the special twin software and temperature settings are automatically adopted by both instantaneous water heaters

The integrated Bluetooth and WLAN function also allows the device to be controlled by remote control or via smartphone or tablet. Using the "Smart Control" app makes it easier to commission and maintain the appliance.

This product is available as a complete set with either a flush-mounted cabinet or a surface-mounted cabinet.

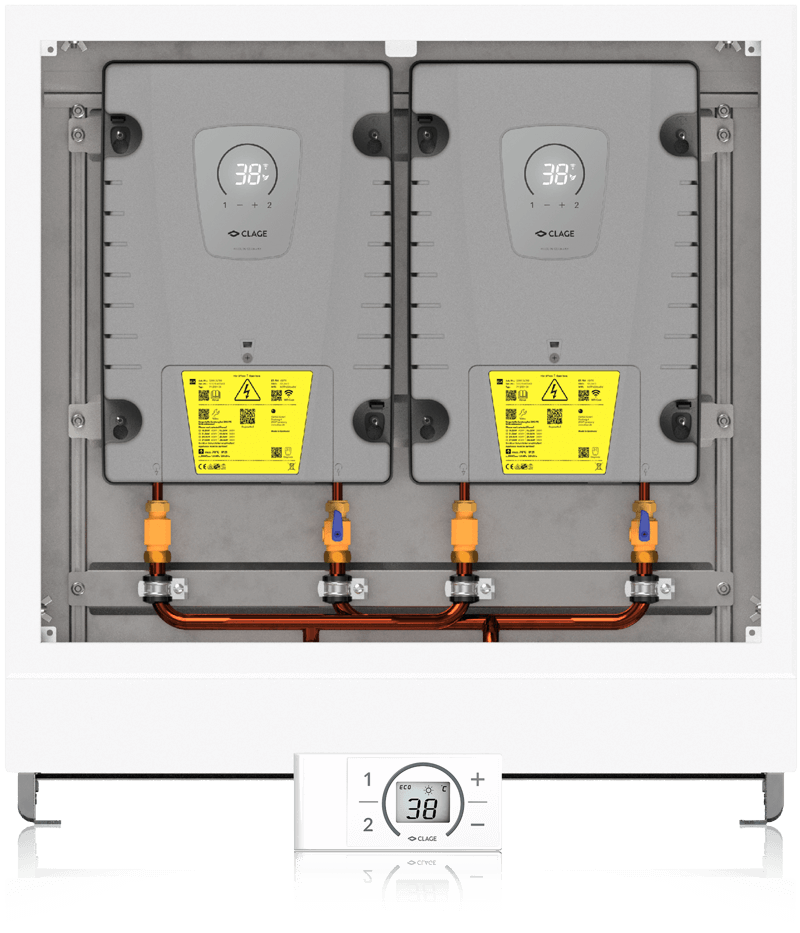

  • Two fully electronically controlled instantaneous water heaters in a special installation frame for flush-mounted installation with Bluetooth remote control
  • For the joint supply of one or more tapping points with a high hot water requirement in order to increase the amount of usable water (e.g. for a wellness shower)
  • The devices are switched synchronously viathe special Twin software, temperature settings are automatically adopted by both devices.
  • Temperature setting, definition of individual temperature profiles and viewing of consumption values via the FX 3 remote control supplied or optionally via smartphone
  • Always accurate to the degree between 20 °C and 60 °C thanks to TWIN TEMPERATURE Control TTC and SERVOTRONIC dynamic flow rate control
  • Blank wire heating system IES ensures a longer service life, less scaling, highly efficient and easy to maintain
  • Electronic safety system with air bubble detection, temperature and pressure cut-out
  • Multiple Power System MPS determines the maximum power consumption during installation: 18, 21, 24 or 27 kW
  • Integrated WLAN and Bluetooth function for connection with smartphone and tablet (from iOS 9 / Android-OS 4.4), this requires the "Smart Control" app
  • Modbus-RTU interface for integration into the building technology
  • Function for thermal treatment at 70 °C for more hygiene
  • Suitable for reheating preheated water (inlet temperature up to 70 °C permitted)
  • Dimensions of the individual device (height × width × depth): 40.2 × 27.8 × 9.9 cm

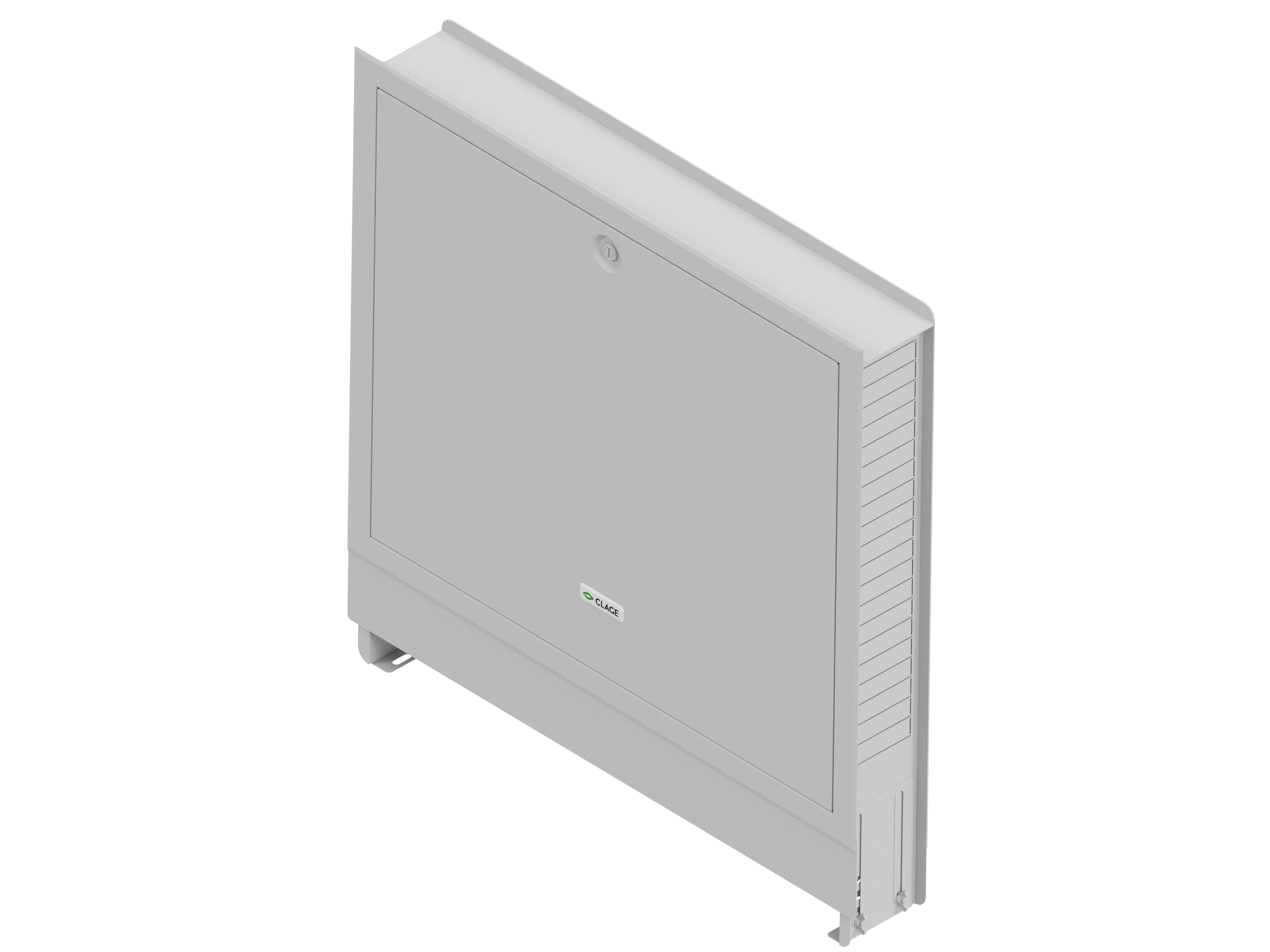

  • Dimensions of the flush-mounted cabinet (height × width × depth): 72.4 × 74.8 × 15.6 cm

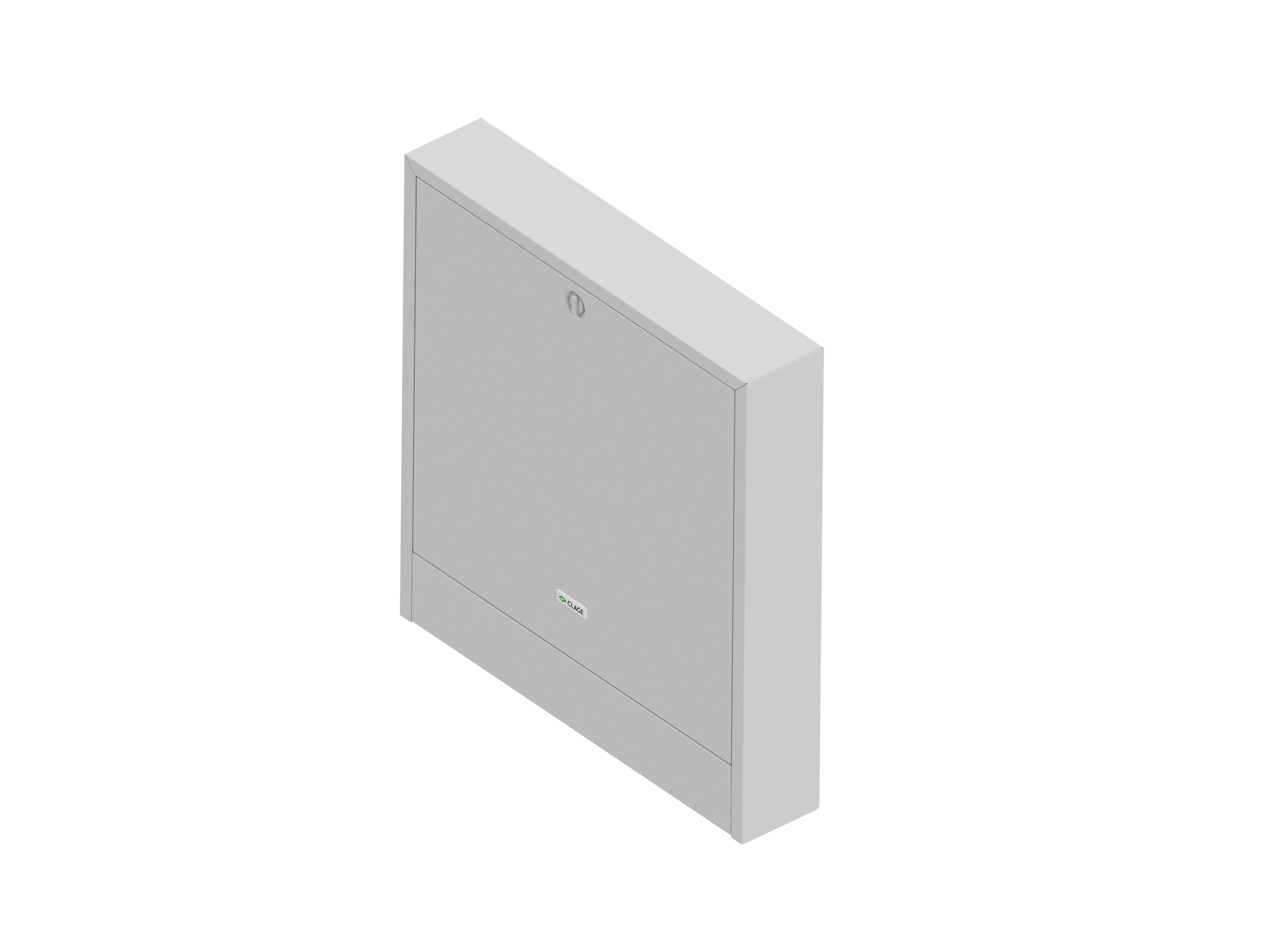

    Also available as a set with surface-mounted cabinet:
    ISX Twin AP, article number 3200-37133, dimensions of the surface-mounted cabinet (H×W×D): 77.2 × 73.1 × 14.0 cm

Technical data

>

Data. Values. Facts.



















E-module instantaneous water heater ISX Twin UP
Shower in spa area Wellness shower Bath tub Appartements
ISX Twin UP
Part number
Incl. special installation frame for flush-mounted installation 1)
Nominal power rating 2) (variably adjustable due to MPS) at 400 V [kW]
Maximum operating pressure [MPa (bar)]
Water connections (thread connections)
Hot water output at Δt = 28 K 3) [l/min]
Hot water output at Δt = 38 K 4) [l/min]
Switch-on flow rate [l/min]
Maximum flow rate: automatic [l/min] 5)
Supply voltage [3~ / PE 410 V AC] two permanent connections 6)
Nominal current per unit at 400 V [A]
Required cable diameter per unit [mm²]
Maximum inlet temperature [°C]
Solar-ready 7)
Protection class
Specific water resistance at 15 °C [Ωcm] ≥
Weight filled with water [kg], approx.
3200-37134
2 × 18 2 × 21 2 × 24 2 × 27
1 (10) 1 (10) 1 (10) 1 (10)
G ½" G ½" G ½" G ½"
2 × 9.2 2 × 10.7 2 × 12.3 2 × 13.8
2 × 6.8 2 × 7.9 2 × 9.0 2 × 10.2
4 4 4 4
26 30 35 39
4.0 4.0 6.0 6.0
70 70 70 70
IP 21 IP 21 IP 21 IP 21
1100 1100 1100 1100
27.2 27.2 27.2 27.2

1) Also available with special installation frame for surface mounting: ISX Twin AP, art. no. 3200-37133

2) The selected power rating determines the values of nominal current, cable diameter and hot water output

3) Temperature increase e.g. from 12 °C to 40 °C

4) Temperature increase e.g. from 12 °C to 50 °C

5) Depending on line pressure, selected temperature and inlet temperature

6) Alternatively connectable to 380 V

7) Suitable for reheating

Downloads

>

Media type Title Date Size

Product information sheet

ISX-Twin-UP-Unterputz-PI-en-06-2024.pdf

26.06.2024

> download
Product information sheet ISX-Twin-UP-Unterputz-PI-en-06-2024.pdf 26.06.2024 1,1 MB
> download

Product information sheet

ISX-Twin-AP-Aufputz-PI-en-06-2024.pdf

26.06.2024

> download
Product information sheet ISX-Twin-AP-Aufputz-PI-en-06-2024.pdf 26.06.2024 1,2 MB
> download

Installation instructions

ISX-Twin-Schrank-MA-de-en-04-2024.pdf

30.04.2024

> download
Installation instructions ISX-Twin-Schrank-MA-de-en-04-2024.pdf 30.04.2024 4,1 MB
> download

Operating and installation instructions

ISX-Online-GMA-de-en-fr-nl-pt-es-pl-ru-cs-sk-bg-sr.pdf

05.06.2024

> download
Operating and installation instructions ISX-Online-GMA-de-en-fr-nl-pt-es-pl-ru-cs-sk-bg-sr.pdf 05.06.2024 46,2 MB
> download

Operating and installation instructions

ISX Twin-Beiblatt-de-en-04-2024.pdf

30.04.2024

> download
Operating and installation instructions ISX Twin-Beiblatt-de-en-04-2024.pdf 30.04.2024 393 kB
> download

Quick guide

ISX-KA-de-en-fr-nl-pt-es-pl-ru-cs-sk-bg-sr.pdf

05.06.2024

> download
Quick guide ISX-KA-de-en-fr-nl-pt-es-pl-ru-cs-sk-bg-sr.pdf 05.06.2024 6,6 MB
> download

Safety instructions

Sicherheitshinweise-Durchlauferhitzer-de-en-fr-nl-pt-es-pl-sv-cs-sk-bg-no-fi-ru-sr-el-it-tr-ro.pdf

03.11.2023

> download
Safety instructions Sicherheitshinweise-Durchlauferhitzer-de-en-fr-nl-pt-es-pl-sv-cs-sk-bg-no-fi-ru-sr-el-it-tr-ro.pdf 03.11.2023 371 kB
> download

Brochure

CLAGE-ISX-Brochure-en.pdf

16.08.2024

> download
Brochure CLAGE-ISX-Brochure-en.pdf 16.08.2024 2,9 MB
> download

Datanorm

Datanorm.zip

03.06.2024

> download
Datanorm Datanorm.zip 03.06.2024 40 kB
> download

GAEB

GAEB.zip

03.06.2024

> download
GAEB GAEB.zip 03.06.2024 725 kB
> download

Accessories

>

FX 3

FX 3 (included)

Additional remote control for convenient temperature adjustment of the instantaneous water heater over a distance of approx. 10 metres in the building. Secure, Bluetooth® wireless transmission, stepless temperature selection via two keys, two fixed value keys and an LCD display, magnetic wall bracket and batteries (included). IP 20. Dimensions (H × W × D): 5.8 × 12.5 × 1.9 cm

FX 3: Part no. 3200-34021

FX Next

FX Next (optional)

Bluetooth radio remote control for electronic instantaneous water heaters, temperature selection and settings via sensor keys in an intuitive menu navigation, with e-paper display, Bluetooth connection for secure data transmission between radio remote control and instantaneous water heater, FXE 3 radio adapter for installation in the instantaneous water heater included in the scope of delivery of FXS Next, batteries and magnetic wall bracket included in the scope of delivery.

FX Next: Part no. 3200-34023
