E-comfort instant water heater
DLX

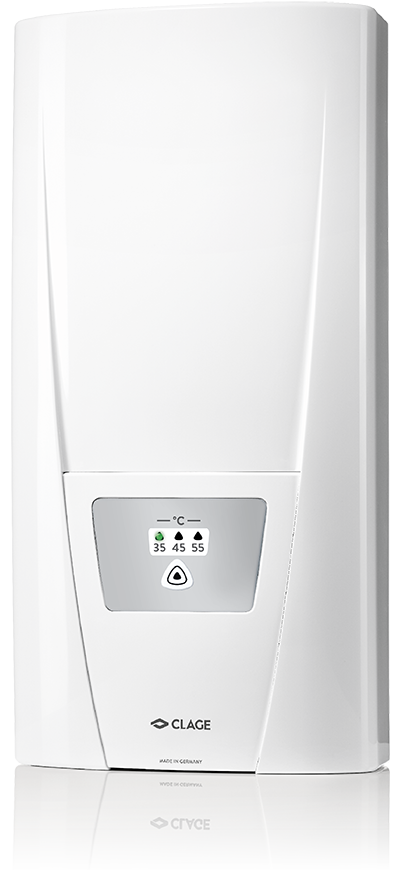

E-comfort instant water heater DLX

Energy efficiency class A

(Scale: A+ to F)

  • DLX 18: 18 kW, 400 V
  • DLX 21: 21 kW, 400 V
  • DLX 24: 24 kW, 400 V

This is where the DLX is used.

  1. Handwashbasin

    Handwashbasin

  2. Shower

    Shower

  3. Bath tub

    Bath tub

  4. Kitchen sink

    Kitchen sink

Simply choose: 35, 45 oder 55 °C!

Whenever simple operation at a reasonable price is important, the DLX presents an interesting alternative. The user can select one of three hot water temperatures with the touch of a button.

  • Electronically controlled instant water heater with simple operation
  • One-button operation for fast and easy three-level temperature selection: 35 °C, 45 °C and 55 °C
  • Stable temperature up to the unit’s power limit
  • Electronic safety system with air bubble detection, temperature and pressure shut-off
  • Dimensions (height × width × depth): 46.6 × 23.0 × 9.7 cm

Technical data

>

Data. Values. Facts.
















E-comfort instant water heater DLX 18 E-comfort instant water heater DLX 21 E-comfort instant water heater DLX 24
Handwashbasin Shower Bath tub Kitchen sink Handwashbasin Shower Bath tub Kitchen sink Handwashbasin Shower Bath tub Kitchen sink
DLX 18 DLX 21 DLX 24
Part number
Nominal power rating [kW]
Maximum operating pressure [MPa (bar)]
Water connections (thread connections)
Hot water output at Δt = 28 K 1) [l/min]
Switch-on flow rate [l/min]
Maximum flow rate 2) [l/min]
Supply voltage [3~ / PE 400 V AC] permanent connection
Nominal current [A]
Required cable diameter [mm²]
Maximum inlet temperature [°C]
Protection class
Specific water resistance at 15 °C [Ωcm] ≥
Weight filled with water [kg], approx.
3200-34185 3200-34186 3200-34187
18 21 24
1 (10) 1 (10) 1 (10)
G ½" G ½" G ½"
9.2 10.7 12.2
2.5 2.5 2.5
7.0 8.0 8.0
26 30 35
4.0 4.0 6.0
30 30 30
IP 25 IP 25 IP 25
1100 1100 1100
3.7 3.7 3.7

1) Temperature increase e.g. from 12 °C to 40 °C, mixed water

2) Limited flow amount for optimal temperature increase

Downloads

>

Media Title Date Size

Product information sheet

DLX-pi-en.pdf

18.10.2018

> download
Product information sheet DLX-pi-en.pdf 18.10.2018 573 kB
> download

Installation accessories

DX2-Montageschablone-de-en-fr-nl-pl-cs-sk-pt-es-sv.pdf

03.04.2018

> download
Installation accessories DX2-Montageschablone-de-en-fr-nl-pl-cs-sk-pt-es-sv.pdf 03.04.2018 240 kB
> download

Safety instructions

Sicherheitshinweise-Durchlauferhitzer-de-en-fr-nl-pt-es-pl-sv-cs-sk-bg-no-fi-ru-sr.pdf

29.01.2019

> download
Safety instructions Sicherheitshinweise-Durchlauferhitzer-de-en-fr-nl-pt-es-pl-sv-cs-sk-bg-no-fi-ru-sr.pdf 29.01.2019 572 kB
> download

Energy label

DLX24-Energielabel.pdf

14.02.2017

> download
Energy label DLX24-Energielabel.pdf 14.02.2017 270 kB
> download

Energy label

DLX18-Energielabel.pdf

14.02.2017

> download
Energy label DLX18-Energielabel.pdf 14.02.2017 270 kB
> download

Energy label

DLX21-Energielabel.pdf

14.02.2017

> download
Energy label DLX21-Energielabel.pdf 14.02.2017 269 kB
> download

ErP product sheet

DLX18-DLX21-DLX24-ErP-Produktdatenblatt.pdf

14.02.2017

> download
ErP product sheet DLX18-DLX21-DLX24-ErP-Produktdatenblatt.pdf 14.02.2017 95 kB
> download

CE Conformity

DSX-Touch-DSX-DEX-DEX12-DCX-DCX13-DBX-DLX-DSX-Twin-Konformitaetserklaerung-CE-Conformity-de-en-2018-05.pdf

17.07.2018

> download
CE Conformity DSX-Touch-DSX-DEX-DEX12-DCX-DCX13-DBX-DLX-DSX-Twin-Konformitaetserklaerung-CE-Conformity-de-en-2018-05.pdf 17.07.2018 164 kB
> download

Product photo


11.05.2017

> download
Product photo DLX_frontal-HighRes.jpg 11.05.2017 735 kB
> download

Product photo


11.05.2017

> download
Product photo DLX_links-HighRes.jpg 11.05.2017 900 kB
> download

Product photo


11.05.2017

> download
Product photo DLX_rechts-HighRes.jpg 11.05.2017 853 kB
> download

Product photo


11.05.2017

> download
Product photo DLX_2800px.jpg 11.05.2017 357 kB
> download

Catalogue

CLAGE-Instantaneous-water-heater-Catalogue-en.pdf

23.08.2018

> download
Catalogue CLAGE-Instantaneous-water-heater-Catalogue-en.pdf 23.08.2018 17,7 MB
> download

Datanorm

Datanorm.zip

29.06.2017

> download
Datanorm Datanorm.zip 29.06.2017 39,7 MB
> download

GAEB

GAEB.zip

29.06.2017

> download
GAEB GAEB.zip 29.06.2017 19,9 MB
> download

Accessories

>

RDX

RDX (optional)

The universal mounting frame RDX, which allows for an electrical connection at any position behind the unit, is available as an accessory.
> With electronic wiring and tap extensions
> For difficult installation conditions, for example, exchanging an instant water heater with different connections
> Compensates for uneven tiles or wall irregularities
> Installation must be performed by a specialist

RDX: Part no. 3200-34100

UDX

UDX (optional)

Pipe assembly for undersink installation with water connections, top flush-mounted G ⅜ inch (basic mounting kit RDX required).

UDX: Part no. 3200-34110

VDX

VDX (optional)

Pipe assembly for offset installation or reversed water connections when exchanging gas water heaters (basic mounting kit RDX required).

VDX: Part no. 3200-34120
