E-comfort instant water heater
DSX Touch (bis 04/2019)

E-comfort instant water heater DSX Touch (bis 04/2019)

Energy efficiency class A

(Scale: A+ to F)

  • DSX Touch: 18/21/24/27 kW, 400 V

This is where the DSX Touch is used.

  1. Handwashbasin

    Handwashbasin

  2. Shower

    Shower

  3. Bath tub

    Bath tub

  4. Kitchen sink

    Kitchen sink

For your new wellness oasis.

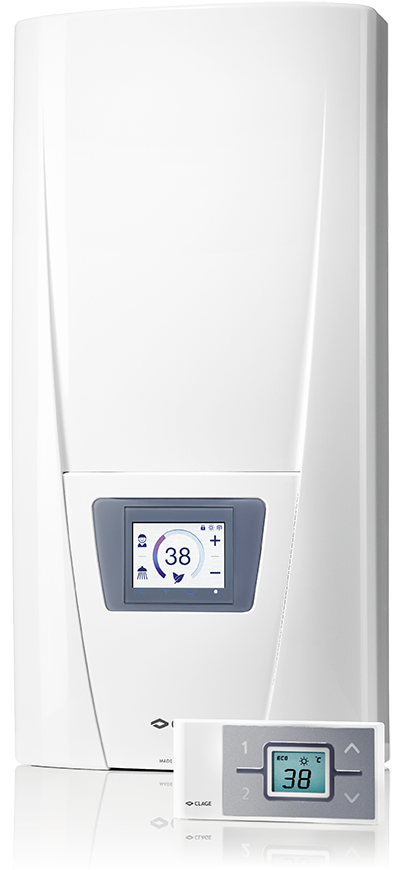

The top model among the E-comfort instant water heaters turns your bathroom into your personal wellness oasis, with an energy-efficient hot water supply that also provides cost transparency. Above all, the unit meets the highest demands for convenience.

Awards E-comfort instant water heater DSX Touch (bis 04/2019)
  • Fully electronically controlled instant water heater with touch display for convenient and economical hot water supply for one or multiple point(s)-of-use
  • Always precise temperatures between 20 °C and 60 °C due to TWIN TEMPERATURE Control TTC® and SERVOTRONIC® dynamic flow rate control
  • Electronic safety system with air bubble detection
  • Thermal treatment for more hygiene: unit heats up to 70 °C
  • Remote control module included
  • Dimensions (height × width × depth): 46.6 × 23.0 × 9.7 cm

Technical data

>

Data. Values. Facts.

















E-comfort instant water heater DSX Touch
Handwashbasin Shower Bath tub Kitchen sink
DSX Touch
Part number
Nominal power rating 1) (variably adjustable due to MPS) [kW]
Maximum operating pressure [MPa (bar)]
Water connections (thread connections)
Hot water output at Δt = 28 K 2) [l/min]
Switch-on flow rate [l/min]
Maximum flow rate: automatic [l/min] 3)
Supply voltage [3~ / PE 400 V AC] permanent connection
Nominal current [A]
Required cable diameter 4) [mm²]
Maximum inlet temperature [°C]
Solar-ready 5)
Protection class
Specific water resistance at 15 °C [Ωcm] ≥
Weight filled with water [kg], approx.
3200-34427
18 21 24 27
1 (10) 1 (10) 1 (10) 1 (10)
G ½" G ½" G ½" G ½"
9.2 10.7 12.3 13.8
2.5 2.5 2.5 2.5
26 30 35 39
4.0 4.0 6.0 6.0
70 70 70 70
IP 24 IP 24 IP 24 IP 24
1100 1100 1100 1100
4.2 4.2 4.2 4.2

1) The selected power rating determines the values of nominal current, cable diameter and hot water output

2) Temperature increase e.g. from 12 °C to 40 °C

3) Depending on line pressure, selected temperature and inlet temperature

4) Depending on the selected power rating

5) Suitable for reheating

Downloads

>

Media Title Date Size

Product information sheet

DSX-Touch-pi-en.pdf

18.10.2018

> download
Product information sheet DSX-Touch-pi-en.pdf 18.10.2018 761 kB
> download

Operating instructions

DSX-Touch-GA-de-en-fr-nl.pdf

14.02.2017

> download
Operating instructions DSX-Touch-GA-de-en-fr-nl.pdf 14.02.2017 3,1 MB
> download
  Older versions>
 Operating instructionsDSX-Touch-GA-de-en-fr-nl-04-2018-Ausnahmeversion.pdf> download> download
 Operating instructionsDSX-Touch-GA-de-en-fr-nl-09-2016.pdf> download> download
 Operating instructionsDSX-Touch-GA-de-en-fr-nl-12-2015.pdf> download> download
 Operating instructionsDSX-Touch-GA-de-en-12-2015.pdf> download> download
  Further versions on request

Installation instructions

DSX-Touch-MA-de-en-fr-nl.pdf

26.09.2018

> download
Installation instructions DSX-Touch-MA-de-en-fr-nl.pdf 26.09.2018 6,3 MB
> download
  Older versions>
 Installation instructionsDSX-Touch-MA-de-en-fr-nl-04-2018-Ausnahmeversion.pdf> download> download
 Installation instructionsDSX-Touch-MA-de-en-fr-nl-09-2016.pdf> download> download
 Installation instructionsDSX-Touch-MA-de-en-fr-nl-12-2015.pdf> download> download
 Installation instructionsDSX-Touch-MA-de-en-12-2015.pdf> download> download
  Further versions on request

Installation accessories

DX2-Montageschablone-de-en-fr-nl-pl-cs-sk-pt-es-sv.pdf

03.04.2018

> download
Installation accessories DX2-Montageschablone-de-en-fr-nl-pl-cs-sk-pt-es-sv.pdf 03.04.2018 240 kB
> download

Safety instructions

Sicherheitshinweise-Durchlauferhitzer-de-en-fr-nl-pt-es-pl-sv-cs-sk-bg-no-fi-ru-sr.pdf

29.01.2019

> download
Safety instructions Sicherheitshinweise-Durchlauferhitzer-de-en-fr-nl-pt-es-pl-sv-cs-sk-bg-no-fi-ru-sr.pdf 29.01.2019 572 kB
> download

Energy label

DSX-Touch-Energielabel.pdf

14.02.2017

> download
Energy label DSX-Touch-Energielabel.pdf 14.02.2017 272 kB
> download

ErP product sheet

DSX_Touch_ErP_Produktdatenblatt.pdf

14.02.2017

> download
ErP product sheet DSX_Touch_ErP_Produktdatenblatt.pdf 14.02.2017 231 kB
> download

CE Conformity

DSX-Touch-DSX-DEX-DEX12-DCX-DCX13-DBX-DLX-DSX-Twin-Konformitaetserklaerung-CE-Conformity-de-en-2018-05.pdf

17.07.2018

> download
CE Conformity DSX-Touch-DSX-DEX-DEX12-DCX-DCX13-DBX-DLX-DSX-Twin-Konformitaetserklaerung-CE-Conformity-de-en-2018-05.pdf 17.07.2018 164 kB
> download

Product photo


11.05.2017

> download
Product photo DSX_Touch_FX_rechts-HighRes.jpg 11.05.2017 839 kB
> download

Product photo


11.05.2017

> download
Product photo DSX_Touch_FX_links-HighRes.jpg 11.05.2017 879 kB
> download

Product photo


11.05.2017

> download
Product photo Hauptsteuerung.jpg 11.05.2017 836 kB
> download

Product photo


11.05.2017

> download
Product photo Verbrauchswerte_DXS_Touch.jpg 11.05.2017 2,1 MB
> download

Product photo


11.05.2017

> download
Product photo DSX_Touch_2800px.jpg 11.05.2017 615 kB
> download

Product photo


11.05.2017

> download
Product photo DSX_Touch_CLAGE.jpg 11.05.2017 2,4 MB
> download

Product photo


11.05.2017

> download
Product photo DSX_Touch_FX_frontal-HighRes.jpg 11.05.2017 758 kB
> download

Product photo


11.05.2017

> download
Product photo Hauptmenue_DSX_Touch.jpg 11.05.2017 2,1 MB
> download

Catalogue

CLAGE-Instantaneous-water-heater-Catalogue-en.pdf

23.08.2018

> download
Catalogue CLAGE-Instantaneous-water-heater-Catalogue-en.pdf 23.08.2018 17,7 MB
> download

Price list

Product-Price-List-PPL-en.pdf

07.05.2019

> download
Price list Product-Price-List-PPL-en.pdf 07.05.2019 3,3 MB
> download

BIM

DSX-Touch-002-BIM.rfa

16.04.2018

> download
BIM DSX-Touch-002-BIM.rfa 16.04.2018 1,2 MB
> download

BIM

DSX24-Touch-002-BIM.ifc

16.04.2018

> download
BIM DSX24-Touch-002-BIM.ifc 16.04.2018 4,4 MB
> download

BIM

DSX21-Touch-002-BIM.ifc

16.04.2018

> download
BIM DSX21-Touch-002-BIM.ifc 16.04.2018 4,4 MB
> download

BIM

DSX18-Touch-002-BIM.ifc

16.04.2018

> download
BIM DSX18-Touch-002-BIM.ifc 16.04.2018 4,4 MB
> download

BIM

DSX27-Touch-002-BIM.ifc

16.04.2018

> download
BIM DSX27-Touch-002-BIM.ifc 16.04.2018 4,4 MB
> download

Datanorm

Datanorm.zip

14.05.2019

> download
Datanorm Datanorm.zip 14.05.2019 39,7 MB
> download

GAEB

GAEB.zip

14.05.2019

> download
GAEB GAEB.zip 14.05.2019 19,9 MB
> download

Accessories

>

FX

FX (included)

Remote control including transmission unit FXE for installation into the instantaneous water heater. In addition to user controls directly at the unit, the remote control allows for convenient temperature adjustment of the instant water heater at interior distances of up to 10 meters. Secure, bidirectional wireless transfer, continuous two-button temperature selection, two pre-set buttons and a LCD display, magnetic wall holder and ­batteries (included). IP 20. Dimensions (H × W × D): 5.8 × 12.5 × 1.9 cm

FX: Part no. 2400-26090

FX (until 2016)

FX (until 2016) (optional)

– ONLY FOR DEVICES BUILT UNTIL END OF 2016 – Remote control including transmission unit FXE for installation into the instantaneous water heater. In addition to user controls directly at the unit, the remote control allows for convenient temperature adjustment of the instant water heater at interior distances of up to 10 meters. Secure, bidirectional wireless transfer, continuous two-button temperature selection, two pre-set buttons and a LCD display, magnetic wall holder and ­batteries (included). IP 20. Dimensions (H × W × D): 5.8 × 12.5 × 1.9 cm

FX (until 2016): Part no. 2400-26050

RDX

RDX (optional)

The universal mounting frame RDX, which allows for an electrical connection at any position behind the unit, is available as an accessory.
> With electronic wiring and tap extensions
> For difficult installation conditions, for example, exchanging an instant water heater with different connections
> Compensates for uneven tiles or wall irregularities
> Installation must be performed by a specialist

RDX: Part no. 3200-34100

UDX

UDX (optional)

Pipe assembly for undersink installation with water connections, top flush-mounted G ⅜ inch (basic mounting kit RDX required).

UDX: Part no. 3200-34110

VDX

VDX (optional)

Pipe assembly for offset installation or reversed water connections when exchanging gas water heaters (basic mounting kit RDX required).

VDX: Part no. 3200-34120
