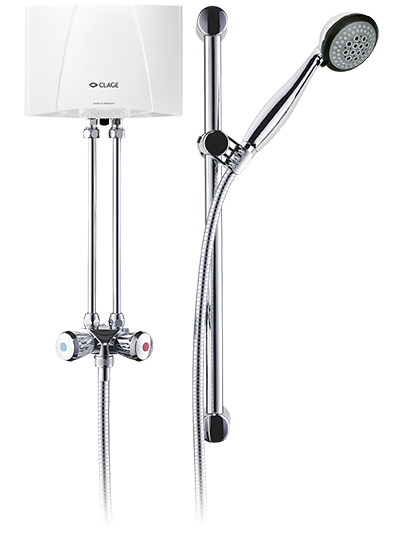

E-mini instant water heater with tap
M / BGS

E-mini instant water heater with tap M / BGS

Energy efficiency class A

(scale: A+ to F)

  • M 4 / BGS: 4.4 kW, 230 V
  • M 6 / BGS: 5.7 kW, 230 V
  • M 7 / BGS: 6.5 kW, 400 V

This is where the M / BGS is used.

  1. Attic or basement conversion

    Attic or basement conversion

  2. Single shower (e.g. guest bathroom)

    Single shower (e.g. guest bathroom)

  3. Garden shelter, at the swimming-pool

    Garden shelter, at the swimming-pool

Kits for below and above.

The small instantaneous electric water heater with shower mixer and shower set is a smart solution for hot showers if only a single-phase power connection (M7 BGS: two-phase power connection) is available. With economical comfort requirements, e.g. in garden houses, attic or basement conversions or at the swimming pool, this instantaneous water heater complete with wall rail and shower fitting is a practical solution.

  • Hydraulically controlled instantaneous water heater< (over-sink unit) in mini format as shower unit with wall bar and fitting
  • The full heating power switches on automatically as soon as water flows through the device
  • Efficient flow technology for optimum water jet with economical water consumption
  • Bare-wire heating system IES® with replaceable heating cartridge ensures longer service life, less calcification and is efficient and easy to maintain
  • Removable type plate cover for access to the central cover screw and water quantity adjustment
  • Power cable, length: 65 cm
  • Pressureless design
  • Dimensions (height × width × depth): 13.5 × 18.6 × 8.7 cm

Technical data

>

Data. Values. Facts.


















E-mini instant water heater with tap M 4 / BGS E-mini instant water heater with tap M 6 / BGS E-mini instant water heater with tap M 7 / BGS
Attic or basement conversion Single shower (e.g. guest bathroom) Garden shelter, at the swimming-pool Attic or basement conversion Single shower (e.g. guest bathroom) Garden shelter, at the swimming-pool Attic or basement conversion Single shower (e.g. guest bathroom) Garden shelter, at the swimming-pool
M 4 / BGS M 6 / BGS M 7 / BGS
Part number
Nominal power rating [kW]
Maximum operating pressure [MPa (bar)]
Water connections device (thread connections)
Water connections tap (thread connections)
Hot water output at Δt = 25 K 1) [l/min]
Switch-on flow rate [l/min]
Maximum flow rate 2) [l/min]
Supply voltage [1~ / N / PE 230 V AC] permanent connection
Supply voltage [2~ / PE 400 V AC] permanent connection
Nominal current [A]
Required cable diameter [mm²]
Maximum inlet temperature [°C]
Protection class
Specific water resistance at 15 °C [Ωcm] ≥
Weight filled with water [kg], approx.
1500-17304 1500-17306 1500-17307
4.4 5.7 6.5
0 (0) 0 (0) 0 (0)
G ⅜" G ⅜" G ⅜"
G ½" G ½" G ½"
2.5 3.5 3.7
1.8 2.1 2.4
1.5 3.3 3.7


19 25 16
2.5 4.0 2.5
20 20 20
IP 25 IP 25 IP 25
1100 1100 1100
1.2 1.2 1.2

1) Temperature increase e.g. from 15 °C to 40 °C

2) Limited flow amount for optimal temperature increase by water flow adjustment

Downloads

>

Media Title Date Size

Product information sheet

MBGS-pi-en.pdf

18.10.2018

> download
Product information sheet MBGS-pi-en.pdf 18.10.2018 631 kB
> download

Operating and installation instructions

MO-GMA-de-en-fr-nl-pl-cs-sk-no-sv-bg-fi-pt-es.pdf

20.11.2017

> download
Operating and installation instructions MO-GMA-de-en-fr-nl-pl-cs-sk-no-sv-bg-fi-pt-es.pdf 20.11.2017 6,1 MB
> download
  Older versions>
 Operating and installation instructionsMO-GMA-de-en-fr-nl-cs-sk-sv-pt-10-2018-BUCH-Offset.pdf> download> download
 Operating and installation instructionsMO-GMA-de-en-fr-nl-cs-sk-sv-pt-09-2017.pdf> download> download
 Operating and installation instructionsMO-GMA-de-en-fr-nl-cs-sk-sv-pt-06-2016.pdf> download> download
 Operating and installation instructionsMO-GMA-de-en-fr-nl-pl-cs-sk-no-sv-bg-fi-pt-es-02-2015.pdf> download> download
  Further versions on request

Operating and installation instructions

M-MBH-Beiblatt-de-en-fr-nl-pt-es-cs-sk-bg-fi-no-sv.pdf

28.05.2018

> download
Operating and installation instructions M-MBH-Beiblatt-de-en-fr-nl-pt-es-cs-sk-bg-fi-no-sv.pdf 28.05.2018 43 kB
> download

Safety instructions

Sicherheitshinweise-Durchlauferhitzer-de-en-fr-nl-pt-es-pl-sv-cs-sk-bg-no-fi-ru-sr.pdf

29.01.2019

> download
Safety instructions Sicherheitshinweise-Durchlauferhitzer-de-en-fr-nl-pt-es-pl-sv-cs-sk-bg-no-fi-ru-sr.pdf 29.01.2019 572 kB
> download

Energy label

M6-Energielabel.pdf

06.09.2017

> download
Energy label M6-Energielabel.pdf 06.09.2017 220 kB
> download

Energy label

M7-Energielabel.pdf

06.09.2017

> download
Energy label M7-Energielabel.pdf 06.09.2017 220 kB
> download

Energy label

M4-Energielabel.pdf

06.09.2017

> download
Energy label M4-Energielabel.pdf 06.09.2017 220 kB
> download

ErP product sheet

M3-M7ErP-ErP-Produktdatenblatt.pdf

13.02.2017

> download
ErP product sheet M3-M7ErP-ErP-Produktdatenblatt.pdf 13.02.2017 96 kB
> download

CE Conformity

M-MO-Konformitaetserklaerung-CE-Conformity-de-en-2018-05.pdf

17.07.2018

> download
CE Conformity M-MO-Konformitaetserklaerung-CE-Conformity-de-en-2018-05.pdf 17.07.2018 161 kB
> download

Product photo


11.05.2017

> download
Product photo M_BGS_frontal_Detail-HighRes.jpg 11.05.2017 1,0 MB
> download

Product photo


11.05.2017

> download
Product photo M_BGS_frontal-HighRes.jpg 11.05.2017 756 kB
> download

Catalogue

CLAGE-Instantaneous-water-heater-Catalogue-en.pdf

23.08.2018

> download
Catalogue CLAGE-Instantaneous-water-heater-Catalogue-en.pdf 23.08.2018 17,7 MB
> download

Price list

Product-Price-List-PPL-en.pdf

07.05.2019

> download
Price list Product-Price-List-PPL-en.pdf 07.05.2019 3,3 MB
> download

Datanorm

Datanorm.zip

14.05.2019

> download
Datanorm Datanorm.zip 14.05.2019 39,7 MB
> download

Accessories

>

CXH

CXH (optional)

Adjustable hand shower for instant water heaters, three modes adjustable, ­anti-scale insert, chrome. Dimensions: 22.5 cm length, shower head Ø 97 mm

CXH: Part no. 0300-0086
