Hot water storage heater
S 30 Smart

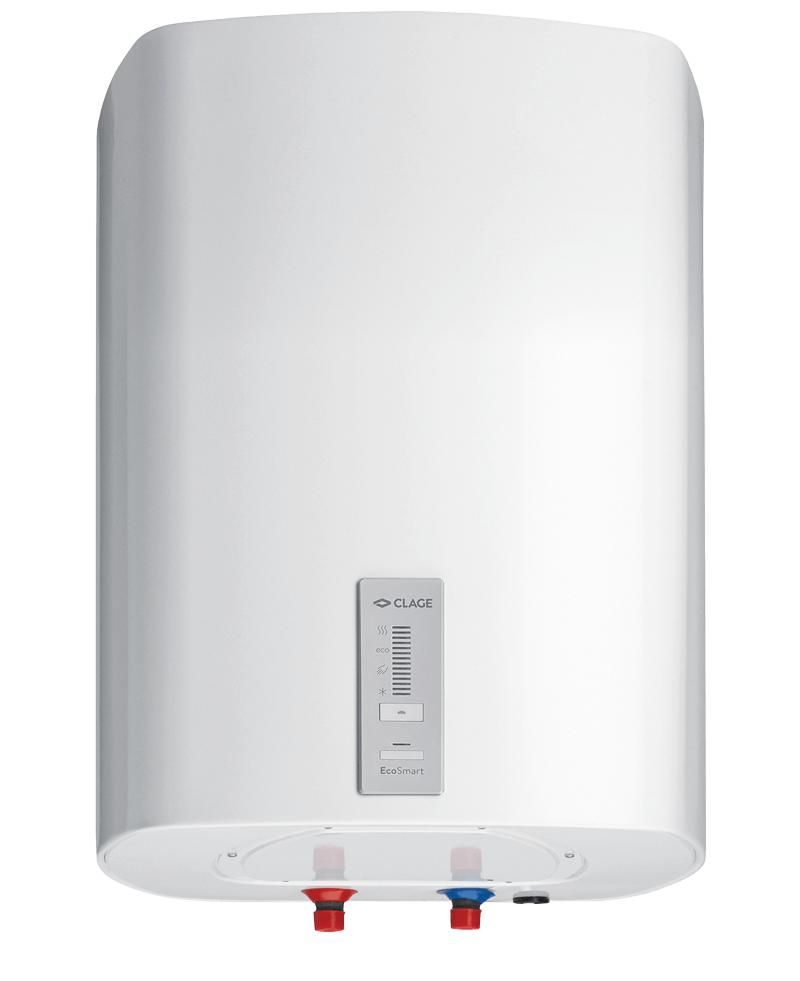

Hot water storage heater S 30 Smart

Energy efficiency class B

(scale: A+ to F)

This is where the S 30 Smart is used.

  1. Handwashbasin

    Handwashbasin

  2. Shower

    Shower

Wall-mounted storage heater 30 litres.

Product innovation
The 30-litre wall-mounted storage heater S 30 fulfils the medium hot water demand. The high-quality hard foam insulation helps to minimise its energy use.

  • Pressure-resistant wall-mounted storage tank with 30 litre capacity for supplying one or more draw-off points.
  • Special enamelled steel inner tank
  • With programmable Smart function for adapting the heat output to the user's behaviour
  • More hygiene thanks to automatic anti-legionella function
  • Thermostat with overheating protection
  • Temperature selection in seven steps from 10°C to a maximum of 75°C
  • Corrosion protection thanks to special enamelling and magnesium protective anode
  • PU hard foam insulation
  • Dimensions (height × width × depth): 51 × 42 × 44.5 cm

Technical data

>

Data. Values. Facts.



















Hot water storage heater
Handwashbasin Shower
Part number
Nominal power rating at 230 V [kW]
Content [litres]
Type: unvented
Maximum operating pressure [MPa (bar)]
Water connections (thread connections)
Temperature range [°C]
Mixed water amount 40 °C 1) [litres], approx.
Heating time Δt = 45 K 2) [min]
Standby power consumption at 65 °C [kWh / 24h]
Supply voltage [1~ / N / PE 220–240 V AC] with plug: Schuko Typ-F (CEE 7/7)
Nominal current at 230 V [A]
Function indicator
Internal tank: specially enamelled steel
Single-circuit operation
Protection class
Weight filled with water [kg], approx.
4100-41030
2.0
29.1
0.6 (6)
G ½"
10–75
54
50
0.69
9
IP 24
49

1) With an inlet temperature of 15 °C and a content temperature of 60 °C

2) Temperature increase e.g. from 15 °C to 60 °C

Downloads

>

Media type Title Date Size

Operating and installation instructions

S30-Smart-GMA-de-en.pdf

29.10.2021

> download
Operating and installation instructions S30-Smart-GMA-de-en.pdf 29.10.2021 595 kB
> download

Energy label

S30-Smart-Energielabel-2022.pdf

14.06.2022

> download
Energy label S30-Smart-Energielabel-2022.pdf 14.06.2022 617 kB
> download

Catalogue

CLAGE-Storage-Catalogue-en.pdf

12.07.2022

> download
Catalogue CLAGE-Storage-Catalogue-en.pdf 12.07.2022 2,8 MB
> download

Accessories

>

SG

SG (optional)

Oversink safety assembly (6 bar) for closed outlet installation

SG: Part no. 4100-0011

SGM

SGM (optional)

Oversink safety assembly (6 bar) for closed outlet installation with pressure-reducing valve up to 10 bar

SGM: Part no. 4100-0012

Similar products:

E-compact instant water heater CEX
CEX: 11/13.5 kW, 400 V
Hot water storage heater S 15-O
S 15-O: 2.2 kW, 230 V, with plug

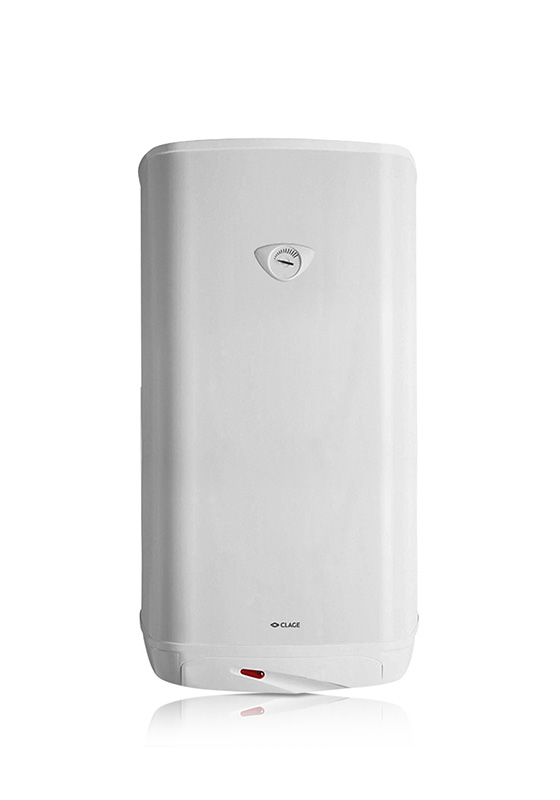

Hot water storage heater S
