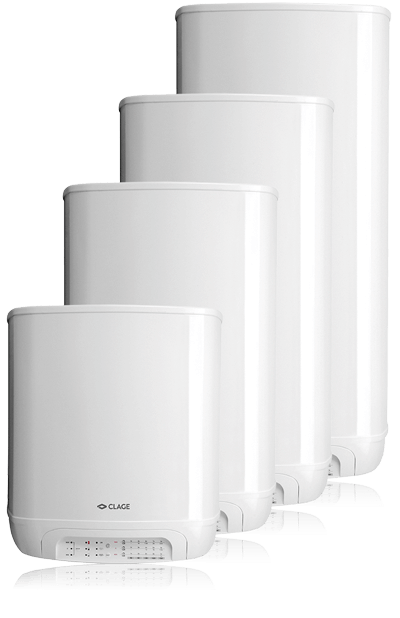

Wall-mounted storage heater SX

Energy efficiency class C

(scale: A+ to F)

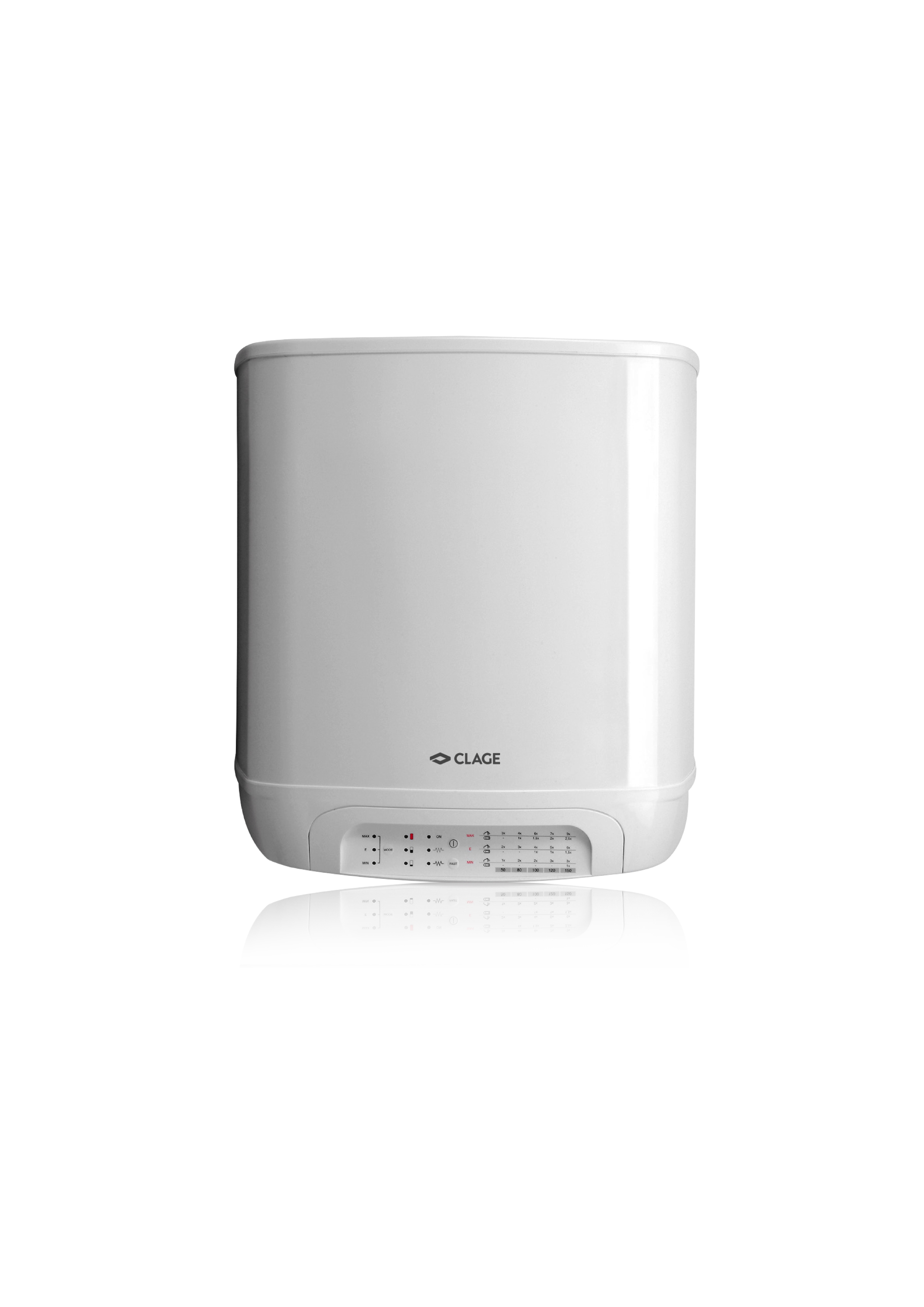

  • SX 50: 0.75 od. 4.5 kW, 230 od. 400 V
    permanent connection

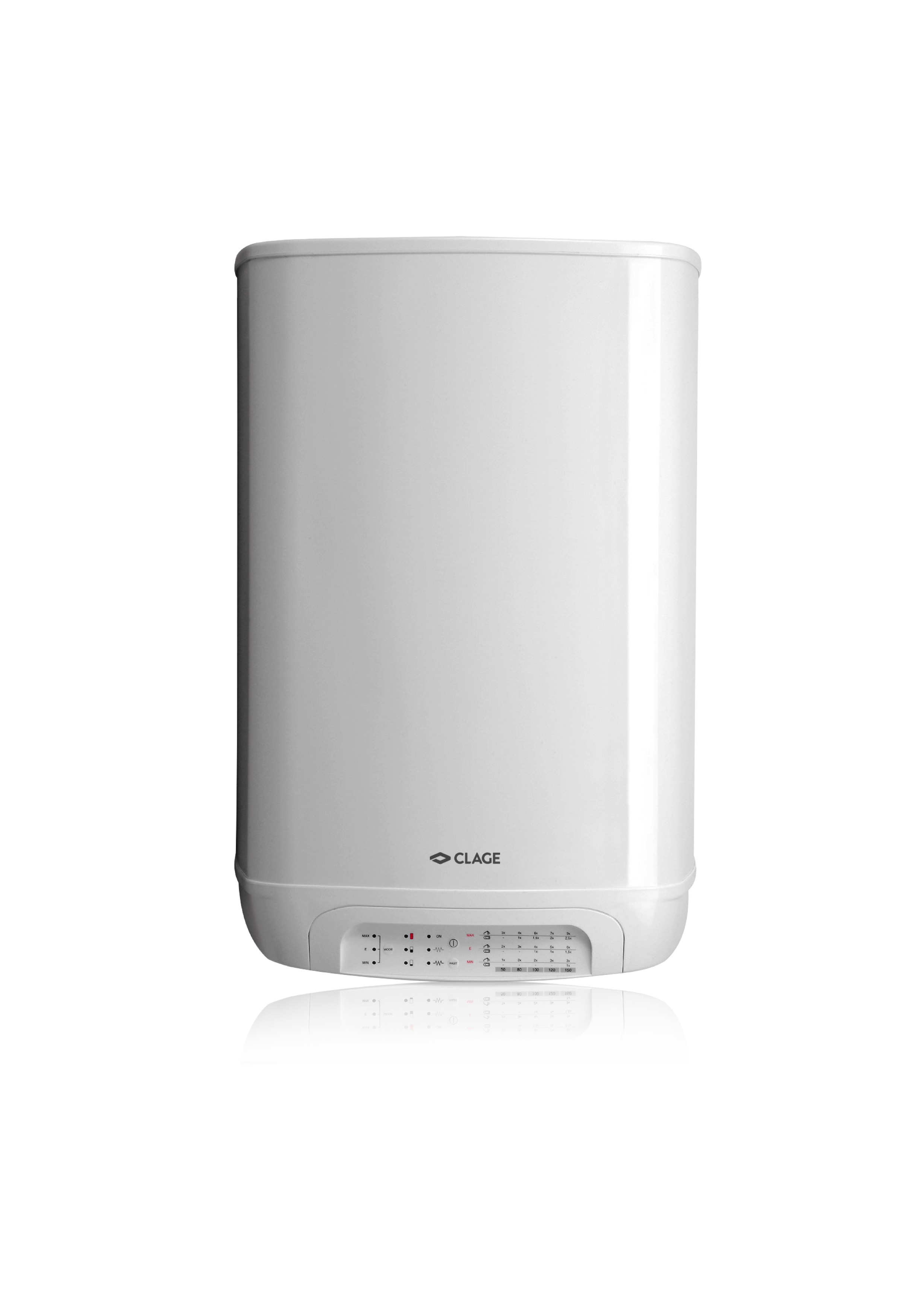

  • SX 80: 1 od. 6 kW, 230 od. 400 V
    permanent connection

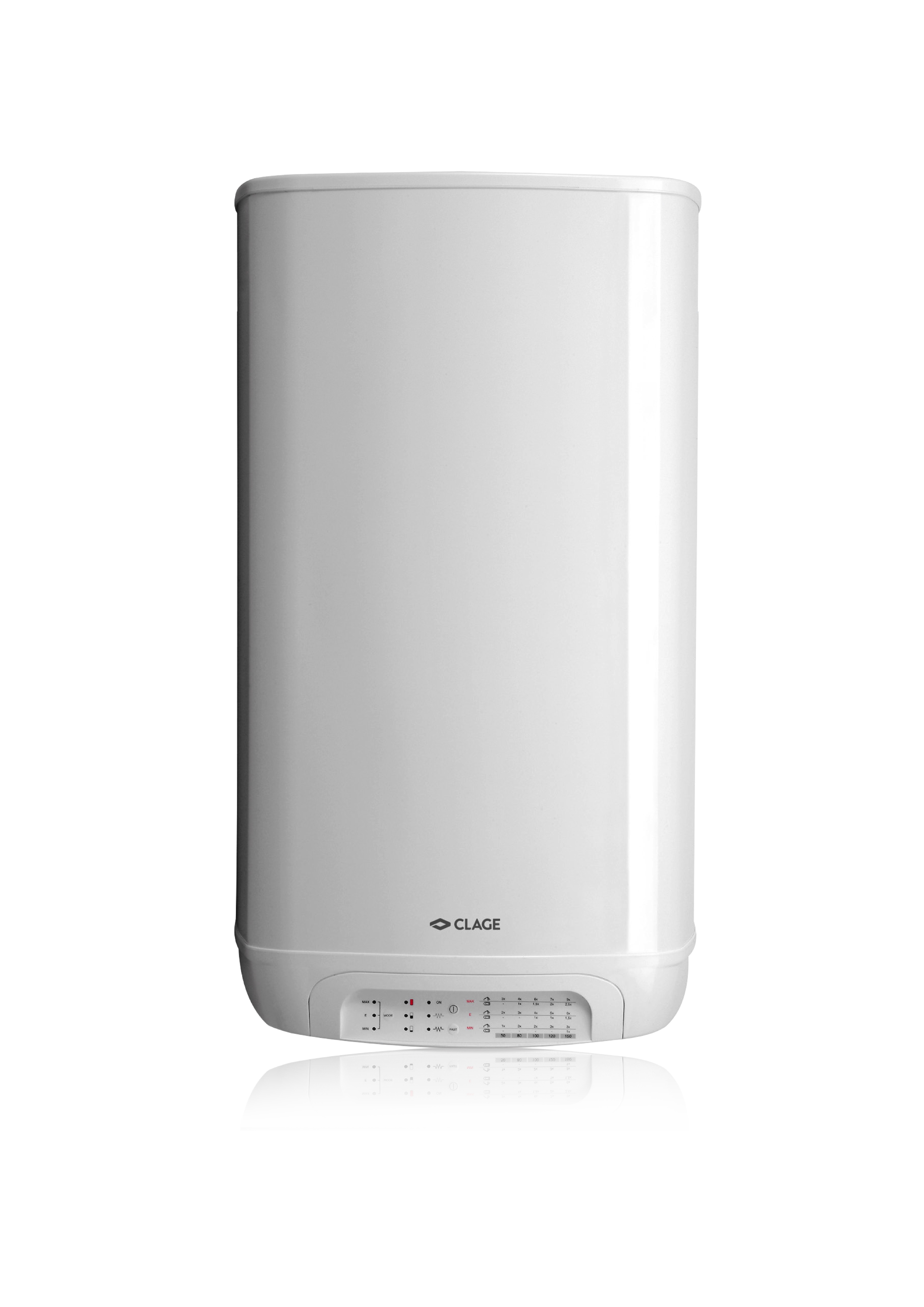

  • SX 100: 1 od. 6 kW, 230 od. 400 V
    permanent connection

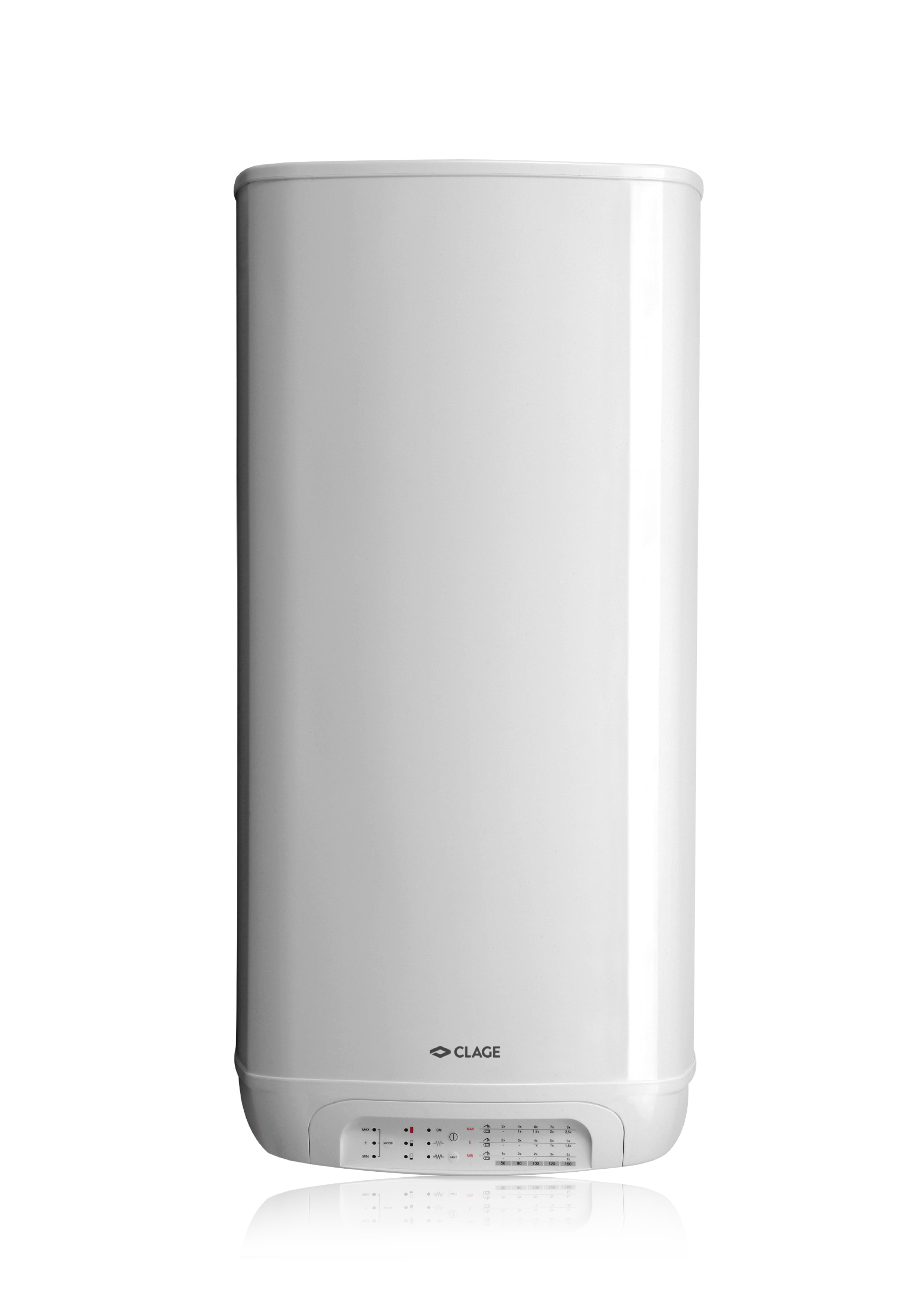

  • SX 120: 1 od. 6 kW, 230 od. 400 V
    permanent connection

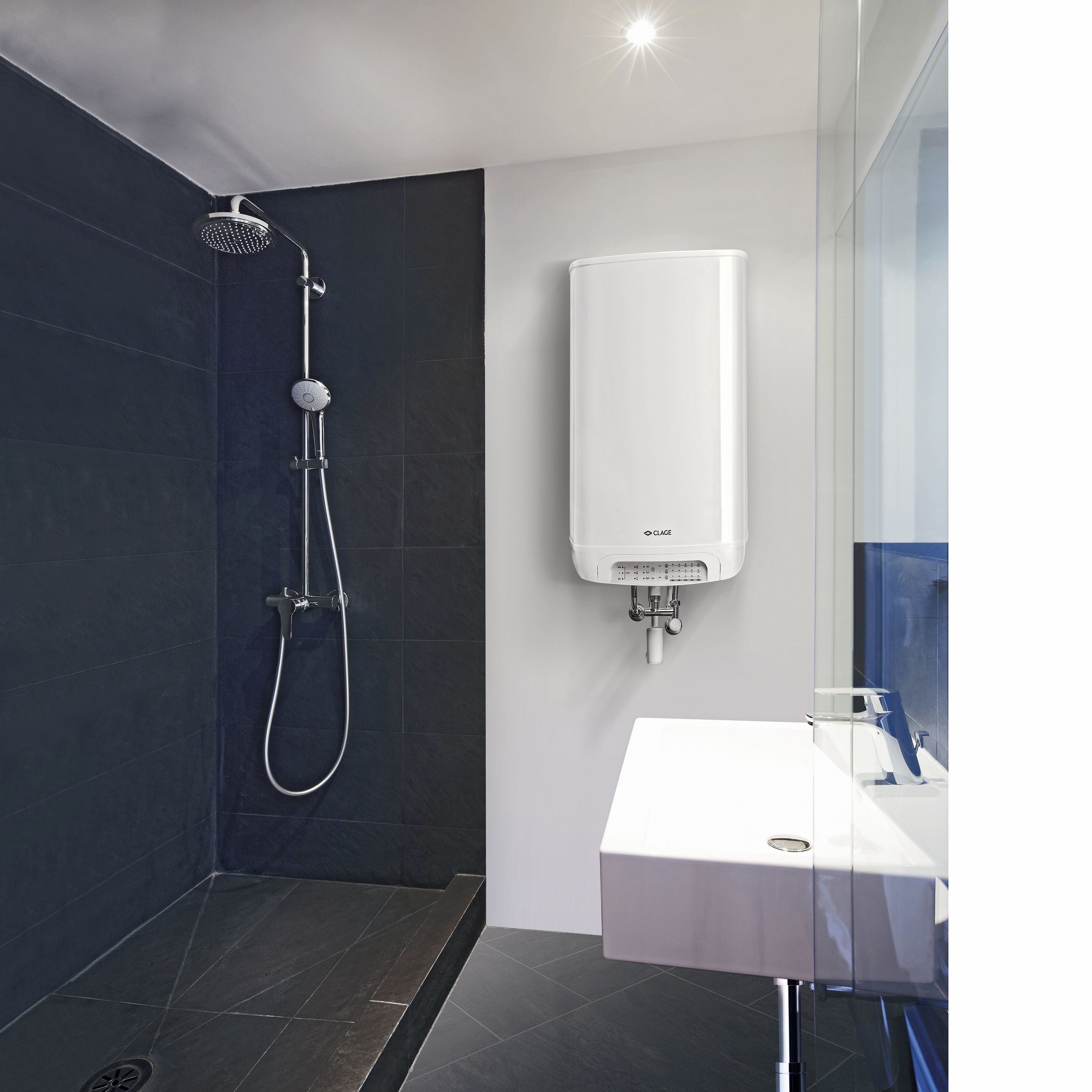

This is where the SX is used.

  1. Appartements

    Appartements

  2. Public buildings

    Public buildings

Wall-mounted storage heaters 50 to 120 litres.

The storage capacity of these storage heaters ranges from 50 to 120 litres and provides large mixed ­water amounts for increased hot water demands. Electronic controls and a dual-circuit system ensure economical operation, since the stored water can be heated using the cost-efficient night energy rate.

  • Wall-mounted storage water heater with 50, 80, 100 or 120 litre capacity
  • Push-button control panel with hot water capacity ­indicator, quick-heat button and consumption display
  • Internal steel tank with high-grade protective titanium enamel coating and universal connector for single-circuit or economical dual-circuit operation
  • High-quality stainless steel heating elements with ­inspection flange and drain nozzle
  • Corrosion protection due to titanium coating and magnesium protection anode
  • Dimensions SX 50 (height × width × depth): 61 × 53 × 52 cm
  • Dimensions SX 80 (height × width × depth): 84 × 53 × 52 cm
  • Dimensions SX 100 (height × width × depth): 99 × 53 × 52 cm
  • Dimensions SX 120 (height × width × depth): 115 × 53 × 52 cm

Technical data

>

Data. Values. Facts.
























Wall-mounted storage heater SX 50 Wall-mounted storage heater SX 80 Wall-mounted storage heater SX 100 Wall-mounted storage heater SX 120
Appartements Public buildings Appartements Public buildings Appartements Public buildings Appartements Public buildings
SX 50 SX 80 SX 100 SX 120
Part number
Nominal power rating 1), min./max. [kW]
Content [litres]
Type: unvented
Maximum operating pressure [MPa (bar)]
Water connections (thread connections)
Temperature range [°C]
Mixed water amount 40 °C 2) [litres], approx.
Heat-up time at highest power level for ∆t = 45 K 3) [min]
Heating time at lowest power setting for ∆t = 45 K 4) [min]
Standby power consumption [kWh / 24h]
Supply voltage [1~ / N / PE 230 V AC] permanent connection
Supply voltage [2~ / PE 400 V AC] permanent connection
Supply voltage [3~ / PE 400 V AC] Permanent connection
Nominal current [A]
Function indicator
Hot water capacity indicator
Push-button control panel
Quick-heat button
Internal tank: steel with protective titanium enamel coating
Protection class
Weight filled with water [kg], approx.
4100-43050 4100-43080 4100-43100 4100-43120
0.75 / 4.5 1.0 / 6.0 1.0 / 6.0 2.0 / 6.0
50 80 100 120
0.6 (6) 0.6 (6) 0.6 (6) 0.6 (6)
G ½" G ½" G ½" G ½"
40 / 60 / 85 40 / 60 / 85 40 / 60 / 85 40 / 60 / 85
85 142 176 217
37 44 55 66
220 264 330 198
0.59 0.82 0.99 1.14
11 15 15 15
IP 24D IP 24D IP 24D IP 24D
71 106 133 162

1) Depending on the connection type, up to five different power levels can be set

2) With an inlet temperature of 15 °C and a content temperature of 65 °C

3) Temperature increase e.g. from 15 °C to 60 °C

4) Temperature increase e.g. from 15 °C to 60 °C
