Sensor taps
AEB, AEB-C, AEN, AEN-C

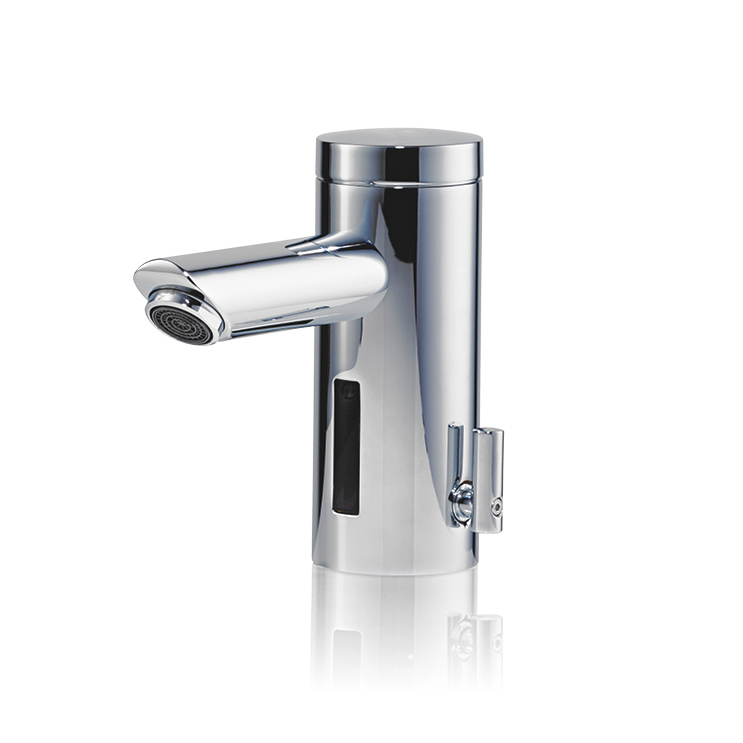

Sensor taps AEB, AEB-C, AEN, AEN-C
  • AEB
    Battery powered, open-outlet
  • AEB-C
    Battery powered, closed-outlet
  • AEN
    Mains powered, open-outlet
  • AEN-C
    Mains powered, closed-outlet

Application areas:

  1. Handwashbasin

    Handwashbasin

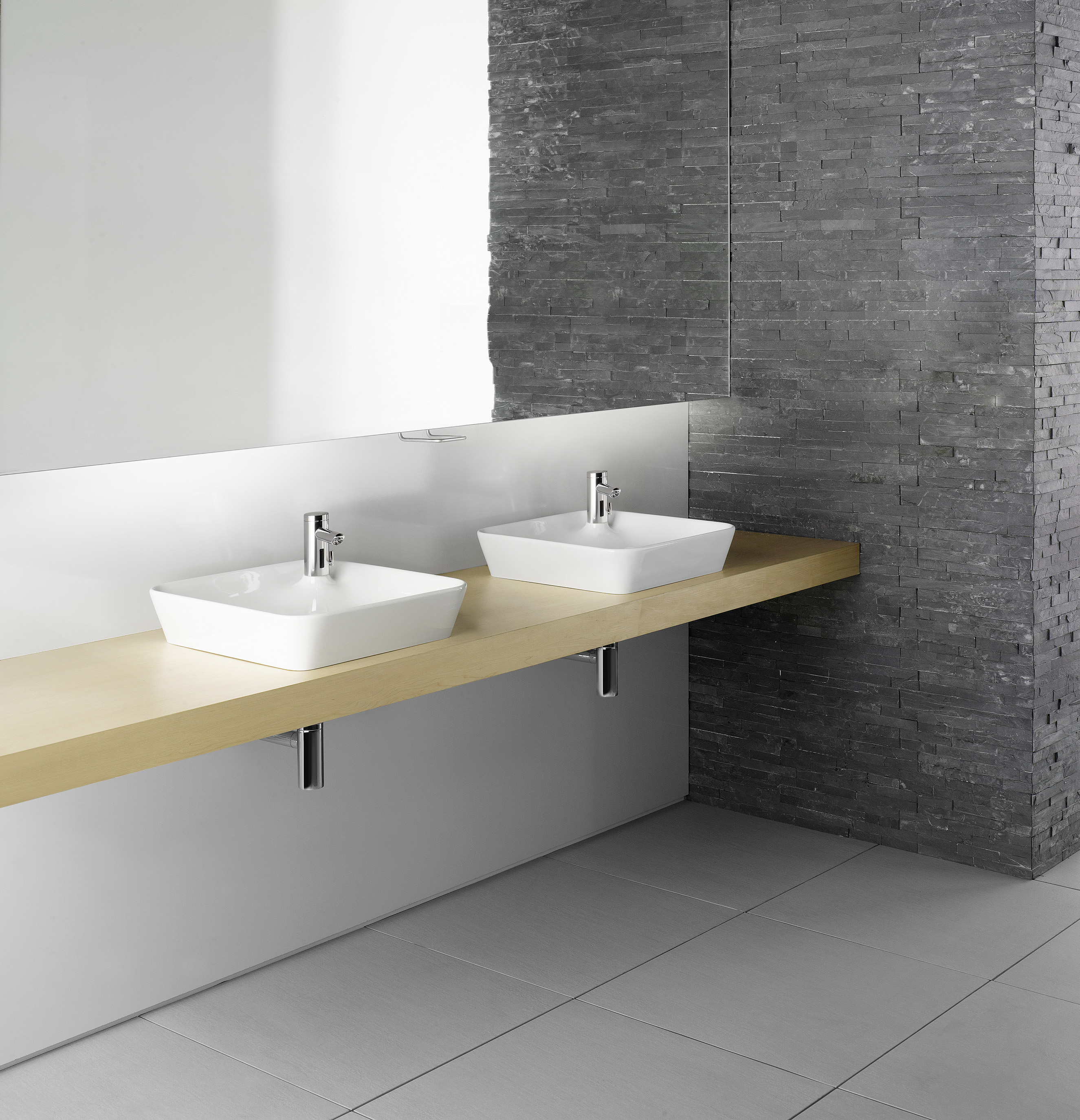

  2. Public washroom facilities

    Public washroom facilities

Hygienic, energy efficient hand washing.

Sensor taps for hygienic, energy efficient hand washing. An infrared touch-free sensor (automatic setting) at the tap turns the water on and off.

  • Mixing device for continuous temperature regulation
  • Open-outlet construction for pressureless instant water heaters: AEB and AEN
  • Closed-outlet construction for pressure resistant instant water heaters: AEB-C and AEN-C
  • AEN/AEB: Modular monoblock without base
  • Temporary-off for cleaning and continuous-on for filling select­able
  • Activatable hygienic rinse: automatic rinse every 12, 24 or 48 hours
  • Models with battery (6 Volt Lithium CRP 2 ): AEB, AEB-C
  • Models with mains power supply (1~ / N / PE 230 V AC / 6 V DC): AEN, AEN-C
  • Flexible connecting hose ⅜ inch × 35 cm to the angle valve and ⅜ inch × 50 cm to the appliance
  • Without pop-up waste

Technical data

>

Data. Values. Facts.















Sensor taps AEB Sensor taps AEB-C Sensor taps AEN Sensor taps AEN-C
Handwashbasin Public washroom facilities Handwashbasin Public washroom facilities Handwashbasin Public washroom facilities Handwashbasin Public washroom facilities
AEB AEB-C AEN AEN-C
Part number
Type: vented
Type: unvented
Maximum operating pressure [bar]
Water connections (thread connections)
Energy supply battery [6 Volt Lithium CRP 2]
Voltage power supply unit [1~ / N / PE 230 V AC / 6 V DC]
Flow rate [l/min], approx.
Water follow-up time (adjustable) [s]
Continuous rub-in time (adjustable) [min]
For mini instant water heaters
Spout [cm]
Dimensions (height) [cm]
1100-04250 1100-04260 1100-04255 1100-04265


0 0.3 – 10 0 0.3 – 10
G ⅜" G ⅜" G ⅜" G ⅜"


2 – 6 2 – 6 2 – 6 2 – 6
1 (0.1 – 10) 1 (0.1 – 10) 1 (0.1 – 10) 1 (0.1 – 10)
2 (0.5 – 20) 2 (0.5 – 20) 2 (0.5 – 20) 2 (0.5 – 20)
11.0 11.0 11.0 11.0
13.3 13.3 13.3 13.3
