Hand dryer
WHT

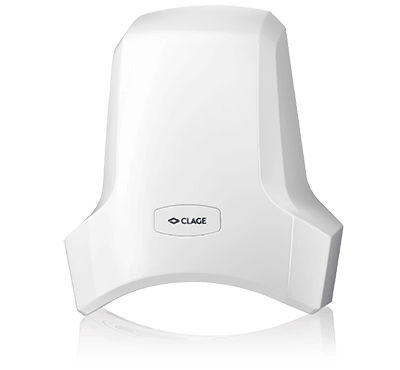

Hand dryer WHT
  • WHT: 1.0 kW, 230 V
    Infrared touch-free sensor

This is where the WHT is used.

  1. Wash hand basin <nobr>(e.g. guest toilet)</nobr>

    Wash hand basin (e.g. guest toilet)

  2. Sanitary facilities in commercial buildings

    Sanitary facilities in commercial buildings

  3. Public washroom facilities

    Public washroom facilities

And after washing your hands: Hygienic hand drying.

The hand dryer will turn on and off automatically via an electronic infrared sensor when you approach it with your hands. The optimised air outlet with a strong air flow allows for fast and comfortable hand drying. It also features a very low noise level and energy-saving operation.

  • Comfort air hand dryer for wash-room facilities
  • Touchless on/off function
  • Low noise level: max. 69 dB (A)
  • Safety shut-off after approx. 35 seconds continuous use (e.g. in the event of chewing gum vandalism)
  • The impact-resistant ABS case and the quiet, no-maintenance motor ensure a long service life
  • Easy, maintenance-friendly wall installation with ­integrated mounting plate (without having to open the unit)
  • Connecting cable (~25cm)
  • Connection terminal for fixed connection easily accessible by separate flap
  • Extremely economical operation
  • The air flow is heated energy-efficiently by the waste heat from the motor.
  • Air intake grille suitable for vacuum cleaning
  • Rating 1.0 kW 230 V (air flow: 38 l/s)
  • Dimensions (height × width × depth): 30.4 × 26.8 × 18.2 cm

Technical data

>

Data. Values. Facts.













Hand dryer WHT
Wash hand basin <nobr>(e.g. guest toilet)</nobr> Sanitary facilities in commercial buildings Public washroom facilities
WHT
Part number
Nominal power rating at 230 V [kW]
Supply voltage [1~ / N / PE 230 V AC] with plug: Schuko Typ-F (CEE 7/7)
Nominal current at 230 V [A]
Colour (pure white RAL 9010)
Motor output [W]
Noise level [dB]
Air flow [l/s]
Relative drying time [s], approx.
Protection class
Weight with wall mount [kg], approx.
7000-70300
1.0
4.3
1000
69
38
17
IP 23
3.0
