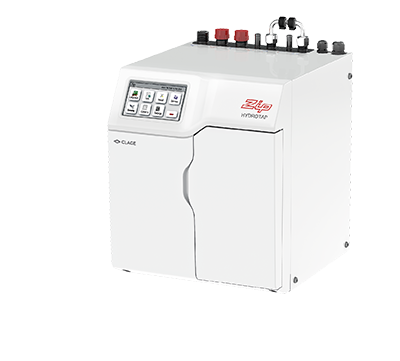

Zip HydroTap G4 B (Alt/EoL)

- G4 B 160: 1.9 kW, 230 V
The Zip HydroTap G4 B delivers
-
Boiling water
It's teatime - Don't wait , drink tea right away!
At the push of a button, this water system delivers filtered boiling hot water in seconds. It is ideal for the increased demand in kitchenettes of large offices, restaurants and hotels. The built-in filter improves the water quality, and the energy-saving function can be easily configured via the touch display.
The under-sink water system "Zip HydroTap B" can be combined with the following taps:
- Electronic boiling water automat for under-sink installation for immediate supply of boiling water.
- Touch display for menu control, for activating the energy-saving mode and scalding protection as well as the temperature setting of the boiling water
- Electronic temperature control
- Easily replaceable fine filter cartridge with activated carbon block for filtering pollutants > 0.2 micrometers, taste improvement
- Leakage protection system
- Dimensions (height × width × depth): 33.5 × 28 × 31.3 cmPlease order tap separately!


Technical data
>
Data. Values. Facts.
|
|||||||||||||||||||||||||||||
|
|
1) With supplied adapter G ⅜"
2) Connection hose G ½” to G ½” is required (not included in scope of delivery)
3) Standard cup with 167 ml
4) At 12 hours in standby mode
Downloads
>
Media type | Title | Date | Size | |
---|---|---|---|---|
![]() Product information sheet Zip-HydroTap-G4-B-PI-en.pdf 12.07.2021 > download |
Product information sheet | Zip-HydroTap-G4-B-PI-en.pdf | 12.07.2021 |
1,9 MB > download |
![]() Operating instructions Zip-HydroTap-G4-B-User-Guide-de-en-fr.pdf 29.04.2019 > download |
Operating instructions | Zip-HydroTap-G4-B-User-Guide-de-en-fr.pdf | 29.04.2019 |
1,5 MB > download |
![]() Operating and installation instructions Zip-HydroTap-G4-B-GMA-de-en-fr.pdf 03.09.2019 > download |
Operating and installation instructions | Zip-HydroTap-G4-B-GMA-de-en-fr.pdf | 03.09.2019 |
1,5 MB > download |
Older versions> | ||||
Operating and installation instructions | Zip-HydroTap-G4-B-GMA-de-en-fr-04-2019.pdf> download | > download | ||
Further versions on request | ||||
![]() CE Conformity G4-BCS160175-B160-CS175-C175-Konformitaetserklaerung-CE-Conformity-de-en-2016-11.pdf 17.07.2018 > download |
CE Conformity | G4-BCS160175-B160-CS175-C175-Konformitaetserklaerung-CE-Conformity-de-en-2016-11.pdf | 17.07.2018 |
378 kB > download |
![]() Datanorm Datanorm.zip 05.02.2021 > download |
Datanorm | Datanorm.zip | 05.02.2021 |
17,0 MB > download |
![]() GAEB GAEB.zip 25.11.2020 > download |
GAEB | GAEB.zip | 25.11.2020 |
36 kB > download |
Accessories
>

KXF 2.1 (included)
Sub-micron particle filter cartridge filters contaminants > 0.2 microns and additionally improves the taste of the water. For Zip HydroTap® G4 models since 02.2017 and G5 models since 2022.
KXF 2.1: Part no. 893702

Classic B, polished chrome (optional)
Electronic tap for Zip HydroTap B with operating buttons at the top, function display, holding function for convenient pot filling, fixed spout 12 cm, height 21 cm, Ø 35 mm hole required.
Classic B, polished chrome: Part no. 4100-44512

Classic B, brushed chrome (optional)
Electronic tap for Zip HydroTap B with operating buttons at the top, function display, holding function for convenient pot filling, fixed spout 12 cm, height 21 cm, Ø 35 mm hole required.
Classic B, brushed chrome: Part no. 4100-44513

Classic B, matte black (optional)
Electronic tap for Zip HydroTap B with operating buttons at the top, function display, holding function for convenient pot filling, fixed spout 12 cm, height 21 cm, Ø 35 mm hole required.
Classic B, matte black: Part no. 4100-44514

Arc B, polished chrome (optional)
Electronic tap for Zip HydroTap B with lateral control button, fixed pipe outlet 16 cm, height 35 cm, Ø 35 mm Hole drilling required.
Arc B, polished chrome: Part no. 4100-44515

Arc B, brushed chrome (optional)
Electronic tap for Zip HydroTap B with lateral control button, fixed pipe outlet 16 cm, height 35 cm, Ø 35 mm Hole drilling required.
Arc B, brushed chrome: Part no. 4100-44516

Arc B, matte black (optional)
Electronic tap for Zip HydroTap B with lateral control button, fixed pipe outlet 16 cm, height 35 cm, Ø 35 mm hole drilling required.
Arc B, matte black: Part no. 4100-44517

Claris Ultra 500 (optional)
Filter cartridge, capacity at 10 °KH 4.200 litre. For hard, chalky water, the filter system Claris Ultra is to be used (recommended from 10 °KH).
Claris Ultra 500: Part no. 84500
- Product information sheetClaris-Filter-systems-PI-en.pdf (383 kB)
- Operating and installation instructionsClaris-Ultra-Filterpatrone-GMA-de-en-fr.pdf (723 kB)

Claris Ultra 1000 (optional)
Filter cartridge, capacity at 10 °KH 8.500 litre. For hard, chalky water, the filter system Claris Ultra is to be used (recommended from 10 °KH).
Claris Ultra 1000: Part no. 84501
- Product information sheetClaris-Filter-systems-PI-en.pdf (383 kB)
- Operating and installation instructionsClaris-Ultra-Filterpatrone-GMA-de-en-fr.pdf (723 kB)

Claris Ultra 2000 (optional)
Filter cartridge, capacity at 10 °KH 20.000 litre. For hard, chalky water, the filter system Claris Ultra is to be used (recommended from 10 °KH).
Claris Ultra 2000: Part no. 84502
- Product information sheetClaris-Filter-systems-PI-en.pdf (383 kB)
- Operating and installation instructionsClaris-Ultra-Filterpatrone-GMA-de-en-fr.pdf (723 kB)

Filter head FK (optional)
For installation of CLAGE filters KKF and KSF on all Zip units. The connection accessories must be ordered separately.
Filter head FK: Part no. 845071

KKF lime filter cartridge (optional)
Two-stage ion exchange cartridge for softening, pH stabilization and filtration of water for equipment for the production of hot beverages, coffee specialties and tea. Reduces minerals such as calcium and magnesium, as well as chlorine, odors and flavors. Uses pH ion exchange resins, pH stabilization prevents excessive acidity. Stabilization made of coconut membrane with particularly high capacity. Reduces water hardness, which can lead to scale formation in boiling water machines. Hygienic and easy replacement of filter cartridges. Internal filter parts are not exposed to contact or contamination.
KKF lime filter cartridge: Part no. 845064

KXF 2 (optional)
Sub-micron particle filter cartridge filters contaminants > 0.2 microns and additionally improves the taste of the water. For Zip HydroTap® G4 models before 02.2017.
KXF 2: Part no. 891290

KXT (optional)
For tap “Arc”: The optional stainless steel draining tray with waste water connection allows for flexible installation of the electronic dispensing tap at any location away from the sink. Finish: polished chrome.
KXT: Part no. 4100-44560
- Installation accessoriesZip-HydroTap- G4-Arc-Montageschablone-de-en-fr.pdf (34 kB)

KXT (optional)
For tap “Arc”: The optional stainless steel draining tray with waste water connection allows for flexible installation of the electronic dispensing tap at any location away from the sink. Finish: brushed chrome.
KXT: Part no. 4100-44561
- Installation accessoriesZip-HydroTap- G4-Arc-Montageschablone-de-en-fr.pdf (34 kB)

KXT (optional)
For tap “Arc”: The optional stainless steel draining tray with waste water connection allows for flexible installation of the electronic dispensing tap at any location away from the sink. Finish: matte black.
KXT: Part no. 4100-44562
- Installation accessoriesZip-HydroTap- G4-Arc-Montageschablone-de-en-fr.pdf (34 kB)

KXTV (optional)
For tap "Classic", "Classic Plus", "Touch-Free": The optional stainless steel draining tray with waste water connection and chrome extension allows for flexible installation of the electronic dispensing tap at any location away from the sink. Extension by 13.5 cm. Finish: polished chrome.
KXTV: Part no. 4100-44565
- BIMKXTV fuer Classic_Classic Plus_Touch-Free.ifc (384 kB)
- BIMKXTV fuer Classic_Classic Plus_Touch-Free.rfa (372 kB)
- Installation accessoriesZip-Montageschablone-Tableau-de-en-fr.pdf (91 kB)

KXTV (optional)
For tap "Classic", "Classic Plus", "Touch-Free": The optional stainless steel draining tray with waste water connection and chrome extension allows for flexible installation of the electronic dispensing tap at any location away from the sink. Extension by 13.5 cm. Finish: brushed chrome.
KXTV: Part no. 4100-44566
- BIMKXTV fuer Classic_Classic Plus_Touch-Free.ifc (384 kB)
- BIMKXTV fuer Classic_Classic Plus_Touch-Free.rfa (372 kB)
- Installation accessoriesZip-Montageschablone-Tableau-de-en-fr.pdf (91 kB)

KXTV (optional)
For tap "Classic", "Classic Plus", "Touch-Free": The optional stainless steel draining tray with waste water connection and extension allows for flexible installation of the electronic dispensing tap at any location away from the sink. Extension by 13.5 cm. Finish: matte black.
KXTV: Part no. 4100-44567
- BIMKXTV fuer Classic_Classic Plus_Touch-Free.ifc (384 kB)
- BIMKXTV fuer Classic_Classic Plus_Touch-Free.rfa (372 kB)
- Installation accessoriesZip-Montageschablone-Tableau-de-en-fr.pdf (91 kB)

KXV (optional)
For tap "Classic", "Classic Plus", "Touch-Free": The optional chrome extension allows for raising the electronic dispensing tap by 13.5 cm. Finish: polished chrome.
KXV: Part no. 4100-44165

KXV (optional)
For tap "Classic", "Classic Plus", "Touch-Free": The optional chrome extension allows for raising the electronic dispensing tap by 13.5 cm. Finish: brushed chrome.
KXV: Part no. 4100-44166

KXV (optional)
For tap "Classic", "Classic Plus", "Touch-Free": The optional extension allows for raising the electronic dispensing tap by 13.5 cm. Finish: matte black.
KXV: Part no. 4100-44167
