Water system

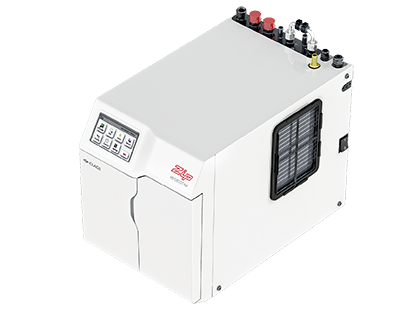

Zip HydroTap G4 BC (Alt/EoL)

- G4 BC 100/75: 2.05 kW, 230 V
The Zip HydroTap G4 BC delivers
-
Boiling water
-
Chilled still water
The choice is yours: boiling hot or chilled?
Whether boiling hot or ice-cold water, with this water system you have both filtered and available at the touch of a button in tea kitchens and meeting points without waiting time. Especially suitable for small and medium-sized offices. The built-in filter improves the water quality, and the energy-saving function can be conveniently configured via the touch display.
The under-sink water system "Zip HydroTap BC" can be combined with the following taps:

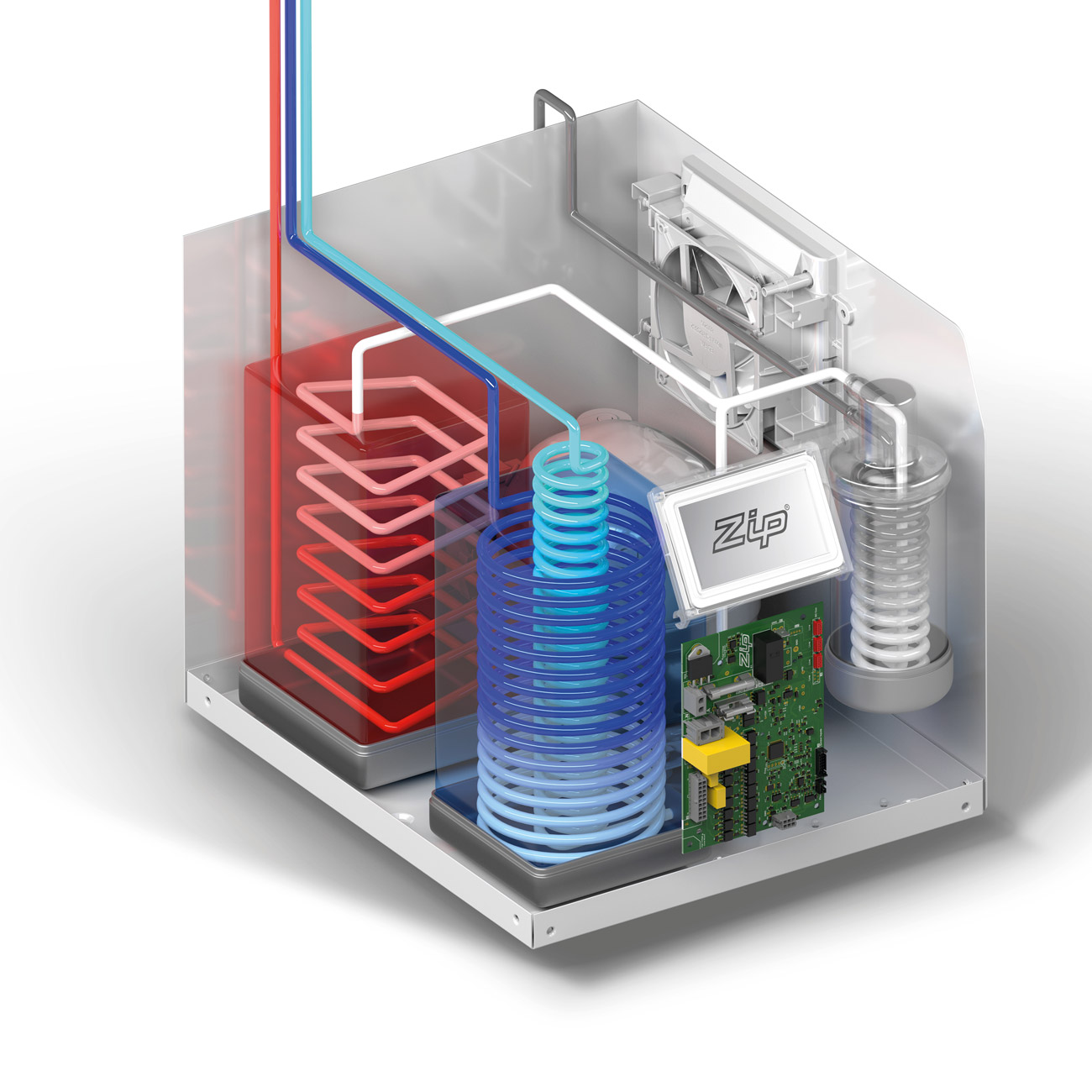

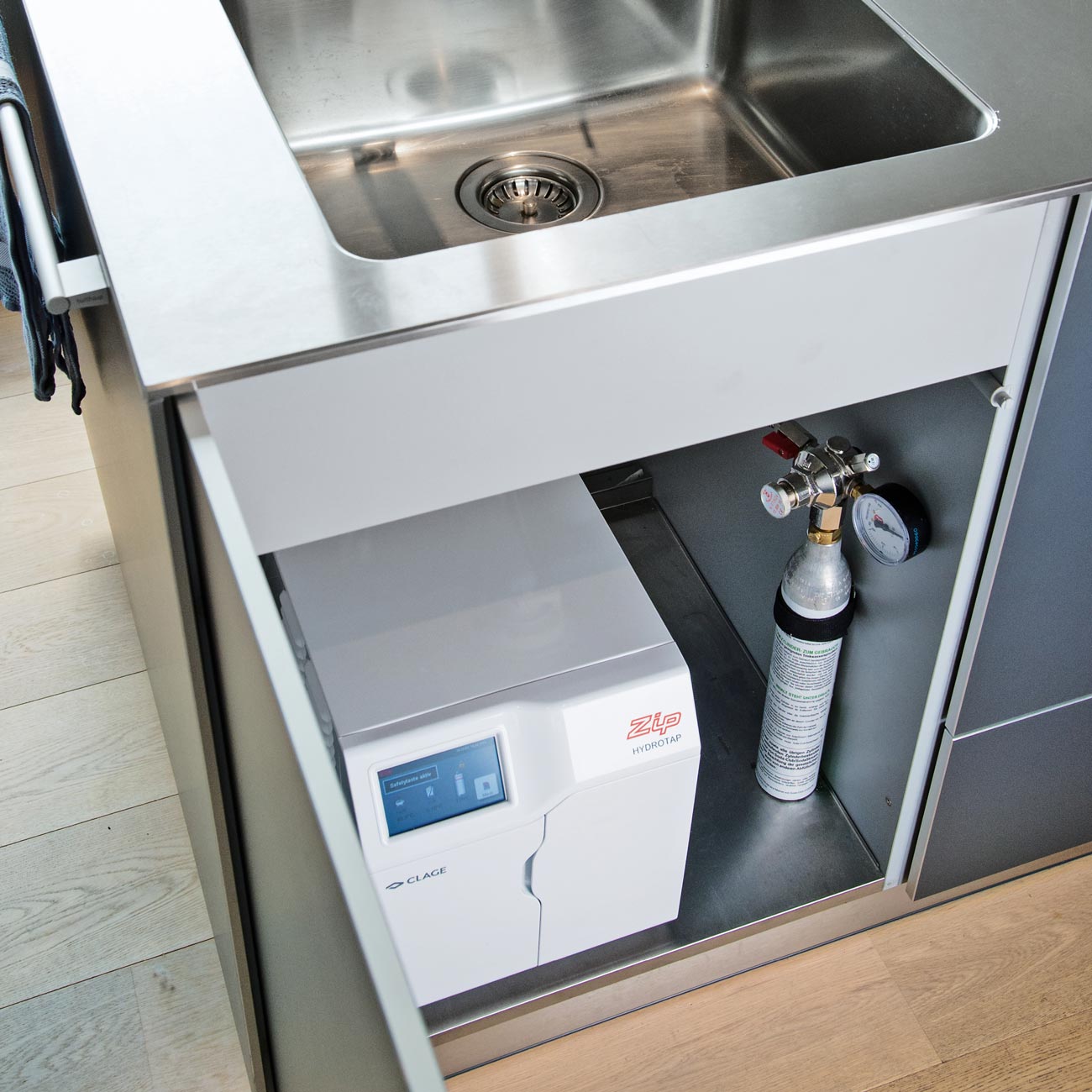

- Electronic water system for under-sink installation for immediate provision of filtered, boiling and cooled water
- Touchdisplay for menu control, activation of the energy-saving mode and scalding protection as well as temperature setting of the boiling water
- Electronic temperature control
- Easily replaceable fine filter cartridge with activated carbon block for filtering pollutants > 0.2 micrometers, for improving taste
- Leakage protection system
- Dimensions G4 BC 100/75 (height × width × depth): 33.5 × 29 × 46 cmPlease order tap separately!



Technical data
>
Data. Values. Facts.
|
|||||||||||||||||||||||||||||||||||||||
|
|
1) With supplied adapter G ⅜"
2) Connection hose G ½” to G ½” is required (not included in scope of delivery)
3) Standard cup with 167 ml
4) Standard glass with 200 ml
5) At 12 hours in standby mode
Downloads
>
Media type | Title | Date | Size | |
---|---|---|---|---|
![]() Product information sheet Zip-HydroTap-G4-BC-PI-en.pdf 12.07.2021 > download |
Product information sheet | Zip-HydroTap-G4-BC-PI-en.pdf | 12.07.2021 |
2,2 MB > download |
![]() Operating instructions Zip-HydroTap-G4-BC-User-Guide-de-en-fr.pdf 29.04.2019 > download |
Operating instructions | Zip-HydroTap-G4-BC-User-Guide-de-en-fr.pdf | 29.04.2019 |
1,8 MB > download |
![]() Operating and installation instructions Zip-HydroTap-G4-BC-GMA-de-en-fr.pdf 13.05.2019 > download |
Operating and installation instructions | Zip-HydroTap-G4-BC-GMA-de-en-fr.pdf | 13.05.2019 |
1,5 MB > download |
Older versions> | ||||
Operating and installation instructions | Zip-HydroTap-G4-BC-GMA-de-en-fr-05-2019.pdf> download | > download | ||
Operating and installation instructions | Zip-HydroTap-G4-BC-GMA-de-en-fr-04-2019.pdf> download | > download | ||
Further versions on request | ||||
![]() CE Conformity G4-BCS160175-B160-CS175-C175-Konformitaetserklaerung-CE-Conformity-de-en-2016-11.pdf 17.07.2018 > download |
CE Conformity | G4-BCS160175-B160-CS175-C175-Konformitaetserklaerung-CE-Conformity-de-en-2016-11.pdf | 17.07.2018 |
378 kB > download |
![]() CE Conformity G4-BCS10075-BC10075-Konformitaetserklaerung-CE-Conformity-de-en-2016-11.pdf 17.07.2018 > download |
CE Conformity | G4-BCS10075-BC10075-Konformitaetserklaerung-CE-Conformity-de-en-2016-11.pdf | 17.07.2018 |
379 kB > download |
![]() Datanorm Datanorm.zip 05.02.2021 > download |
Datanorm | Datanorm.zip | 05.02.2021 |
17,0 MB > download |
![]() GAEB GAEB.zip 25.11.2020 > download |
GAEB | GAEB.zip | 25.11.2020 |
36 kB > download |
Accessories
>

KXF 2.1 (included)
Sub-micron particle filter cartridge filters contaminants > 0.2 microns and additionally improves the taste of the water. For Zip HydroTap® G4 models since 02.2017 and G5 models since 2022.
KXF 2.1: Part no. 893702

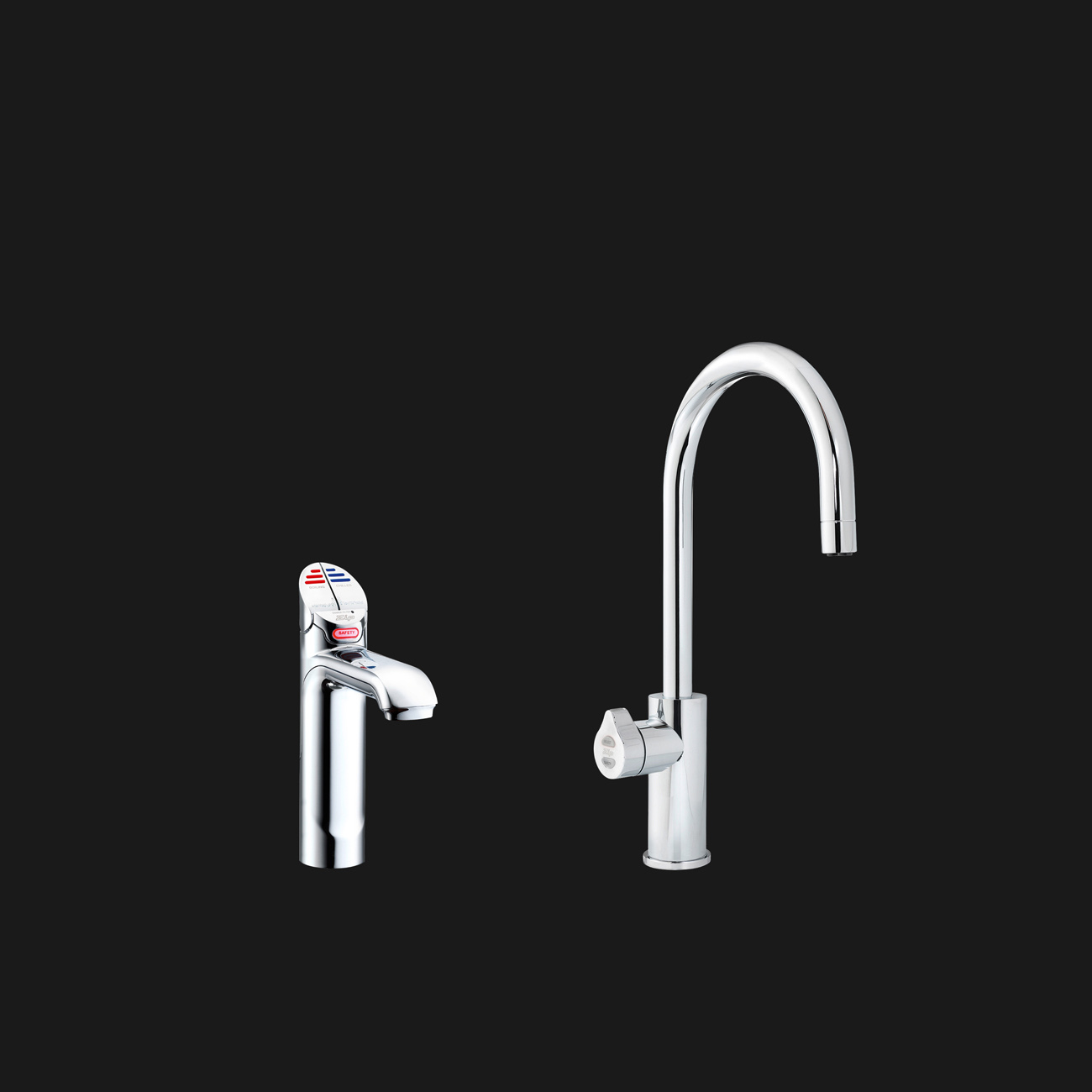

Classic BC, polished chrome (optional)
Electronic tap for Zip HydroTap BC with operating buttons at the top, function display, holding function for convenient pot filling, fixed spout 12 cm, height 21 cm, Ø 35 mm hole required.
Classic BC, polished chrome: Part no. 4100-44506

Classic BC, brushed chrome (optional)
Electronic tap for Zip HydroTap BC with operating buttons at the top, function display, holding function for convenient pot filling, fixed spout 12 cm, height 21 cm, Ø 35 mm hole required.
Classic BC, brushed chrome: Part no. 4100-44507

Classic BC, matte black (optional)
Electronic tap for Zip HydroTap BC with operating buttons at the top, function display, holding function for convenient pot filling, fixed spout 12 cm, height 21 cm, Ø 35 mm hole required.
Classic BC, matte black: Part no. 4100-44508

Arc BC, polished chrome (optional)
Electronic tap for Zip HydroTap BC with lateral control button, fixed pipe outlet 16 cm, height 35 cm, Ø 35 mm Hole drilling required.
Arc BC, polished chrome: Part no. 4100-44509

Arc BC, brushed chrome (optional)
Electronic tap for Zip HydroTap BC with lateral control button, fixed pipe outlet 16 cm, height 35 cm, Ø 35 mm Hole drilling required.
Arc BC, brushed chrome: Part no. 4100-44510

Arc BC, matte black (optional)
Electronic tap for Zip HydroTap BC with lateral control button, fixed pipe outlet 16 cm, height 35 cm, Ø 35 mm hole drilling required.
Arc BC, matte black: Part no. 4100-44511

Claris Ultra 500 (optional)
Filter cartridge, capacity at 10 °KH 4.200 litre. For hard, chalky water, the filter system Claris Ultra is to be used (recommended from 10 °KH).
Claris Ultra 500: Part no. 84500
- Product information sheetClaris-Filter-systems-PI-en.pdf (383 kB)
- Operating and installation instructionsClaris-Ultra-Filterpatrone-GMA-de-en-fr.pdf (723 kB)

Claris Ultra 1000 (optional)
Filter cartridge, capacity at 10 °KH 8.500 litre. For hard, chalky water, the filter system Claris Ultra is to be used (recommended from 10 °KH).
Claris Ultra 1000: Part no. 84501
- Product information sheetClaris-Filter-systems-PI-en.pdf (383 kB)
- Operating and installation instructionsClaris-Ultra-Filterpatrone-GMA-de-en-fr.pdf (723 kB)

Claris Ultra 2000 (optional)
Filter cartridge, capacity at 10 °KH 20.000 litre. For hard, chalky water, the filter system Claris Ultra is to be used (recommended from 10 °KH).
Claris Ultra 2000: Part no. 84502
- Product information sheetClaris-Filter-systems-PI-en.pdf (383 kB)
- Operating and installation instructionsClaris-Ultra-Filterpatrone-GMA-de-en-fr.pdf (723 kB)

DTK (optional)
The digital temperature controller for Zip devices is used to keep the temperature in the cupboard under 35 °C when normal ventilation is not sufficient. The digital controller operates independently of the undersink unit and will require a separate 230 V socket.
DTK: Part no. 893159
- Operating and installation instructionsDTK-GMA-de-en.pdf (2,81 MB)

Filter head FK (optional)
For installation of CLAGE filters KKF and KSF on all Zip units. The connection accessories must be ordered separately.
Filter head FK: Part no. 845071

KKF lime filter cartridge (optional)
Two-stage ion exchange cartridge for softening, pH stabilization and filtration of water for equipment for the production of hot beverages, coffee specialties and tea. Reduces minerals such as calcium and magnesium, as well as chlorine, odors and flavors. Uses pH ion exchange resins, pH stabilization prevents excessive acidity. Stabilization made of coconut membrane with particularly high capacity. Reduces water hardness, which can lead to scale formation in boiling water machines. Hygienic and easy replacement of filter cartridges. Internal filter parts are not exposed to contact or contamination.
KKF lime filter cartridge: Part no. 845064

KXF 2 (optional)
Sub-micron particle filter cartridge filters contaminants > 0.2 microns and additionally improves the taste of the water. For Zip HydroTap® G4 models before 02.2017.
KXF 2: Part no. 891290

KXF 2.1 (optional)
Sub-micron particle filter cartridge filters contaminants > 0.2 microns and additionally improves the taste of the water. For Zip HydroTap® G4 models since 02.2017 and G5 models since 2022.
KXF 2.1: Part no. 893702

KXT (optional)
For tap “Arc”: The optional stainless steel draining tray with waste water connection allows for flexible installation of the electronic dispensing tap at any location away from the sink. Finish: polished chrome.
KXT: Part no. 4100-44560
- Installation accessoriesZip-HydroTap- G4-Arc-Montageschablone-de-en-fr.pdf (34 kB)

KXT (optional)
For tap “Arc”: The optional stainless steel draining tray with waste water connection allows for flexible installation of the electronic dispensing tap at any location away from the sink. Finish: brushed chrome.
KXT: Part no. 4100-44561
- Installation accessoriesZip-HydroTap- G4-Arc-Montageschablone-de-en-fr.pdf (34 kB)

KXT (optional)
For tap “Arc”: The optional stainless steel draining tray with waste water connection allows for flexible installation of the electronic dispensing tap at any location away from the sink. Finish: matte black.
KXT: Part no. 4100-44562
- Installation accessoriesZip-HydroTap- G4-Arc-Montageschablone-de-en-fr.pdf (34 kB)

KXTV (optional)
For tap "Classic", "Classic Plus", "Touch-Free": The optional stainless steel draining tray with waste water connection and chrome extension allows for flexible installation of the electronic dispensing tap at any location away from the sink. Extension by 13.5 cm. Finish: polished chrome.
KXTV: Part no. 4100-44565
- BIMKXTV fuer Classic_Classic Plus_Touch-Free.ifc (384 kB)
- BIMKXTV fuer Classic_Classic Plus_Touch-Free.rfa (372 kB)
- Installation accessoriesZip-Montageschablone-Tableau-de-en-fr.pdf (91 kB)

KXTV (optional)
For tap "Classic", "Classic Plus", "Touch-Free": The optional stainless steel draining tray with waste water connection and chrome extension allows for flexible installation of the electronic dispensing tap at any location away from the sink. Extension by 13.5 cm. Finish: brushed chrome.
KXTV: Part no. 4100-44566
- BIMKXTV fuer Classic_Classic Plus_Touch-Free.ifc (384 kB)
- BIMKXTV fuer Classic_Classic Plus_Touch-Free.rfa (372 kB)
- Installation accessoriesZip-Montageschablone-Tableau-de-en-fr.pdf (91 kB)

KXTV (optional)
For tap "Classic", "Classic Plus", "Touch-Free": The optional stainless steel draining tray with waste water connection and extension allows for flexible installation of the electronic dispensing tap at any location away from the sink. Extension by 13.5 cm. Finish: matte black.
KXTV: Part no. 4100-44567
- BIMKXTV fuer Classic_Classic Plus_Touch-Free.ifc (384 kB)
- BIMKXTV fuer Classic_Classic Plus_Touch-Free.rfa (372 kB)
- Installation accessoriesZip-Montageschablone-Tableau-de-en-fr.pdf (91 kB)

KXV (optional)
For tap "Classic", "Classic Plus", "Touch-Free": The optional chrome extension allows for raising the electronic dispensing tap by 13.5 cm. Finish: polished chrome.
KXV: Part no. 4100-44165

KXV (optional)
For tap "Classic", "Classic Plus", "Touch-Free": The optional chrome extension allows for raising the electronic dispensing tap by 13.5 cm. Finish: brushed chrome.
KXV: Part no. 4100-44166

KXV (optional)
For tap "Classic", "Classic Plus", "Touch-Free": The optional extension allows for raising the electronic dispensing tap by 13.5 cm. Finish: matte black.
KXV: Part no. 4100-44167
