Boiling water heater

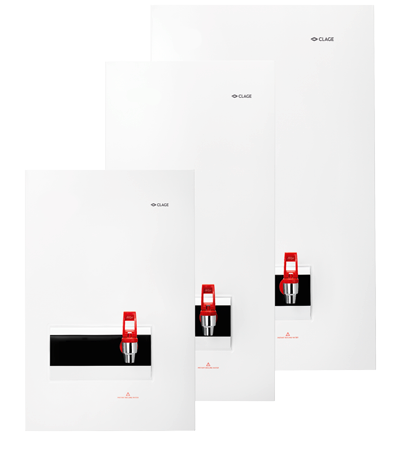

Zip Hydroboil (2021)

- Hydroboil 15: 2.8 kW, 230 V
- Hydroboil 25: 2.8 kW, 230 V
- Hydroboil 40: 5.6 kW, 400 V
Here Zip Hydroboil is used.
-
Offices
-
Canteens / Bistros
-
Gastronomy / Hotels
-
Hospitals
-
Catering companies
Up to 240 cups of boiling
water per hour.
The large instant boiling water heaters allow for effective operation and quickly prepared hot beverages, even in large quantities. This heater significantly increases productivity in restaurants, hospitals and staff cafeterias.
The two-way safety nozzle has two positions: Normal position for cup filling and locking position for convenient can filling.
- Boiling water automat for the constant supply of boiling water in large quantities
- The two-chamber system with hot water tank made of PPS material prevents mixing of cold and hot water
- Nozzle for convenient filling of a can or individual cups
- No steam outlet, steam is used internally to heat the water flowing in.
- High-quality thermal insulation
- Two service openings for easy descaling
- Safety thermal cut-out
- Dimensions Hydroboil 15 (height × width × depth): 60 × 39 × 29,9 cm
- Dimensions Hydroboil 25 (height × width × depth): 78 × 39 × 29,9 cm
- Dimensions Hydroboil 40 (height × width × depth): 84 × 51,5 × 28,4 cm



Technical data
>
Data. Values. Facts.
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
1) Standard cup with 167 ml
2) Inlet temperature 10 °C
Downloads
>
Media type | Title | Date | Size | |
---|---|---|---|---|
![]() Product information sheet Zip-Hydroboil-PI-en.pdf 23.09.2019 > download |
Product information sheet | Zip-Hydroboil-PI-en.pdf | 23.09.2019 |
756 kB > download |
![]() Operating and installation instructions Zip-Hydroboil-GMA-de-en-fr.pdf 25.11.2019 > download |
Operating and installation instructions | Zip-Hydroboil-GMA-de-en-fr.pdf | 25.11.2019 |
936 kB > download |
Older versions> | ||||
Operating and installation instructions | Zip-Hydroboil-GMA-de-en-05-2019.pdf> download | > download | ||
Further versions on request | ||||
![]() Catalogue CLAGE-Zip-Catalogue-en.pdf 05.08.2022 > download |
Catalogue | CLAGE-Zip-Catalogue-en.pdf | 05.08.2022 |
17,9 MB > download |
![]() Price list CLAGE-Product-Price-List-PPL-en.pdf 21.07.2022 > download |
Price list | CLAGE-Product-Price-List-PPL-en.pdf | 21.07.2022 |
6,2 MB > download |
![]() BIM Zip Hydroboil.rfa 24.11.2022 > download |
BIM | Zip Hydroboil.rfa | 24.11.2022 |
516 kB > download |
![]() Datanorm Datanorm.zip 05.02.2021 > download |
Datanorm | Datanorm.zip | 05.02.2021 |
17,0 MB > download |
![]() GAEB GAEB.zip 25.11.2020 > download |
GAEB | GAEB.zip | 25.11.2020 |
36 kB > download |
Accessories
>

Claris Ultra 500 (optional)
Filter cartridge, capacity at 10 °KH 4.200 litre. For hard, chalky water, the filter system Claris Ultra is to be used (recommended from 10 °KH).
Claris Ultra 500: Part no. 84500
- Product information sheetClaris-Filter-systems-PI-en.pdf (383 kB)
- Operating and installation instructionsClaris-Ultra-Filterpatrone-GMA-de-en-fr.pdf (723 kB)

Claris Ultra 1000 (optional)
Filter cartridge, capacity at 10 °KH 8.500 litre. For hard, chalky water, the filter system Claris Ultra is to be used (recommended from 10 °KH).
Claris Ultra 1000: Part no. 84501
- Product information sheetClaris-Filter-systems-PI-en.pdf (383 kB)
- Operating and installation instructionsClaris-Ultra-Filterpatrone-GMA-de-en-fr.pdf (723 kB)

Claris Ultra 2000 (optional)
Filter cartridge, capacity at 10 °KH 20.000 litre. For hard, chalky water, the filter system Claris Ultra is to be used (recommended from 10 °KH).
Claris Ultra 2000: Part no. 84502
- Product information sheetClaris-Filter-systems-PI-en.pdf (383 kB)
- Operating and installation instructionsClaris-Ultra-Filterpatrone-GMA-de-en-fr.pdf (723 kB)

Filter Head Universal (optional)
Filter head suitable for all Claris Ultra filter. For hard, chalky water, the filter system Claris Ultra is to be used (recommended from 10 °KH). (For the "Miniboil" and "G3" Zip models, the connection accessories with quick-release connectors are also required, Part no. 84521)
Filter Head Universal: Part no. 84519
- Operating and installation instructionsClaris-Filterkopf-Universal-GMA-de-en.pdf (1,17 MB)

KA A (optional)
Connection set for 1 or 2 additional side dispensing valves for Hydroboil 40
KA A: Part no. 84427

KA Z (optional)
Additional dispensing valve for Hydroboil 15, 25 and 40
KA Z: Part no. 84321

KA AZ (optional)
Connection set for 1 or 2 additional side dispensing valves for Hydroboil 15 and Hydroboil 25
KA AZ: Part no. 84426

KAS 1 (optional)
Collecting funnel for undersink installation, ¾-inch
KAS 1: Part no. 4100-44085

KAS 2 (optional)
Collecting funnel for wall installation, ¾-inch
KAS 2: Part no. 4100-44086

KAT 1 (optional)
Stainless steel draining tray, 32.5 × 17.5 cm
KAT 1: Part no. 4100-44080

KAT 2 (optional)
Stainless steel draining tray with waste water connection, 32.5 × 17.5 cm
KAT 2: Part no. 4100-44081
