E-comfort instant water heater
DCX 13

E-comfort instant water heater DCX 13

Energy efficiency class A

(Scale: A+ to F)

  • DCX 13: 11/13.5 kW, 400 V

This is where the DCX 13 is used.

  1. Handwashbasin

    Handwashbasin

  2. Shower

    Shower

  3. Kitchen sink

    Kitchen sink

Saving energy in the bathroom is that simple!

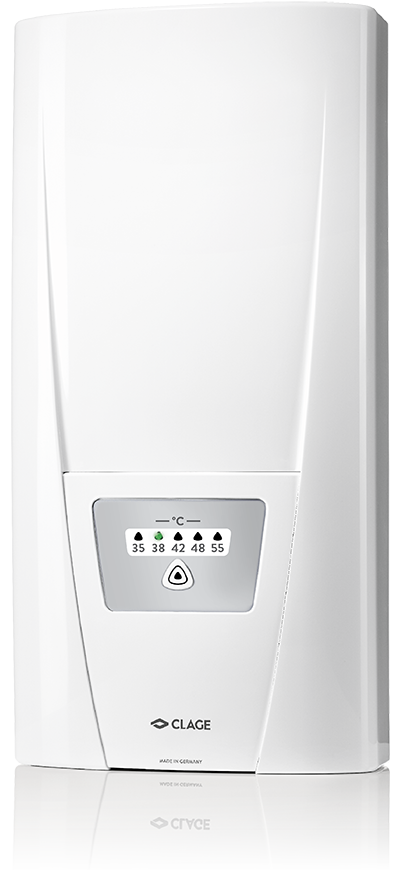

The electronic E-comfort instant water heater DCX 13 is designed for easy operation. With the touch of a button, one of five typical water temperatures can be selected. Each temperature is indicated by an easily understandable colour display.

  • Electronically controlled instant water heater with simple operation
  • One-button operation for fast and easy five-level temperature selection: 35 °C, 38 °C, 42 °C, 48 °C and 55 °C
  • Electronic safety system with air bubble detection, temperature and pressure shut-off
  • Temperature stable up to the performance limit. TWIN TEMPERATURE Control TTC® ensures temperature control accurate to the degree, even with fluctuations in water pressure.
  • With the Multiple Power System MPS®, the maximum power rating is set at the time of installation: 11 or 13.5 kW, 400  V
  • Dimensions (height × width × depth): 46.6 × 23.0 × 9.7 cm

Technical data

>

Data. Values. Facts.















E-comfort instant water heater DCX 13
Handwashbasin Shower Kitchen sink
DCX 13
Part number
Nominal power rating 1) (variably adjustable due to MPS) [kW]
Maximum operating pressure [MPa (bar)]
Water connections (thread connections)
Switch-on flow rate [l/min]
Maximum flow rate 2) [l/min]
Supply voltage [3~ / PE 400 V AC] permanent connection
Nominal current [A]
Required cable diameter [mm²]
Maximum inlet temperature [°C]
Protection class
Specific water resistance at 15 °C [Ωcm] ≥
Weight filled with water [kg], approx.
3200-34233
11.0 13.5
1 (10) 1 (10)
G ½" G ½"
2.5 2.5
5.0 5.0
16 20
1.5 2.5
30 30
IP 25 IP 25
1100 1100
3.7 3.7

1) The selected power rating determines the values of nominal current, cable diameter and hot water output

2) Limited flow amount for optimal temperature increase
