E-compact instant water heater
CEX

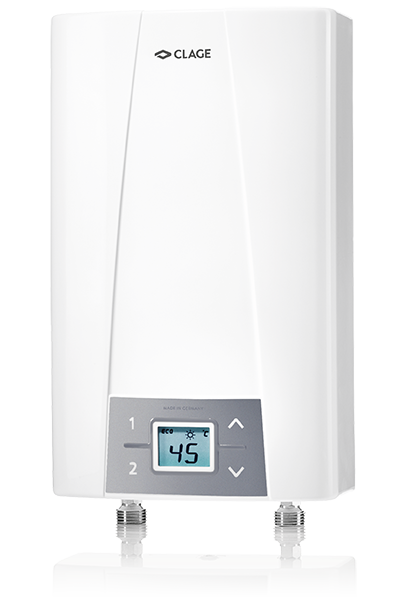

E-compact instant water heater CEX

Energy efficiency class A

(Scale: A+ to F)

  • CEX: 11/13.5 kW, 400 V

This is where the CEX is used.

  1. Disposal sink

    Disposal sink

  2. Handwashbasin

    Handwashbasin

  3. Shower

    Shower

  4. Kitchen sink

    Kitchen sink

  5. Washstand

    Washstand

  6. Double washbasin

    Double washbasin

Compact power, versatile use.

Versatile E-compact instant water heater with medium power rating for a bathroom sink, a disposal sink or a single shower.

  • Electronically controlled instant water heater in compact design
  • Push-button operation panel with LCD display for precise temperature setting between 20 °C and 60 °C
  • In the comfort zone between 35 °C and 43 °C, the temperature can be set in 0.5 degree increments
  • Two programming buttons for individual pre-set temperatures, optional temperature limits as well as function indicators
  • Adding cold water is no longer necessary
  • Easy installation facilitated by small dimensions and external ½" water connectors for unvented or vented installation
  • With power cable for permanent electrical connection
  • With the Multiple Power System MPS®, the maximum power rating is set at the time of installation
  • Remote control module available as an accessory: FX wireless remote control
  • Dimensions (height × width × depth): 29.4 × 17.7 × 10.8 cm

Technical data

>

Data. Values. Facts.

















E-compact instant water heater CEX
Disposal sink Handwashbasin Shower Kitchen sink Washstand Double washbasin
CEX
Part number
Nominal power rating 1) (variably adjustable due to MPS) at 400 V [kW]
Maximum operating pressure [MPa (bar)]
Water connections (thread connections)
Hot water output at Δt = 33 K 2) [l/min]
Switch-on flow rate [l/min]
Maximum flow rate 3) [l/min]
Supply voltage [3~ / PE 380–415 V AC] Permanent connection
Nominal current at 400 V [A]
Required cable diameter 4) [mm²]
Maximum inlet temperature [°C]
Solar-ready 5)
Protection class
Specific water resistance at 15 °C [Ωcm] ≥
Weight filled with water [kg], approx.
2400-26233
11.0 13.5
1 (10) 1 (10)
G ½" G ½"
4.8 5.8
2 2
5 5
16 20
1.5 2.5
60 60
IP 25 IP 25
1000 1000
2.7 2.7

1) The selected power rating determines the values of nominal current, cable diameter and hot water output

2) Temperature increase e.g. from 12 °C to 45 °C (mixed water at flow rate >5 l/min)

3) Limited flow amount for optimal temperature increase

4) Depending on the selected power rating

5) Suitable for reheating

Downloads

>

Media type Title Date Size

Product information sheet

CEX-PI-en.pdf

13.07.2021

> download
Product information sheet CEX-PI-en.pdf 13.07.2021 806 kB
> download

Operating instructions

CEXU-CEX-CEX9U-CEX9-GA-de-en-fr-nl-pt-es-pl-sv-cs-sk.pdf

19.05.2020

> download
Operating instructions CEXU-CEX-CEX9U-CEX9-GA-de-en-fr-nl-pt-es-pl-sv-cs-sk.pdf 19.05.2020 6,4 MB
> download
  Older versions>
 Operating instructionsCEXU-CEX-CEX9U-CEX9-v2.2-GA-de-en-fr-nl-pt-es-pl-sv-cs-sk-09-2018.pdf> download> download
 Operating instructionsCEXU-CEX-CEX9U-CEX9-GA-10-Sprachen-06-2016.pdf> download> download
 Operating instructionsCEXU-CEX-CEX9U-CEX9-GA-10-Sprachen-05-2016.pdf> download> download
 Operating instructionsCEXU-CEX-CEX9U-CEX9-GA-10-Sprachen-v2.1-06-2015.pdf> download> download
 Operating instructionsCEXU-CEX-CEX9U-CEX9-GA-10-Sprachen-v2.1-04-2015.pdf> download> download
  Further versions on request

Installation instructions

CEX-MA-de-en-fr-nl-pl-sv-cs-sk.pdf

01.06.2021

> download
Installation instructions CEX-MA-de-en-fr-nl-pl-sv-cs-sk.pdf 01.06.2021 8,4 MB
> download
  Older versions>
 Installation instructionsCEX-v2.2-MA-de-en-fr-nl-pl-sv-cs-sk-12-2020.pdf> download> download
 Installation instructionsCEX-v2.2-MA-de-en-fr-nl-pl-sv-cs-sk-07-2019.pdf> download> download
 Installation instructionsCEX-v2.2-MA-de-en-fr-nl-pl-sv-cs-sk-09-2018.pdf> download> download
 Installation instructionsCEX-MA-de-en-fr-nl-pl-sv-cs-sk-05-2018.pdf> download> download
 Installation instructionsCEX-MA-de-en-fr-nl-pl-sv-cs-sk-07-2016.pdf> download> download
 Installation instructionsCEX-MA-de-en-fr-nl-pl-sv-cs-sk-v2.1-10-2015.pdf> download> download
  Further versions on request

Operating and installation instructions

CX2-DX2-Beiblatt-60Grad-de-en-fr-nl-pt-es-pl-sv-cs-sk-03-2021.pdf

31.03.2021

> download
Operating and installation instructions CX2-DX2-Beiblatt-60Grad-de-en-fr-nl-pt-es-pl-sv-cs-sk-03-2021.pdf 31.03.2021 29 kB
> download

Safety instructions

Sicherheitshinweise-Durchlauferhitzer-de-en-fr-nl-pt-es-pl-sv-cs-sk-bg-no-fi-ru-sr-el-it-tr-ro.pdf

19.03.2021

> download
Safety instructions Sicherheitshinweise-Durchlauferhitzer-de-en-fr-nl-pt-es-pl-sv-cs-sk-bg-no-fi-ru-sr-el-it-tr-ro.pdf 19.03.2021 572 kB
> download

Energy label

CEX-Energielabel.pdf

10.02.2017

> download
Energy label CEX-Energielabel.pdf 10.02.2017 270 kB
> download

ErP product sheet

CEX-CEX-U-CEX9-CEX9-U-ErP-Produktdatenblatt.pdf

13.02.2017

> download
ErP product sheet CEX-CEX-U-CEX9-CEX9-U-ErP-Produktdatenblatt.pdf 13.02.2017 234 kB
> download

CE Conformity

CE-Konformitaetserklaerung-nach-RED+RoHS3-CX-2021-09.pdf

05.11.2021

> download
CE Conformity CE-Konformitaetserklaerung-nach-RED+RoHS3-CX-2021-09.pdf 05.11.2021 161 kB
> download

Product photo


11.05.2017

> download
Product photo CEX_frontal-HighRes.jpg 11.05.2017 547 kB
> download

Product photo


11.05.2017

> download
Product photo CEX_rechts-HighRes.jpg 11.05.2017 574 kB
> download

Product photo


11.05.2017

> download
Product photo CEX_links-HighRes.jpg 11.05.2017 532 kB
> download

Image photo


11.05.2017

> download
Image photo CEX_Anwendung.jpg 11.05.2017 387 kB
> download

Catalogue

CLAGE-Brochure-en.pdf

26.11.2020

> download
Catalogue CLAGE-Brochure-en.pdf 26.11.2020 3,4 MB
> download

Catalogue

CLAGE-Instantaneous-water-heater-Catalogue-en.pdf

08.01.2021

> download
Catalogue CLAGE-Instantaneous-water-heater-Catalogue-en.pdf 08.01.2021 17,7 MB
> download

Price list

CLAGE-Product-Price-List-PPL-en.pdf

29.07.2021

> download
Price list CLAGE-Product-Price-List-PPL-en.pdf 29.07.2021 3,3 MB
> download

BIM

CX2-CEX-BIM.ifc

23.11.2021

> download
BIM CX2-CEX-BIM.ifc 23.11.2021 2,2 MB
> download

BIM

CX2-CEX.rfa

24.11.2021

> download
BIM CX2-CEX.rfa 24.11.2021 1,3 MB
> download

Datanorm

Datanorm.zip

05.02.2021

> download
Datanorm Datanorm.zip 05.02.2021 39,7 MB
> download

GAEB

GAEB.zip

25.11.2020

> download
GAEB GAEB.zip 25.11.2020 377 kB
> download

Accessories

>

CSO

CSO (optional)

Single-lever wall mixer tap (open-outlet) with swivel spout 16 cm

CSO: Part no. 1100-04165

CSP 6

CSP 6 (optional)

Aerator insert for tap adapter M 22/24 at the tap. The aerator at the tap supports the energy- and water-saving operation of the compact instant water heater. The new special CSP aerators mix air into the water and thus create a uniform water stream that does not splatter but softly cascades down. CSP 6 (< 3,5 l/min).

CSP 6: Part no. 0010-00461

CSP 6a

CSP 6a (optional)

Aerator with chrome tap adapter M 24a (suitable for taps with internal thread at outlet). The aerator at the tap supports the energy- and water-saving operation of the compact instant water heater. The new special CSP aerators mix air into the water and thus create a uniform water stream that does not splatter but softly cascades down. CSP 6a (< 3,5 l/min).

CSP 6a: Part no. 0010-0047

CSP 6i

CSP 6i (optional)

Aerator with chrome tap adapter M 22i (suitable for taps with external thread at outlet). The aerator at the tap supports the energy- and water-saving operation of the compact instant water heater. The new special CSP aerators mix air into the water and thus create a uniform water stream that does not splatter but softly cascades down. CSP 6i (< 3,5 l/min).

CSP 6i: Part no. 0010-0046

CXH

CXH (optional)

Adjustable hand shower for instant water heaters, three modes adjustable, ­anti-scale insert, chrome. Dimensions: 22.5 cm length, shower head Ø 97 mm

CXH: Part no. 0300-0086

FX

FX (optional)

Remote control including transmission unit FXE for installation into the instantaneous water heater. In addition to user controls directly at the unit, the remote control allows for convenient temperature adjustment of the instant water heater at interior distances of up to 10 meters. Secure, bidirectional wireless transfer, continuous two-button temperature selection, two pre-set buttons and a LCD display, magnetic wall holder and ­batteries (included). IP 20. Dimensions (H × W × D): 5.8 × 12.5 × 1.9 cm

FX: Part no. 2400-26090

FX (until 2016)

FX (until 2016) (optional)

– ONLY FOR DEVICES BUILT UNTIL END OF 2016 – Remote control including transmission unit FXE for installation into the instantaneous water heater. In addition to user controls directly at the unit, the remote control allows for convenient temperature adjustment of the instant water heater at interior distances of up to 10 meters. Secure, bidirectional wireless transfer, continuous two-button temperature selection, two pre-set buttons and a LCD display, magnetic wall holder and ­batteries (included). IP 20. Dimensions (H × W × D): 5.8 × 12.5 × 1.9 cm

FX (until 2016): Part no. 2400-26050

Interesting features.

  1. Smart Control-ready

    Smart Control-ready

  2. Remote control (optional)

    Remote control (optional)

  3. Solar-compatible, suitable for reheating

    Solar-compatible, suitable for reheating
