E-compact instant water heater
CEX-U

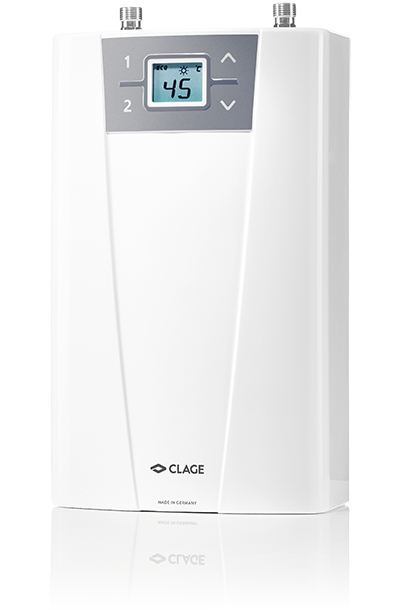

E-compact instant water heater CEX-U

Energy efficiency class A

(Scale: A+ to F)

  • CEX-U: 11/13.5 kW, 400 V

This is where the CEX-U is used.

  1. Kitchen sink

    Kitchen sink

  2. Washbasin

    Washbasin

  3. Double washbasin

    Double washbasin

Precise hot water convenience.

The CEX-U’s electronic controls ensure an energy-efficient hot water supply. The water is heated directly to the preset temperature while flowing though the unit. The temperature is selected by pushing one of the buttons on the LCD panel, with factory settings programmed at 35 °C and 48 °C.

  • Electronically controlled instant water heater with compact design for installation under the sink
  • Push-button operation with LCD indicator for precise temperature setting between 20 °C and 60 °C
  • Two programming buttons for  individual pre-set ­temperatures, optional temperature limitation as well as function indicators
  • Adding cold water is no longer necessary
  • Easy installation under the kitchen sink facilitated by small dimensions and external ⅜" water connectors for unvented or vented installation
  • With power cable for permanent electrical connection
  • Precise temperatures due to TWIN TEMPERATURE control TTC® up to the capacity of the appliance
  • With the Multiple Power System MPS®, the maximum power rating is set at the time of installation
  • Remote control module available as an accessory: FX wireless remote control
  • Dimensions (height × width × depth): 29.4 × 17.7 × 10.8 cm

Technical data

>

Data. Values. Facts.

















E-compact instant water heater CEX-U
Kitchen sink Washbasin Double washbasin
CEX-U
Part number
Nominal power rating 1) (variably adjustable due to MPS) [kW]
Maximum operating pressure [MPa (bar)]
Water connections (thread connections)
Hot water output at Δt = 33 K 2) [l/min]
Switch-on flow rate [l/min]
Maximum flow rate 3) [l/min]
Supply voltage [3~ / PE 400 V AC] permanent connection
Nominal current [A]
Required cable diameter [mm²]
Maximum inlet temperature [°C]
Solar-ready 4)
Protection class
Specific water resistance at 15 °C [Ωcm] ≥
Weight filled with water [kg], approx.
2400-26213
11.0 13.5
1 (10) 1 (10)
G ⅜" G ⅜"
4.8 5.8
2 2
5 5
16 20
1.5 2.5
70 70
IP 24 IP 24
1000 1000
2.7 2.7

1) The selected power rating determines the values of nominal current, cable diameter and hot water output

2) Temperature increase e.g. from 12 °C to 45 °C (mixed water at flow rate >5 l/min)

3) Limited flow amount for optimal temperature increase

4) Suitable for reheating
