E-mini instant water heater, vented
M

E-mini instant water heater, vented M

Energy efficiency class A

(scale: A+ to F)

  • M 3: 3.5 kW, 230 V
    with plug
  • M 4: 4.4 kW, 230 V
  • M 6: 5.7 kW, 230 V
  • M 7: 6.5 kW, 400 V

This is where the M is used.

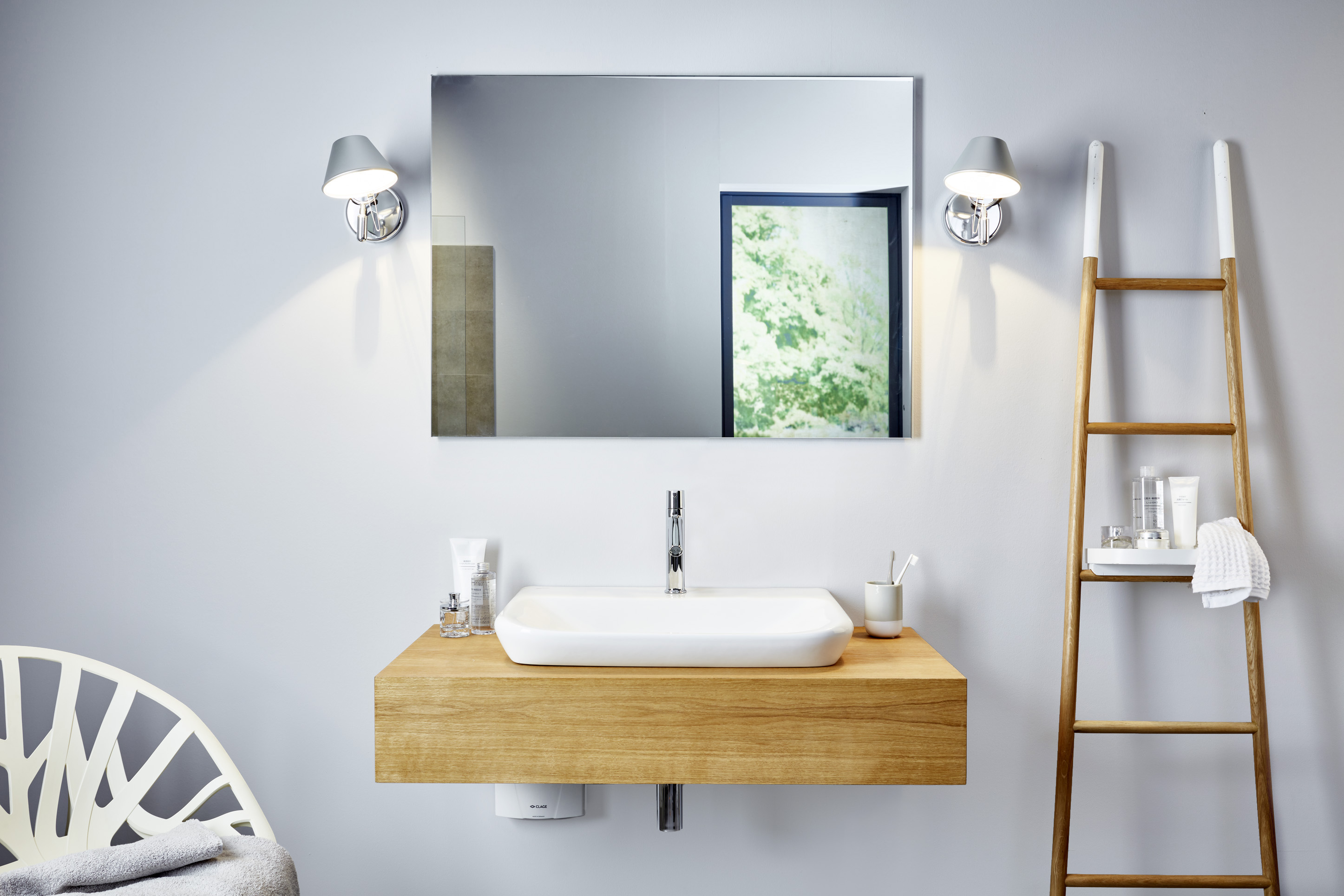

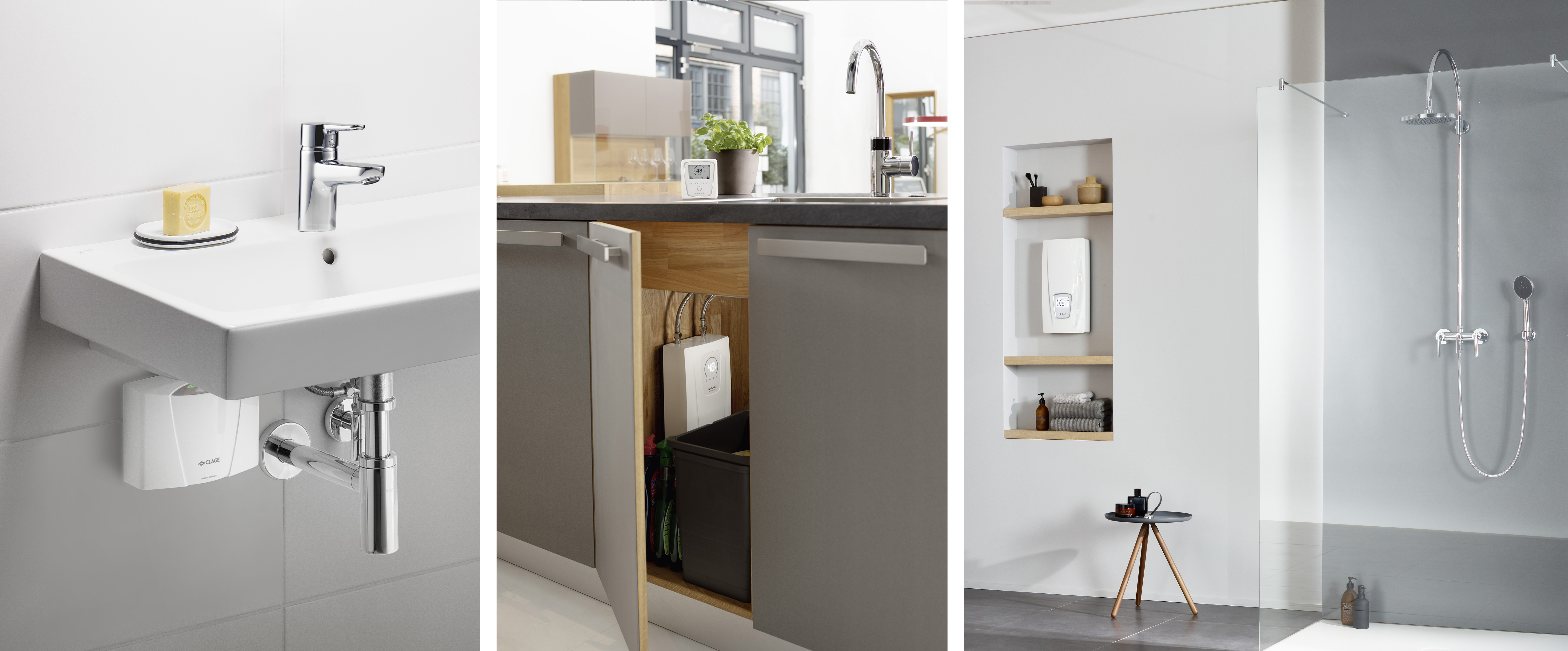

  1. Wash hand basin <nobr>(e.g. guest toilet)</nobr>

    Wash hand basin (e.g. guest toilet)

  2. Sanitary facilities in commercial buildings

    Sanitary facilities in commercial buildings

  3. Staff kitchen

    Staff kitchen

Quick and safe installation.

The vented E-mini instant water heater M is a pretty low-cost solution for having warm water at single points of use. It must be installed with an open-outlet tap. Cost-effective and easy to install, the unit is a real energy-saver at each hand-wash basin.

  • Hydraulically controlled instant water heater (undersink model) with compact design for the energy-efficient hot water supply of a washbasin
  • Cost-efficient and quick installation, ideally suited for replacing conventional storage heaters
  • The full heating capacity turns on automatically as soon as water flows through the unit
  • Vented design, only suitable for open-outlet pressure taps
  • Also available as complete kits with tap: M / END, M / SNM und M / SMB
  • Dimensions (height × width × depth): 13.5 × 18.6 × 8.7 cm

Technical data

>

Data. Values. Facts.


















E-mini instant water heater, vented M 3 E-mini instant water heater, vented M 4 E-mini instant water heater, vented M 6 E-mini instant water heater, vented M 7
Wash hand basin <nobr>(e.g. guest toilet)</nobr> Sanitary facilities in commercial buildings Wash hand basin <nobr>(e.g. guest toilet)</nobr> Sanitary facilities in commercial buildings Wash hand basin <nobr>(e.g. guest toilet)</nobr> Sanitary facilities in commercial buildings Staff kitchen Wash hand basin <nobr>(e.g. guest toilet)</nobr> Sanitary facilities in commercial buildings Staff kitchen
M 3 M 4 M 6 M 7
Part number
Nominal power rating [kW]
Maximum operating pressure [MPa (bar)]
Water connections (thread connections)
Hot water output at Δt = 25 K 1) [l/min]
Switch-on flow rate [l/min]
Maximum flow rate 2) [l/min]
Supply voltage [1~ / N / PE 230 V AC] with plug
Supply voltage [1~ / N / PE 230 V AC] permanent connection
Supply voltage [2~ / PE 400 V AC] permanent connection
Nominal current [A]
Required cable diameter [mm²]
Maximum inlet temperature [°C]
Protection class
Specific water resistance at 15 °C [Ωcm] ≥
Weight filled with water [kg], approx.
1500-17003 1500-17004 1500-17006 1500-17007
3.5 4.4 5.7 6.5
0 (0) 0 (0) 0 (0) 0 (0)
G ⅜" G ⅜" G ⅜" G ⅜"
2.0 2.5 3.3 3.7
1.3 1.8 2.2 2.4
2.0 2.5 3.3 3.7



15 19 25 16
1.5 2.5 4.0 2.5
20 20 20 20
IP 25 IP 25 IP 25 IP 25
1100 1100 1100 1100
1.5 1.5 1.5 1.5

1) Temperature increase e.g. from 15 °C to 40 °C

2) Limited flow amount for optimal temperature increase by water flow adjustment
