E-mini instant water heater
MBH

E-mini instant water heater MBH

Energy efficiency class A

(scale: A+ to F)

  • MBH 3: 3.5 kW, 230 V
    with plug
  • MBH 4: 4.4 kW, 230 V
  • MBH 6: 5.7 kW, 230 V
  • MBH 7: 6.5 kW, 400 V

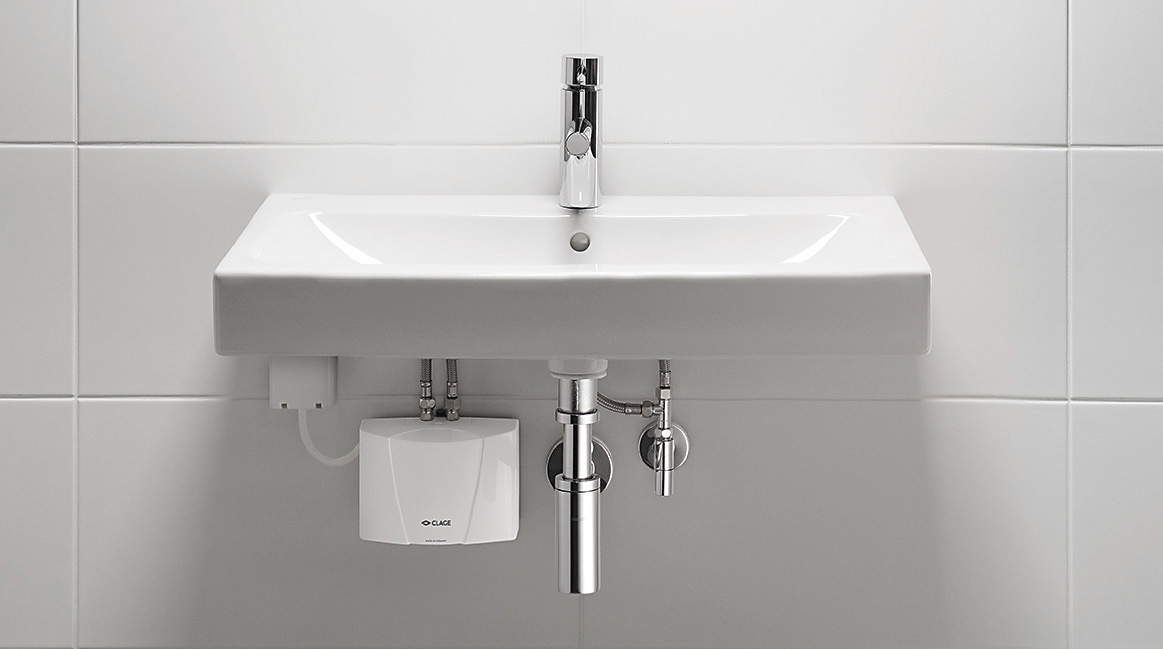

This is where the MBH is used.

  1. Wash hand basin <nobr>(e.g. guest toilet)</nobr>

    Wash hand basin (e.g. guest toilet)

  2. Sanitary facilities in commercial buildings

    Sanitary facilities in commercial buildings

  3. Staff kitchen

    Staff kitchen

Efficient, attractive and economical.

The unvented E-mini instant water heater MBH is the energy-saving standard solution for installation with all conventional taps. The connecting kit is included for easy installation directly at the tap. And you’ll have warm water right away when you need it.

  • Hydraulically controlled instant water heater (undersink model) with compact design for the energy-efficient hot water supply for a sink
  • The full heating capacity turns on automatically as soon as water flows through the unit
  • Connection kit (T-piece and flexible pressure hose) for an angle valve is included
  • Unvented design
  • Dimensions (height × width × depth): 13.5 × 18.6 × 8.7 cm

Technical data

>

Data. Values. Facts.


















E-mini instant water heater MBH 3 E-mini instant water heater MBH 4 E-mini instant water heater MBH 6 E-mini instant water heater MBH 7
Wash hand basin <nobr>(e.g. guest toilet)</nobr> Sanitary facilities in commercial buildings Wash hand basin <nobr>(e.g. guest toilet)</nobr> Sanitary facilities in commercial buildings Wash hand basin <nobr>(e.g. guest toilet)</nobr> Sanitary facilities in commercial buildings Staff kitchen Wash hand basin <nobr>(e.g. guest toilet)</nobr> Sanitary facilities in commercial buildings Staff kitchen
MBH 3 MBH 4 MBH 6 MBH 7
Part number
Nominal power rating [kW]
Maximum operating pressure [MPa (bar)]
Water connections (thread connections)
Hot water output at Δt = 25 K 1) [l/min]
Switch-on flow rate [l/min]
Maximum flow rate 2) [l/min]
Supply voltage [1~ / N / PE 230 V AC] with plug
Supply voltage [1~ / N / PE 230 V AC] permanent connection
Supply voltage [2~ / PE 400 V AC] permanent connection
Nominal current [A]
Required cable diameter [mm²]
Maximum inlet temperature [°C]
Protection class
Specific water resistance at 15 °C [Ωcm] ≥
Weight filled with water [kg], approx.
1500-16003 1500-16004 1500-16006 1500-16007
3.5 4.4 5.7 6.5
1 (10) 1 (10) 1 (10) 1 (10)
G ⅜" G ⅜" G ⅜" G ⅜"
2.0 2.5 3.3 3.7
1.3 1.8 2.2 2.4
2.0 2.5 3.3 3.7



15 19 25 16
1.5 2.5 4.0 2.5
20 20 20 20
IP 25 IP 25 IP 25 IP 25
1100 1100 1100 1100
1.5 1.5 1.5 1.5

1) Temperature increase e.g. from 15 °C to 40 °C

2) Limited flow amount for optimal temperature increase by water flow adjustment

Downloads

>

Media Title Date Size

Product information sheet

MBH-pi-en.pdf

18.10.2018

> download
Product information sheet MBH-pi-en.pdf 18.10.2018 440 kB
> download

Operating and installation instructions

M-MBH-Beiblatt-de-en-fr-nl-pt-es-cs-sk-bg-fi-no-sv.pdf

28.05.2018

> download
Operating and installation instructions M-MBH-Beiblatt-de-en-fr-nl-pt-es-cs-sk-bg-fi-no-sv.pdf 28.05.2018 43 kB
> download

Operating and installation instructions

MBH-GMA-de-en-fr-nl-pt-es-cs-sk-bg-fi-no-sv.pdf

09.10.2018

> download
Operating and installation instructions MBH-GMA-de-en-fr-nl-pt-es-cs-sk-bg-fi-no-sv.pdf 09.10.2018 5,4 MB
> download
  Older versions>
 Operating and installation instructionsMBH-GMA-de-en-fr-nl-pt-es-cs-sk-bg-06-2018-BUCH.pdf> download> download
 Operating and installation instructionsMBH-GMA-de-en-fr-nl-pt-es-cs-sk-bg-02-2016-BUCH.pdf> download> download
 Operating and installation instructionsMBH-GMA-de-en-fr-nl-pt-es-cs-sk-bg-fi-no-sv-05-2015-BUCH.pdf> download> download
  Further versions on request

Safety instructions

Sicherheitshinweise-Durchlauferhitzer-de-en-fr-nl-pt-es-pl-sv-cs-sk-bg-no-fi-ru-sr.pdf

29.01.2019

> download
Safety instructions Sicherheitshinweise-Durchlauferhitzer-de-en-fr-nl-pt-es-pl-sv-cs-sk-bg-no-fi-ru-sr.pdf 29.01.2019 572 kB
> download

Energy label

MBH7-Energielabel.pdf

06.09.2017

> download
Energy label MBH7-Energielabel.pdf 06.09.2017 220 kB
> download

Energy label

MBH3-Energielabel.pdf

06.09.2017

> download
Energy label MBH3-Energielabel.pdf 06.09.2017 220 kB
> download

Energy label

MBH6-Energielabel.pdf

06.09.2017

> download
Energy label MBH6-Energielabel.pdf 06.09.2017 220 kB
> download

Energy label

MBH4-Energielabel.pdf

06.09.2017

> download
Energy label MBH4-Energielabel.pdf 06.09.2017 220 kB
> download

ErP product sheet

MBH3-MBH7-ErP-Produktdatenblatt.pdf

13.02.2017

> download
ErP product sheet MBH3-MBH7-ErP-Produktdatenblatt.pdf 13.02.2017 96 kB
> download

CE Conformity

MBH-Konformitaetserklaerung-CE-Conformity-de-en-2018-05.pdf

17.07.2018

> download
CE Conformity MBH-Konformitaetserklaerung-CE-Conformity-de-en-2018-05.pdf 17.07.2018 161 kB
> download

Product photo


13.02.2017

> download
Product photo MBH-Installation-1200.jpg 13.02.2017 201 kB
> download

Product photo


06.02.2017

> download
Product photo MBH-frontal-Festanschluss-druckfest-1200.jpg 06.02.2017 119 kB
> download

Product photo


11.05.2017

> download
Product photo M_MBH_rechts-HighRes.jpg 11.05.2017 367 kB
> download

Product photo


11.05.2017

> download
Product photo M-MBH-links-HighRes.jpg 11.05.2017 358 kB
> download

Product photo


11.05.2017

> download
Product photo M-MBH-frontal-HighRes.jpg 11.05.2017 376 kB
> download

Catalogue

CLAGE-Instantaneous-water-heater-Catalogue-en.pdf

23.08.2018

> download
Catalogue CLAGE-Instantaneous-water-heater-Catalogue-en.pdf 23.08.2018 17,7 MB
> download

Datanorm

Datanorm.zip

29.06.2017

> download
Datanorm Datanorm.zip 29.06.2017 39,7 MB
> download

GAEB

GAEB.zip

29.06.2017

> download
GAEB GAEB.zip 29.06.2017 19,9 MB
> download

BIM

MBH4-002-BIM.rfa

16.04.2018

> download
BIM MBH4-002-BIM.rfa 16.04.2018 520 kB
> download

BIM

MBH6-002-BIM.rfa

16.04.2018

> download
BIM MBH6-002-BIM.rfa 16.04.2018 520 kB
> download

BIM

MBH7-002-BIM.rfa

16.04.2018

> download
BIM MBH7-002-BIM.rfa 16.04.2018 536 kB
> download

BIM

MBH3-002-BIM.rfa

16.04.2018

> download
BIM MBH3-002-BIM.rfa 16.04.2018 520 kB
> download

BIM

MBH6-001-BIM.ifc

16.04.2018

> download
BIM MBH6-001-BIM.ifc 16.04.2018 4,4 MB
> download

BIM

MBH7-001-BIM.ifc

16.04.2018

> download
BIM MBH7-001-BIM.ifc 16.04.2018 4,4 MB
> download

BIM

MBH3-001-BIM.ifc

16.04.2018

> download
BIM MBH3-001-BIM.ifc 16.04.2018 4,4 MB
> download

BIM

MBH4-001-BIM.ifc

16.04.2018

> download
BIM MBH4-001-BIM.ifc 16.04.2018 4,4 MB
> download

Accessories

>

CSP 3

CSP 3 (included)

Aerator insert for tap adapter M 22/24 at the tap. The aerator at the tap supports the energy- and water-saving operation of the compact instant water heater. The new special CSP aerators mix air into the water and thus create a uniform water stream that does not splatter but softly cascades down. CSP 3 (< 2 l/min).

CSP 3: Part no. 0010-00421

CSP 6

CSP 6 (included)

Aerator insert for tap adapter M 22/24 at the tap. The aerator at the tap supports the energy- and water-saving operation of the compact instant water heater. The new special CSP aerators mix air into the water and thus create a uniform water stream that does not splatter but softly cascades down. CSP 6 (< 3,5 l/min).

CSP 6: Part no. 0010-00461

FVS

FVS (included)

Flexible connecting hose ⅜ inch cap nut × ⅜ inch cap nut, length 50 cm

FVS: Part no. 89620

T-piece

T-piece (included)

Special T-connector ⅜ inch cap nut × ⅜ inch angle valve 10 mm

T-piece: Part no. 89610

Your advantages:

  1. Cost-saving

    Cost-saving

  2. Space-saving

    Space-saving

  3. Instantly at the right temperature

    Instantly at the right temperature

  4. No dripping taps

    No dripping taps

  5. More hygiene

    More hygiene

  6. Environmentally friendly

    Environmentally friendly

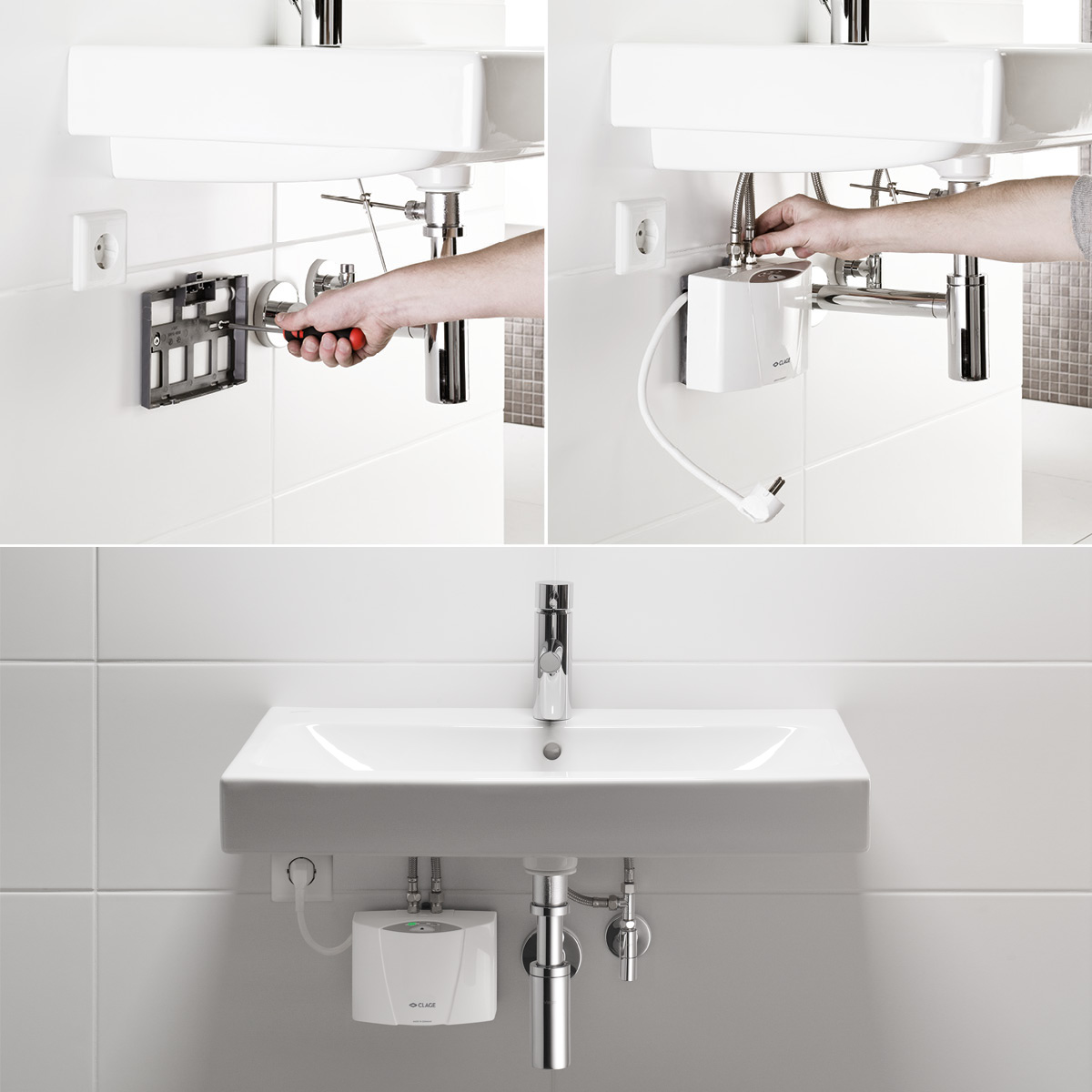

Installation video
