E-mini instant water heater
MCX

E-mini instant water heater MCX

Energy efficiency class A

(Scale: A+ to F)

  • MCX 3: 3.5 kW, 230 V
    with plug
  • MCX 4: 4.4 kW, 230 V
  • MCX 6: 5.7 kW, 230 V
  • MCX 7: 6.5 kW, 400 V

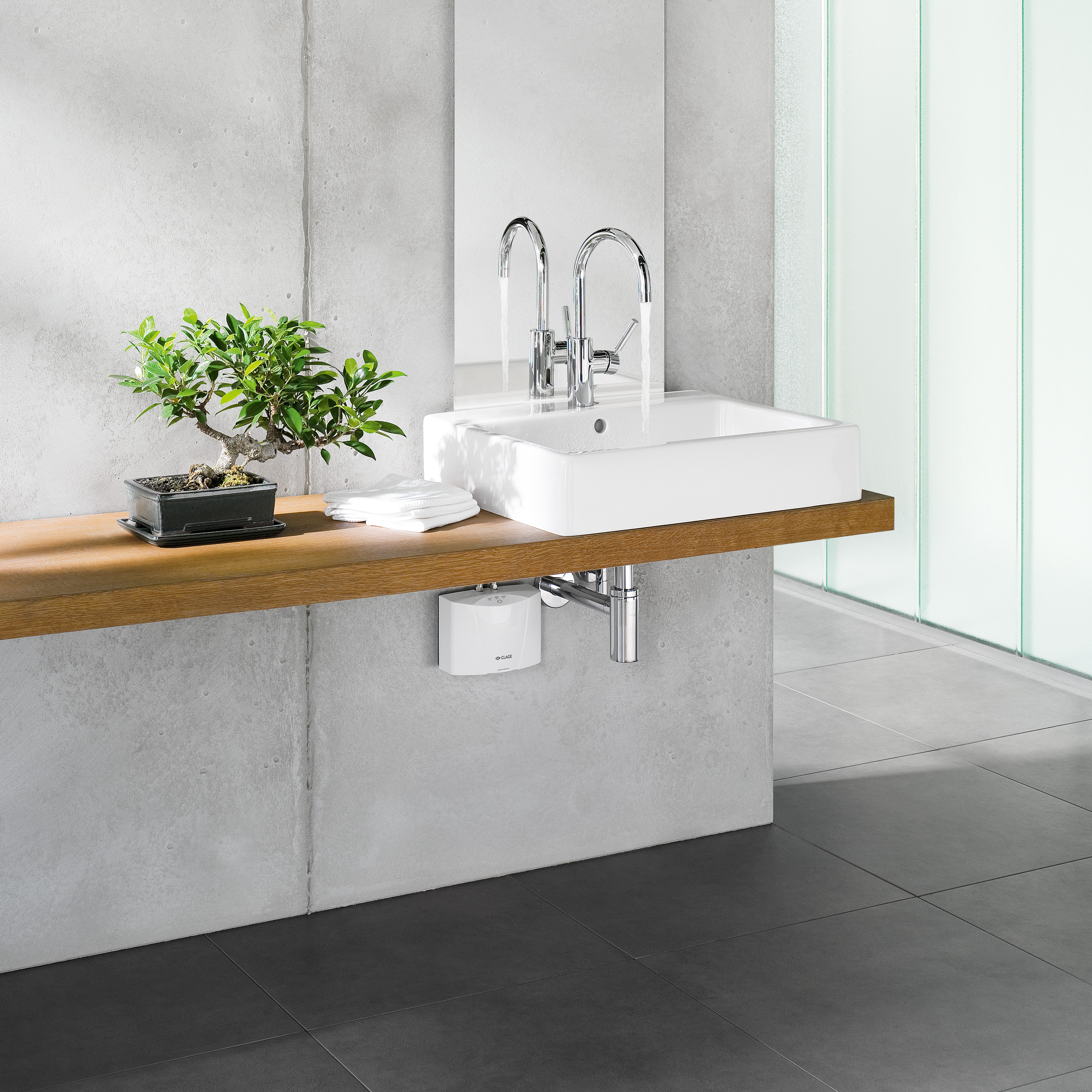

This is where the MCX is used.

  1. Wash hand basin <nobr>(e.g. guest toilet)</nobr>

    Wash hand basin (e.g. guest toilet)

  2. Staff kitchen

    Staff kitchen

Smart energy efficiency.

The top-of-the-range device among the small instantaneous water heaters convinces with the best functionality and sophisticated design. Well designed, the small appliance fits discreetly into any washbasin situation.

Awards E-mini instant water heater MCX

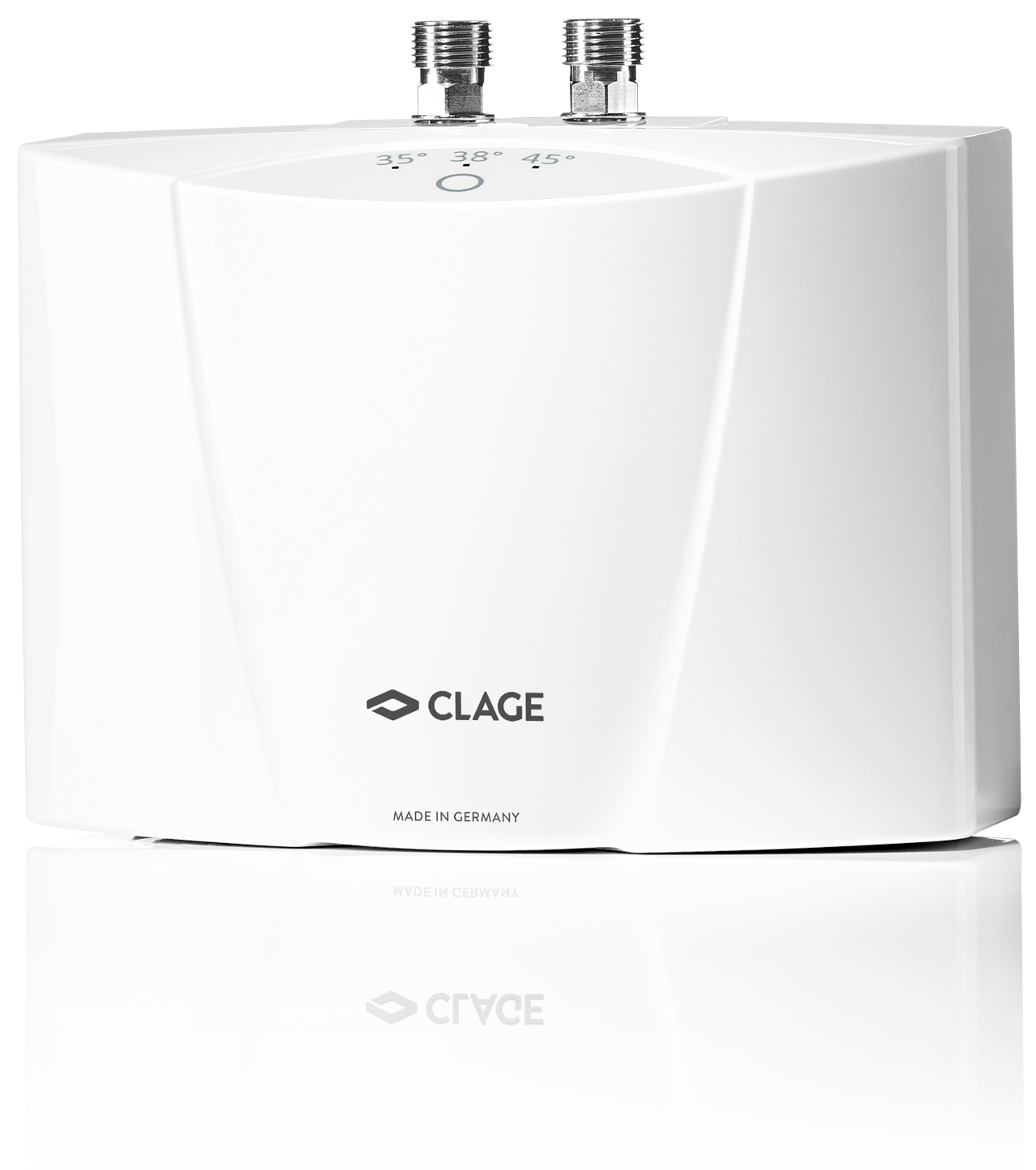

  • Electronically controlled instant water heater with a compact design for energy-efficient hot water supply of a sink or a staff kitchen
  • The heating output is electronically controlled. This provides an ideal hot water temperature without the need to add cold water at the tap.
  • Touch button controls with colour LEDs to set the outlet temperature to 35 °C, 38 °C or max. 45 °C.
  • Connection kit (T-piece and flexible pressure hose) for an angle valve is included
  • Unvented design
  • Remote control module available as an accessory: FX wireless remote control
  • Dimensions (height × width × depth): 13.5 × 18.6 × 8.7 cm

Technical data

>

Data. Values. Facts.



















E-mini instant water heater MCX 3 E-mini instant water heater MCX 4 E-mini instant water heater MCX 6 E-mini instant water heater MCX 7
Wash hand basin <nobr>(e.g. guest toilet)</nobr> Wash hand basin <nobr>(e.g. guest toilet)</nobr> Wash hand basin <nobr>(e.g. guest toilet)</nobr> Staff kitchen Wash hand basin <nobr>(e.g. guest toilet)</nobr> Staff kitchen
MCX 3 MCX 4 MCX 6 MCX 7
Part number
Nominal power rating [kW]
Maximum operating pressure [MPa (bar)]
Water connections (thread connections)
Hot water output at Δt = 25 K 1) [l/min]
Switch-on flow rate [l/min]
Maximum flow rate 2) [l/min]
Supply voltage [1~ / N / PE 220–240 V AC] with plug
Supply voltage [1~ / N / PE 220–240 V AC] permanent connection
Supply voltage [2~ / PE 400 V AC] permanent connection
Nominal current [A]
Required cable diameter [mm²]
Maximum inlet temperature [°C]
Solar-ready 3)
Protection class
Specific water resistance at 15 °C [Ωcm] ≥
Weight filled with water [kg], approx.
1500-15003 1500-15004 1500-15006 1500-15007
3.5 4.4 5.7 6.5
1 (10) 1 (10) 1 (10) 1 (10)
G ⅜" G ⅜" G ⅜" G ⅜"
2.0 2.5 3.3 3.7
1.2 1.5 1.5 1.5
2.0 2.5 3.3 3.7



15 19 25 16
1.5 2.5 4.0 2.5
70 70 70 70
IP 25 IP 25 IP 25 IP 25
1100 800 800 1100
1.5 1.5 1.5 1.5

1) Temperature increase e.g. from 15 °C to 40 °C

2) Limited flow amount for optimal temperature increase by water flow adjustment

3) Suitable for reheating

Downloads

>

Media Title Date Size

Product information sheet

MCX-pi-en.pdf

18.10.2018

> download
Product information sheet MCX-pi-en.pdf 18.10.2018 759 kB
> download

Operating and installation instructions

MCX-GMA-de-en-fr-nl-pl-cs.pdf

27.02.2018

> download
Operating and installation instructions MCX-GMA-de-en-fr-nl-pl-cs.pdf 27.02.2018 6,7 MB
> download
  Older versions>
 Operating and installation instructionsMCX-GMA-de-en-fr-nl-pl-cs-09-2017.pdf> download> download
 Operating and installation instructionsMCX-GMA-de-en-fr-nl-pl-cs-03-2016.pdf> download> download
 Operating and installation instructionsMCX-GMA-de-en-fr-nl-pl-cs-02-2016.pdf> download> download
 Operating and installation instructionsMCX-GMA-de-en-fr-nl-pl-cs-07-2015.pdf> download> download
 Operating and installation instructionsMCX-GMA-de-en-fr-nl-pl-cs-04-2015.pdf> download> download
  Further versions on request

Safety instructions

Sicherheitshinweise-Durchlauferhitzer-de-en-fr-nl-pt-es-pl-sv-cs-sk-bg-no-fi-ru-sr.pdf

29.01.2019

> download
Safety instructions Sicherheitshinweise-Durchlauferhitzer-de-en-fr-nl-pt-es-pl-sv-cs-sk-bg-no-fi-ru-sr.pdf 29.01.2019 572 kB
> download

Energy label

MCX7-Energielabel.pdf

06.09.2017

> download
Energy label MCX7-Energielabel.pdf 06.09.2017 220 kB
> download

Energy label

MCX3-Energielabel.pdf

06.09.2017

> download
Energy label MCX3-Energielabel.pdf 06.09.2017 220 kB
> download

Energy label

MCX6-Energielabel.pdf

06.09.2017

> download
Energy label MCX6-Energielabel.pdf 06.09.2017 220 kB
> download

Energy label

MCX4-Energielabel.pdf

06.09.2017

> download
Energy label MCX4-Energielabel.pdf 06.09.2017 220 kB
> download

ErP product sheet

MCX3-MCX7-ErP-Produktdatenblatt.pdf

06.02.2017

> download
ErP product sheet MCX3-MCX7-ErP-Produktdatenblatt.pdf 06.02.2017 95 kB
> download

CE Conformity

MCX-MBX-Konformitaetserklaerung-CE-Conformity-de-en-2018-05.pdf

17.07.2018

> download
CE Conformity MCX-MBX-Konformitaetserklaerung-CE-Conformity-de-en-2018-05.pdf 17.07.2018 163 kB
> download

Product photo


10.04.2018

> download
Product photo MCX-Produktfoto-frontal-2018-1393px-weiss.png 10.04.2018 1,3 MB
> download

Product photo


10.04.2018

> download
Product photo MCX-Milieu-2018-2800px.jpg 10.04.2018 831 kB
> download

Catalogue

CLAGE-Instantaneous-water-heater-Catalogue-en.pdf

23.08.2018

> download
Catalogue CLAGE-Instantaneous-water-heater-Catalogue-en.pdf 23.08.2018 17,7 MB
> download

Price list

Product-Price-List-PPL-en.pdf

07.05.2019

> download
Price list Product-Price-List-PPL-en.pdf 07.05.2019 3,3 MB
> download

BIM

MCX3-001-BIM.ifc

16.04.2018

> download
BIM MCX3-001-BIM.ifc 16.04.2018 4,4 MB
> download

BIM

MCX6-002-BIM.rfa

16.04.2018

> download
BIM MCX6-002-BIM.rfa 16.04.2018 608 kB
> download

BIM

MCX4-001-BIM.ifc

16.04.2018

> download
BIM MCX4-001-BIM.ifc 16.04.2018 4,4 MB
> download

BIM

MCX4-002-BIM.rfa

16.04.2018

> download
BIM MCX4-002-BIM.rfa 16.04.2018 608 kB
> download

BIM

MCX6-001-BIM.ifc

16.04.2018

> download
BIM MCX6-001-BIM.ifc 16.04.2018 4,4 MB
> download

BIM

MCX7-001-BIM.ifc

16.04.2018

> download
BIM MCX7-001-BIM.ifc 16.04.2018 4,4 MB
> download

BIM

MCX7-002-BIM.rfa

16.04.2018

> download
BIM MCX7-002-BIM.rfa 16.04.2018 608 kB
> download

BIM

MCX3-002-BIM.rfa

16.04.2018

> download
BIM MCX3-002-BIM.rfa 16.04.2018 608 kB
> download

Datanorm

Datanorm.zip

14.05.2019

> download
Datanorm Datanorm.zip 14.05.2019 39,7 MB
> download

GAEB

GAEB.zip

14.05.2019

> download
GAEB GAEB.zip 14.05.2019 19,9 MB
> download

Accessories

>

CSP 3

CSP 3 (included)

Aerator insert for tap adapter M 22/24 at the tap. The aerator at the tap supports the energy- and water-saving operation of the compact instant water heater. The new special CSP aerators mix air into the water and thus create a uniform water stream that does not splatter but softly cascades down. CSP 3 (< 2 l/min).

CSP 3: Part no. 0010-00421

CSP 6

CSP 6 (included)

Aerator insert for tap adapter M 22/24 at the tap. The aerator at the tap supports the energy- and water-saving operation of the compact instant water heater. The new special CSP aerators mix air into the water and thus create a uniform water stream that does not splatter but softly cascades down. CSP 6 (< 3,5 l/min).

CSP 6: Part no. 0010-00461

FVS

FVS (included)

Flexible connecting hose ⅜ inch cap nut × ⅜ inch cap nut, length 50 cm

FVS: Part no. 89620

T-piece

T-piece (included)

Special T-connector ⅜ inch cap nut × ⅜ inch angle valve 10 mm

T-piece: Part no. 89610

FX

FX (optional)

Remote control including transmission unit FXE for installation into the instantaneous water heater. In addition to user controls directly at the unit, the remote control allows for convenient temperature adjustment of the instant water heater at interior distances of up to 10 meters. Secure, bidirectional wireless transfer, continuous two-button temperature selection, two pre-set buttons and a LCD display, magnetic wall holder and ­batteries (included). IP 20. Dimensions (H × W × D): 5.8 × 12.5 × 1.9 cm

FX: Part no. 2400-26090

FX (until 2016)

FX (until 2016) (optional)

– ONLY FOR DEVICES BUILT UNTIL END OF 2016 – Remote control including transmission unit FXE for installation into the instantaneous water heater. In addition to user controls directly at the unit, the remote control allows for convenient temperature adjustment of the instant water heater at interior distances of up to 10 meters. Secure, bidirectional wireless transfer, continuous two-button temperature selection, two pre-set buttons and a LCD display, magnetic wall holder and ­batteries (included). IP 20. Dimensions (H × W × D): 5.8 × 12.5 × 1.9 cm

FX (until 2016): Part no. 2400-26050
