Electric wall kettle
K 5

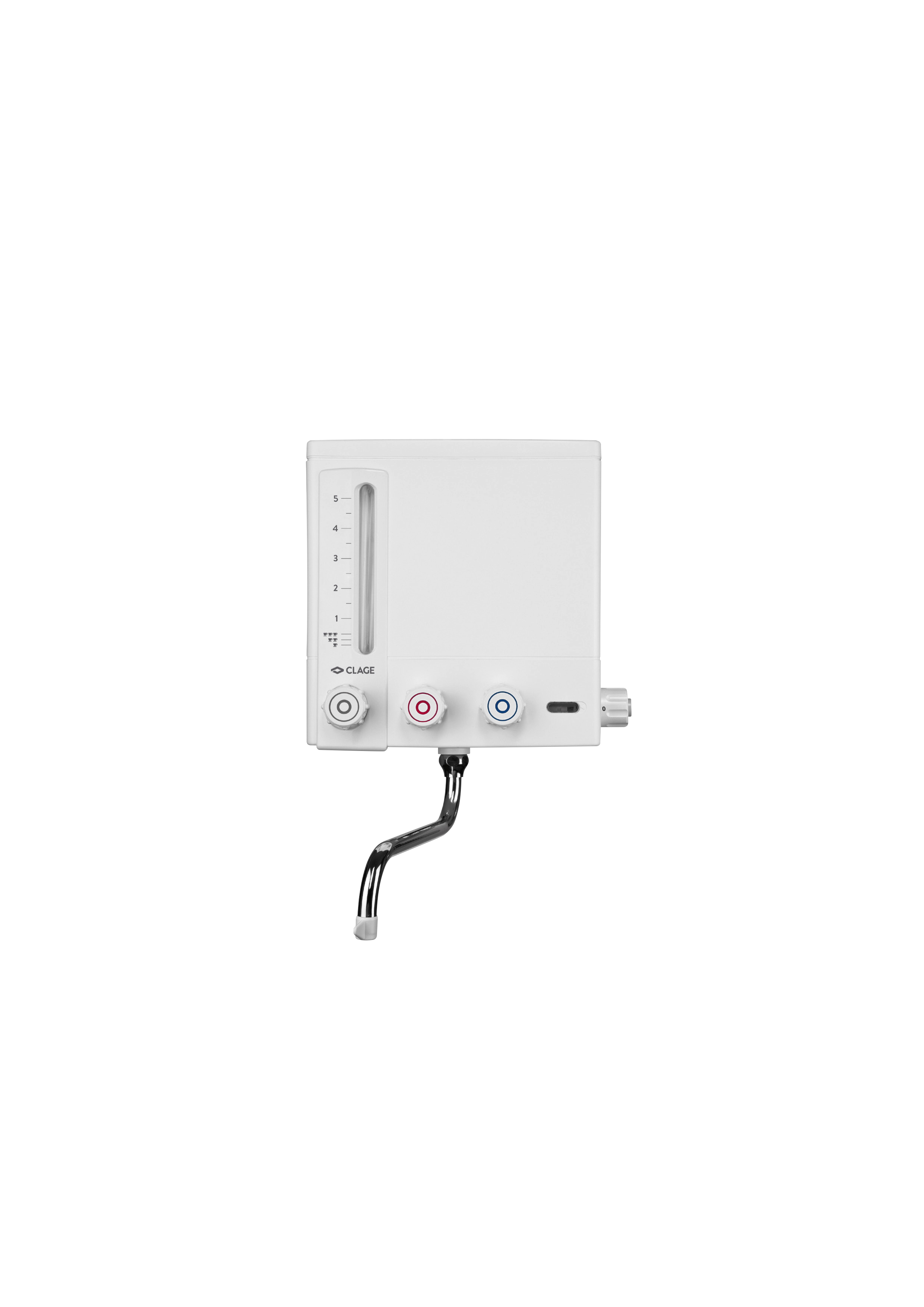

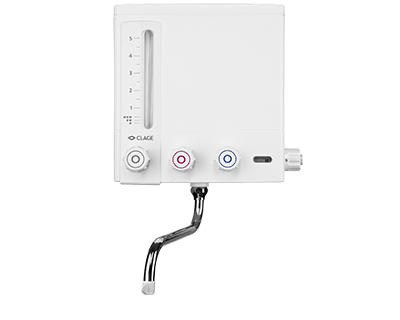

Electric wall kettle K 5
  • K 5: 2 kW, 230 V
    with plug

This is where the K 5 is used.

  1. Kitchen sink

    Kitchen sink

  2. Staff kitchen

    Staff kitchen

  3. Mobile kitchens

    Mobile kitchens

Boiling water for smaller demand.

The electric wall kettle is mounted above the sink. It is used for demand-based hot water preparation at home or a work place. The user fill the unit with up to 5 litres of water and it is heated to the desired temperature ­between approx. 37 °C and the boiling point (99 °C).

  • Boiling water heater for hot water preparation from one cup up to 5 litres
  • Temperature range from approx. 37 °C to the boiling point (99 °C)
  • Integrated tap
  • Overflow drain integrated in the swivel spout
  • Boiling point control
  • Secure wall-mounted installation
  • With plug

Technical data

>

Data. Values. Facts.


















Electric wall kettle K 5
Kitchen sink Staff kitchen Mobile kitchens
K 5
Part number
Nominal power rating [kW]
Water connections (thread connections)
Temperature range [°C]
Content [litres]
Content [cups 1)]
Heating time for complete fill-up 2) [min]
Supply voltage [1~ / N / PE 230 V AC] with plug
Function indicator
Case (plastic, white)
Internal tank: plastic
Boiling point control
Length of swivel spout [cm]
Protection class
Weight filled with water [kg], approx.
Dimensions (height × width × depth) [cm]
4100-41002
2.0
G ½"
37 – 99
≤ 5
30
14.5
20
IP 44
7.5
27 × 29 × 20

1) Standard cup with 167 ml

2) Inlet temperature 10 °C

Downloads

>

Media Title Date Size

Product information sheet

K5-pi-en.pdf

18.10.2018

> download
Product information sheet K5-pi-en.pdf 18.10.2018 354 kB
> download

Operating and installation instructions

K5-GMA-de-en-fr-nl.pdf

14.02.2017

> download
Operating and installation instructions K5-GMA-de-en-fr-nl.pdf 14.02.2017 483 kB
> download

CE Conformity

K5-Konformitaetserklaerung-CE-Conformity-de-en-2017-11.pdf

17.07.2018

> download
CE Conformity K5-Konformitaetserklaerung-CE-Conformity-de-en-2017-11.pdf 17.07.2018 158 kB
> download

Product photo


11.05.2017

> download
Product photo K5_frontal-HighRes.jpg 11.05.2017 376 kB
> download

GAEB

GAEB.zip

14.05.2019

> download
GAEB GAEB.zip 14.05.2019 19,9 MB
> download

Your advantages:

  1. Space-saving

    Space-saving

  2. With plug

    With plug

  3. Boiling point control

    Boiling point control
