Hot water storage heater
S 30

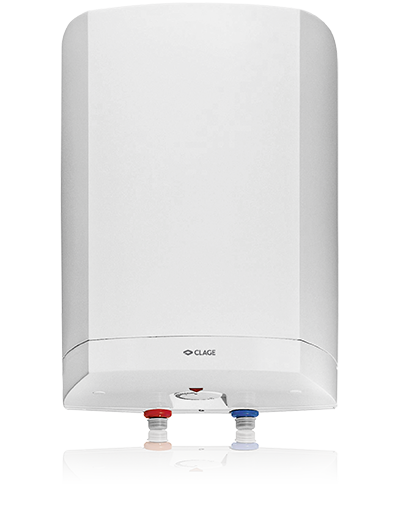

Hot water storage heater S 30

Energy efficiency class C

(scale: A+ to F)

  • S 30: 2.0 kW, 230 V
    with plug

This is where the S 30 is used.

  1. Handwashbasin

    Handwashbasin

  2. Shower

    Shower

Wall-mounted storage heater 30 litres.

The 30-litre wall-mounted storage heater S 30 fulfils the medium hot water demand. The high-quality hard foam insulation helps to minimise its energy use.

  • Unvented wall-mounted storage heater with 30-litres capacity for the hot water supply at one or more points-of-use
  • Internal tank with special enamel coating
  • Can be used in vented or unvented installations
  • Continuous temperature adjustment up to approx. 75 °C
  • Corrosion protection due to special enamel coating and magnesium protection anode
  • Dimensions (height × width × depth): 56 × 38 × 37 cm

Technical data

>

Data. Values. Facts.



















Hot water storage heater S 30
Handwashbasin Shower
S 30
Part number
Nominal power rating [kW]
Content [litres]
Type: unvented
Maximum operating pressure [MPa (bar)]
Water connections (thread connections)
Temperature range [°C]
Mixed water amount 40 °C 1) [litres], approx.
Heating time Δt = 45 K 2) [min]
Standby power consumption at 65 °C [kWh / 24h]
Supply voltage [1~ / N / PE 230 V AC] with plug
Nominal current [A]
Function indicator
Internal tank: specially enamelled steel
Single-circuit operation
Protection class
Weight filled with water [kg], approx.
4100-43800
2.0
30
0.6 (6)
G ½"
≤ 75
48
50
0.85
9
IP 25D
44

1) With an inlet temperature of 15 °C and a content temperature of 65 °C

2) Temperature increase e.g. from 15 °C to 60 °C

Downloads

>

Media Title Date Size

Product information sheet

S30-pi-en.pdf

18.10.2018

> download
Product information sheet S30-pi-en.pdf 18.10.2018 362 kB
> download

Operating and installation instructions

S30-GMA-de-en.pdf

10.05.2017

> download
Operating and installation instructions S30-GMA-de-en.pdf 10.05.2017 778 kB
> download

Energy label

S30-Energielabel.pdf

14.02.2017

> download
Energy label S30-Energielabel.pdf 14.02.2017 283 kB
> download

ErP product sheet

S30.pdf

14.02.2017

> download
ErP product sheet S30.pdf 14.02.2017 94 kB
> download

CE Conformity

S30-S50-S80-S100-Konformitaetserklaerung-CE-Conformity-en-2015-10.pdf

17.07.2018

> download
CE Conformity S30-S50-S80-S100-Konformitaetserklaerung-CE-Conformity-en-2015-10.pdf 17.07.2018 14 kB
> download

Product photo


29.06.2017

> download
Product photo S30-frontal-HighRes.jpg 29.06.2017 842 kB
> download

Datanorm

Datanorm.zip

29.06.2017

> download
Datanorm Datanorm.zip 29.06.2017 39,7 MB
> download

GAEB

GAEB.zip

29.06.2017

> download
GAEB GAEB.zip 29.06.2017 19,9 MB
> download

Accessories

>

SG

SG (optional)

Oversink safety assembly (6 bar) for closed outlet installation

SG: Part no. 4100-0011

SGM

SGM (optional)

Oversink safety assembly (6 bar) for closed outlet installation with pressure-reducing valve up to 10 bar

SGM: Part no. 4100-0012
