Hot water storage heater
S 5-O

Hot water storage heater S 5-O

Energy efficiency class A

(scale: A+ to F)

  • S 5-O: 2 kW, 230 V
    with plug

This is where the S 5-O is used.

  1. Disposal sink

    Disposal sink

  2. Kitchen sink

    Kitchen sink

  3. Washbasin

    Washbasin

Small storage heater 5 litres.

The small storage heater S  5-O provides up to 10 litres of hot water for one point-of-use (e.g. the kitchen sink). To avoid exposing the unit to water line pressure, it requires a special open-outlet tap for vented hot water heaters.

  • Vented small 5-litre storage heater (oversink model) for hot water supply at a single point-of-use
  • Temperature control approx. 35 °C bis 85 °C with available energy-saver range and optional temperature limitation at 38 °C, 55 °C or 65 °C
  • Can only be used with a special open-outlet tap for vented hot water heaters
  • Safety temperature limiter as dry-run protection
  • Dimensions (height × width × depth): 38 × 26 × 23 cm

Technical data

>

Data. Values. Facts.


















Hot water storage heater S 5-O
Disposal sink Kitchen sink Washbasin
S 5-O
Part number
Nominal power rating [kW]
Content [litres]
Type: vented
Water connections (thread connections)
Temperature range [°C]
Mixed water quantity 40 °C at 65 °C 1) [litres], approx.
Heating time Δt = 55 K 2) [min]
Standby power consumption at 65 °C [kWh / 24h]
Supply voltage [1~ / N / PE 230 V AC] with plug
Nominal current [A]
Function indicator
Internal tank: plastic
Temperature limit adjustable to ... [°C]
Protection class
Weight filled with water [kg], approx.
4100-41052
2.0
5
G ½"
35 – 85
9.1
10
0.28
9
38 / 55 / 65
IP 24
8.5

1) At an inlet temperature of 12 °C

2) Temperature increase e.g. from 10 °C to 65 °C

Downloads

>

Media Title Date Size

Product information sheet

S5O-pi-en.pdf

18.10.2018

> download
Product information sheet S5O-pi-en.pdf 18.10.2018 453 kB
> download

Operating and installation instructions

S5O-GMA-de-en-fr-nl-pl-cs.pdf

14.02.2017

> download
Operating and installation instructions S5O-GMA-de-en-fr-nl-pl-cs.pdf 14.02.2017 4,4 MB
> download

Energy label

S5O-Energielabel.pdf

14.02.2017

> download
Energy label S5O-Energielabel.pdf 14.02.2017 269 kB
> download

ErP product sheet

S5-U_S5-O.pdf

14.02.2017

> download
ErP product sheet S5-U_S5-O.pdf 14.02.2017 95 kB
> download

CE Conformity

S5O-S5U-Konformitaetserklaerung-CE-Conformity-en-2015-10.pdf

17.07.2018

> download
CE Conformity S5O-S5U-Konformitaetserklaerung-CE-Conformity-en-2015-10.pdf 17.07.2018 23 kB
> download

Product photo


29.06.2017

> download

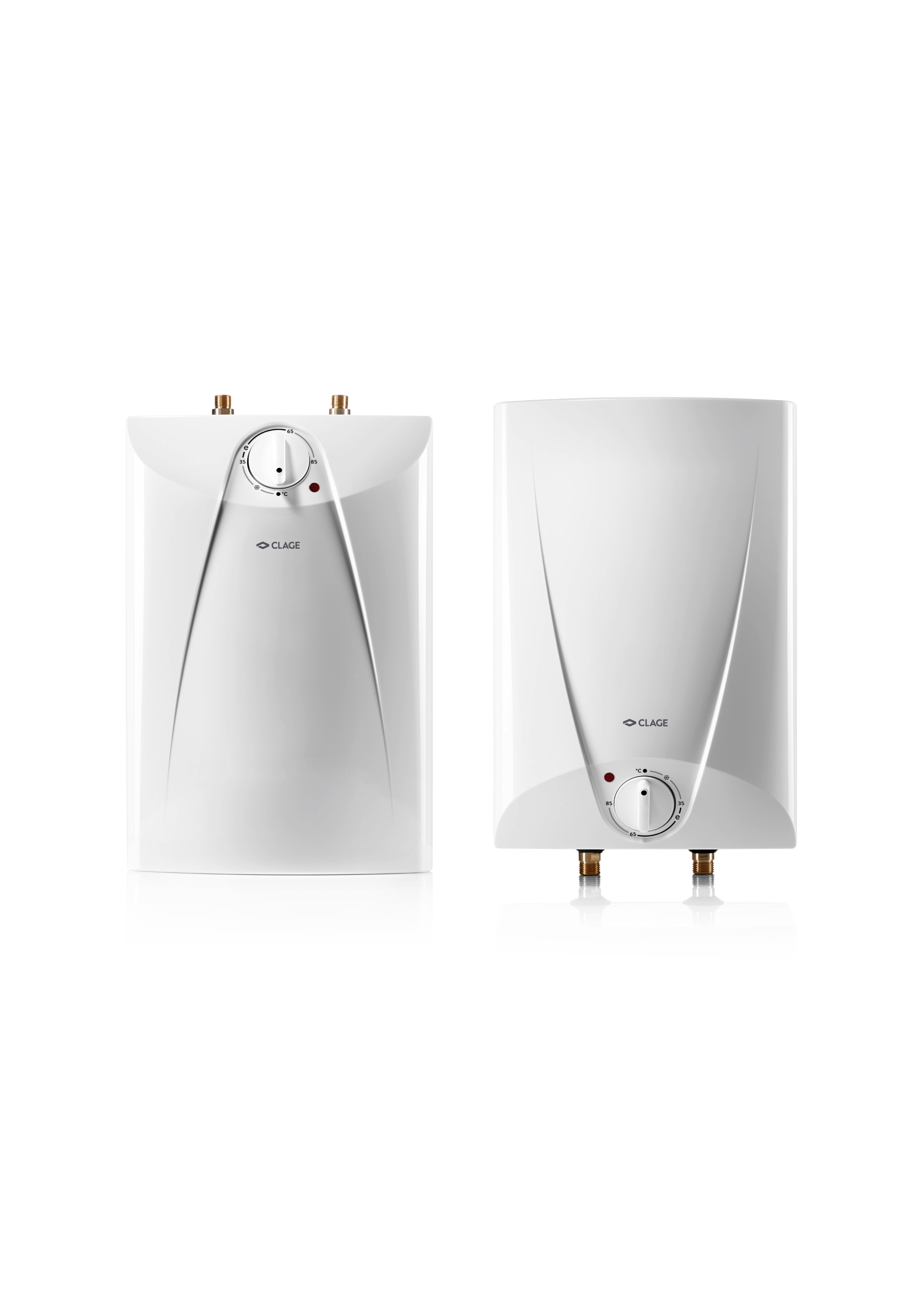

Product photo S5-U-S5-O-frontal-HighRes.jpg 29.06.2017 562 kB
> download

Product photo


29.06.2017

> download

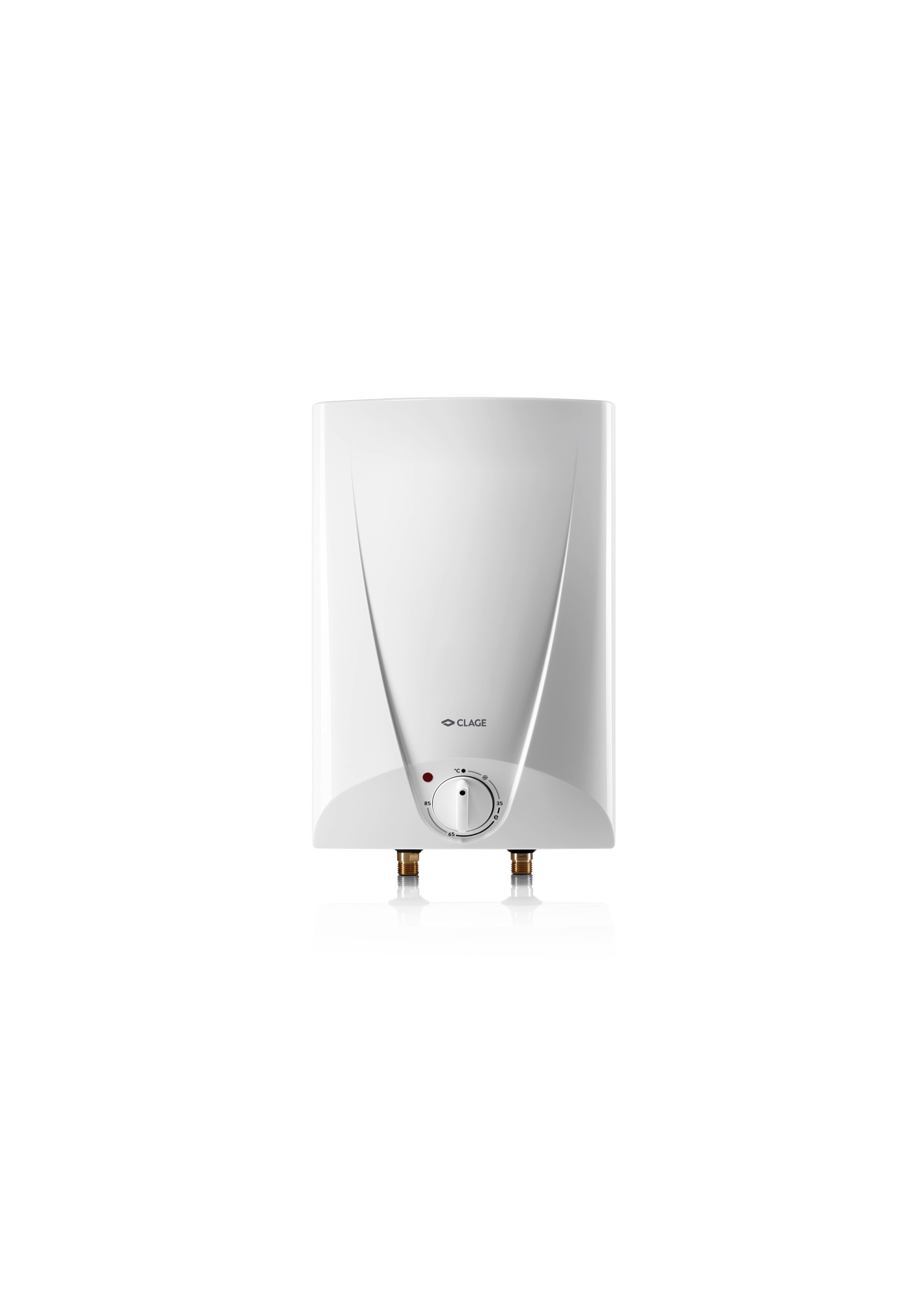

Product photo S5-O-frontal-HighRes.jpg 29.06.2017 346 kB
> download

Datanorm

Datanorm.zip

29.06.2017

> download
Datanorm Datanorm.zip 29.06.2017 39,7 MB
> download

GAEB

GAEB.zip

29.06.2017

> download
GAEB GAEB.zip 29.06.2017 19,9 MB
> download

Accessories

>

CSS

CSS (optional)

Aerator insert for tap adapter M 22/24 at the tap

CSS: Part no. 0010-00504

CSSi

CSSi (optional)

Aerator with chrome tap adapter M 22i (suitable for taps with male threads at the outlet)

CSSi: Part no. 89125

SNO

SNO (optional)

Wall-mounted mixer tap (open-outlet) with combination valve and swivel spout 16 cm

SNO: Part no. 4100-0110

SSO

SSO (optional)

Single-lever wall mixer tap (open-outlet) with swivel spout 16 cm

SSO: Part no. 4100-01250

Similar products:

E-mini instant water heater, vented (oversink model) M-O
M 3-O: 3.5 kW, 230 V, with plug
M 3-O (E): 3.5 kW, 230 V
M 4-O: 4.4 kW, 230 V
M 6-O: 5.7 kW, 230 V
M 7-O: 6.5 kW, 400 V

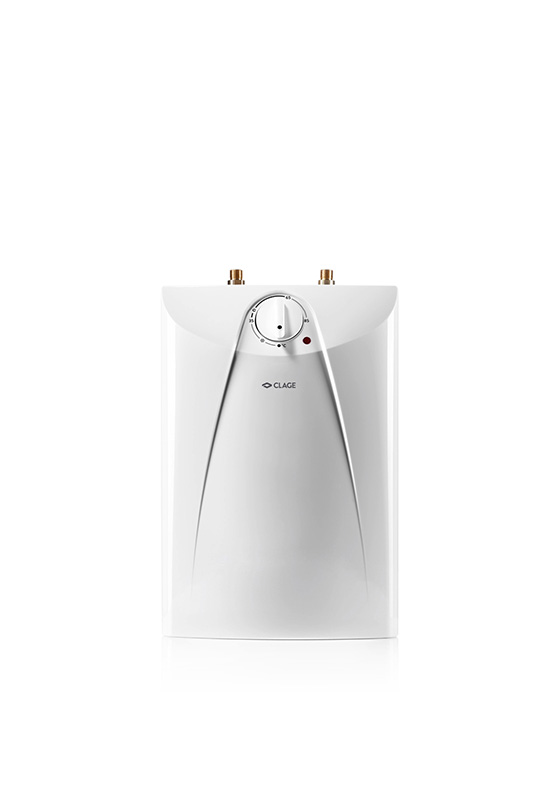

Hot water storage heater S 5-U
S 5-U: 2 kW, 230 V, with plug

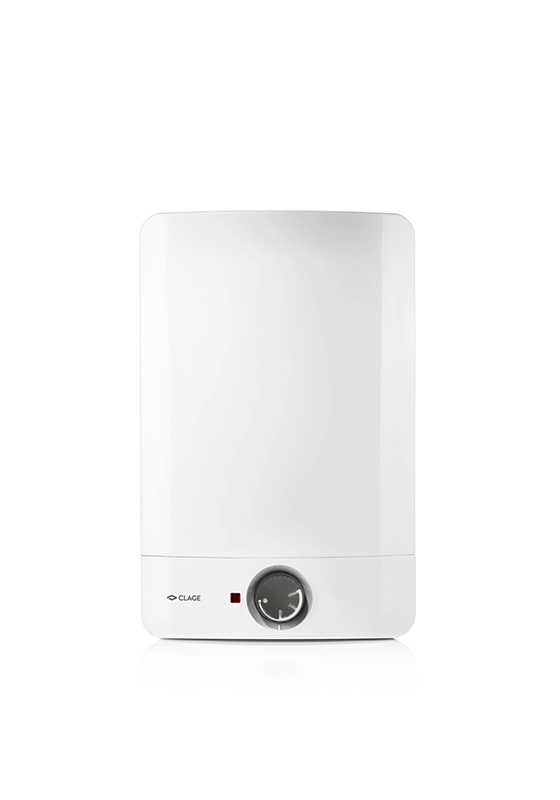

Hot water storage heater S 10-O
