E-comfort instant water heater
DEX Next S

E-comfort instant water heater DEX Next S

Energy efficiency class A

(Scale: A+ to F)

  • DEX Next S: 18/21/24/27 kW, 400 V

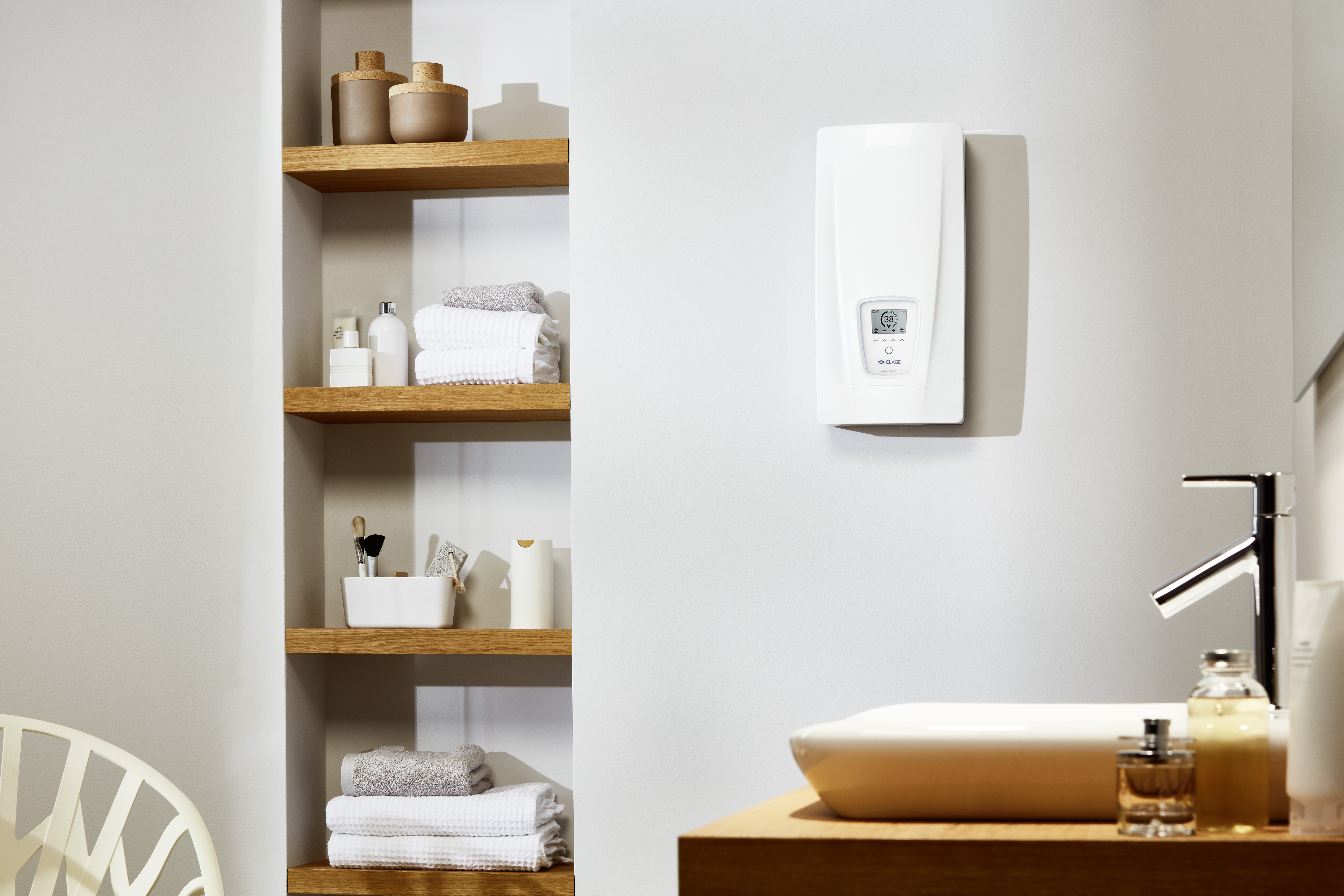

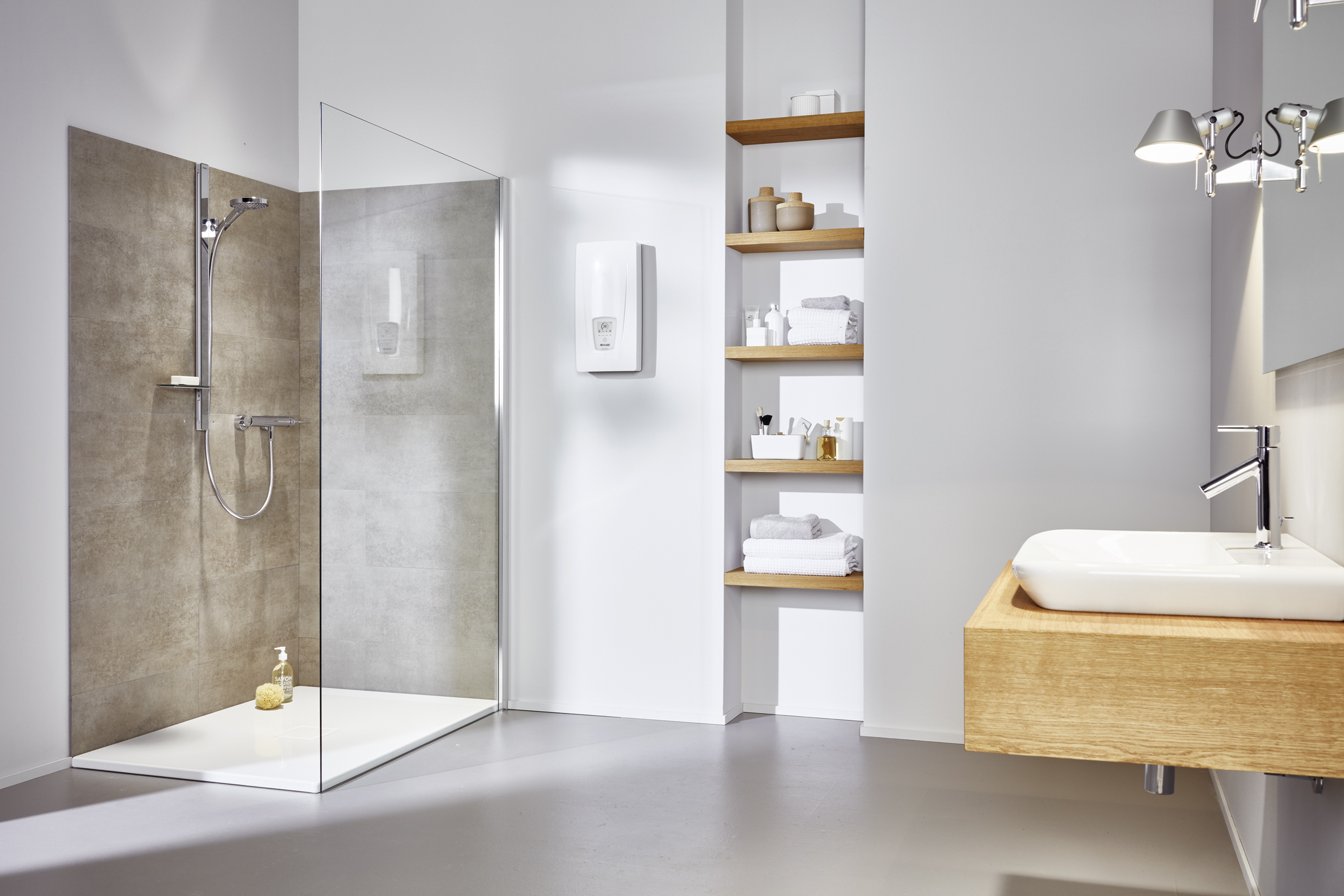

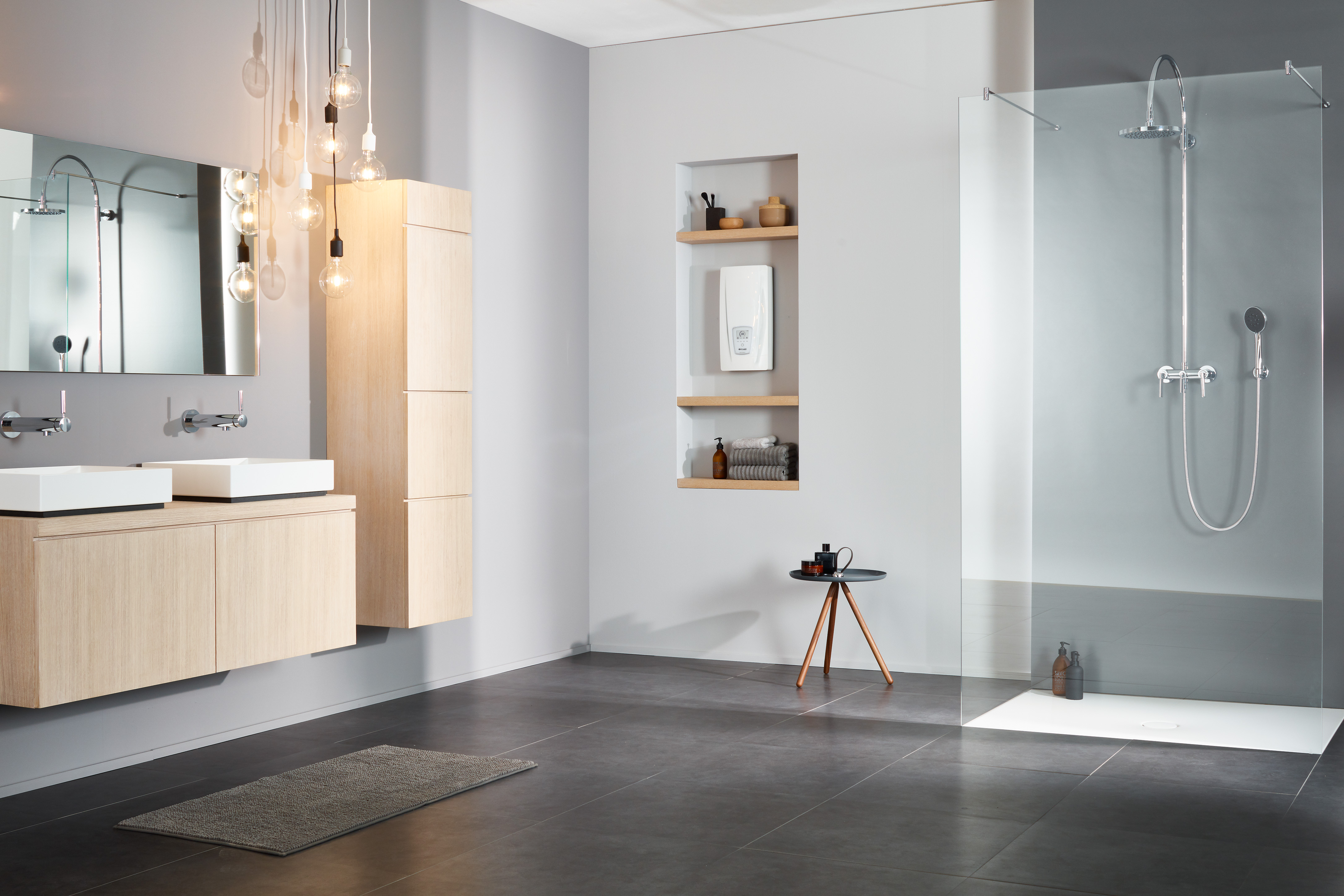

This is where the DEX Next S is used.

  1. Handwashbasin

    Handwashbasin

  2. Shower

    Shower

  3. Bath tub

    Bath tub

  4. Kitchen sink

    Kitchen sink

For your new wellness oasis.

This top device among the E-comfort instant water heaters meets very high comfort requirements.

The new DEX Next S for shower and bath impresses with state-of-the-art technology and durable materials. The compact design is resource-saving. The device is operated in a user-friendly manner via the e-paper display.

The integrated Bluetooth function allows the unit to be controlled by remote control, smartphone or tablet. The use of the app "Smart Control" facilitates the commissioning and maintenance of the instantaneous water heater.

Awards E-comfort instant water heater DEX Next S
  • Fully electronically controlled high-tech instantaneous water heater with real glass touch display and Bluetooth remote control for convenient and economical hot water supply to one or more tap(s)
  • Temperature always accurate to the degree between 20 °C and 60 °C thanks to TWIN TEMPERATURE Control TTC® and SERVOTRONIC® dynamic flow rate control
  • In the comfort zone between 35 °C and 43 °C, the temperature can be set in 0.5 degree increments
  • Bare wire heating system IES® ensures a longer service life, less calcification and is efficient and easy to maintain.
  • Function for thermal treatment with 70 °C for more hygiene
  • Particularly air-resistant heating system thanks to innovative heating duct arrangement
  • Multiple Power System MPS® determines the maximum power consumption during installation: 18, 21, 24 or 27 kW
  • Suitable for water-saving taps due to particularly low switch-on water quantity from 1.5 l/min thanks to innovative water flow technology
  • Integrated WLAN and Bluetooth® function for connection with smartphone and tablet
  • Electronic safety system with air bubble detection, temperature and pressure switch-off and water stop function
  • Dimensions (height × width × depth): 46.8 × 23.9 × 9.6 cm

Technical data

>

Data. Values. Facts.

















E-comfort instant water heater DEX Next S
Handwashbasin Shower Bath tub Kitchen sink
DEX Next S
Part number
Nominal power rating 1) (variably adjustable due to MPS) at 400 V [kW]
Permissible operating pressure [MPa (bar)] 2)
Water connections (thread connections)
Hot water output at Δt = 28 K 3) [l/min]
Switch-on flow rate [l/min]
Maximum flow rate: automatic [l/min] 4)
Supply voltage [3~ / PE 400 V AC] Permanent connection 5)
Nominal current at 400 V [A]
Required cable diameter [mm²]
Maximum inlet temperature [°C]
Solar-ready 6)
Protection class
Specific water resistance at 15 °C [Ωcm] ≥
Weight filled with water [kg], approx.
3200-36450
18 21 24 27
1 (10) 1 (10) 1 (10) 1 (10)
G ½" G ½" G ½" G ½"
9.2 10.7 12.3 13.8
1.5 1.5 1.5 1.5
26 30 35 39
4.0 4.0 6.0 6.0
70 70 70 70
IP 25 IP 25 IP 25 IP 25
1100 1100 1100 1100
4.5 4.5 4.5 4.5

1) The selected power rating determines the values of nominal current, cable diameter and hot water output

2) Also approved for pressureless operation

3) Temperature increase e.g. from 12 °C to 40 °C, mixed water

4) Depending on line pressure, selected temperature and inlet temperature

5) Alternatively connectable to 380 V

6) Suitable for reheating

Downloads

>

Media type Title Date Size

Product information sheet

DEX-Next-S-PI-en.pdf

21.07.2023

> download
Product information sheet DEX-Next-S-PI-en.pdf 21.07.2023 487 kB
> download

Operating and installation instructions

DEX-Next-S-Online-GMA-de-en-fr-nl-pt-es-pl-ru-cs-sk-bg-sr.pdf

21.02.2023

> download
Operating and installation instructions DEX-Next-S-Online-GMA-de-en-fr-nl-pt-es-pl-ru-cs-sk-bg-sr.pdf 21.02.2023 32,5 MB
> download
  Older versions>
 Operating and installation instructionsDEX-Next-S-Online-GMA-de-en-fr-nl-pt-es-pl-ru-cs-sk-bg-sr-05-2022.pdf> download> download
  Further versions on request

Quick guide

DEX-Next-S-KA-de-en-fr-nl-pt-es-pl-ru-cs-sk-bg-sr.pdf

10.06.2024

> download
Quick guide DEX-Next-S-KA-de-en-fr-nl-pt-es-pl-ru-cs-sk-bg-sr.pdf 10.06.2024 6,2 MB
> download
  Older versions>
 Quick guideDEX_Next-S-KA-de-en-fr-nl-pt-es-pl-ru-cs-sk-bg-sr-01-2023.pdf> download> download
 Quick guideDEX-Next-S-KA-de-en-fr-nl-pt-es-pl-ru-cs-sk-bg-sr-04-2022.pdf> download> download
  Further versions on request

Image-only instructions

DX3-400V-BiA.pdf

16.05.2022

> download
Image-only instructions DX3-400V-BiA.pdf 16.05.2022 2,0 MB
> download
  Older versions>
 Image-only instructionsDSX-Touch-DFX-Next-BiA.pdf> download> download
  Further versions on request

Installation accessories

DX3-Montageschablone-de-en-fr-nl-pl-cs-sk-pt-es-sv.pdf

13.11.2018

> download
Installation accessories DX3-Montageschablone-de-en-fr-nl-pl-cs-sk-pt-es-sv.pdf 13.11.2018 370 kB
> download

Safety instructions

Sicherheitshinweise-Durchlauferhitzer-de-en-fr-nl-pt-es-pl-sv-cs-sk-bg-no-fi-ru-sr-el-it-tr-ro.pdf

03.11.2023

> download
Safety instructions Sicherheitshinweise-Durchlauferhitzer-de-en-fr-nl-pt-es-pl-sv-cs-sk-bg-no-fi-ru-sr-el-it-tr-ro.pdf 03.11.2023 371 kB
> download

Energy label

DEX-Next-S-Energielabel.pdf

28.03.2023

> download
Energy label DEX-Next-S-Energielabel.pdf 28.03.2023 379 kB
> download

ErP product sheet

9120-96xxx-DX3-DEX-Next-S-ErP-Produktdatenblatt.pdf

27.03.2023

> download
ErP product sheet 9120-96xxx-DX3-DEX-Next-S-ErP-Produktdatenblatt.pdf 27.03.2023 102 kB
> download

CE Conformity

CE-Konformitaetserklaerung-nach-RED+RoHS3-DX3-2021-10.pdf

05.11.2021

> download
CE Conformity CE-Konformitaetserklaerung-nach-RED+RoHS3-DX3-2021-10.pdf 05.11.2021 1,3 MB
> download

Info graphic

Smart-Control.pdf

18.05.2022

> download
Info graphic Smart-Control.pdf 18.05.2022 2,1 MB
> download

Catalogue

CLAGE-Complete-catalogue-en.pdf

09.10.2024

> download
Catalogue CLAGE-Complete-catalogue-en.pdf 09.10.2024 13,5 MB
> download

Hotnews

CLAGE_Hotnews_2023-EN-online.pdf

10.03.2023

> download
Hotnews CLAGE_Hotnews_2023-EN-online.pdf 10.03.2023 13,9 MB
> download

Price list

CLAGE-Product-Price-List-PPL-en.pdf

10.05.2023

> download
Price list CLAGE-Product-Price-List-PPL-en.pdf 10.05.2023 6,6 MB
> download

Datanorm

Datanorm.zip

03.06.2024

> download
Datanorm Datanorm.zip 03.06.2024 40 kB
> download

GAEB

GAEB.zip

03.06.2024

> download
GAEB GAEB.zip 03.06.2024 725 kB
> download

Accessories

>

FX 3

FX 3 (included)

Additional remote control for convenient temperature adjustment of the instantaneous water heater over a distance of approx. 10 metres in the building. Secure, Bluetooth® wireless transmission, stepless temperature selection via two keys, two fixed value keys and an LCD display, magnetic wall bracket and batteries (included). IP 20. Dimensions (H × W × D): 5.8 × 12.5 × 1.9 cm

FX 3: Part no. 3200-34021

FXS Next (D)

FXS Next (D) (optional)

Bluetooth radio remote control for electronic instantaneous water heaters, temperature selection and settings via sensor keys in an intuitive menu navigation, with e-paper display, Bluetooth connection for secure data transmission between radio remote control and instantaneous water heater, FXE 3 radio adapter for installation in the instantaneous water heater (D series) included in the scope of delivery of FXS Next, batteries and magnetic wall bracket included in the scope of delivery.

FXS Next (D): Part no. 3200-34025

RDX 3

RDX 3 (optional)

If required, the universal mounting frame RDX 3 is available as an accessory, with which the electrical connection can be made at any point behind the device. The IP protection class of the device with RDX 3 is IP24. With electrical wiring and pipe extensions. For difficult installation conditions, e.g. replacement of a flow heater with different connections. Compensates for tile projections or wall unevenness. Installation only by a specialist.

RDX 3: Part no. 3200-36100

UDX

UDX (optional)

Pipe assembly for undersink installation with water connections, top flush-mounted G ⅜ inch (basic mounting kit RDX required).

UDX: Part no. 3200-34110

VDX

VDX (optional)

Pipe assembly for offset installation or reversed water connections when exchanging gas water heaters (basic mounting kit RDX required).

VDX: Part no. 3200-34120
