E-mini instant water heater, vented
M

E-mini instant water heater, vented M

Energy efficiency class A

(scale: A+ to F)

  • M 3: 3.5 kW, 230 V
    with plug
  • M 4: 4.4 kW, 230 V
  • M 6: 5.7 kW, 230 V
  • M 7: 6.5 kW, 400 V

This is where the M is used.

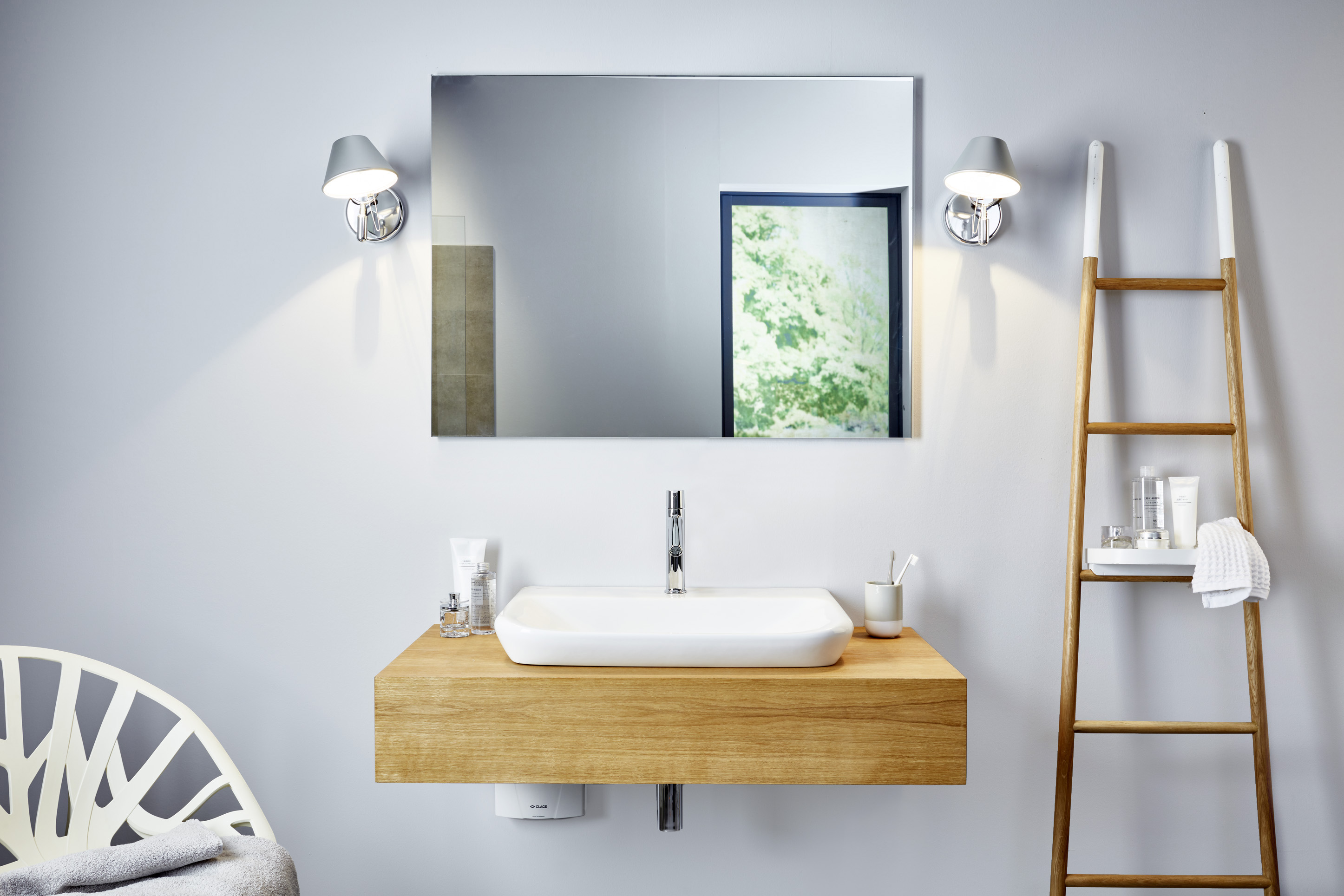

  1. Wash hand basin <nobr>(e.g. guest toilet)</nobr>

    Wash hand basin (e.g. guest toilet)

  2. Sanitary facilities in commercial buildings

    Sanitary facilities in commercial buildings

  3. Staff kitchen

    Staff kitchen

Quick and safe installation.

The vented E-mini instant water heater M is a pretty low-cost solution for having warm water at single points of use. It must be installed with an open-outlet tap. Cost-effective and easy to install, the unit is a real energy-saver at each hand-wash basin.

  • Hydraulically controlled instant water heater (undersink model) with compact design for the energy-efficient hot water supply of a washbasin
  • Cost-efficient and quick installation, ideally suited for replacing conventional storage heaters
  • The full heating capacity turns on automatically as soon as water flows through the unit
  • Vented design, only suitable for open-outlet pressure taps
  • Also available as complete kits with tap: M / END, M / SNM und M / SMB
  • Dimensions (height × width × depth): 13.5 × 18.6 × 8.7 cm

Technical data

>

Data. Values. Facts.




















E-mini instant water heater, vented M 3 E-mini instant water heater, vented M 4 E-mini instant water heater, vented M 6 E-mini instant water heater, vented M 7
Wash hand basin <nobr>(e.g. guest toilet)</nobr> Sanitary facilities in commercial buildings Wash hand basin <nobr>(e.g. guest toilet)</nobr> Sanitary facilities in commercial buildings Wash hand basin <nobr>(e.g. guest toilet)</nobr> Sanitary facilities in commercial buildings Staff kitchen Wash hand basin <nobr>(e.g. guest toilet)</nobr> Sanitary facilities in commercial buildings Staff kitchen
M 3 M 4 M 6 M 7
Part number
Nominal power rating at 230 V [kW]
Nominal power rating at 400 V [kW]
Maximum operating pressure [MPa (bar)]
Water connections (thread connections)
Hot water output at Δt = 25 K 1) [l/min]
Switch-on flow rate [l/min]
Maximum flow rate 2) [l/min]
Supply voltage [1~ / N / PE 230 V AC] with plug: Schuko Typ-F (CEE 7/7)
Supply voltage [1~ / N / PE 230 V AC] permanent connection
Supply voltage [2~ / PE 400 V AC] permanent connection
Nominal current at 230 V [A]
Nominal current at 400 V [A]
Required cable diameter [mm²]
Maximum inlet temperature [°C]
Protection class
Specific water resistance at 15 °C [Ωcm] ≥
Weight filled with water [kg], approx.
1500-17003 1500-17004 1500-17006 1500-17007
3.5 4.4 5.7
6.5
0 (0) 0 (0) 0 (0) 0 (0)
G ⅜" G ⅜" G ⅜" G ⅜"
2.0 2.5 3.3 3.7
1.3 1.8 2.2 2.4
2.0 2.5 3.3 3.7



15 19 25
16
1.5 2.5 4.0 2.5
20 20 20 20
IP 25 IP 25 IP 25 IP 25
1100 1100 1100 1100
1.5 1.5 1.5 1.5

1) Temperature increase e.g. from 15 °C to 40 °C

2) Limited flow amount for optimal temperature increase by water flow adjustment

Downloads

>

Media type Title Date Size

Product information sheet

M-PI-en.pdf

18.10.2018

> download
Product information sheet M-PI-en.pdf 18.10.2018 810 kB
> download

Operating and installation instructions

M-GMA-de-en-fr-nl-pl-cs-sk-no-sv-bg-fi-pt-es.pdf

21.09.2022

> download
Operating and installation instructions M-GMA-de-en-fr-nl-pl-cs-sk-no-sv-bg-fi-pt-es.pdf 21.09.2022 6,8 MB
> download
  Older versions>
 Operating and installation instructionsM-GMA-de-en-fr-nl-pl-cs-sk-no-sv-bg-fi-pt-es-10-2018.pdf> download> download
 Operating and installation instructionsM-GMA-de-en-fr-nl-pl-cs-sk-no-sv-06-2018-BUCH.pdf> download> download
 Operating and installation instructionsM-MBH-Beiblatt-de-en-fr-nl-pt-es-cs-sk-bg-fi-no-sv-04-2018.pdf> download> download
 Operating and installation instructionsM-GMA-de-en-fr-nl-pl-cs-sk-no-sv-02-2017-BUCH.pdf> download> download
 Operating and installation instructionsM-GMA-de-en-fr-nl-pl-cs-sk-no-sv-02-2016-BUCH.pdf> download> download
  Further versions on request

Safety instructions

Sicherheitshinweise-Durchlauferhitzer-de-en-fr-nl-pt-es-pl-sv-cs-sk-bg-no-fi-ru-sr-el-it-tr-ro.pdf

03.11.2023

> download
Safety instructions Sicherheitshinweise-Durchlauferhitzer-de-en-fr-nl-pt-es-pl-sv-cs-sk-bg-no-fi-ru-sr-el-it-tr-ro.pdf 03.11.2023 483 kB
> download

Energy label

M3-Energielabel.pdf

06.09.2017

> download
Energy label M3-Energielabel.pdf 06.09.2017 220 kB
> download

Energy label

M6-Energielabel.pdf

06.09.2017

> download
Energy label M6-Energielabel.pdf 06.09.2017 220 kB
> download

Energy label

M7-Energielabel.pdf

06.09.2017

> download
Energy label M7-Energielabel.pdf 06.09.2017 220 kB
> download

Energy label

M4-Energielabel.pdf

06.09.2017

> download
Energy label M4-Energielabel.pdf 06.09.2017 220 kB
> download

ErP product sheet

M3-M7-ErP-ErP-Produktdatenblatt.pdf

13.02.2017

> download
ErP product sheet M3-M7-ErP-ErP-Produktdatenblatt.pdf 13.02.2017 96 kB
> download

CE Conformity

CE-Konformitaetserklaerung-nach-RoHS3-M-2022-06.pdf

30.06.2022

> download
CE Conformity CE-Konformitaetserklaerung-nach-RoHS3-M-2022-06.pdf 30.06.2022 2,5 MB
> download

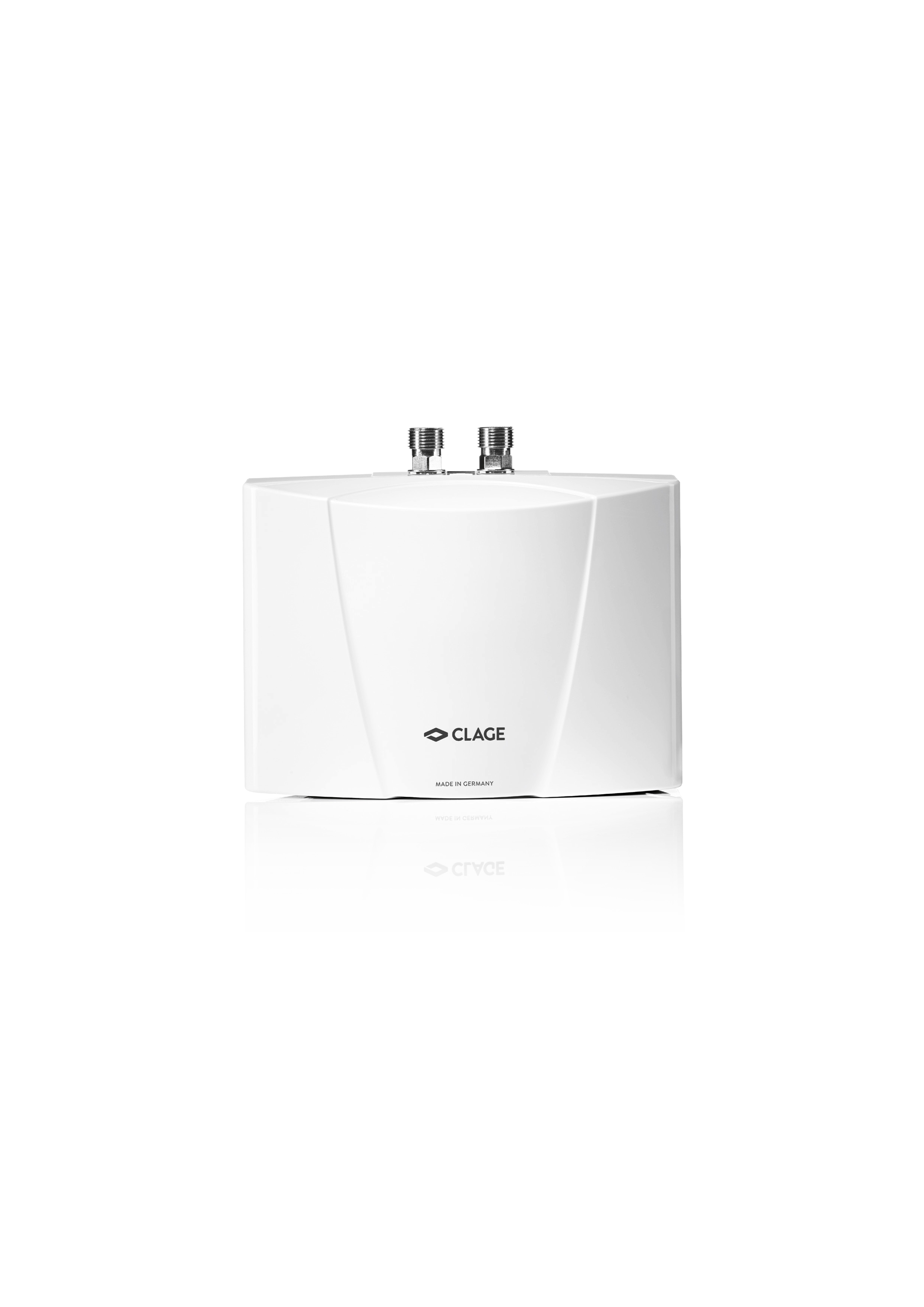

Product photo


11.05.2017

> download
Product photo M-MBH-frontal-HighRes.jpg 11.05.2017 376 kB
> download

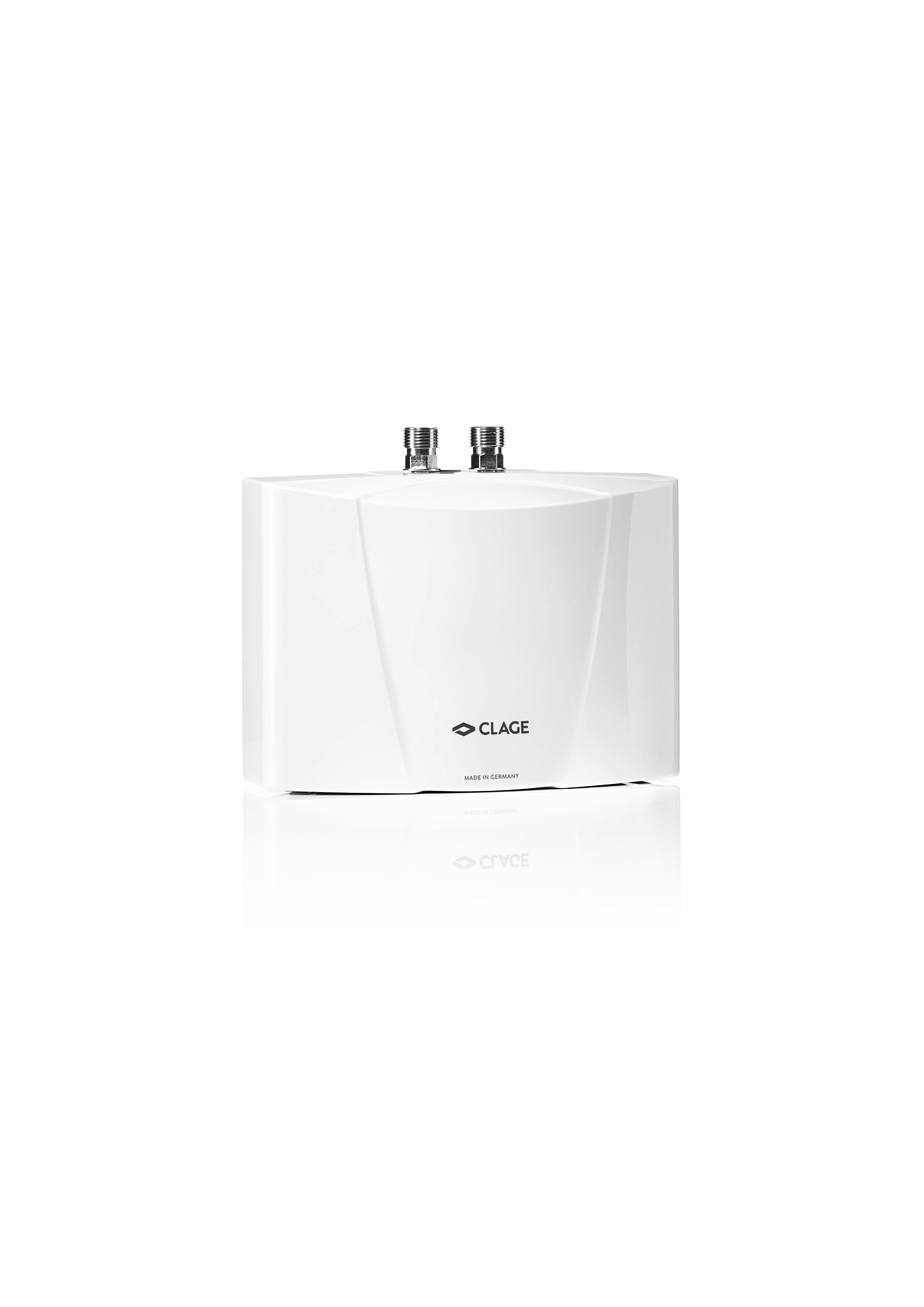

Product photo


11.05.2017

> download
Product photo M-MBH-links-HighRes.jpg 11.05.2017 358 kB
> download

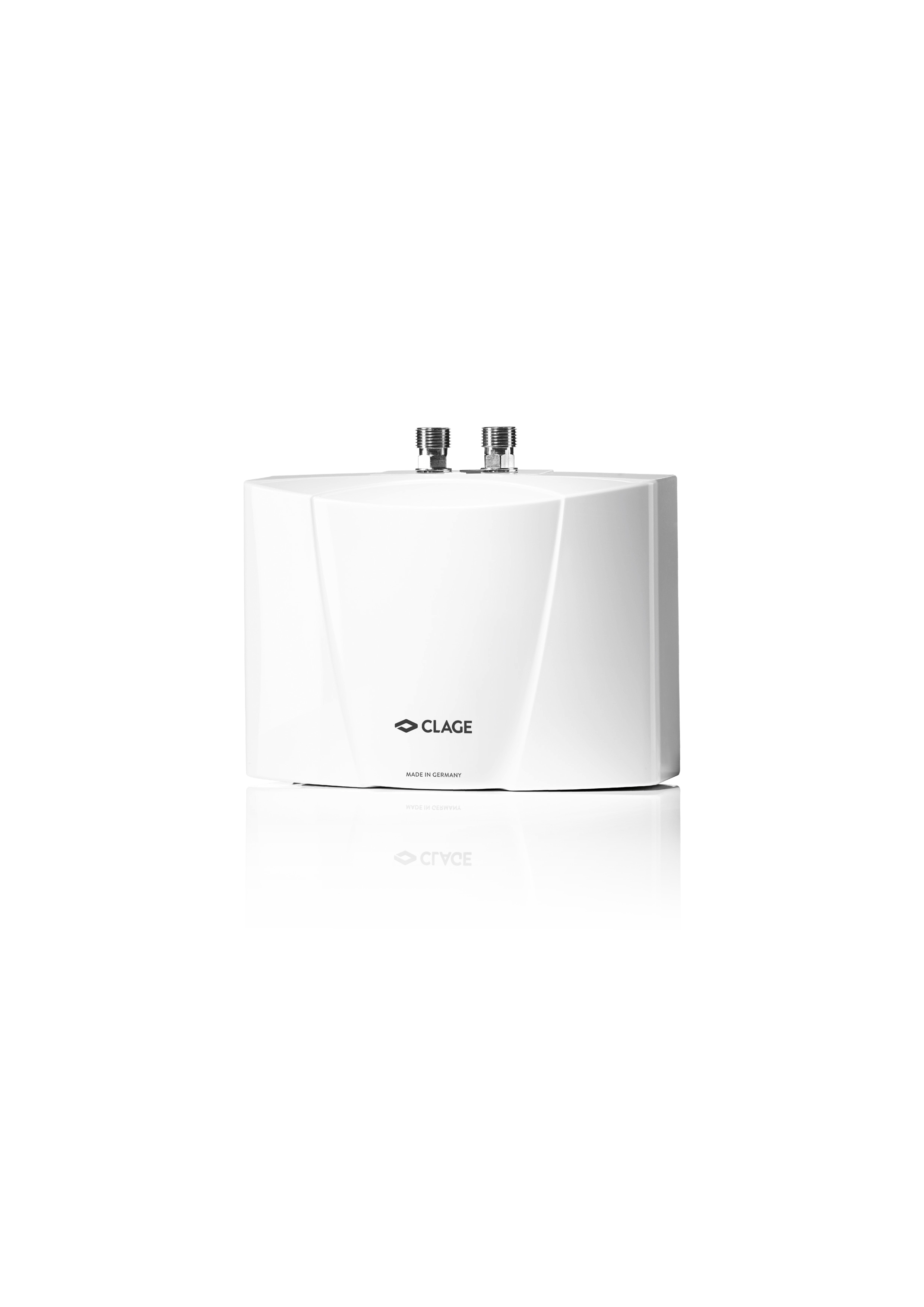

Product photo


11.05.2017

> download
Product photo M_MBH_rechts-HighRes.jpg 11.05.2017 367 kB
> download

Catalogue

CLAGE-Instantaneous-water-heater-Catalogue-en.pdf

20.06.2023

> download
Catalogue CLAGE-Instantaneous-water-heater-Catalogue-en.pdf 20.06.2023 21,7 MB
> download

Price list

CLAGE-Product-Price-List-PPL-en.pdf

10.05.2023

> download
Price list CLAGE-Product-Price-List-PPL-en.pdf 10.05.2023 6,6 MB
> download

BIM

M4-001-BIM.ifc

16.04.2018

> download
BIM M4-001-BIM.ifc 16.04.2018 4,4 MB
> download

BIM

M7-002-BIM.rfa

16.04.2018

> download
BIM M7-002-BIM.rfa 16.04.2018 520 kB
> download

BIM

M3-002-BIM.rfa

16.04.2018

> download
BIM M3-002-BIM.rfa 16.04.2018 520 kB
> download

BIM

M7-001-BIM.ifc

16.04.2018

> download
BIM M7-001-BIM.ifc 16.04.2018 4,4 MB
> download

BIM

M6-001-BIM.ifc

16.04.2018

> download
BIM M6-001-BIM.ifc 16.04.2018 4,4 MB
> download

BIM

M4-002-BIM.rfa

16.04.2018

> download
BIM M4-002-BIM.rfa 16.04.2018 520 kB
> download

BIM

M6-002-BIM.rfa

16.04.2018

> download
BIM M6-002-BIM.rfa 16.04.2018 520 kB
> download

BIM

M3-001-BIM.ifc

16.04.2018

> download
BIM M3-001-BIM.ifc 16.04.2018 4,4 MB
> download

Datanorm

Datanorm.zip

05.02.2021

> download
Datanorm Datanorm.zip 05.02.2021 17,0 MB
> download

GAEB

GAEB.zip

25.11.2020

> download
GAEB GAEB.zip 25.11.2020 36 kB
> download

Accessories

>

CSP 3

CSP 3 (included)

Aerator insert for tap adapter M 22/24 at the tap. The aerator at the tap supports the energy- and water-saving operation of the compact instant water heater. The new special CSP aerators mix air into the water and thus create a uniform water stream that does not splatter but softly cascades down. CSP 3 (< 2 l/min).

CSP 3: Part no. 0010-00421

CSP 6

CSP 6 (included)

Aerator insert for tap adapter M 22/24 at the tap. The aerator at the tap supports the energy- and water-saving operation of the compact instant water heater. The new special CSP aerators mix air into the water and thus create a uniform water stream that does not splatter but softly cascades down. CSP 6 (< 3,5 l/min).

CSP 6: Part no. 0010-00461

AEB

AEB (optional)

Contactless, electronically controlled sensor tap with hygienic rinse activation, height × width: 13.3 × 14.0 cm, 6 V-battery operation

AEB: Part no. 1100-04250

AEN

AEN (optional)

Contactless, electronically controlled sensor tap with hygienic rinse activation, height × width: 13.3 × 14.0 cm, with 230 V-power supply

AEN: Part no. 1100-04255

CSP 3a

CSP 3a (optional)

Aerator with chrome tap adapter M 24a (suitable for taps with internal thread at the outlet)

CSP 3a: Part no. 0010-0043

CSP 3i

CSP 3i (optional)

Aerator with chrome tap adapter M 22i (suitable for taps with external thread at the outlet)

CSP 3i: Part no. 0010-0042

END

END (optional)

Single-lever mixer tap, with Easy-Fix mounting system and pull-up drain stopper, spout 10,5 cm, hight × width: 11,1 × 15,2 cm

END: Part no. 1100-04410

EWT

EWT (optional)

Single lever mixing tap for pressureless installation with nickel- and lead-free water lines, EASY FIX mounting system and pull-up drain stopper, spout 11.2 cm, height × width: 15.1 × 17.5 cm

EWT: Part no. 1100-04420

SNM

SNM (optional)

Two-handle washbasin mixer tap with swivel spout 16 cm, height × width: 22.5 ×16.0 cm

SNM: Part no. 1100-04200

Your advantages:

  1. Cost-saving

    Cost-saving

  2. Space-saving

    Space-saving

  3. Instantly at the right temperature

    Instantly at the right temperature

  4. No dripping taps

    No dripping taps

  5. More hygiene

    More hygiene

  6. Environmentally friendly

    Environmentally friendly
