E-mini instant water heater
MCX

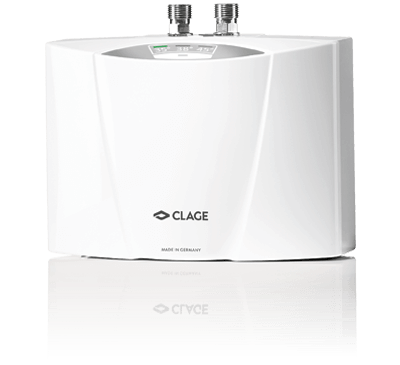

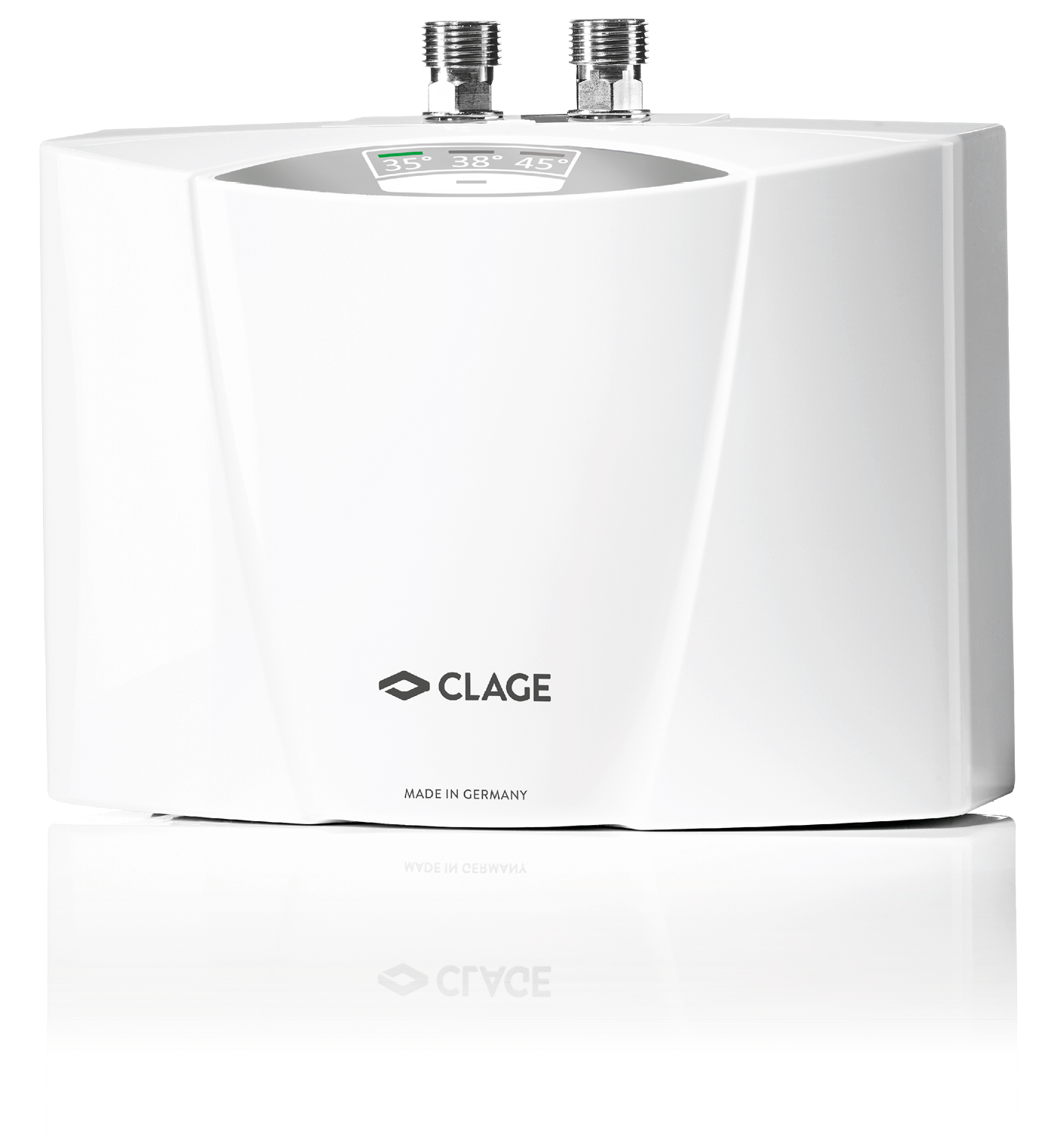

E-mini instant water heater MCX

Energy efficiency class A

(Scale: A+ to F)

  • MCX 3: 3.5 kW, 230 V
    with plug
  • MCX 4: 4.4 kW, 230 V
  • MCX 6: 5.7 kW, 230 V
  • MCX 7: 6.5 kW, 400 V

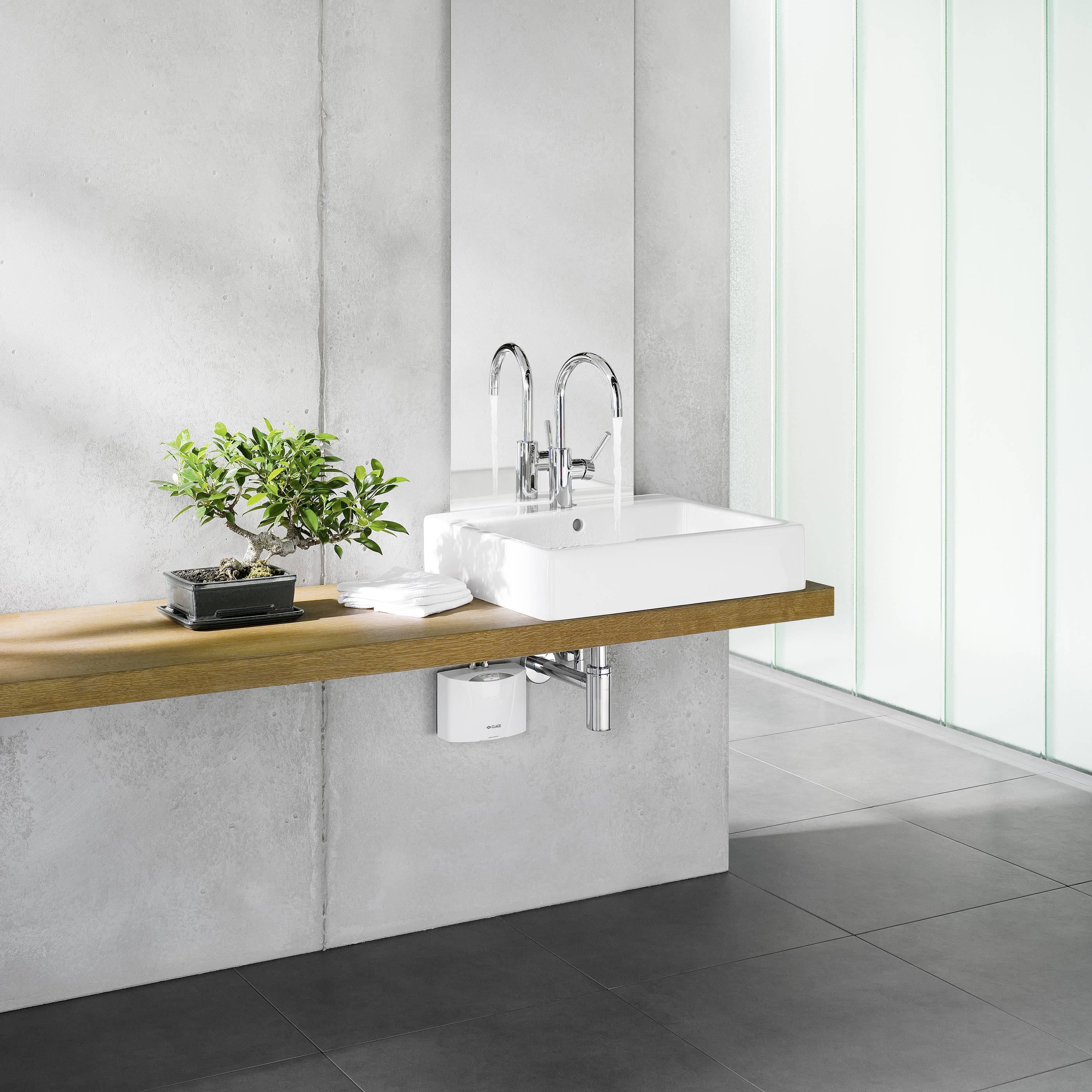

This is where the MCX is used.

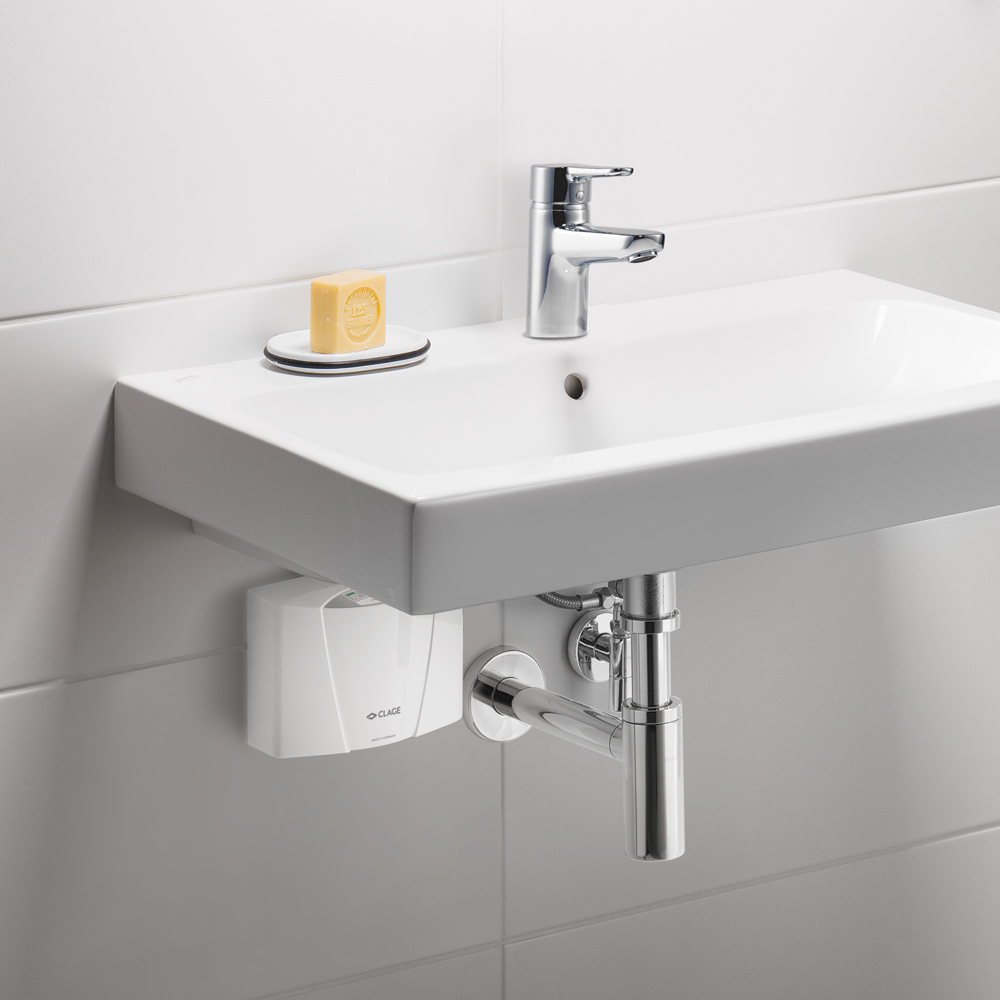

  1. Wash hand basin <nobr>(e.g. guest toilet)</nobr>

    Wash hand basin (e.g. guest toilet)

  2. Sanitary facilities in commercial buildings

    Sanitary facilities in commercial buildings

  3. Staff kitchen

    Staff kitchen

Smart energy efficiency.

The top-of-the-range device among the small instantaneous water heaters convinces with the best functionality and sophisticated design. Well designed, the small appliance fits discreetly into any washbasin situation.

Awards E-mini instant water heater MCX
  • Electronically controlled instant water heater with a compact design for energy-efficient hot water supply of a sink or a staff kitchen
  • The heating output is electronically controlled. This provides an ideal hot water temperature without the need to add cold water at the tap.
  • Touch button controls with colour LEDs to set the outlet temperature to 35 °C, 38 °C or max. 45 °C.
  • Connection kit (T-piece and flexible pressure hose) for an angle valve is included
  • Remote control module available as an accessory: FX3 wireless remote control
  • Dimensions (height × width × depth): 13.5 × 18.6 × 8.7 cm

Technical data

>

Data. Values. Facts.





















E-mini instant water heater MCX 3 E-mini instant water heater MCX 4 E-mini instant water heater MCX 6 E-mini instant water heater MCX 7
Wash hand basin <nobr>(e.g. guest toilet)</nobr> Sanitary facilities in commercial buildings Wash hand basin <nobr>(e.g. guest toilet)</nobr> Sanitary facilities in commercial buildings Wash hand basin <nobr>(e.g. guest toilet)</nobr> Sanitary facilities in commercial buildings Staff kitchen Wash hand basin <nobr>(e.g. guest toilet)</nobr> Sanitary facilities in commercial buildings Staff kitchen
MCX 3 MCX 4 MCX 6 MCX 7
Part number
Nominal power rating at 230 V [kW]
Nominal power rating at 400 V [kW]
Maximum operating pressure [MPa (bar)]
Water connections (thread connections)
Hot water output at Δt = 25 K 1) [l/min]
Switch-on flow rate [l/min]
Maximum flow rate 2) [l/min]
Supply voltage [1~ / N / PE 220–240 V AC] with plug: Schuko Typ-F (CEE 7/7)
Supply voltage [1~ / N / PE 220–240 V AC] permanent connection
Supply voltage [2~ / PE 400 V AC] permanent connection
Nominal current at 230 V [A]
Nominal current at 400 V [A]
Required cable diameter [mm²]
Maximum inlet temperature [°C]
Solar-ready 4)
Protection class
Specific water resistance at 15 °C [Ωcm] ≥
Weight filled with water [kg], approx.
1500-15003 1500-15004 1500-15006 1500-15007
3.5 4.4 5.7
6.5
1 (10) 1 (10) 1 (10) 1 (10)
G ⅜" G ⅜" G ⅜" G ⅜"
2.0 2.5 3.3 3.7
1.2 1.5 1.5 1.5
2.0 2.5 3.3 3.7



15 19 25
16
1.5 2.5 4.0 2.5
70 70 70 70
IP 25 IP 25 IP 25 IP 25
1100 800 800 1100
1.5 1.5 1.5 1.5

1) Temperature increase e.g. from 15 °C to 40 °C

2) Limited flow amount for optimal temperature increase by water flow adjustment

4) Suitable for reheating

Downloads

>

Media type Title Date Size

Product information sheet

FX-PI-en.pdf

18.10.2018

> download
Product information sheet FX-PI-en.pdf 18.10.2018 495 kB
> download

Product information sheet

MCX-PI-en.pdf

08.12.2022

> download
Product information sheet MCX-PI-en.pdf 08.12.2022 1,1 MB
> download

Operating and installation instructions

MCX-GMA-de-en-fr-nl-pl-cs-pt.pdf

28.07.2022

> download
Operating and installation instructions MCX-GMA-de-en-fr-nl-pl-cs-pt.pdf 28.07.2022 6,9 MB
> download
  Older versions>
 Operating and installation instructionsMCX-GMA-de-en-fr-nl-pl-cs-pt-05-2022.pdf> download> download
 Operating and installation instructionsMCX2.0-GMA-de-en-fr-nl-pl-cs-pt-07-2021.pdf> download> download
 Operating and installation instructionsMCX2.0-GMA-de-en-fr-nl-pl-cs-pt-06-2020.pdf> download> download
 Operating and installation instructionsMCX-GMA-de-en-fr-nl-pl-cs-02-2018.pdf> download> download
 Operating and installation instructionsMCX-GMA-de-en-fr-nl-pl-cs-09-2017.pdf> download> download
 Operating and installation instructionsMCX-GMA-de-en-fr-nl-pl-cs-03-2016.pdf> download> download
 Operating and installation instructionsMCX-GMA-de-en-fr-nl-pl-cs-02-2016.pdf> download> download
 Operating and installation instructionsMCX-GMA-de-en-fr-nl-pl-cs-07-2015.pdf> download> download
 Operating and installation instructionsMCX-GMA-de-en-fr-nl-pl-cs-04-2015.pdf> download> download
  Further versions on request

Safety instructions

Sicherheitshinweise-Durchlauferhitzer-de-en-fr-nl-pt-es-pl-sv-cs-sk-bg-no-fi-ru-sr-el-it-tr-ro.pdf

03.11.2023

> download
Safety instructions Sicherheitshinweise-Durchlauferhitzer-de-en-fr-nl-pt-es-pl-sv-cs-sk-bg-no-fi-ru-sr-el-it-tr-ro.pdf 03.11.2023 483 kB
> download

Energy label

MCX3-Energielabel.pdf

06.09.2017

> download
Energy label MCX3-Energielabel.pdf 06.09.2017 220 kB
> download

Energy label

MCX7-Energielabel.pdf

06.09.2017

> download
Energy label MCX7-Energielabel.pdf 06.09.2017 220 kB
> download

Energy label

MCX6-Energielabel.pdf

06.09.2017

> download
Energy label MCX6-Energielabel.pdf 06.09.2017 220 kB
> download

Energy label

MCX4-Energielabel.pdf

06.09.2017

> download
Energy label MCX4-Energielabel.pdf 06.09.2017 220 kB
> download

ErP product sheet

MCX3-MCX7-ErP-Produktdatenblatt.pdf

06.02.2017

> download
ErP product sheet MCX3-MCX7-ErP-Produktdatenblatt.pdf 06.02.2017 95 kB
> download

CE Conformity

CE-Konformitaetserklaerung-nach-RED+RoHS3-MX-2021-10.pdf

05.11.2021

> download
CE Conformity CE-Konformitaetserklaerung-nach-RED+RoHS3-MX-2021-10.pdf 05.11.2021 1,3 MB
> download

Product photo


10.04.2018

> download
Product photo MCX-Produktfoto-frontal.png 10.04.2018 1,3 MB
> download

Image photo


10.04.2018

> download
Image photo MCX-Milieu.jpg 10.04.2018 831 kB
> download

Image photo


23.06.2020

> download
Image photo MCX-Milieufoto-grau-Seife.jpg 23.06.2020 177 kB
> download

Info graphic

Smart-Control.pdf

18.05.2022

> download
Info graphic Smart-Control.pdf 18.05.2022 2,1 MB
> download

Catalogue

CLAGE-Instantaneous-water-heater-Catalogue-en.pdf

20.06.2023

> download
Catalogue CLAGE-Instantaneous-water-heater-Catalogue-en.pdf 20.06.2023 21,7 MB
> download

Catalogue

CLAGE-Brochure-en.pdf

31.01.2023

> download
Catalogue CLAGE-Brochure-en.pdf 31.01.2023 5,7 MB
> download

General

CLAGE-Hot-Water-Guide-for-House-Construction-en.pdf

23.05.2022

> download
General CLAGE-Hot-Water-Guide-for-House-Construction-en.pdf 23.05.2022 5,2 MB
> download

Price list

CLAGE-Product-Price-List-PPL-en.pdf

10.05.2023

> download
Price list CLAGE-Product-Price-List-PPL-en.pdf 10.05.2023 6,6 MB
> download

BIM

MCX-MBX-BIM.rfa

12.12.2023

> download
BIM MCX-MBX-BIM.rfa 12.12.2023 736 kB
> download

BIM

MCX-MBX-BIM.ifc

12.12.2023

> download
BIM MCX-MBX-BIM.ifc 12.12.2023 1,9 MB
> download

Datanorm

Datanorm.zip

05.02.2021

> download
Datanorm Datanorm.zip 05.02.2021 17,0 MB
> download

GAEB

GAEB.zip

25.11.2020

> download
GAEB GAEB.zip 25.11.2020 36 kB
> download

Accessories

>

CSP 3

CSP 3 (included)

Aerator insert for tap adapter M 22/24 at the tap. The aerator at the tap supports the energy- and water-saving operation of the compact instant water heater. The new special CSP aerators mix air into the water and thus create a uniform water stream that does not splatter but softly cascades down. CSP 3 (< 2 l/min).

CSP 3: Part no. 0010-00421

CSP 6

CSP 6 (included)

Aerator insert for tap adapter M 22/24 at the tap. The aerator at the tap supports the energy- and water-saving operation of the compact instant water heater. The new special CSP aerators mix air into the water and thus create a uniform water stream that does not splatter but softly cascades down. CSP 6 (< 3,5 l/min).

CSP 6: Part no. 0010-00461

FVS

FVS (included)

Flexible connecting hose ⅜ inch cap nut × ⅜ inch cap nut, length 50 cm

FVS: Part no. 89620

T-piece

T-piece (included)

Special T-connector ⅜ inch cap nut × ⅜ inch angle valve 10 mm

T-piece: Part no. 89610

CSP 3a

CSP 3a (optional)

Aerator with chrome tap adapter M 24a (suitable for taps with internal thread at the outlet)

CSP 3a: Part no. 0010-0043

CSP 3i

CSP 3i (optional)

Aerator with chrome tap adapter M 22i (suitable for taps with external thread at the outlet)

CSP 3i: Part no. 0010-0042

FXS 3 (D, M)

FXS 3 (D, M) (optional)

FX 3 Radio remote control plus Bluetooth® radio adapter FXE in a set for installation in the instantaneous water heater. In addition to the operation at the device, the radio remote control enables the comfortable temperature adjustment of the instantaneous water heater over a distance of approx. 10 metres in the building. Secure Bluetooth wireless transmission, stepless temperature selection via two keys, two fixed value keys and an LCD display, magnetic wall bracket and batteries (included). IP 20. Dimensions (H × B × T): 5,8 × 12,5 × 1,9 cm

FXS 3 (D, M): Part no. 3200-34020

FXE 3 (D, M)

FXE 3 (D, M) (optional)

Bluetooth® radio adapter for installation in the instantaneous water heater to connect the electric instantaneous water heater to the Smartphone / Tablet or the CLAGE remote control. This extension is required if the devices are not yet equipped with a FX 3 radio remote control.

FXE 3 (D, M): Part no. 3200-34022
