Radio remote control
FX

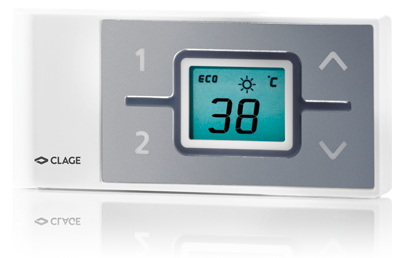

Radio remote control FX
  • FX
  • FX (until 2016)

This is where the FX is used.

  1. Instantaneous water heaters

    Instantaneous water heaters

Whether near or far: convenient temperature adjustment!

The FX radio remote control is a supplement for compatible instantaneous water heaters (e.g. MCX, MCX Blue, CFX-U, CEX-U, CEX, CEX 7-U, CEX 9-U, CEX 9, DSX Touch, DSX, DEX and DSX Twin). It enables convenient temperature adjustment of the instantaneous water heater over a distance of approx. 10 metres in the building in addition to operation on the unit. Including radio adapter for installation in the instant e-compact-instant-water-heaters

  • Radio remote control for electronic instantaneous water heaters
  • Temperature selection via two keys plus two programmable fixed value keys
  • LCD display
  • Bidirectional communication for secure data transmission between radio remote control and instantaneous water heater
  • Radio adapter FXE for installation in the instantaneous water heater included in the scope of delivery of FX
  • Batteries included
  • Magnetic wall mount included in delivery
  • Dimensions (height × width × depth): 5.8 × 12.5 × 1.9 cm

Technical data

>

Data. Values. Facts.












Radio remote control FX Radio remote control FX (until 2016)
Instantaneous water heaters Instantaneous water heaters
FX FX (until 2016)
Part number
Compatible with instant water heaters from year of manufacture
Compatible with instant water heaters up to and including year of manufacture
Operating voltage [V]
Battery type 1)
Radio Frequency Range [MHz]
Radio emission [undirected]
Transmitting power [mW], <
Wireless range 2) [m]
Protection class 3)
2400-26090 2400-26050
2017
2016
3 3
2 × AAA Alkaline 2 × AAA Alkaline
868.0 – 868.6 868.0 – 868.6
10 10
10 10
IP 20 IP 20

1) Do not use rechargeable batteries

2) With consideration of a wall

3) Do not expose the radio remote control to moisture

Downloads

>

Media Title Date Size

Operating and installation instructions

FX-GMA-de-en-fr.pdf

22.01.2019

> download
Operating and installation instructions FX-GMA-de-en-fr.pdf 22.01.2019 2,7 MB
> download
  Older versions>
 Operating and installation instructionsFX-GMA-de-en-fr-02-2017.pdf> download> download
 Operating and installation instructionsFX-GMA-de-en-12-2015.pdf> download> download
  Further versions on request

Catalogue

CLAGE-Instantaneous-water-heater-Catalogue-en.pdf

23.08.2018

> download
Catalogue CLAGE-Instantaneous-water-heater-Catalogue-en.pdf 23.08.2018 17,7 MB
> download

GAEB

GAEB.zip

14.05.2019

> download
GAEB GAEB.zip 14.05.2019 19,9 MB
> download

Accessories

>

FX

FX (included)

Remote control including transmission unit FXE for installation into the instantaneous water heater. In addition to user controls directly at the unit, the remote control allows for convenient temperature adjustment of the instant water heater at interior distances of up to 10 meters. Secure, bidirectional wireless transfer, continuous two-button temperature selection, two pre-set buttons and a LCD display, magnetic wall holder and ­batteries (included). IP 20. Dimensions (H × W × D): 5.8 × 12.5 × 1.9 cm

FX: Part no. 2400-26090

FXE

FXE (included)

Transmission adapter for connecting the E-instant water heater to the Home Server. This extension is required if the devices are not yet equipped with a FX remote control.

FXE: Part no. 3200-34035

Similar products:

E-mini instant water heater MCX
MCX 3: 3.5 kW, 230 V, with plug
MCX 4: 4.4 kW, 230 V
MCX 6: 5.7 kW, 230 V
MCX 7: 6.5 kW, 400 V
E-mini instant water heater with tap MCX Blue
MCX Blue: 3.5 kW, 230 V, with plug
MCX (E) Blue: 3.5 kW, 230 V
E-compact instant water heater CFX-U
CFX-U: 11/13.5 kW, 400 V
E-compact instant water heater CEX-U
CEX-U: 11/13.5 kW, 400 V
E-compact instant water heater CEX
CEX: 11/13.5 kW, 400 V
E-compact instant water heater CEX 9-U
CEX 9-U: 6.6/8.8 kW, 220–240 V, permanent connection
E-compact instant water heater CEX 9
CEX 9: 6.6/8.8 kW, 220–240 V

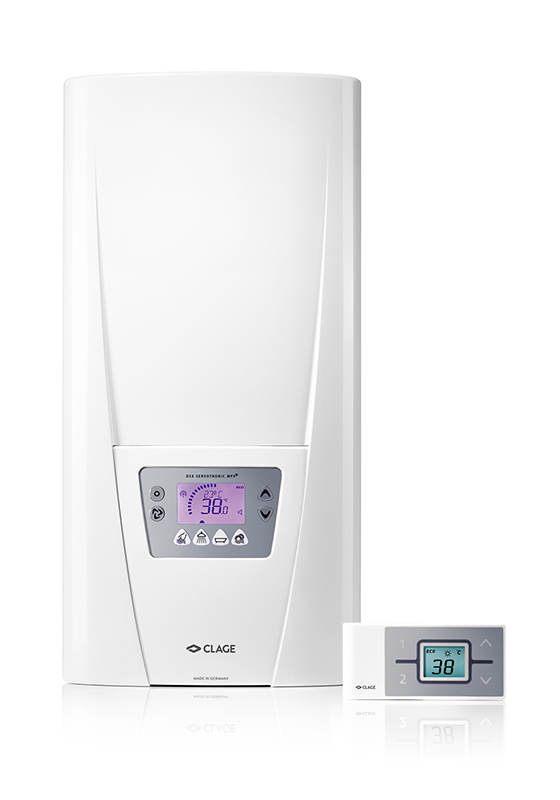

E-comfort instant water heater DSX
DSX: 18/21/24/27 kW, 400 V

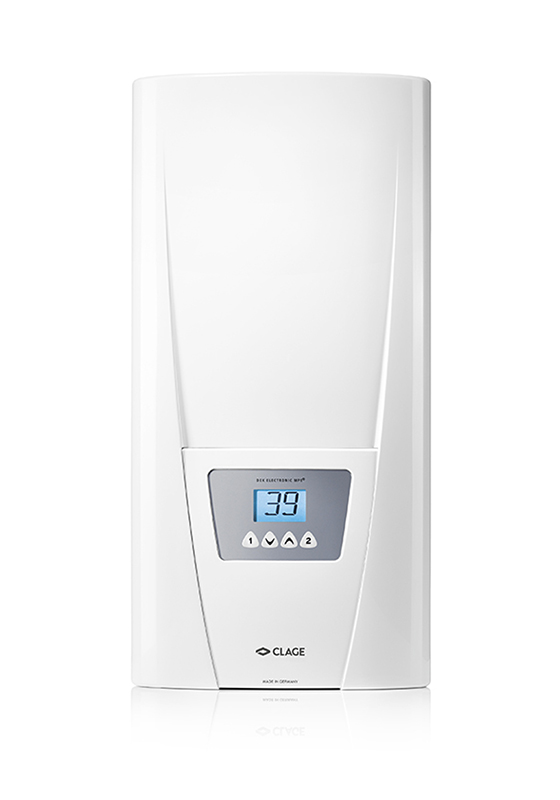

E-comfort instant water heater DEX
DEX: 18/21/24/27 kW, 400 V

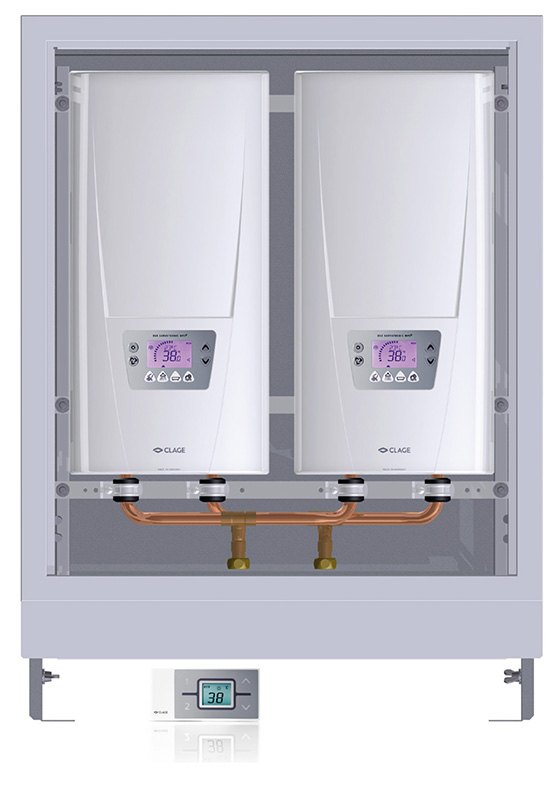

E-comfort instant water heater DSX Twin
DSX Twin: 2 × 18/21/24/27 kW, 2 × 400 V
