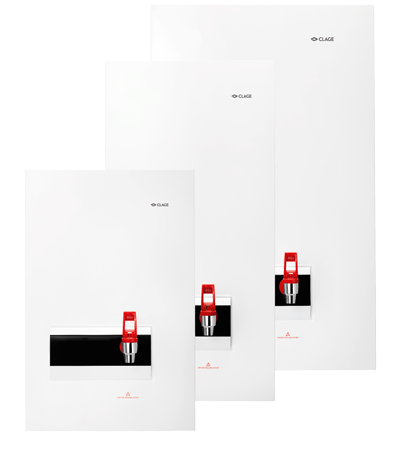

Boiling water heater
Zip Hydroboil (2021)
- Hydroboil 15: 2.8 kW, 230 V
- Hydroboil 25: 2.8 kW, 230 V
- Hydroboil 40: 5.6 kW, 400 V
Here Zip Hydroboil is used.
-
Offices
-
Canteens / Bistros
-
Gastronomy / Hotels
-
Hospitals
-
Catering companies
Up to 240 cups of boiling
water per hour.
The large instant boiling water heaters allow for effective operation and quickly prepared hot beverages, even in large quantities. This heater significantly increases productivity in restaurants, hospitals and staff cafeterias.
The two-way safety nozzle has two positions: Normal position for cup filling and locking position for convenient can filling.
- Boiling water automat for the constant supply of boiling water in large quantities
- The two-chamber system with hot water tank made of PPS material prevents mixing of cold and hot water
- Nozzle for convenient filling of a can or individual cups
- No steam outlet, steam is used internally to heat the water flowing in.
- High-quality thermal insulation
- Two service openings for easy descaling
- Safety thermal cut-out
- Dimensions Hydroboil 15 (height × width × depth): 60 × 39 × 29,9 cm
- Dimensions Hydroboil 25 (height × width × depth): 78 × 39 × 29,9 cm
- Dimensions Hydroboil 40 (height × width × depth): 84 × 51,5 × 28,4 cm
Technical data
>
Data. Values. Facts.
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
1) Standard cup with 167 ml
2) Inlet temperature 10 °C
Downloads
>
| Media type | Title | Date | Size | |
|---|---|---|---|---|
Product information sheet Zip-Hydroboil-PI-en.pdf 23.09.2019 > download |
Product information sheet | Zip-Hydroboil-PI-en.pdf | 23.09.2019 |
756 kB > download |
Operating and installation instructions Zip-Hydroboil-GMA-de-en-fr.pdf 25.11.2019 > download |
Operating and installation instructions | Zip-Hydroboil-GMA-de-en-fr.pdf | 25.11.2019 |
936 kB > download |
| Older versions> | ||||
| Operating and installation instructions | Zip-Hydroboil-GMA-de-en-05-2019.pdf> download | > download | ||
| Further versions on request | ||||
Price list CLAGE-Product-Price-List-PPL-en.pdf 10.05.2023 > download |
Price list | CLAGE-Product-Price-List-PPL-en.pdf | 10.05.2023 |
6,6 MB > download |
BIM Zip Hydroboil.rfa 24.11.2022 > download |
BIM | Zip Hydroboil.rfa | 24.11.2022 |
516 kB > download |
|
Datanorm Datanorm.zip 05.02.2021 > download |
Datanorm | Datanorm.zip | 05.02.2021 |
17,0 MB > download |
|
GAEB GAEB.zip 25.11.2020 > download |
GAEB | GAEB.zip | 25.11.2020 |
36 kB > download |
Accessories
>
Filter head FK (optional)
For installation of CLAGE filters KKF and KSF on all Zip units. The connection accessories must be ordered separately.
Filter head FK: Part no. 845071
KA A (optional)
Connection set for 1 or 2 additional side dispensing valves for Hydroboil 40
KA A: Part no. 84427
KA Z (optional)
Additional dispensing valve for Hydroboil 15, 25 and 40
KA Z: Part no. 84321
KA AZ (optional)
Connection set for 1 or 2 additional side dispensing valves for Hydroboil 15 and Hydroboil 25
KA AZ: Part no. 84426
KAS 1 (optional)
Collecting funnel for undersink installation, ¾-inch
KAS 1: Part no. 4100-44085
KAS 2 (optional)
Collecting funnel for wall installation, ¾-inch
KAS 2: Part no. 4100-44086
KAT 1 (optional)
Stainless steel draining tray, 32.5 × 17.5 cm
KAT 1: Part no. 4100-44080
KAT 2 (optional)
Stainless steel draining tray with waste water connection, 32.5 × 17.5 cm
KAT 2: Part no. 4100-44081
KKF lime filter cartridge (optional)
Two-stage ion exchange cartridge for softening, pH stabilization and filtration of water for equipment for the production of hot beverages, coffee specialties and tea. Reduces minerals such as calcium and magnesium, as well as chlorine, odors and flavors. Uses pH ion exchange resins, pH stabilization prevents excessive acidity. Stabilization made of coconut membrane with particularly high capacity. Reduces water hardness, which can lead to scale formation in boiling water machines. Hygienic and easy replacement of filter cartridges. Internal filter parts are not exposed to contact or contamination.
KKF lime filter cartridge: Part no. 845064
