E-compact instant water heater
CFX-U

E-compact instant water heater CFX-U

Energy efficiency class A

(Scale: A+ to F)

  • CFX-U: 11/13.5 kW, 400 V

This is where the CFX-U is used.

  1. Kitchen sink

    Kitchen sink

  2. Washstand

    Washstand

  3. Double washbasin

    Double washbasin

Efficiency and convenience in one sweep.

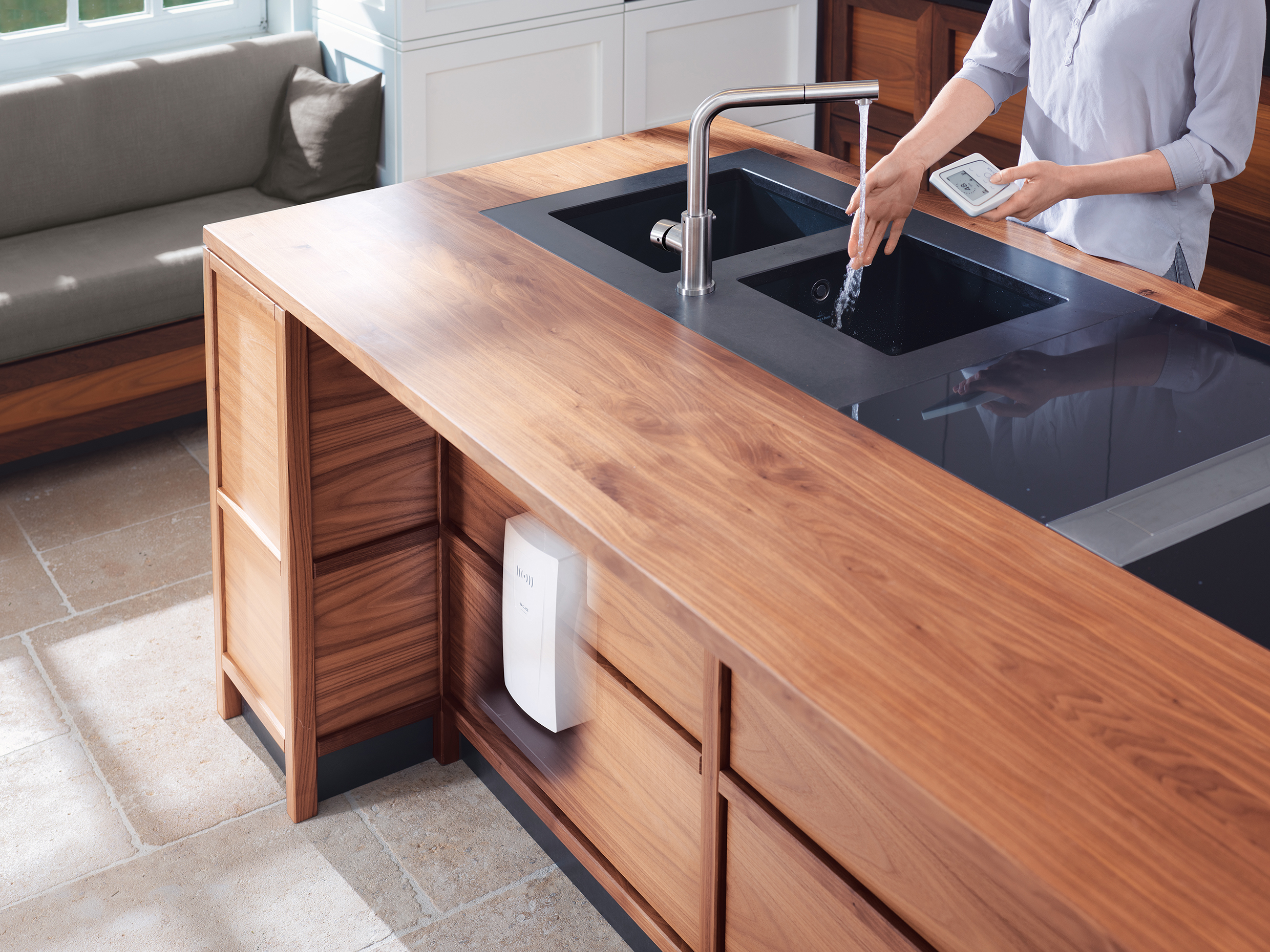

An especially smart solution for energy-efficient hot water supply at the kitchen sink is the E-compact instant water heater CFX-U. While the compact and space-saving unit is installed under the kitchen sink, the temperature of the instant water heater can be conveniently controlled via remote control. You can preselect the perfect temperature and avoid heat losses due to mixed water.

Awards E-compact instant water heater CFX-U
  • Electronically controlled instant water heater in compact design and wireless remote control for installation under the sink
  • Temperature setting from 20 °C to 60 °C via bidirectional wireless remote control
  • In the comfort zone between 35 °C and 43 °C, the temperature can be set in 0.5 degree increments
  • Adding cold water is no longer necessary

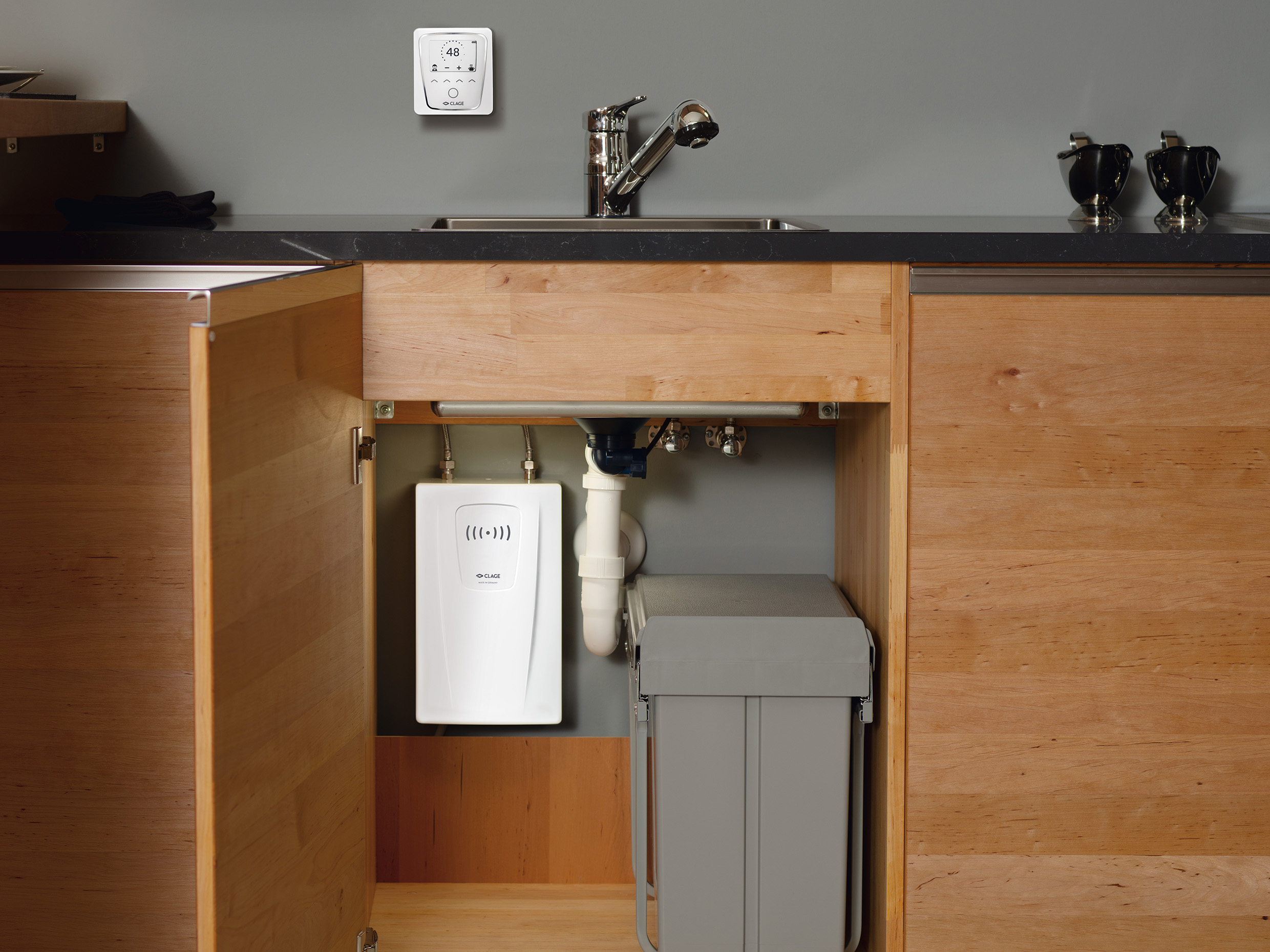

  • Easy installation under the kitchen sink facilitated by small dimensions and external ⅜" water connectors for unvented or vented installation
  • Precise temperatures due to TWIN TEMPERATURE control TTC® up to the capacity of the appliance
  • With the Multiple Power System MPS®, the maximum power rating is set at the time of installation
  • With power cable for permanent electrical connection
  • Dimensions (height × width × depth): 29.4 × 17.7 × 10.8 cm

Technical data

>

Data. Values. Facts.

















E-compact instant water heater CFX-U
Kitchen sink Washstand Double washbasin
CFX-U
Part number
Nominal power rating 1) (variably adjustable due to MPS) at 400 V [kW]
Maximum operating pressure [MPa (bar)]
Water connections (thread connections)
Hot water output at Δt = 33 K 2) [l/min]
Switch-on flow rate [l/min]
Maximum flow rate 3) [l/min]
Supply voltage [3~ / PE 380–415 V AC] Permanent connection
Nominal current at 400 V [A]
Required cable diameter [mm²]
Maximum inlet temperature [°C]
Solar-ready 4)
Protection class
Specific water resistance at 15 °C [Ωcm] ≥
Weight filled with water [kg], approx.
2400-26313
11.0 13.5
1 (10) 1 (10)
G ⅜" G ⅜"
4.8 5.8
2 2
5 5
16 20
1.5 2.5
60 60
IP 24 IP 24
1000 1000
2.7 2.7

1) The selected power rating determines the values of nominal current, cable diameter and hot water output

2) Temperature increase e.g. from 12 °C to 45 °C (mixed water at flow rate >5 l/min)

3) Limited flow amount for optimal temperature increase

4) Suitable for reheating

Downloads

>

Media type Title Date Size

Product information sheet

CFXU-PI-en.pdf

13.07.2021

> download
Product information sheet CFXU-PI-en.pdf 13.07.2021 775 kB
> download

Operating instructions

CFXU-GA-de-en-fr-nl-pt-es-pl-sv-cs-sk.pdf

01.06.2021

> download
Operating instructions CFXU-GA-de-en-fr-nl-pt-es-pl-sv-cs-sk.pdf 01.06.2021 8,5 MB
> download
  Older versions>
 Operating instructionsCFXU-v2.2-GA-de-en-fr-nl-pt-es-pl-sv-cs-sk-08-2020.pdf> download> download
 Operating and installation instructionsCFXU-v2.2-GA-de-en-fr-nl-pt-es-pl-sv-cs-sk-09-2018.pdf> download> download
 Operating instructionsCFXU-GA-10_Sprachen-08-2016.pdf> download> download
 Operating instructionsCFXU-GA-10_Sprachen-06-2015-v2.1.pdf> download> download
 Operating instructionsCFXU-GA-10_Sprachen-v2.1-05-2015.pdf> download> download
  Further versions on request

Installation instructions

CFXU-MA-de-en-fr-nl-pt-es-pl-sv-cs-sk.pdf

01.06.2021

> download
Installation instructions CFXU-MA-de-en-fr-nl-pt-es-pl-sv-cs-sk.pdf 01.06.2021 10,9 MB
> download
  Older versions>
 Installation instructionsCFXU-v2.2-MA-de-en-fr-nl-pt-es-pl-sv-cs-sk-08-2020.pdf> download> download
 Installation instructionsCFXU-v2.2-MA-de-en-fr-nl-pt-es-pl-sv-cs-sk-08-2019.pdf> download> download
 Installation instructionsCFXU-v2.2-MA-de-en-fr-nl-pt-es-pl-sv-cs-sk-09-2018.pdf> download> download
 Installation instructionsCFXU-MA-10-Sprachen-08-2016.pdf> download> download
 Installation instructionsCFXU-MA-10_Sprachen-06-2015-v2.1.pdf> download> download
 Installation instructionsCFXU-MA-10_Sprachen-v2.1-05-2015.pdf> download> download
  Further versions on request

Operating and installation instructions

CX2-DX2-Beiblatt-60Grad-de-en-fr-nl-pt-es-pl-sv-cs-sk-03-2021.pdf

31.03.2021

> download
Operating and installation instructions CX2-DX2-Beiblatt-60Grad-de-en-fr-nl-pt-es-pl-sv-cs-sk-03-2021.pdf 31.03.2021 29 kB
> download

Safety instructions

Sicherheitshinweise-Durchlauferhitzer-de-en-fr-nl-pt-es-pl-sv-cs-sk-bg-no-fi-ru-sr-el-it-tr-ro.pdf

19.03.2021

> download
Safety instructions Sicherheitshinweise-Durchlauferhitzer-de-en-fr-nl-pt-es-pl-sv-cs-sk-bg-no-fi-ru-sr-el-it-tr-ro.pdf 19.03.2021 572 kB
> download

Energy label

CFXU-Energielabel.pdf

13.02.2017

> download
Energy label CFXU-Energielabel.pdf 13.02.2017 270 kB
> download

ErP product sheet

CFX-U-ErP-Produktdatenblatt.pdf

13.02.2017

> download
ErP product sheet CFX-U-ErP-Produktdatenblatt.pdf 13.02.2017 174 kB
> download

CE Conformity

CE-Konformitaetserklaerung-nach-RED+RoHS3-CX-2021-09.pdf

05.11.2021

> download
CE Conformity CE-Konformitaetserklaerung-nach-RED+RoHS3-CX-2021-09.pdf 05.11.2021 161 kB
> download

Product photo


11.05.2017

> download
Product photo CFX-U_FX_frontal-HighRes.jpg 11.05.2017 759 kB
> download

Product photo


11.05.2017

> download
Product photo CFX-U_FX_rechts-HighRes.jpg 11.05.2017 789 kB
> download

Product photo


11.05.2017

> download
Product photo CFX-U_FX_links-HighRes.jpg 11.05.2017 754 kB
> download

Image photo


11.05.2017

> download
Image photo CFX-U-Milieufoto.jpg 11.05.2017 418 kB
> download

Image photo


11.05.2017

> download
Image photo C-Serie-Warmwasserbedarf-Milieufoto.jpg 11.05.2017 304 kB
> download

Catalogue

CLAGE-Instantaneous-water-heater-Catalogue-en.pdf

08.01.2021

> download
Catalogue CLAGE-Instantaneous-water-heater-Catalogue-en.pdf 08.01.2021 17,7 MB
> download

Catalogue

CLAGE-Brochure-en.pdf

26.11.2020

> download
Catalogue CLAGE-Brochure-en.pdf 26.11.2020 3,4 MB
> download

Hotnews

CLAGE-Hotnews-en-02-2019.pdf

11.03.2019

> download
Hotnews CLAGE-Hotnews-en-02-2019.pdf 11.03.2019 15,6 MB
> download

General

CLAGE-Hot-Water-Guide-for-House-Construction-en.pdf

19.08.2021

> download
General CLAGE-Hot-Water-Guide-for-House-Construction-en.pdf 19.08.2021 5,7 MB
> download

Price list

CLAGE-Product-Price-List-PPL-en.pdf

29.07.2021

> download
Price list CLAGE-Product-Price-List-PPL-en.pdf 29.07.2021 3,3 MB
> download

BIM

CFX13U-001-BIM.ifc

16.04.2018

> download
BIM CFX13U-001-BIM.ifc 16.04.2018 1,9 MB
> download

BIM

CFXU-002-BIM.rfa

16.04.2018

> download
BIM CFXU-002-BIM.rfa 16.04.2018 1,1 MB
> download

BIM

CFX11U-001-BIM.ifc

16.04.2018

> download
BIM CFX11U-001-BIM.ifc 16.04.2018 1,9 MB
> download

Datanorm

Datanorm.zip

05.02.2021

> download
Datanorm Datanorm.zip 05.02.2021 39,7 MB
> download

GAEB

GAEB.zip

25.11.2020

> download
GAEB GAEB.zip 25.11.2020 377 kB
> download

Accessories

>

FVS

FVS (included)

Flexible connecting hose ⅜ inch cap nut × ⅜ inch cap nut, length 50 cm

FVS: Part no. 89620

FX

FX (included)

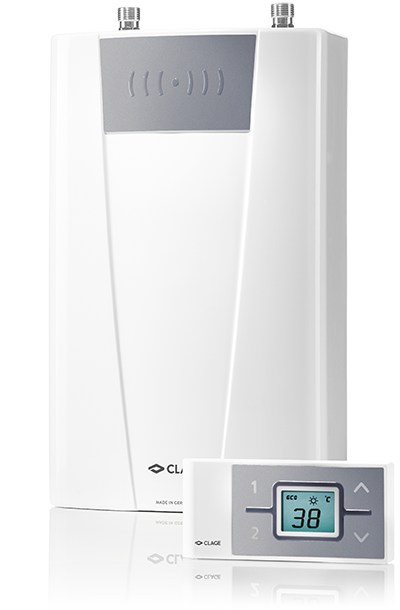

Remote control including transmission unit FXE for installation into the instantaneous water heater. In addition to user controls directly at the unit, the remote control allows for convenient temperature adjustment of the instant water heater at interior distances of up to 10 meters. Secure, bidirectional wireless transfer, continuous two-button temperature selection, two pre-set buttons and a LCD display, magnetic wall holder and ­batteries (included). IP 20. Dimensions (H × W × D): 5.8 × 12.5 × 1.9 cm
