Zip HydroTap G4 BC (Alt/EoL)

Water system Zip HydroTap G4 BC (Alt/EoL)
  • G4 BC 100/75
    no longer available

Archive product

Please note: This product is no longer available!

If you have any questions, please contact our After-Sales Service or visit our online spare parts shop. Please have the device type, serial number and, if available, your CLAGE customer number ready.

After-Sales Service
Phone +49-4131-8901-400
service@clage.de

Visit our online spare parts shop here.
- - - - -

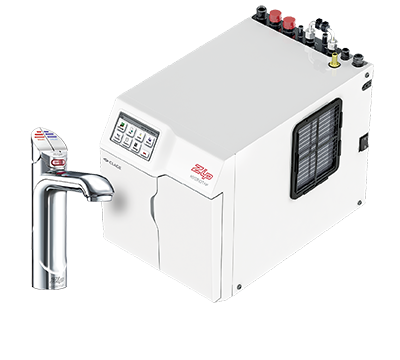

Your choice of filtered boiling hot or ice-cold ­water – this water system offers both with the touch of a button in staff kitchens and meeting points without waiting times. Especially suited for smaller and mid-size offices. The integrated filter improves the water quality and the touch display makes it easy to configure the energy saving mode.

Awards Water system Zip HydroTap G4 BC (Alt/EoL)
  • Electronic dispensing tap with lever operation, function indicators and safety lock for scalding protection
  • Touch display for menu navigation, for activating the energy saver mode and scalding protection as well as temperature setting of the boiling water, locking position of the levers for convenient filling without holding
  • Electronic temperature control
  • Easily exchangeable particle filter cartridge with active carbon block for filtering contaminants > 0.2 microns, improved taste
  • Leakage protection system
  • Dimensions G4 BC 100/75 (height × width × depth): 33,5 × 29 × 46 cm

Technical data

>

Data. Values. Facts.






















Water system G4 BC 100/75

G4 BC 100/75
Part number
Nominal power rating [kW]
Maximum number of users
Water connection (thread connection) 1)
Water connection (thread connection) 2)
Boiling water temperature, adjustable [°C]
Chilled water temperature, adjustable [°C]:
Boiling water capacity [cups / h] 3)
Chilled water capacity [glasses / h] 4)
Boiling water content [litres]
Boiling water content [cups]
Chilled water content [litres]
Chilled water content [glasses]
Reheating time [cups / min]
Standby power consumption 5) [kWh / 24h]
Supply voltage [1~ / N / PE 230 V AC] with plug: Schuko Typ-F (CEE 7/7)
Compact undersink unit [white]
Tap [chrome]
Protection class
Weight filled with water [kg], approx.
4100-44277
2.05
< 15
G ⅜"
G ½"
68 – 100
5 – 13
100
75
2.3
13
1.8
9
1.6
0.75
IP 20
24

1) With supplied adapter G ⅜"

2) Connection hose G ½” to G ½” is required (not included in scope of delivery)

3) Standard cup with 167 ml

4) Standard glass with 200 ml

5) At 12 hours in standby mode

Downloads

>

Media type Title Date Size

Product information sheet

Zip-HydroTap-G4-BC-PI-en.pdf

18.10.2018

> download
Product information sheet Zip-HydroTap-G4-BC-PI-en.pdf 18.10.2018 462 kB
> download

Product information sheet

Claris-Filter-systems-PI-en.pdf

18.10.2018

> download
Product information sheet Claris-Filter-systems-PI-en.pdf 18.10.2018 383 kB
> download

Operating instructions

G4-BC100-75-User-Guide-de-en-fr-EOL.pdf

28.02.2018

> download
Operating instructions G4-BC100-75-User-Guide-de-en-fr-EOL.pdf 28.02.2018 1,7 MB
> download
  Older versions>
 Operating instructionsG4-BC100-75-User-Guide-de-en-10-2017.pdf> download> download
 Operating instructionsG4-BC-User-Guide-de-en-08-2016.pdf> download> download
 Operating instructionsG4-BC-User-Guide-de-en-03-2016.pdf> download> download
 Operating instructionsG4-BC-User-Guide-de-en-v1.1-10.2015.pdf> download> download
 Operating instructionsG4-BC-User-Guide-de-en-v1.0-08.2015.pdf> download> download
  Further versions on request

Operating and installation instructions

HydroTap-G4-BC100-75-GMA-de-en-fr-EOL.pdf

26.02.2018

> download
Operating and installation instructions HydroTap-G4-BC100-75-GMA-de-en-fr-EOL.pdf 26.02.2018 1,1 MB
> download
  Older versions>
 Operating and installation instructionsHydroTap-G4-BC160-175-GMA-de-en-08-2017.pdf> download> download
 Operating and installation instructionsHydroTap-G4-BC100-75-GMA-de-en-06-2017.pdf> download> download
 Operating and installation instructionsHydroTap-G4-BC160-175-GMA-de-en-06-2017.pdf> download> download
 Operating and installation instructionsHydroTap-G4-BC-GMA-de-en-08-2016.pdf> download> download
 Operating and installation instructionsHydroTap-G4-BC-GMA-de-en-03-2016.pdf> download> download
 Operating and installation instructionsHydroTap-G4-BC-GMA-de-en-09-2015.pdf> download> download
 Operating and installation instructionsHydroTap-G4-BC-GMA-de-en-07-2015.pdf> download> download
 Operating and installation instructionsHydroTap-G4-BC-GMA-de-en-05-2015-Laserdruck.pdf> download> download
  Further versions on request

CE Conformity

G4-BCS10075-BC10075-Konformitaetserklaerung-CE-Conformity-de-en-2016-11.pdf

17.07.2018

> download
CE Conformity G4-BCS10075-BC10075-Konformitaetserklaerung-CE-Conformity-de-en-2016-11.pdf 17.07.2018 379 kB
> download

BIM

BC100-001-BIM.ifc

16.04.2018

> download
BIM BC100-001-BIM.ifc 16.04.2018 361 kB
> download

BIM

BC100-001-BIM.rfa

16.04.2018

> download
BIM BC100-001-BIM.rfa 16.04.2018 524 kB
> download

Accessories

>

KXF  2.1

KXF  2.1 (included)

Sub-micron particle filter cartridge filters contaminants > 0.2 microns and additionally improves the taste of the water. For Zip HydroTap® G4 models since 02.2017 and G5 models since 2022.

KXF  2.1: Part no. 893702

DTK

DTK (optional)

The digital temperature controller for Zip devices is used to keep the temperature in the cupboard under 35 °C when normal ventilation is not sufficient. The digital controller operates independently of the undersink unit and will require a separate 230 V socket.

DTK: Part no. 893159

Filter head FK

Filter head FK (optional)

For installation of CLAGE filters KKF and KSF on all Zip units. The connection accessories must be ordered separately.

Filter head FK: Part no. 845071

KKF lime filter cartridge

KKF lime filter cartridge (optional)

Two-stage ion exchange cartridge for softening, pH stabilization and filtration of water for equipment for the production of hot beverages, coffee specialties and tea. Reduces minerals such as calcium and magnesium, as well as chlorine, odors and flavors. Uses pH ion exchange resins, pH stabilization prevents excessive acidity. Stabilization made of coconut membrane with particularly high capacity. Reduces water hardness, which can lead to scale formation in boiling water machines. Hygienic and easy replacement of filter cartridges. Internal filter parts are not exposed to contact or contamination.

KKF lime filter cartridge: Part no. 845064

KXA 10

KXA 10 (optional)

Zip HydroTap® units are delivered with a polished chrome tap finish by default.

KXA 10: Part no. 4100-44150

KXF 2

KXF 2 (optional)

Sub-micron particle filter cartridge filters contaminants > 0.2 microns and additionally improves the taste of the water. For Zip HydroTap® G4 models before 02.2017.

KXF 2: Part no. 891290

KXF  2.1

KXF  2.1 (optional)

Sub-micron particle filter cartridge filters contaminants > 0.2 microns and additionally improves the taste of the water. For Zip HydroTap® G4 models since 02.2017 and G5 models since 2022.

KXF  2.1: Part no. 893702

KXTV

KXTV (optional)

For tap "Classic", "Classic Plus", "Touch-Free": The optional stainless steel draining tray with waste water connection and chrome extension allows for flexible installation of the electronic dispensing tap at any location away from the sink. Extension by 13.5 cm. Finish: polished chrome.

KXTV: Part no. 4100-44565

KXV

KXV (optional)

For tap "Classic", "Classic Plus", "Touch-Free": The optional chrome extension allows for raising the electronic dispensing tap by 13.5 cm. Finish: polished chrome.

KXV: Part no. 4100-44165
