Water system

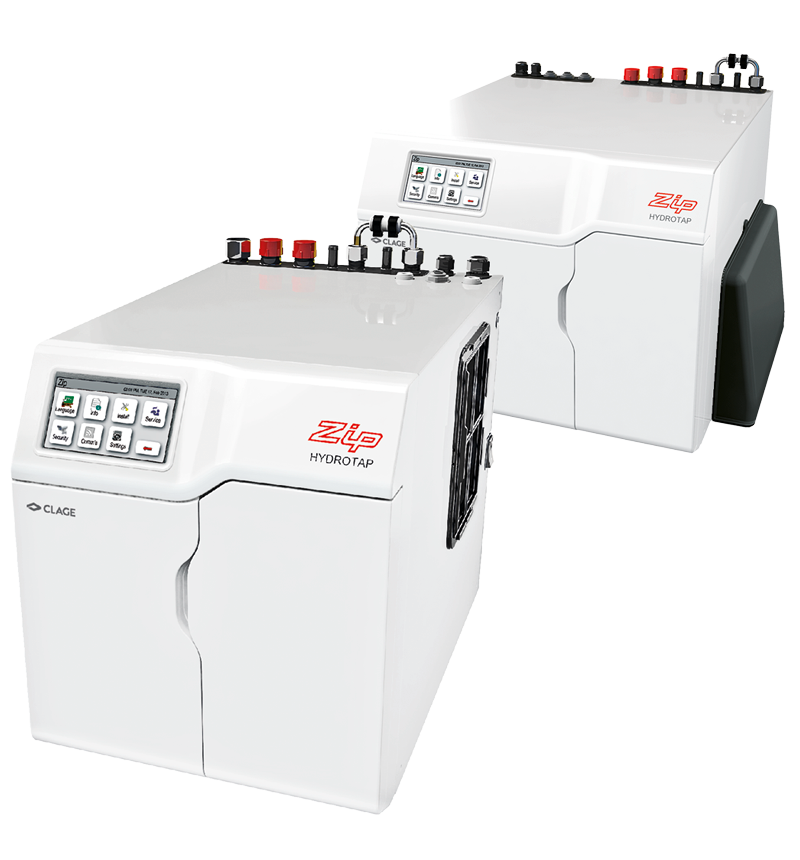

Zip HydroTap G4 BCS

- G4 BCS 100/75: 2.15 kW, 230 V
- G4 BCS 160/175: 2.3 kW, 230 V
The Zip HydroTap G4 BCS delivers
-
Boiling water
-
Chilled still water
-
Chilled sparkling water
The finest - maximum
water comfort !
The top appliance among the water systems convinces with maximum comfort. It delivers filtered boiling, chilled and carbonated water in seconds from a single tap. The built-in filter improves the water quality, and the energy-saving function can be conveniently configured via the touch display.
The "Zip HydroTap BCS" under-sink water system can be combined with the following taps:
- Electronic water system for under-sink installation for immediate provision of filtered boiling and chilled water, optionally carbonated
- Touchdisplay for menu control, for activation of the energy-saving mode and scalding protection as well as the temperature setting of the boiling water
- Electronic temperature control
- Easily replaceable fine filter cartridge with activated carbon block for improving taste and filtering pollutants
> 0.2 micrometers - Leakage protection system
- Dimensions G4 BCS 100/75 (height × width × depth): 33.5 × 35.4 × 46 cm
- Dimensions G4 BCS 160/175 (height × width × depth): 33.5 × 45.4 × 47 cmPlease order tap, carbon dioxide gas cylinder and pressure reducer separately!



Technical data
>
Data. Values. Facts.
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
1) With supplied adapter G ⅜"
2) Connection hose G ½” to G ½” is required (not included in scope of delivery)
3) Standard cup with 167 ml
4) Standard glass with 200 ml
5) At 12 hours in standby mode
Downloads
>
Media type | Title | Date | Size | |
---|---|---|---|---|
![]() Product information sheet Zip-HydroTap-G4-BCS-PI-en.pdf 12.07.2021 > download |
Product information sheet | Zip-HydroTap-G4-BCS-PI-en.pdf | 12.07.2021 |
2,8 MB > download |
![]() Operating instructions Zip-HydroTap-G4-BCS100-75-User-Guide-de-en-fr.pdf 29.04.2019 > download |
Operating instructions | Zip-HydroTap-G4-BCS100-75-User-Guide-de-en-fr.pdf | 29.04.2019 |
1,9 MB > download |
![]() Operating instructions Zip-HydroTap-G4-BCS160-175-User-Guide-de-en-fr.pdf 29.04.2019 > download |
Operating instructions | Zip-HydroTap-G4-BCS160-175-User-Guide-de-en-fr.pdf | 29.04.2019 |
1,9 MB > download |
![]() Operating and installation instructions Zip-HydroTap-G4-BCS160-175-GMA-de-en-fr.pdf 03.09.2019 > download |
Operating and installation instructions | Zip-HydroTap-G4-BCS160-175-GMA-de-en-fr.pdf | 03.09.2019 |
3,9 MB > download |
Older versions> | ||||
Operating and installation instructions | Zip-HydroTap-G4-BCS160-175-GMA-de-en-fr-04-2019.pdf> download | > download | ||
Further versions on request | ||||
![]() Operating and installation instructions Zip-HydroTap-G4-BCS100-75-GMA-de-en-fr.pdf 03.09.2019 > download |
Operating and installation instructions | Zip-HydroTap-G4-BCS100-75-GMA-de-en-fr.pdf | 03.09.2019 |
3,7 MB > download |
Older versions> | ||||
Operating and installation instructions | Zip-HydroTap-G4-BCS100-75-GMA-de-en-fr-04-2019.pdf> download | > download | ||
Further versions on request | ||||
![]() Price list CLAGE-Product-Price-List-PPL-en.pdf 29.07.2021 > download |
Price list | CLAGE-Product-Price-List-PPL-en.pdf | 29.07.2021 |
6,2 MB > download |
![]() Datanorm Datanorm.zip 05.02.2021 > download |
Datanorm | Datanorm.zip | 05.02.2021 |
17,0 MB > download |
![]() GAEB GAEB.zip 25.11.2020 > download |
GAEB | GAEB.zip | 25.11.2020 |
36 kB > download |
Accessories
>

KXF 2.1 (included)
Sub-micron particle filter cartridge filters contaminants > 0.2 microns and additionally improves the taste of the water. For Zip HydroTap® G4 models since 02.2017.
KXF 2.1: Part no. 893702

Classic BCS, polished chrome (optional)
Electronic tap for Zip HydroTap BCS with operating buttons at the top, function display, holding function for convenient piot filling, fixed spout 12 cm, height 21 cm, Ø 35 mm hole required.
Classic BCS, polished chrome: Part no. 4100-44500

Classic BCS, brushed chrome (optional)
Electronic tap for Zip HydroTap BCS with operating buttons at the top, function display, holding function for convenient pot filling, fixed spout 12 cm, height 21 cm, Ø 35 mm hole required.
Classic BCS, brushed chrome: Part no. 4100-44501

Classic BCS, matte black (optional)
Electronic tap for Zip HydroTap BCS with operating buttons at the top, function display, holding function for convenient pot filling, fixed spout 12 cm, height 21 cm, Ø 35 mm hole required.
Classic BCS, matte black: Part no. 4100-44502

Arc BCS, polished chrome (optional)
Electronic tap for Zip HydroTap BCS with lateral control button, fixed pipe outlet 16 cm, height 35 cm, Ø 35 mm hole drilling required.
Arc BCS, polished chrome: Part no. 4100-44503

Arc BCS, brushed chrome (optional)
Electronic tap for Zip HydroTap BCS with lateral control button, fixed pipe outlet 16 cm, height 35 cm, Ø 35 mm hole drilling required.
Arc BCS, brushed chrome: Part no. 4100-44504

Arc BCS, matte black (optional)
Electronic tap for Zip HydroTap BCS with lateral control button, fixed pipe outlet 16 cm, height 35 cm, Ø 35 mm hole drilling required.
Arc BCS, matte black: Part no. 4100-44505

Celsius Arc AIO "All-in-one", polished chrome (optional)
All-round tap for boiling, chilled and carbonated water from the Zip HydroTap under-table unit as well as additional normal tap water from the central or decentralised supply (adjustable via the lateral control lever). Rotatable pipe outlet 22 cm, height 44 cm, Ø 50 mm hole drilling required.
Celsius Arc AIO "All-in-one", polished chrome: Part no. 4100-44524

Celsius Arc AIO "All-in-one", brushed chrome (optional)
All-round tap for boiling, chilled and carbonated water from the Zip HydroTap under-table unit as well as additional normal tap water from the central or decentralised supply (adjustable via the lateral control lever). Rotatable pipe outlet 22 cm, height 44 cm, Ø 50 mm hole drilling required.
Celsius Arc AIO "All-in-one", brushed chrome: Part no. 4100-44525

Celsius Arc AIO "All-in-one", matte black (optional)
All-round fitting for boiling, chilled and carbonated water from the Zip HydroTap under-table unit as well as additional normal tap water from the central or decentralised supply (adjustable via the lateral control lever). Rotatable pipe outlet 22 cm, height 44 cm, Ø 50 mm hole drilling required.
Celsius Arc AIO "All-in-one", matte black: Part no. 4100-44526

Claris Ultra 500 (optional)
Filter cartridge, capacity at 10 °KH 4.200 litre. For hard, chalky water, the filter system Claris Ultra is to be used (recommended from 10 °KH).
Claris Ultra 500: Part no. 84500
- Product information sheetClaris-Filter-systems-PI-en.pdf (383 kB)
- Operating and installation instructionsClaris-Ultra-Filterpatrone-GMA-de-en-fr.pdf (723 kB)

Claris Ultra 1000 (optional)
Filter cartridge, capacity at 10 °KH 8.500 litre. For hard, chalky water, the filter system Claris Ultra is to be used (recommended from 10 °KH).
Claris Ultra 1000: Part no. 84501
- Product information sheetClaris-Filter-systems-PI-en.pdf (383 kB)
- Operating and installation instructionsClaris-Ultra-Filterpatrone-GMA-de-en-fr.pdf (723 kB)

Claris Ultra 2000 (optional)
Filter cartridge, capacity at 10 °KH 20.000 litre. For hard, chalky water, the filter system Claris Ultra is to be used (recommended from 10 °KH).
Claris Ultra 2000: Part no. 84502
- Product information sheetClaris-Filter-systems-PI-en.pdf (383 kB)
- Operating and installation instructionsClaris-Ultra-Filterpatrone-GMA-de-en-fr.pdf (723 kB)

COF (optional)
CO2 gas cylinder for Soda Club connecting thread. (Only available for dispatch within Germany.)
COF: Part no. 9910-90005

DMBCS (optional)
Pressure reducer with standard CO2 connecting thread (½ inch), gas cylinders can be obtained via specialist gas suppliers
DMBCS: Part no. 4100-44120

DMSP (optional)
Pressure reducer with Soda Club connecting thread
DMSP: Part no. 4100-44125

DTK (optional)
The digital temperature controller for Zip devices is used to keep the temperature in the cupboard under 35 °C when normal ventilation is not sufficient. The digital controller operates independently of the undersink unit and will require a separate 230 V socket.
DTK: Part no. 893159

Filter Head Universal (optional)
Filter head suitable for all Claris Ultra filter. For hard, chalky water, the filter system Claris Ultra is to be used (recommended from 10 °KH). (For the "Miniboil" and "G3" Zip models, the connection accessories with quick-release connectors are also required, Part no. 84521)
Filter Head Universal: Part no. 84519
- Operating and installation instructionsClaris-Filterkopf-Universal-GMA-de-en.pdf (1,17 MB)

KXB (optional)
Plastic installation kit for G4 BCS 160/175, allows for easier installation of ventilation in the base cabinet. Dimensions (H × W × D): 4.0 × 49.5 × 50.0 cm.
KXB: Part no. 893450

KXF 2.1 (optional)
Sub-micron particle filter cartridge filters contaminants > 0.2 microns and additionally improves the taste of the water. For Zip HydroTap® G4 models since 02.2017.
KXF 2.1: Part no. 893702

KXT (optional)
For tap “Arc”: The optional stainless steel draining tray with waste water connection allows for flexible installation of the electronic dispensing tap at any location away from the sink. Finish: polished chrome.
KXT: Part no. 4100-44560
- Installation accessoriesZip-HydroTap- G4-Arc-Montageschablone-de-en-fr.pdf (34 kB)

KXT (optional)
For tap “Arc”: The optional stainless steel draining tray with waste water connection allows for flexible installation of the electronic dispensing tap at any location away from the sink. Finish: brushed chrome.
KXT: Part no. 4100-44561
- Installation accessoriesZip-HydroTap- G4-Arc-Montageschablone-de-en-fr.pdf (34 kB)

KXT (optional)
For tap “Arc”: The optional stainless steel draining tray with waste water connection allows for flexible installation of the electronic dispensing tap at any location away from the sink. Finish: matte black.
KXT: Part no. 4100-44562
- Installation accessoriesZip-HydroTap- G4-Arc-Montageschablone-de-en-fr.pdf (34 kB)

KXTV (optional)
For tap "Classic", "Classic Plus", "Touch-Free": The optional stainless steel draining tray with waste water connection and chrome extension allows for flexible installation of the electronic dispensing tap at any location away from the sink. Finish: polished chrome.
KXTV: Part no. 4100-44565
- Installation accessoriesZip-Montageschablone-Tableau-de-en-fr.pdf (91 kB)

KXTV (optional)
For tap "Classic", "Classic Plus", "Touch-Free": The optional stainless steel draining tray with waste water connection and chrome extension allows for flexible installation of the electronic dispensing tap at any location away from the sink. Finish: brushed chrome.
KXTV: Part no. 4100-44566
- Installation accessoriesZip-Montageschablone-Tableau-de-en-fr.pdf (91 kB)

KXTV (optional)
For tap "Classic", "Classic Plus", "Touch-Free": The optional stainless steel draining tray with waste water connection and extension allows for flexible installation of the electronic dispensing tap at any location away from the sink. Finish: matte black.
KXTV: Part no. 4100-44567
- Installation accessoriesZip-Montageschablone-Tableau-de-en-fr.pdf (91 kB)

KXV (optional)
For tap "Classic", "Classic Plus", "Touch-Free": The optional chrome extension allows for raising the electronic dispensing tap by 13.5 cm. Finish: polished chrome.
KXV: Part no. 4100-44165

KXV (optional)
For tap "Classic", "Classic Plus", "Touch-Free": The optional chrome extension allows for raising the electronic dispensing tap by 13.5 cm. Finish: brushed chrome.
KXV: Part no. 4100-44166

KXV (optional)
For tap "Classic", "Classic Plus", "Touch-Free": The optional extension allows for raising the electronic dispensing tap by 13.5 cm. Finish: matte black.
KXV: Part no. 4100-44167
